14-26 RAM 2500 4WD 4.5" STAGE 5 SUSPENSION SYSTEM

ICON suspension systems for the 14-26 Ram 2500 4WD were designed with performance and ride quality in mind. ICON 2.5 Series shocks deliver balanced performance front to rear, perfect for daily driving, towing, and spirited off-road use.

ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 5 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These features make this Stage 5 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.

• ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
• Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
• Vehicle specific tuned front and rear 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality

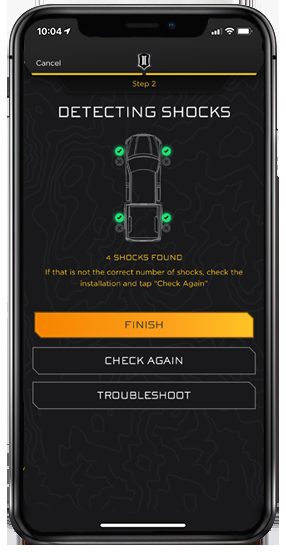

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

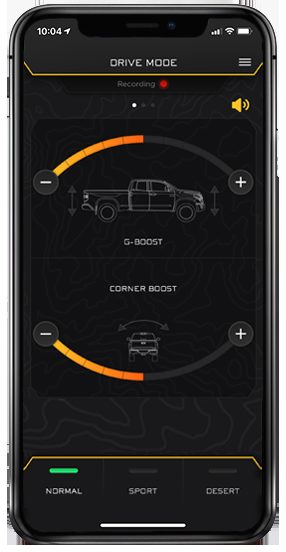

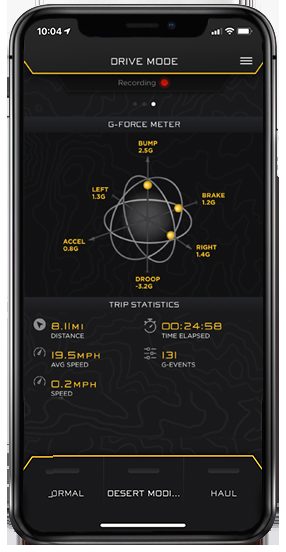

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Increased wheel travel and suspension performance over stock with no change in towing capacity
• Adjustable front and rear track bars realign axles and improve strength
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• 2.0 Aluminum Series steering stabilizer helps control larger tires with increased steering damping
• Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
• Fabricated rear coil spacers provide 2" of rear lift and allow use of stock rear coil springs
• Level stance from front to rear of vehicle
