Icon K213117 - 2019-2026 Ram 1500, 2-3" Lift, Stage 7 Suspension System, Billet

Icon K213117 - 2019-2026 Ram 1500, 2-3" Lift, Stage 7 Suspension System, Billet

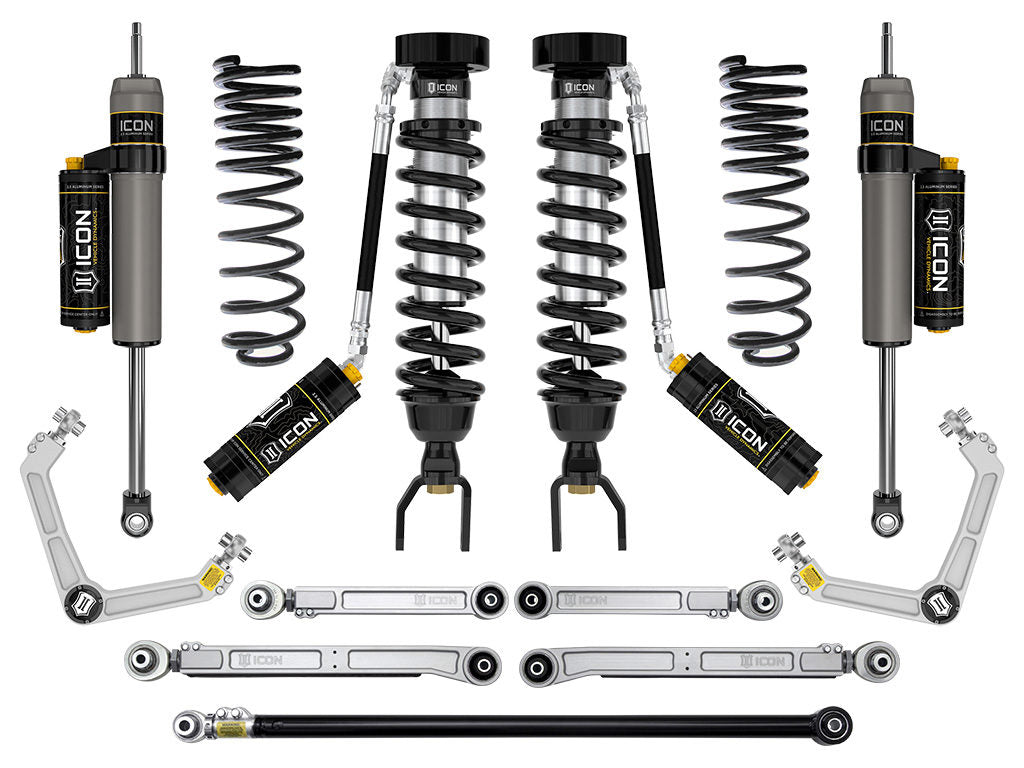

19-26 RAM 1500 2-3" STAGE 7 SUSPENSION SYSTEM W/ BILLET UCA

ICON 2019-2026 Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON's primary focus is to increase wheel travel and damping ability, translating to outstanding control and ride quality.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable remote reservoir coilovers yield 2-3" of front lift height over stock
• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and performance
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Billet Upper Control Arms with Delta Joint ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
• 2.5 Aluminum Series rear piggyback reservoir shocks with 7/8" polished shafts
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Dual rate rear coil springs improve performance and ride quality while providing 1.5" of rear lift
• On-vehicle adjustable rear track bar for precise track alignment using ICON’s Double Adjuster
• Billet aluminum rear upper and lower links improve strength, articulation, and are adjustable while installed on-vehicle for various ride heights and driveline angles
• 6061 Aircraft grade aluminum CNC machined components
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
