Icon - 91717

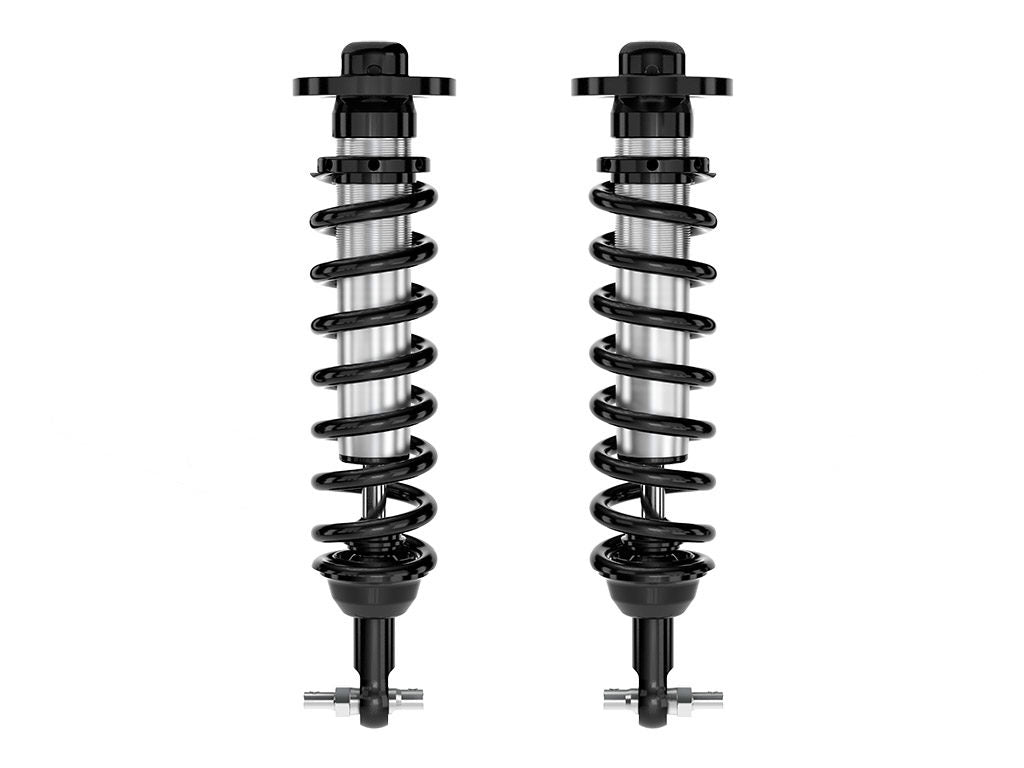

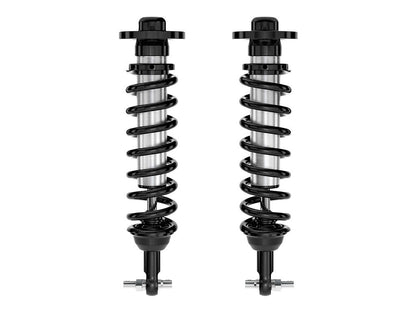

21-23 F150 2WD 0-3" 2.5 VS IR COILOVER KIT
ICON 2.5 Series coilovers with internal reservoirs provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.

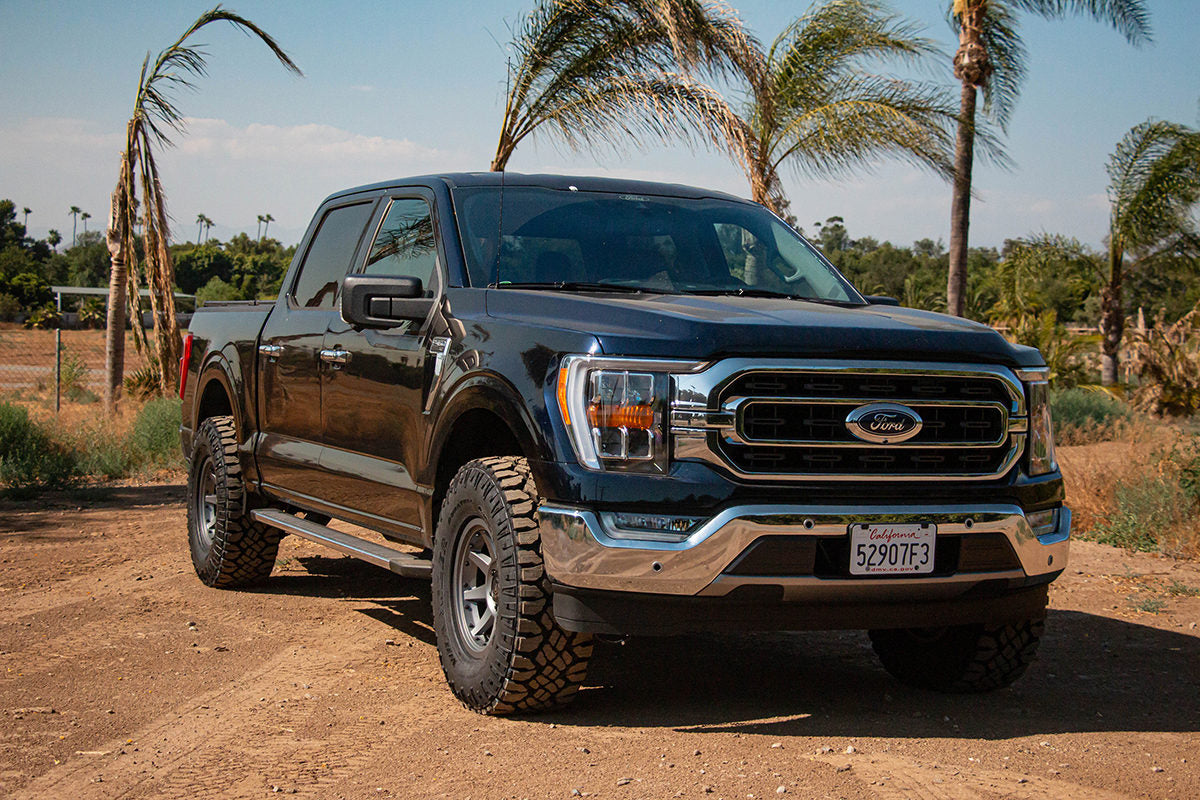

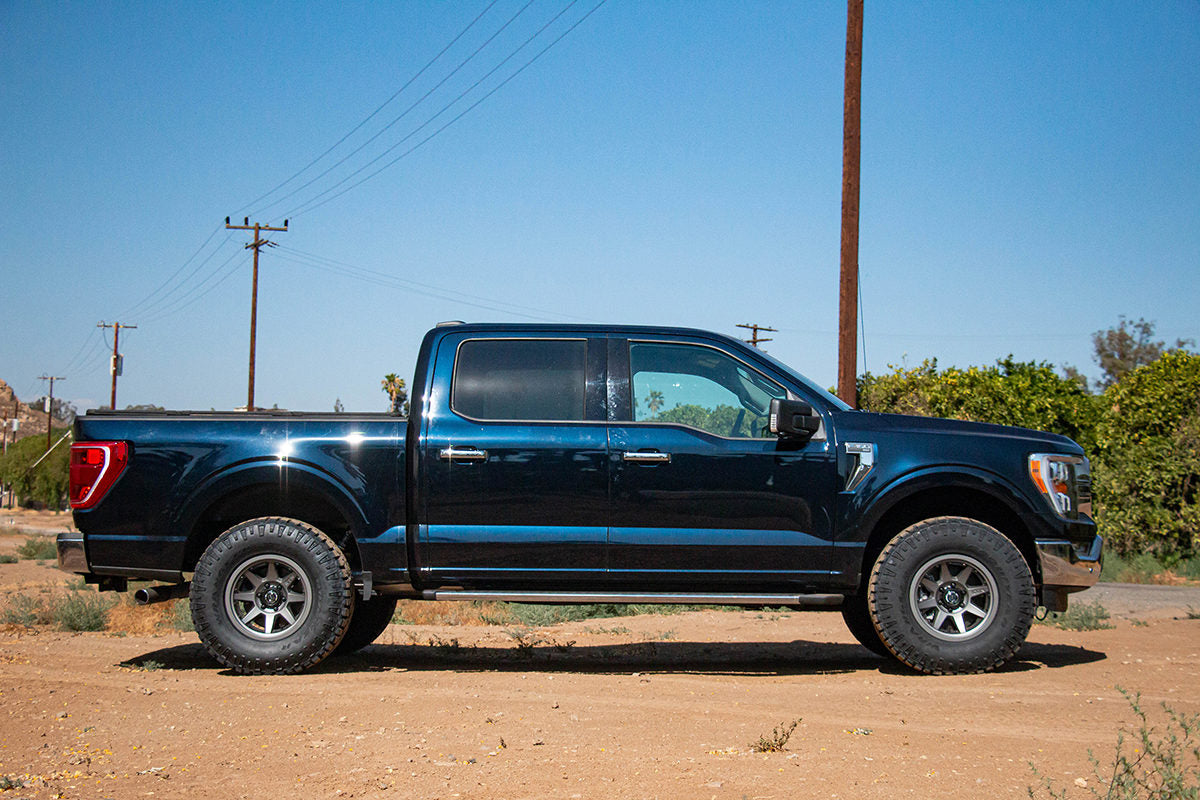

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2023 Ford F-150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable 0-3" lift height over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 96518 - 09-23 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
Add-On Part: 97720P - 09-23 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR
Adjustable: No
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Height: yes
Adjustable Rebound: No
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate
Valving Type: Digressive
