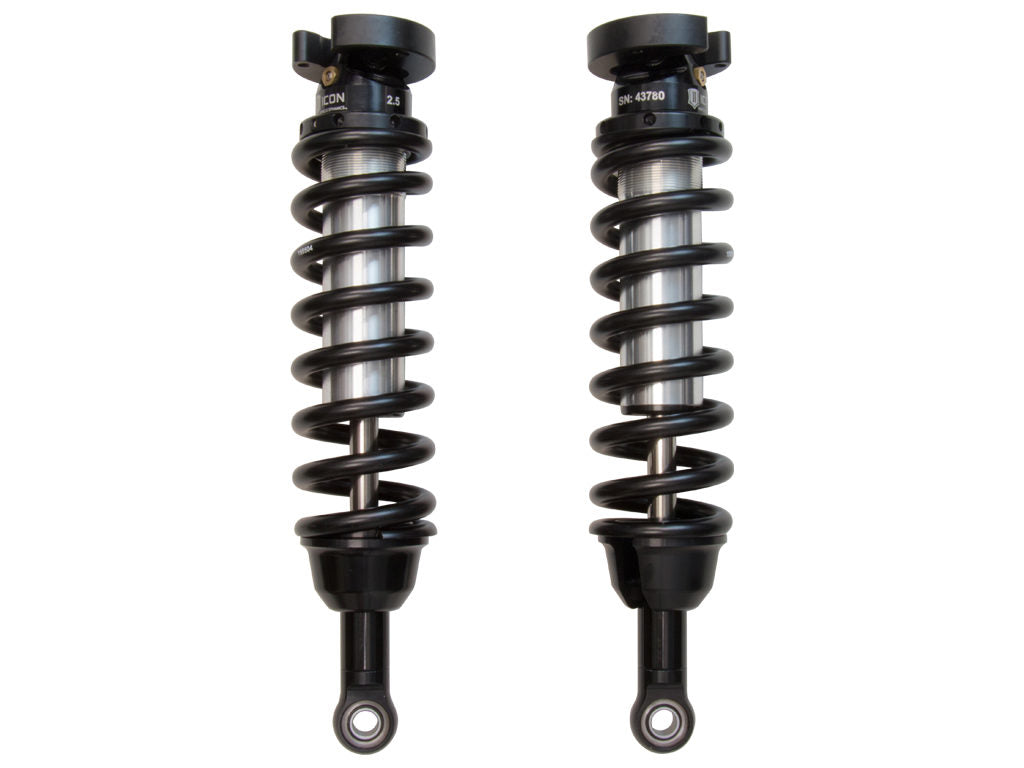

Icon 91110 - 2011+ Ford Ranger T6 1-3in 2.5 Series Shocks VS IR Coilover Kit
Icon 91110 - 2011+ Ford Ranger T6 1-3in 2.5 Series Shocks VS IR Coilover Kit
SKU: ICON-91110
Regular price
$1,518.35 USD
Regular price
$1,670.18 USD
Sale price
$1,518.35 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Icon 91110 - 2011+ Ford Ranger T6 1-3in 2.5 Series Shocks VS IR Coilover Kit
2011-UP RANGER T6 1-3" LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 20.93
Front Spring Rate: 650
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: 1
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: 17x8.5" w/ 5” Backspace
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 5.16
Upper Mount Type: MOUNT PLATE
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 15.78
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
