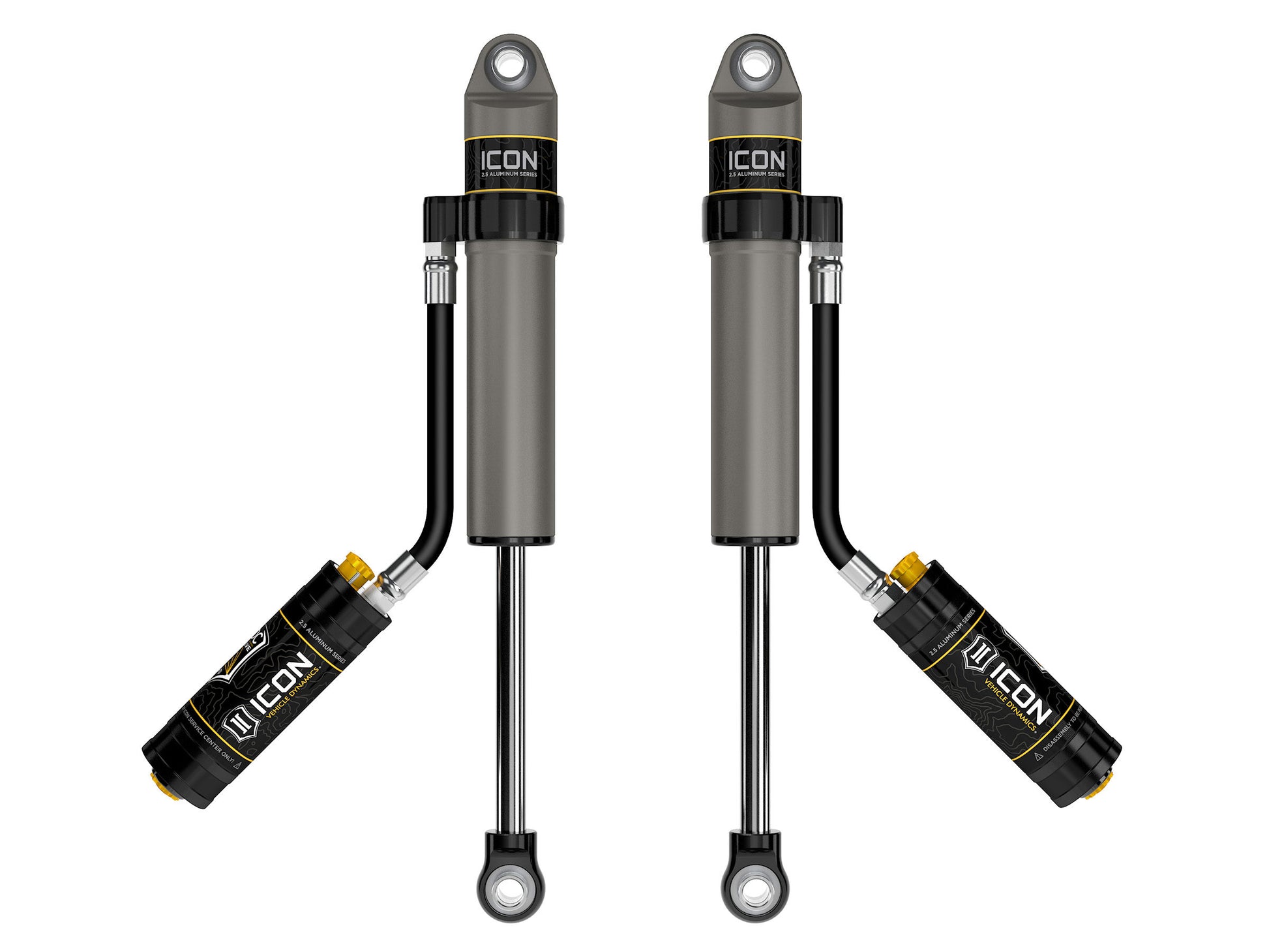

Icon 87843CP - 1997+ Nissan Patrol (Y61) Rear 2.5 Series Shocks VS RR CDCV - Pair

Icon 87843CP - 1997+ Nissan Patrol (Y61) Rear 2.5 Series Shocks VS RR CDCV - Pair

Icon | 87843CP
SKU: ICON-87843CP
$1,416.95 USD
$1,558.64 USD $1,416.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Icon 87843CP - 1997+ Nissan Patrol (Y61) Rear 2.5 Series Shocks VS RR CDCV - Pair

97-23 PATROL (Y61) REAR 2.5 VS RR CDCV PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 6061 aircraft grade aluminum CNC machined components
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with piggyback reservoir
  • 100% Rebuildable
  • 100% Revalveable
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: Yes
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
Boot Included: NO
Bore Diameter: 2.25
Cylinder Color: Grey
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Adjustment Type: Manual
Damping Type: Oil
External Reservoir: Yes
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Lower Mount Type: Eyelet
Mounting Hardware Included: Yes
Reservoir Type: Remote
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 257339 - 7/8 SHAFT 13.25 OAL 9.00 TRAVEL
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Center of Eylet
Shock Absorber Rod End Measuring Point: Center of Eylet
Tube Outside Diameter: 2.5
Upper Mount Type: Eyelet
Valving Type: Digressive
