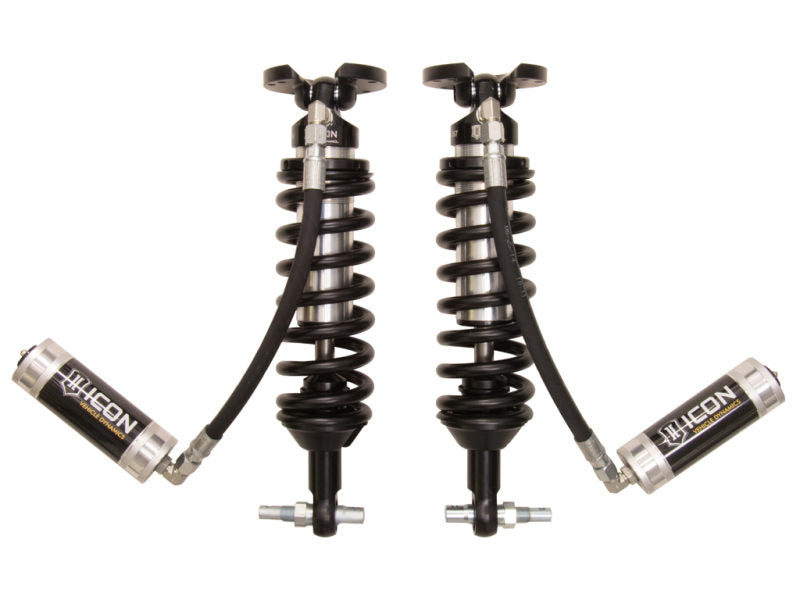

Icon 71555 - 07-18 GM 1500 1-2.5in 2.5 Series Shocks VS RR Coilover Kit

Icon 71555 - 07-18 GM 1500 1-2.5in 2.5 Series Shocks VS RR Coilover Kit

Icon | 71555
SKU: ICON-71555
$1,975.95 USD
$2,173.54 USD $1,975.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Icon 71555 - 07-18 GM 1500 1-2.5in 2.5 Series Shocks VS RR Coilover Kit

07-18 GM 1500 1-2.5" 2.5 VS RR COILOVER KIT

2007-2018 GM 1500 1-2.5" LIFT 2.5 VS REMOTE RESERVOIR COILOVER KIT

Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Steel
Maximum Ride Height Raising Distance: 2.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
Reservoir Style: Remote
Self-Leveling: No
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 257306 - 7/8 SHAFT 9.65 OAL, 5.40 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Travel Length: 4.67
Upper Mount Type: MOUNT PLATE
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Compressed Length: 15.27
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Gas
Dust Shield: No
Dust Shield Included: No
Extended Length: 19.94
Front Spring Rate: 650
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: Yes
