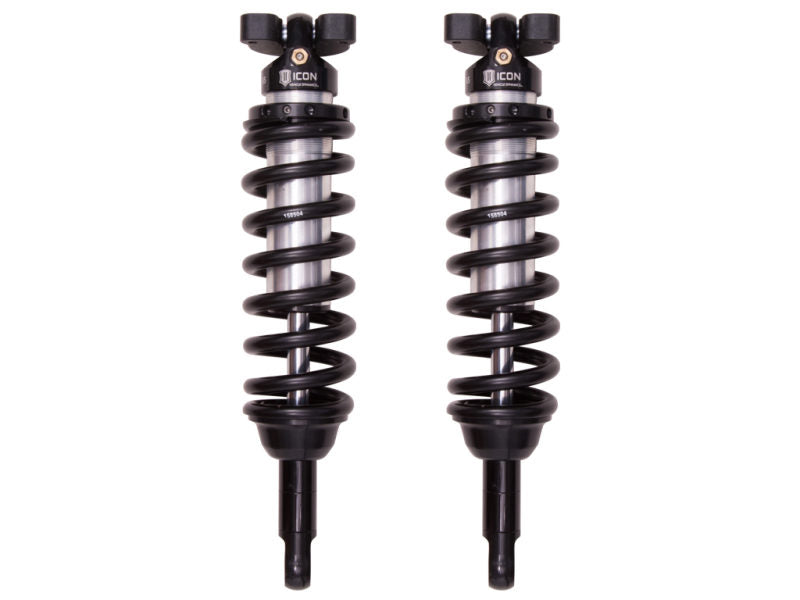

Icon 71010 - 2015+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit

Icon 71010 - 2015+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit

Icon | 71010
SKU: ICON-71010
$1,563.90 USD
$1,720.29 USD $1,563.90 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Icon 71010 - 2015+ Chevrolet Colorado 2.5 Series Shocks VS IR Coilover Kit

15-22 COLORADO 2.5 VS IR COILOVER KIT

ICON Vehicle Dynamics V.S. Series 2.5”coilover shocks are an incredible upgrade for the front end of 2015-2022 Chevrolet Colorado/GMC Canyon trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-3” lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Colorado/Canyon truck.

  • 25% increase in wheel travel over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Improved ride quality over stock on and off road
  • Height-adjustable coilovers offer 1.75-3" of lift height
  • ICON engineered Eibach Springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no drilling or welding necessary for installation
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Rebound: No
Adjustable Ride Height: Yes
Assembled: Yes
Body Diameter: 2.5
Coil Over Springs Included: Yes
Compressed Length: 16.05
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield Included: No
Extended Length: 21
Front Spring Rate: 650
Gas Charged: yes
Grade Type: Performance
Includes Bump Stop: No
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Material: Aluminum
Maximum Lift: 3
Maximum Ride Height Raising Distance: 3
Minimum Lift: .75
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 32" x 11.00" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Spring Rate Type: Linear
Travel Length: 4.95
Upper Mount Type: Mounting Plate
Valving Type: Digressive
