Icon - 58710

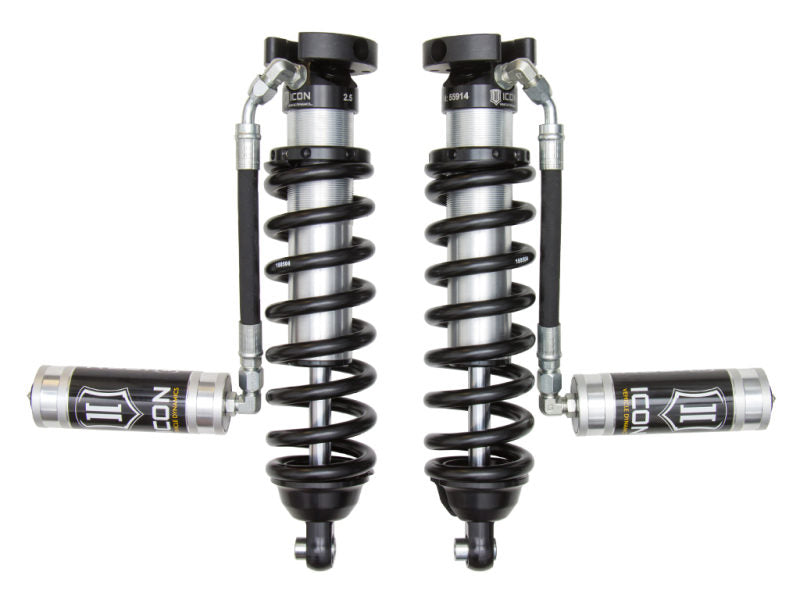

96-04 TACOMA 2.5 VS RR COILOVER KIT
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
- Increased wheel travel over stock
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock on and off-road
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- FK Rod End bearings for extended longevity and minimal deflection
- 100% Bolt-on - no cutting or welding necessary for installation
Reservoir Style: Remote
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate: 650
Spring Rate Type: Linear
Upper Mount Type: MOUNT PLATE
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Add-On Part: 158508 - COIL SPRING 1400.0300.0700 BLACK
Add-On Part: 51045 - TOYOTA .25” BUMP STOP SPACER KIT
Add-On Part: 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
Add-On Part: 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT
Adjustable: No
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Height: Yes
Adjustable Rebound: No
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Cylinder Color: Silver
Cylinder Finish: Cadmium Plated
Cylinder Material: Steel
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: Eyelet
Material: Steel
Maximum Lift: 3
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir: Yes
