Icon - 57845EP
22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.

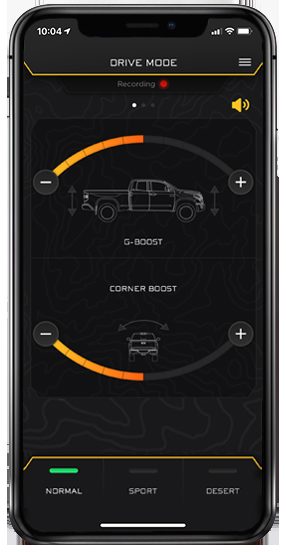

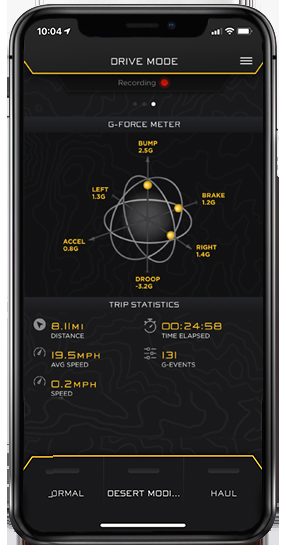

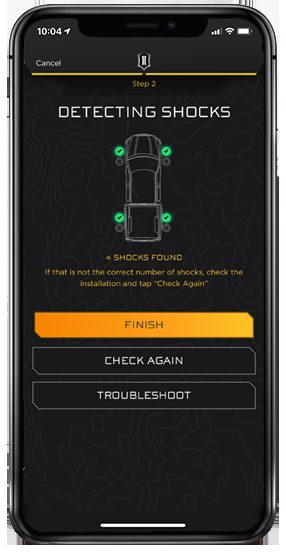

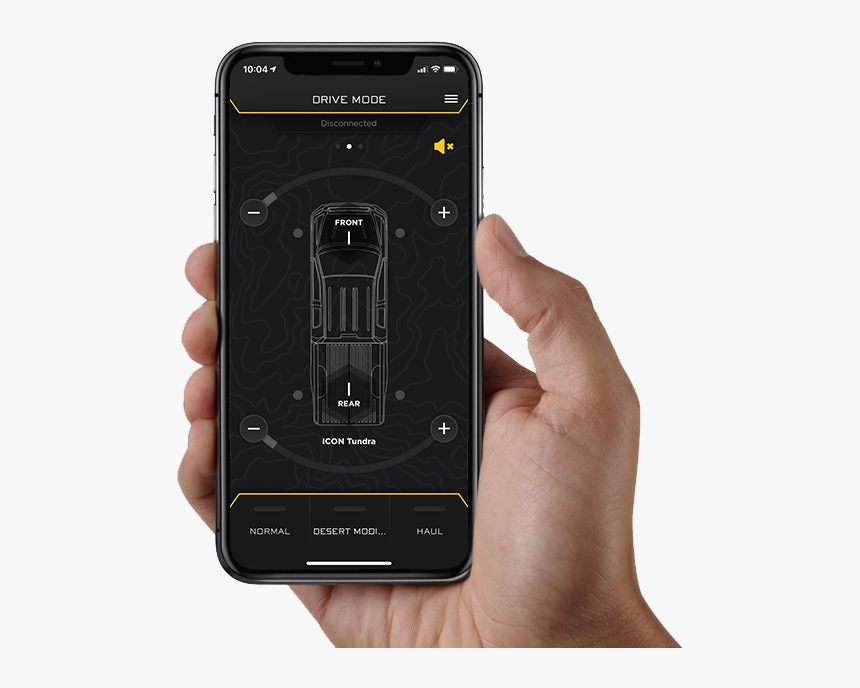

ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- 20% increase in rear suspension travel compared to stock
- Compatible with up to 1.5” of rear lift on most Tundra models or 3" of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8” diameter induction hardened, chrome plated shock shafts
- Corrosion resistant CAD plated steel shock bodies
- Fully Rebuildable and Re-tunable
