Icon - 48602

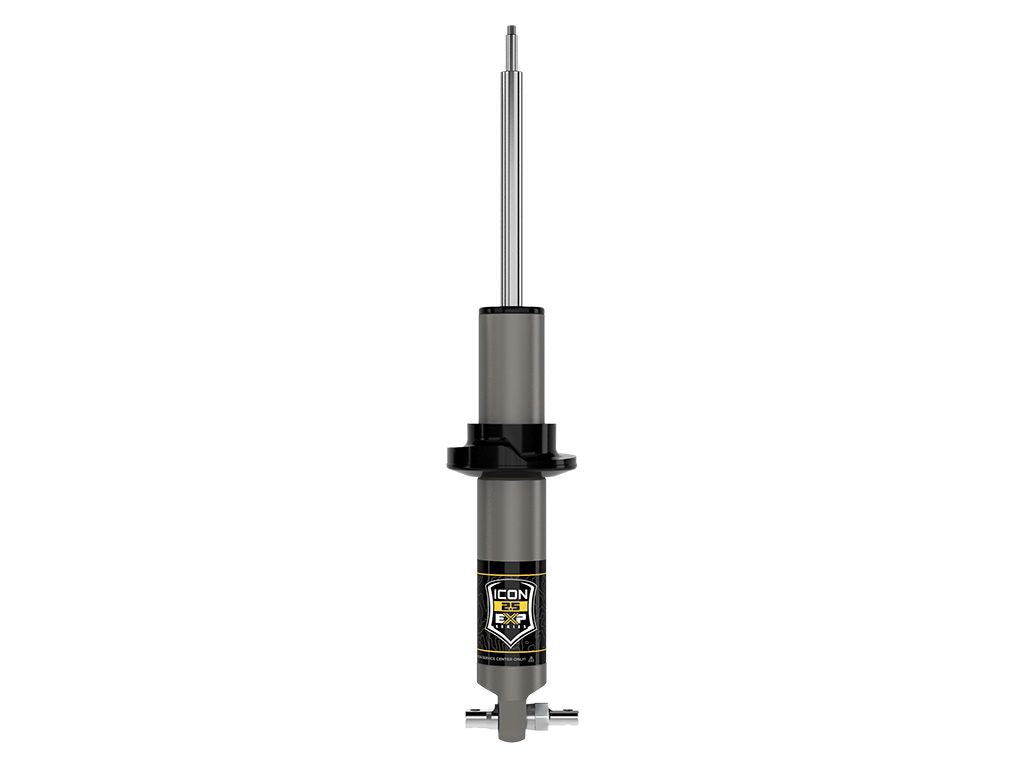

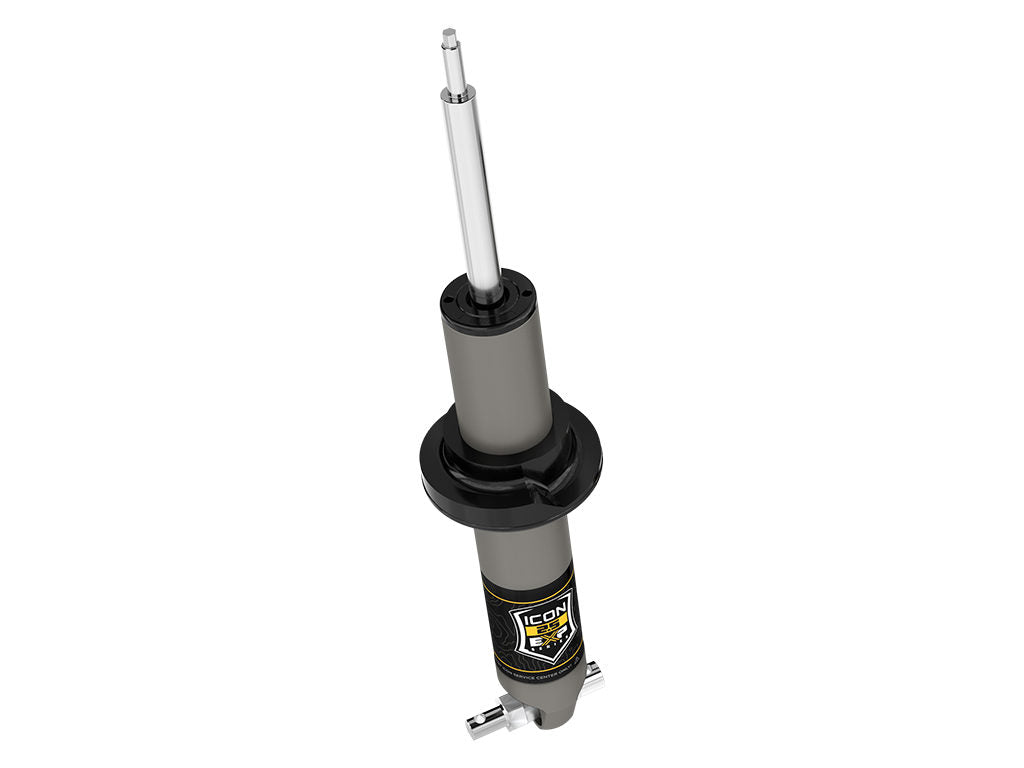

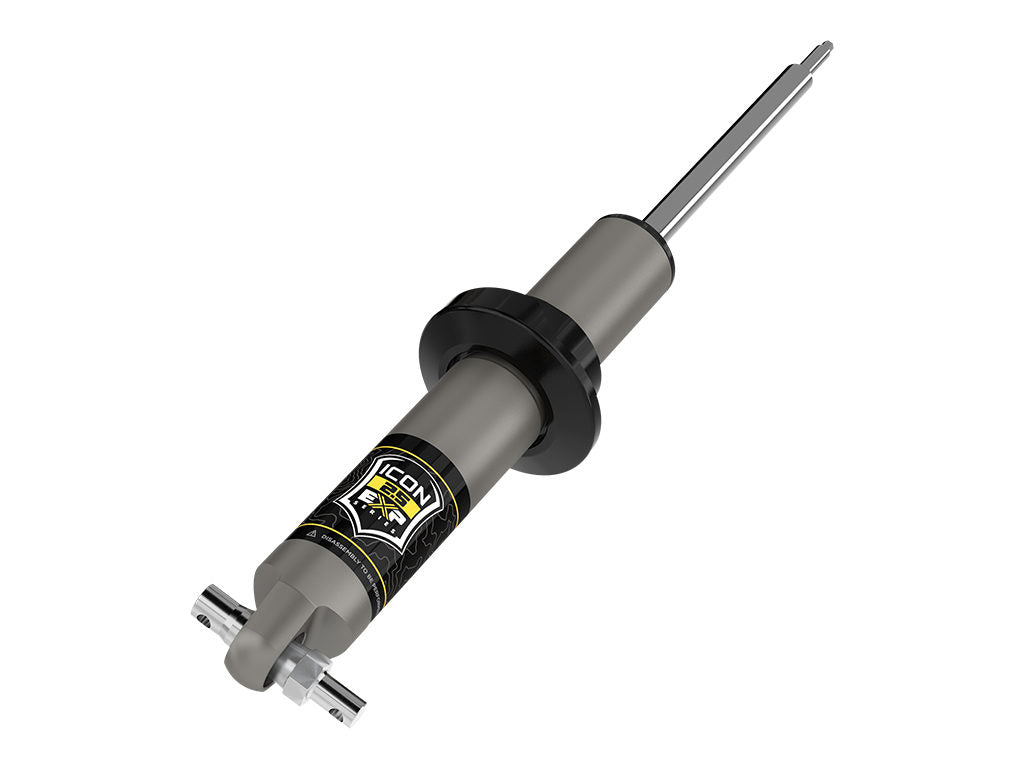

21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER
Based on ICON’s 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package.
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
- Vehicle specific tuned for superior shock damping and control
- 2.5 Aluminum Series Shock with Internal Reservoir
- Adjustable ride heights from 0-2” of front lift over stock with the use of snap ring
- Utilizes factory coil and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearing for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
Cylinder Finish: Hard Anodized
Cylinder Material: Aluminum
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: Yes
Grade Type: Performance
Internal Construction Type: Single Tube
Lower Mount Type: BAR PIN
Material: Aluminum
Material: Steel
Maximum Lift: 2
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
Recommended Aftermarket Tires: (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packages require trimming and modifications)
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Recommended Aftermarket Wheels: (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Self-Leveling: No
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Spring Color: Black
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 42000 - 21-23 BRONCO CRASH BARS
Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
Add-On Part: 45212 - 21-23 BRONCO XD TIE ROD KIT
Add-On Part: 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT
Add-On Part: 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT
Adjustable Compression: No
Adjustable Damping: NO
Adjustable Height: Yes
Adjustable Rebound: No
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: No
Cylinder Color: Gray
