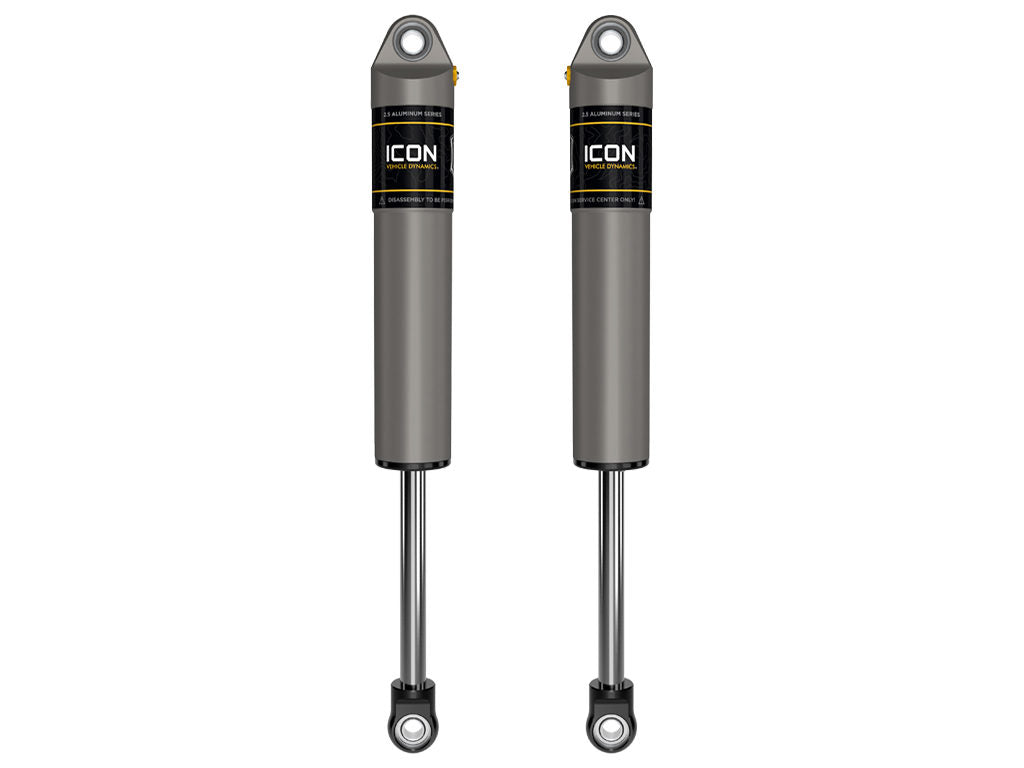

Icon 37605P - 1999+ Ford F-250/F-350 Super Duty 0-3in Rear 2.5 Series Shocks VS IR - Pair

Icon 37605P - 1999+ Ford F-250/F-350 Super Duty 0-3in Rear 2.5 Series Shocks VS IR - Pair

Icon | 37605P
SKU: ICON-37605P
Regular price $813.99 USD
Regular price $895.39 USD Sale price $813.99 USD
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Icon 37605P - 1999+ Ford F-250/F-350 Super Duty 0-3in Rear 2.5 Series Shocks VS IR - Pair

99-25 FSD 0-3" REAR 2.5 VS IR PAIR

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with internal reservoir
  • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • 100% Rebuildable
  • 100% Revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Boot Included: NO
Bore Diameter: 2.25
Compressed Length: 18.65
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
Extended Length: 28.98
External Reservoir: NO
Gas Charged: Yes
Grade Type: Performance
Includes Bump Stop: No
Lower Mount Type: EYELET
Mounting Hardware Included: Yes
Reservoir Type: Internal
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Service Parts: 252010 - 2.5 IFP REBUILD KIT
Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Stroke Length Rear: 10.33
Tube Outside Diameter: 2.5
Upper Mount Type: EYELET
Valving Type: Digressive
