Icon 36509R - 99-04 Ford F-250/F-350 Super Duty 4WD 8-10.5in Front 2.0 Series Aluminum Shocks VS RR

Icon 36509R - 99-04 Ford F-250/F-350 Super Duty 4WD 8-10.5in Front 2.0 Series Aluminum Shocks VS RR

Icon | 36509R
SKU: ICON-36509R
$308.95 USD
$339.84 USD $308.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

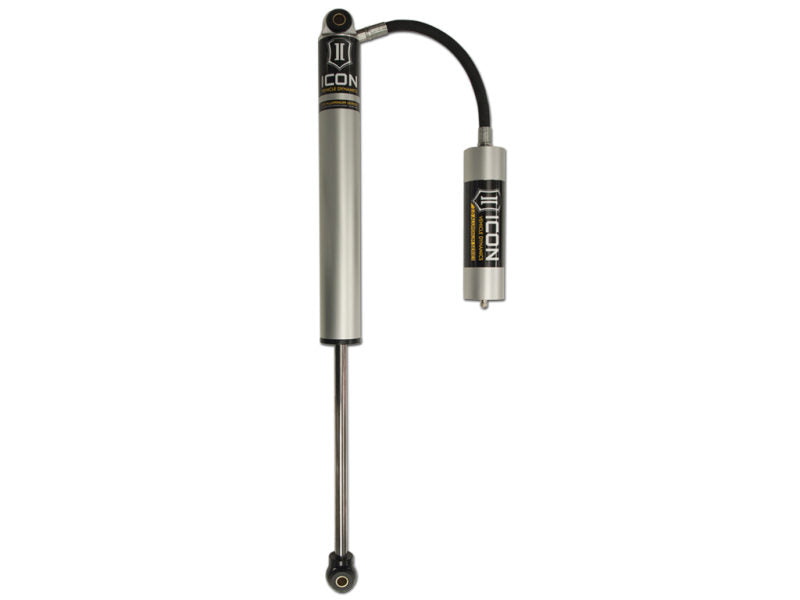

Icon 36509R - 99-04 Ford F-250/F-350 Super Duty 4WD 8-10.5in Front 2.0 Series Aluminum Shocks VS RR

99-04 FSD 4WD 8-10.5" FRONT 2.0 VS RR

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: No
Color: Gray
Color: Black
Color: Silver
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
External Reservoir: Yes
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Ride Height Raising Distance: 10.5
Minimum Ride Height Raising Distance: 8
Mounting Hardware Included: Yes
Remote Reservoir: NO
Reservoir Type: Remote
Rod Diameter: .625
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: Center of Eylet
Suspension Type: Spring
Upper Mount Type: EYELET
Valving Type: Linear
Valving Type: Digressive
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
Add-On Part: 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Add-On Part: 39010 - 99-04 FSD DUAL SHOCK MOUNT KIT
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: No
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
