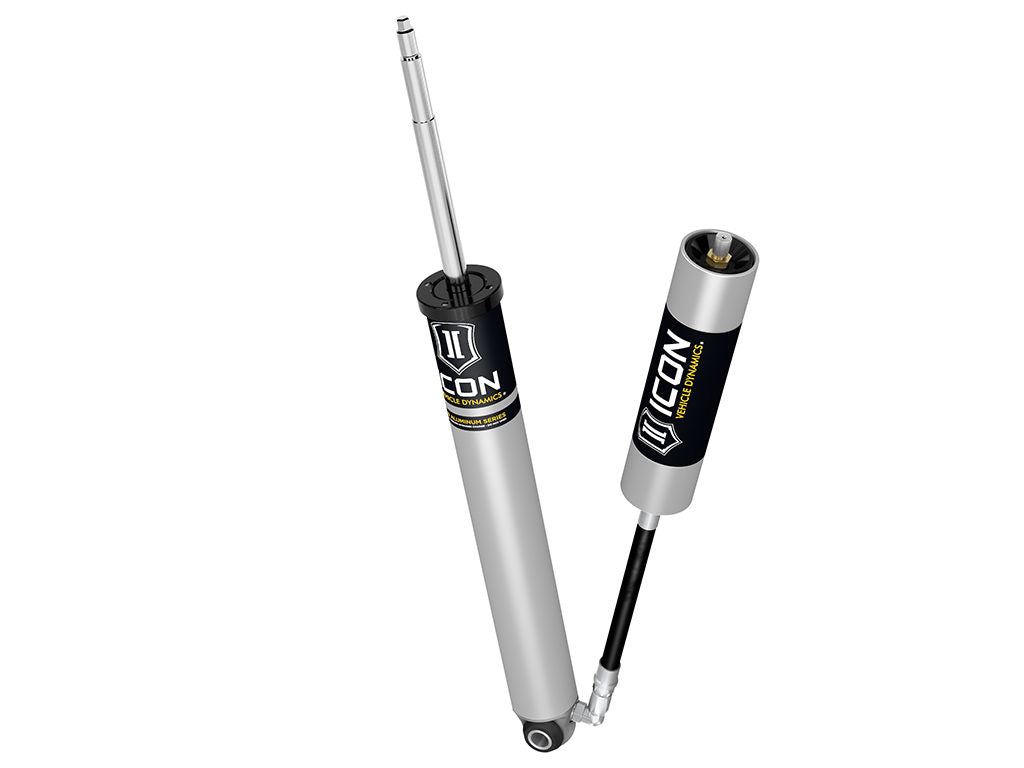

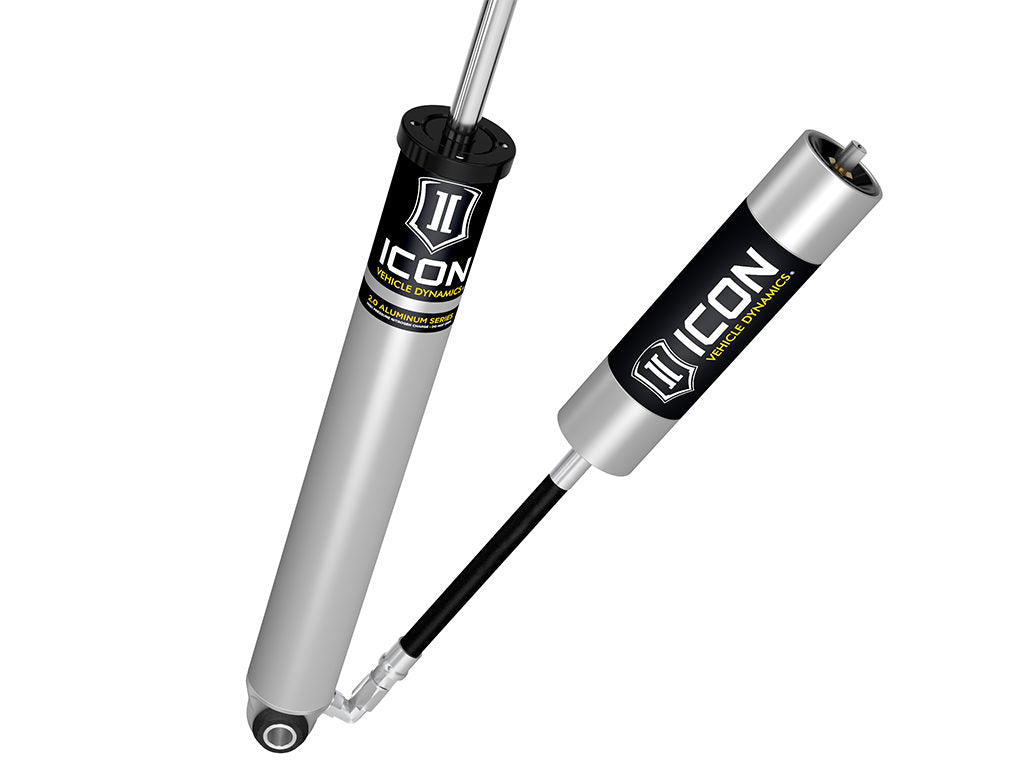

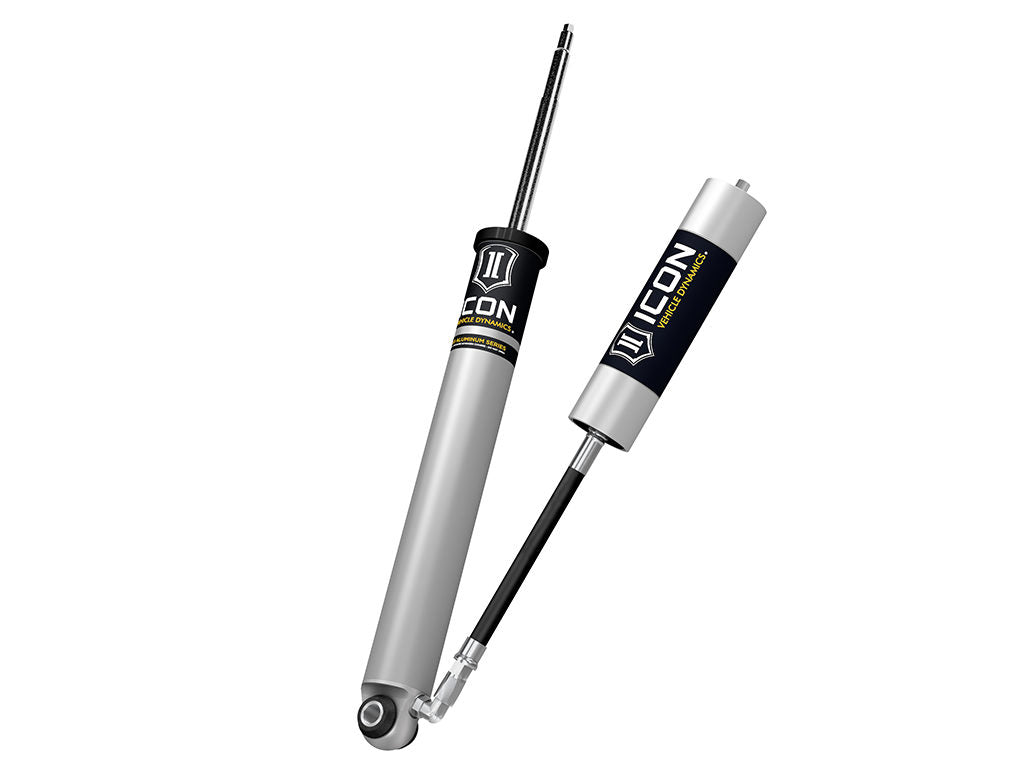

Icon 216532R - 2014-2026 Ram 2500, w/ Rear Air Ride, 0" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Icon 216532R - 2014-2026 Ram 2500, w/ Rear Air Ride, 0" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Icon | 216532R
SKU: ICON-216532R
Regular price $308.95 USD
Regular price $339.84 USD Sale price $308.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Icon 216532R - 2014-2026 Ram 2500, w/ Rear Air Ride, 0" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

14-26 RAM 2500 AIR RIDE REAR 2.0 VS RR

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable: NO
Adjustable Compression: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: NO
Color: Black
Color: Gray
Color: Silver
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Dust Shield: NO
Dust Shield Included: No
External Reservoir: Yes
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Sleeve Inside Diameter: .56
Lower Mount Sleeve Overall Length: 1.65
Lower Mount Type: EYELET
Maximum Ride Height Raising Distance: 0
Minimum Ride Height Raising Distance: 0
Mounting Hardware Included: Yes
Remote Reservoir: Yes
Reservoir Diameter: 2
Reservoir Hose Inside Diameter: .25
Reservoir Hose Length: 5.75
Reservoir Length: 8
Reservoir Type: Internal
Rod Diameter: .625
Self-Leveling: No
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Stroke: 8.4
Suspension Type: Air
Travel Length: 8.4
Type: Telescopic
Upper Mount Stem Overall Length: 2.5
Upper Mount Stem Thread Size: M12 - 1.25
Upper Mount Type: Stem
Valving Type: Digressive
Valving Type: Linear
