Icon 216529 - 2014+ Ram 2500 0in Coil / 3in Air Ride Rear 2.0 Series Aluminum Shocks VS IR

Icon 216529 - 2014+ Ram 2500 0in Coil / 3in Air Ride Rear 2.0 Series Aluminum Shocks VS IR

Icon | 216529
SKU: ICON-216529
$200.80 USD
$220.88 USD $200.80 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

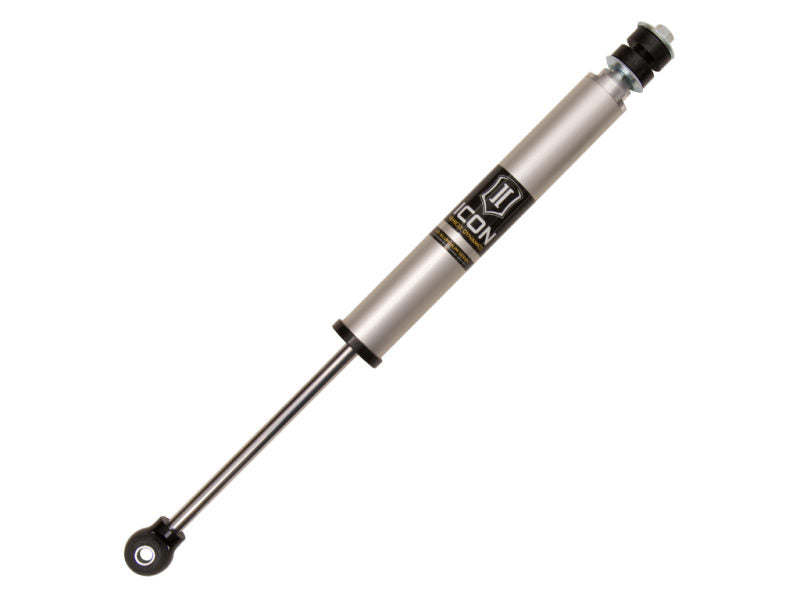

Icon 216529 - 2014+ Ram 2500 0in Coil / 3in Air Ride Rear 2.0 Series Aluminum Shocks VS IR

14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-r oad performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Nitrogen charged monotube design with internal reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable
  • 100% revalveable
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Body Color: Gray
Body Diameter: 2
Body Material: Aluminum
Boot Included: NO
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
Coil Over Springs Included: NO
Coil Spring Insulator(s) Included: No
Color: Gray
Color: Black
Color: Silver
Compressed Length: 15.6
Configuration: Performance
Cylinder Color: Gray
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Cylinder Outside Diameter: 2
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
Dust Shield Included: No
Extended Length: 25.05
External Reservoir: No
Finish: Anodized
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Single Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Sleeve Inside Diameter: .56
Lower Mount Sleeve Overall Length: 1.65
Lower Mount Type: EYELET
Material: Aluminum
Material: Steel
Maximum Ride Height Raising Distance: 3
Minimum Ride Height Raising Distance: 0
Mounting Hardware Included: Yes
Quantity: 1
Remote Reservoir: NO
Reservoir Type: Internal
Rod Diameter: .625
Self-Leveling: No
Service Parts: 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Shaft Material: Chrome
Shock Absorber Body End Measuring Point: Shoulder of Stem
Shock Absorber Bore Size: 1.75
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Stroke: 9.45
Suspension Type: Spring
Suspension Type: Air
Travel Length: 9.45
Type: Telescopic
Upper Mount Stem Overall Length: 2.5
Upper Mount Stem Thread Size: M12 - 1.25
Upper Mount Type: Stem
Valving Type: Digressive
Valving Type: Linear
