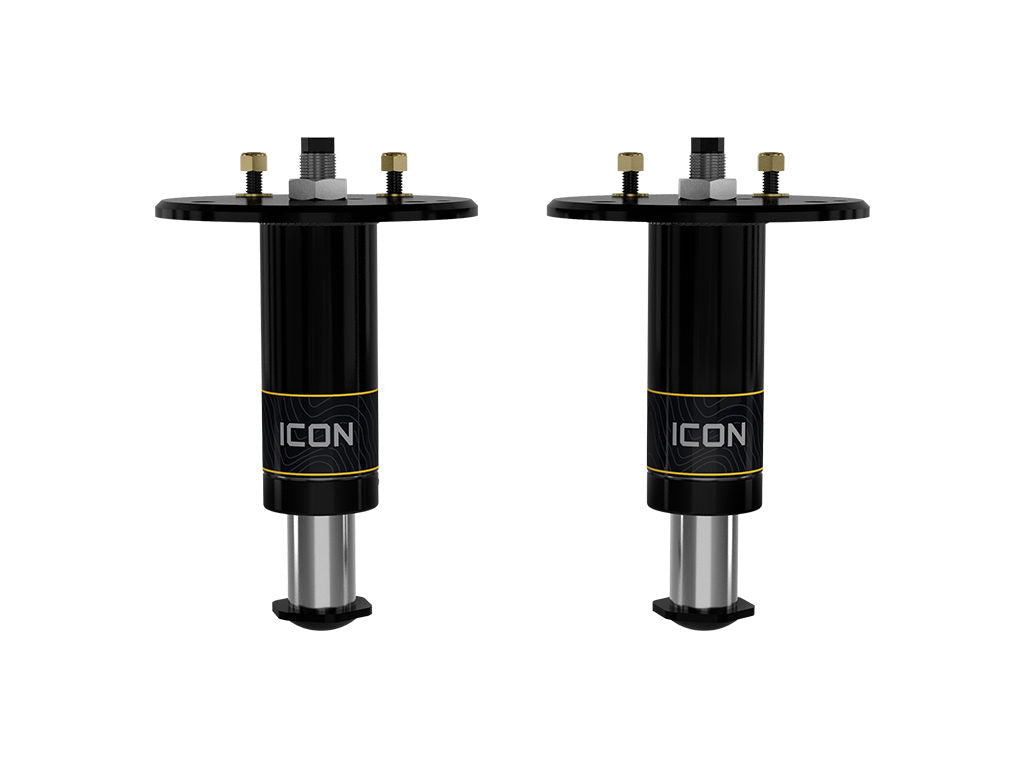

21-24 RAM 1500 TRX/25-26 RAM 1500 RHO REAR 2.5" BUMP STOP KIT 2.25" TRAVEL

While the factory rear bump stops do a satisfactory job of absorbing impacts on a street driven truck, ICON found that there was much room for improvement during spirited driving in rough, off-road terrain. The ICON Vehicle Dynamics 2021-2024 Ram 1500 TRX and 2025 Ram 1500 RHO Rear Hydraulic Bump Stop System was designed to take the off-road capability of the truck to new levels by significantly improving the bottom-out control of the rear suspension and reducing rear end kick. Like all ICON hydraulic bumps stops, these feature both velocity and position sensitive technology which means that as the shaft speed increases and moves through the travel, the damping force increases exponentially to provide excellent bottoming resistance that won’t negatively affect articulation. This system features 2.5” diameter, one-piece impact extruded and hard anodized aluminum bump stop bodies with an internal reservoir design for improved damping and more consistent, predicable performance than 2.0” diameter, emulsion style bump stops. To compliment the larger body diameter, these bump stops also incorporate heavy duty 1.625” diameter hardened chrome plated shafts.

• 2.5” diameter bump stops with 2.25” of travel
• Impact extruded, hard anodized aluminum bump stop bodies
• Heavy duty 1.625" diameter hardened, chrome plated steel shafts
• Internal reservoir design provides more consistent and predictable performance than emulsion bump stops
• Velocity/position sensitive technology exponentially increases bottom-out resistance
• Vehicle specific bump stop tune provides smooth engagement and excellent ride quality
• Replaceable, noise reducing striker pads
• CNC machined 6061 billet aluminum components
• Bump stops are fully rebuildable and re-tunable
• CNC laser cut steel mounting brackets
• Semi-gloss black powder coat finish on brackets for corrosion resistance
• 100% bolt-on installation on top of rear coil springs
