Holley EFI - 557-200

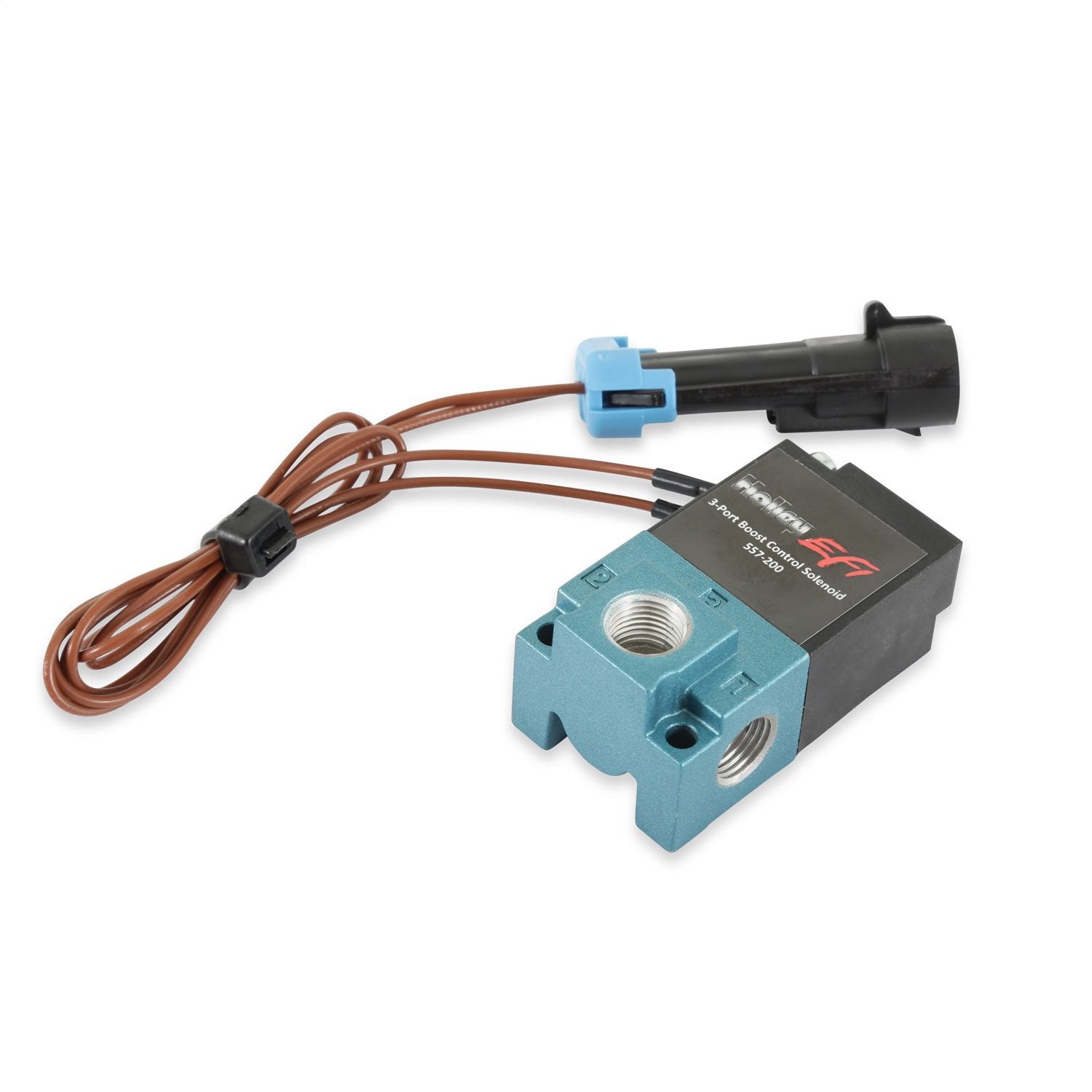

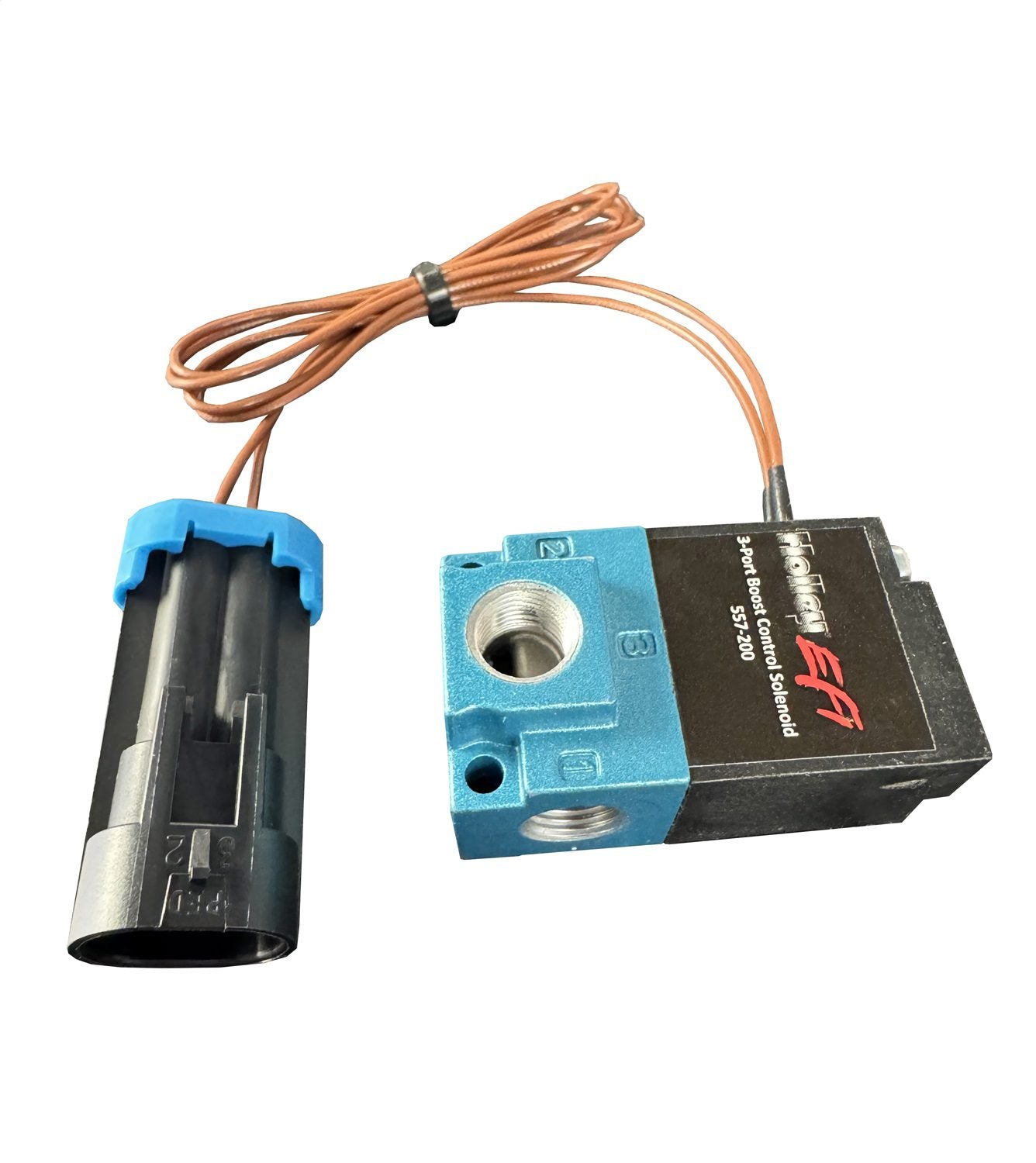

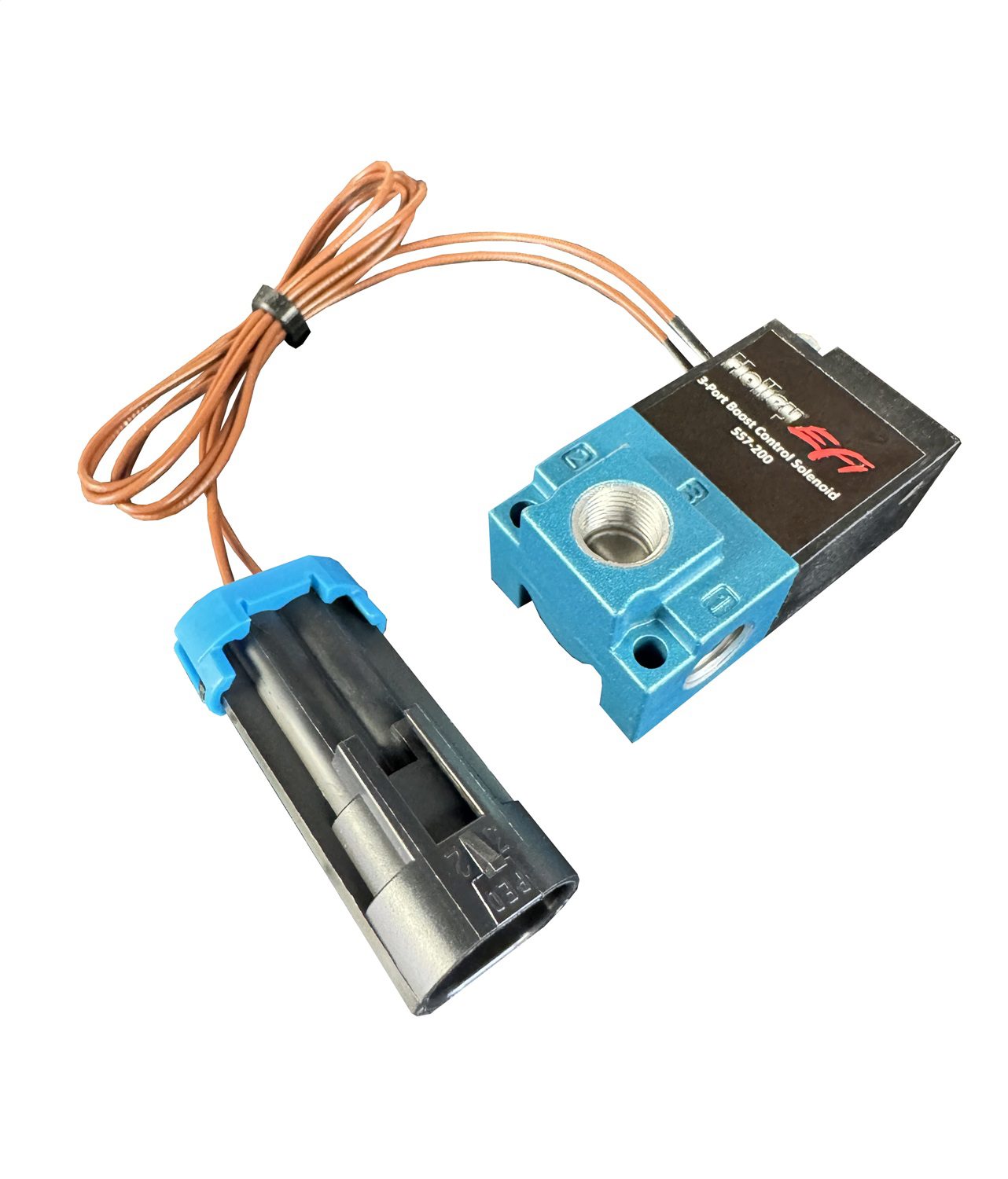

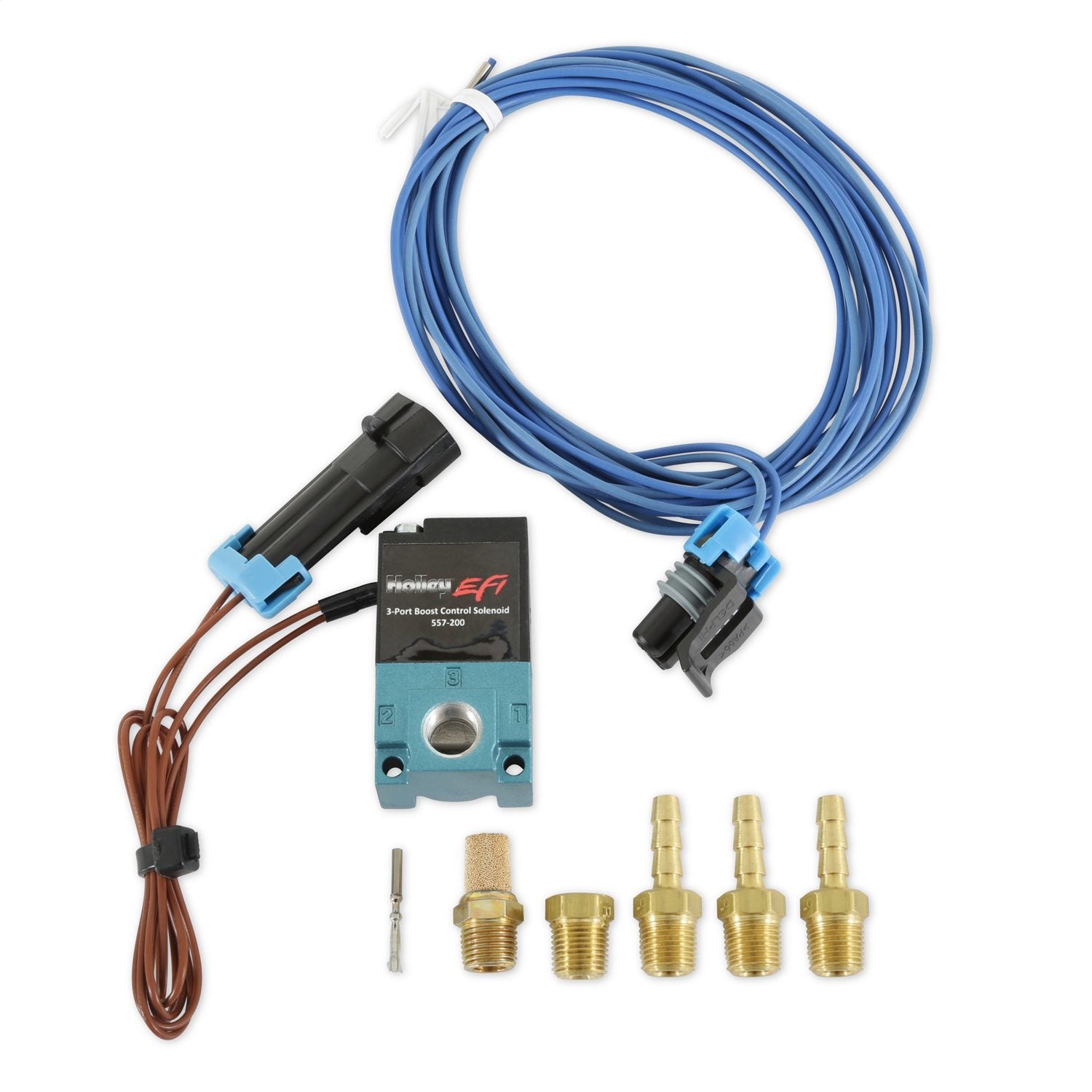

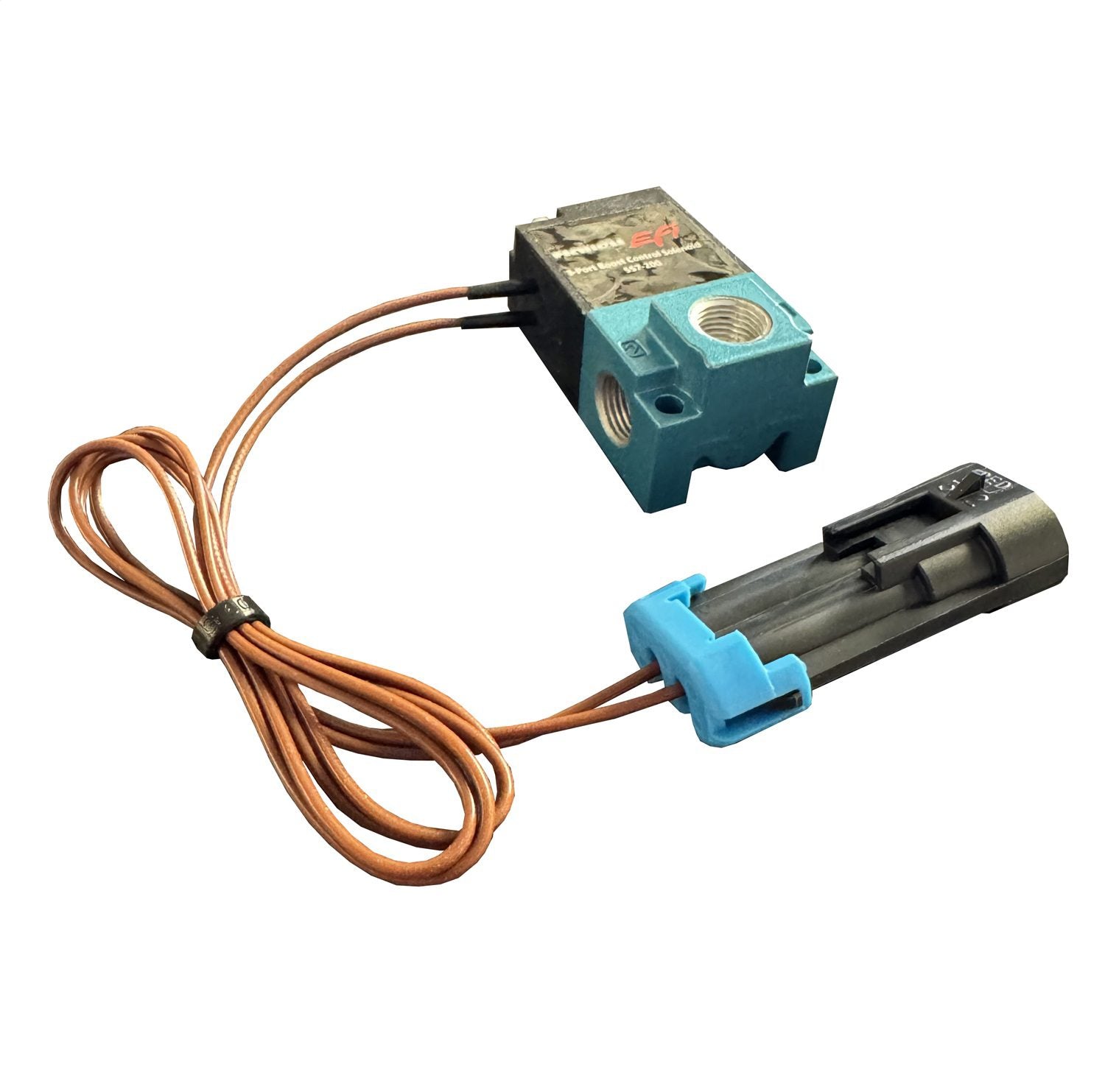

Boost Control Solenoid; 3 Port Boost Control Solenoid Valve;
Our 3 port boost control solenoid is designed for optimal performance when using the boost control function of Holley EFI. Some setups require two solenoids and some require one. The solenoid is driven by a Pulse Width Modulated (PWM) output of the ECU. It is advised not to use the PWM+ outputs on an HP ECU, but rather use the PWM- Outputs. If you have a Dominator ECU, either use the PWM- outputs, or use a PWM+ output on the J2B connector.
- 2 Pin Metri Pack 150
- 0.94 in. Depth
- 1.97 in. Height
- 18 in. Pigtail Length
- 1/8 in. NPT Port Size
- 1.110 in. Width
Brand: Holley EFI
Category: Air and Fuel Delivery
Connector Type: 2 pin Metri-Pack 150
Depth: .94"
Emission Code: 5
Grade Type: Performance
Height: 1.97"
Pig Tail Length: 18"
Port Size: 1/8" NPT
Product Type: Boost Control Part
Warning: California Proposition 65
Width: 1.10"
