Holley EFI

Holley EFI 554-165 - EFI Input/Output Module Kit

MSRP: $543.95
$482.95
( saved $61.00 )
Write a Review
  • Holley EFI 554-165 - EFI Input/Output Module Kit
  • Holley EFI 554-165 - EFI Input/Output Module Kit
  • Holley EFI 554-165 - EFI Input/Output Module Kit
  • Holley EFI 554-165 - EFI Input/Output Module Kit
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
No Fitment Data
This product doesn't have fitment application data. Please verify fitment manually.
Adding to cart… The item has been added
SKU:
HOLEFI-554-165
UPC:
090127104101
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Holley EFI - 554-165

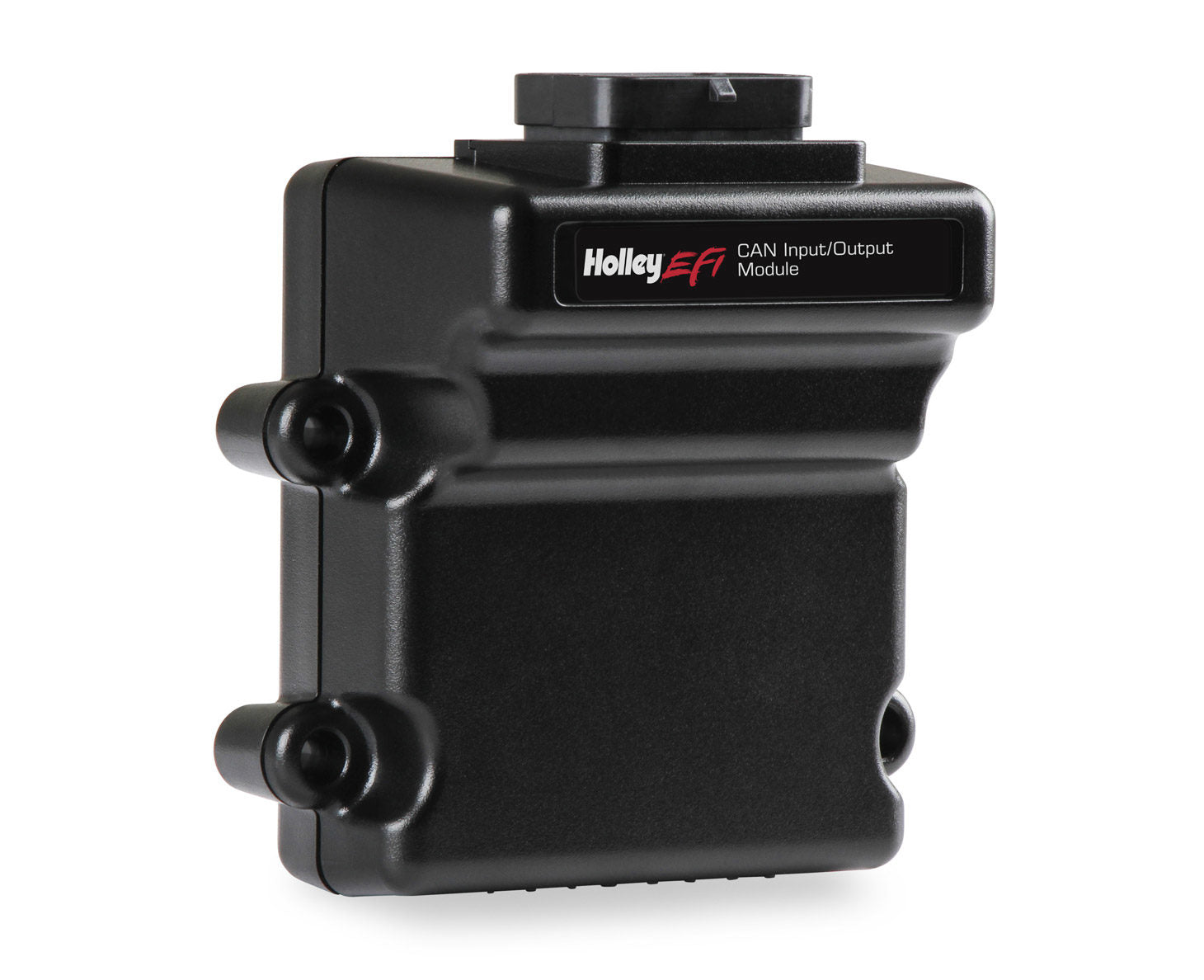

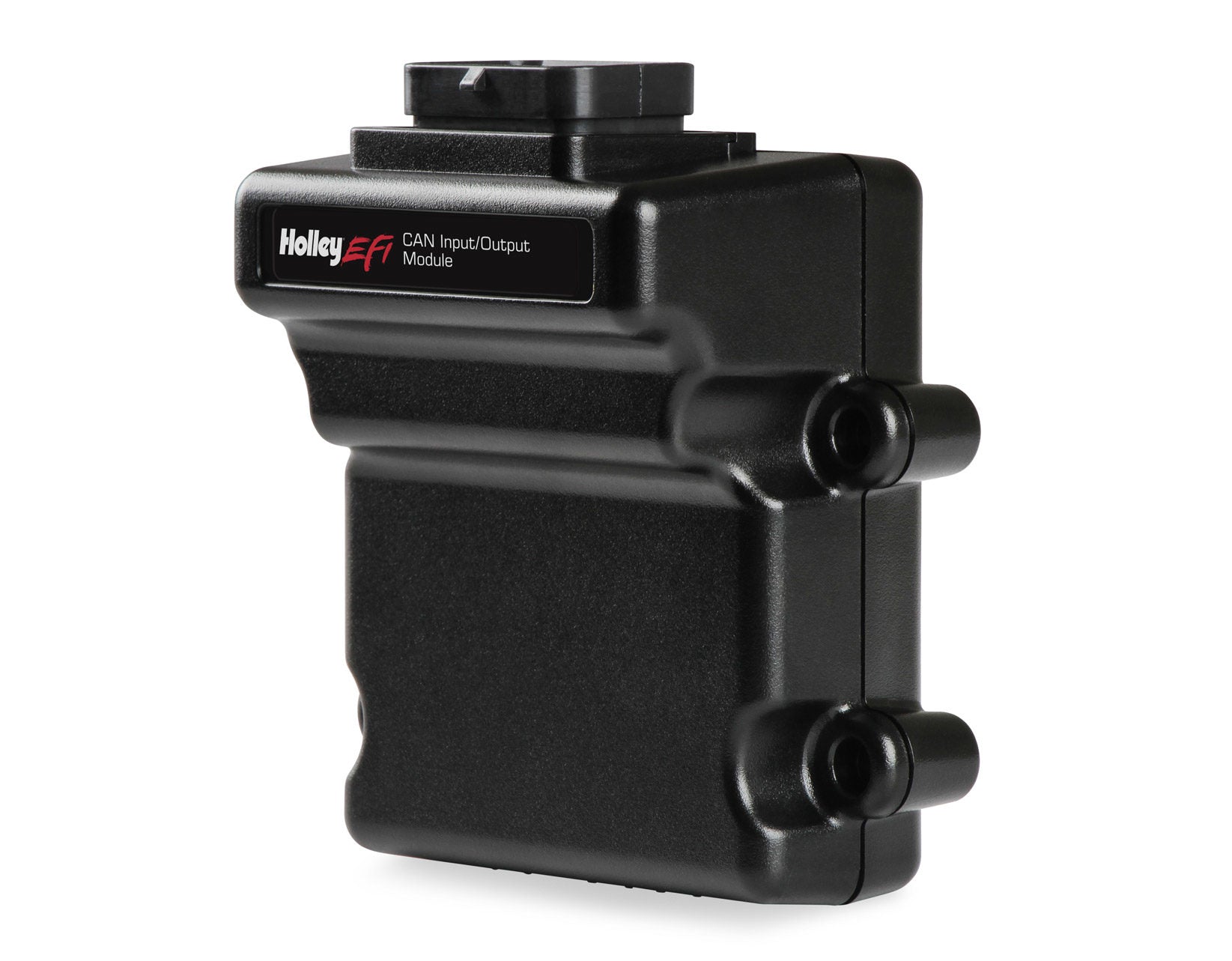

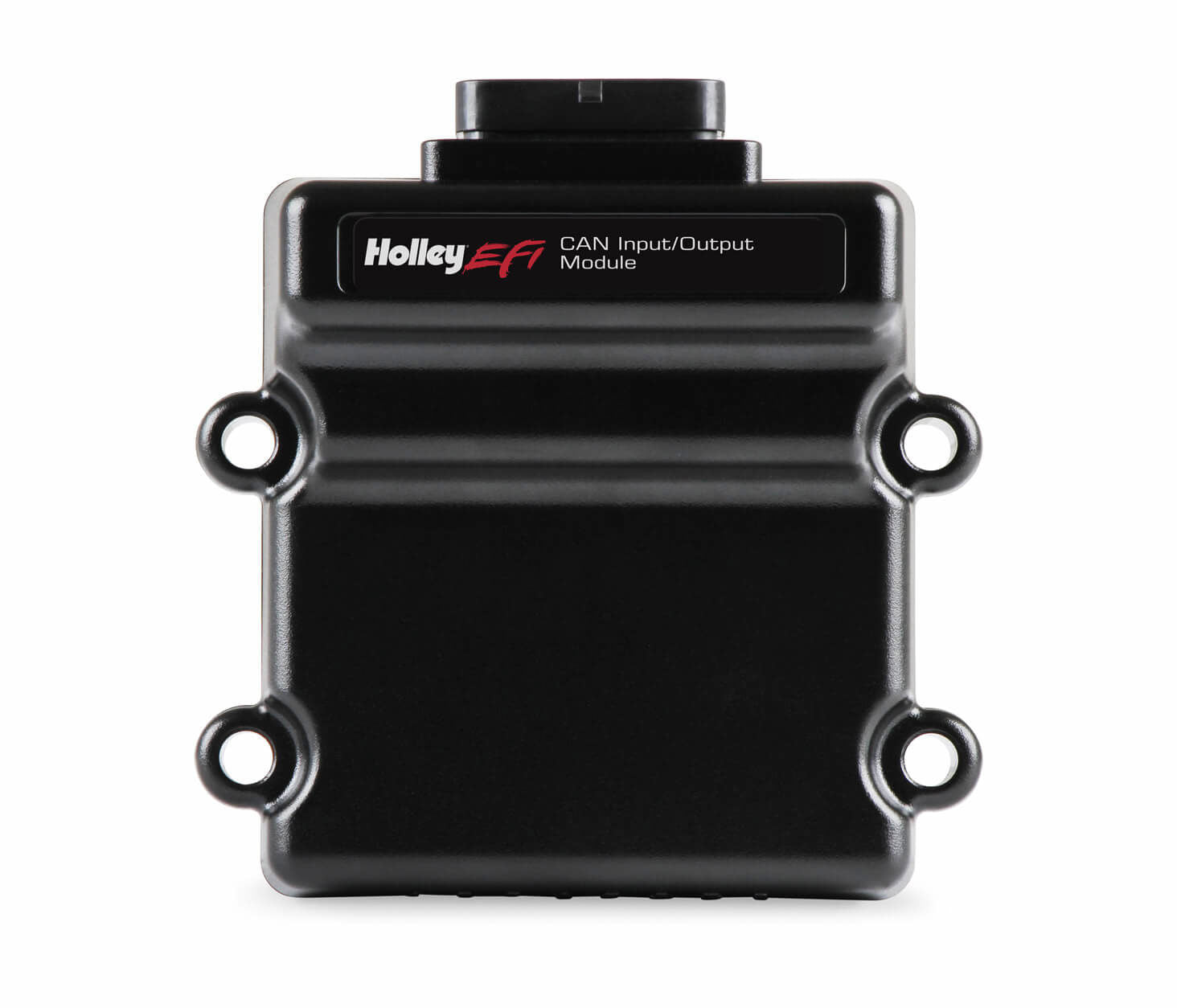

Holley EFI Input/Output Module Kit; Expansion CAN W/Harness;

The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, Dominator, Terminator X and Terminator X Max EFI installation. This CAN module will add eight inputs and eight outputs to the system, which can be used to control additional accessories, or provide critical sensor inputs. This module is perfect for anyone wanting to enhance the capabilities of their current ECU, yet have already tapped out their ECUs Input/Output channels.

  • Perfect for anyone wanting their Holley EFI ECU to control more functions or monitor more data channels
  • HP and Terminator X EFI installations with only (4) inputs and (4) outputs can now add more functionality to their EFI system
  • Expand Dominator ECU’s Input / Output control with (8) additional inputs and outputs
  • Inputs can be used for things such as:
  • -Switch 12V Toggle Switches - can be configured for external mechanical relays or setup as digital switches via a Holley EFI dash
  • -Ground input for brake pedal switch
  • -5V analog inputs for sensors like fuel pressure, oil pressure, or nitrous bottle pressure
  • -Thermistor inputs for coolant temperature sensors
  • Outputs can be used for things such as:
  • -Switch Low (Ground) - for relay control or activation
  • -Switch Low PWM (Ground) - PWM Fan Control – PWM Fuel Pump Control - or other PWM- controlled devices
  • Adjustable broadcast rate for each channel from 0-100 Hz

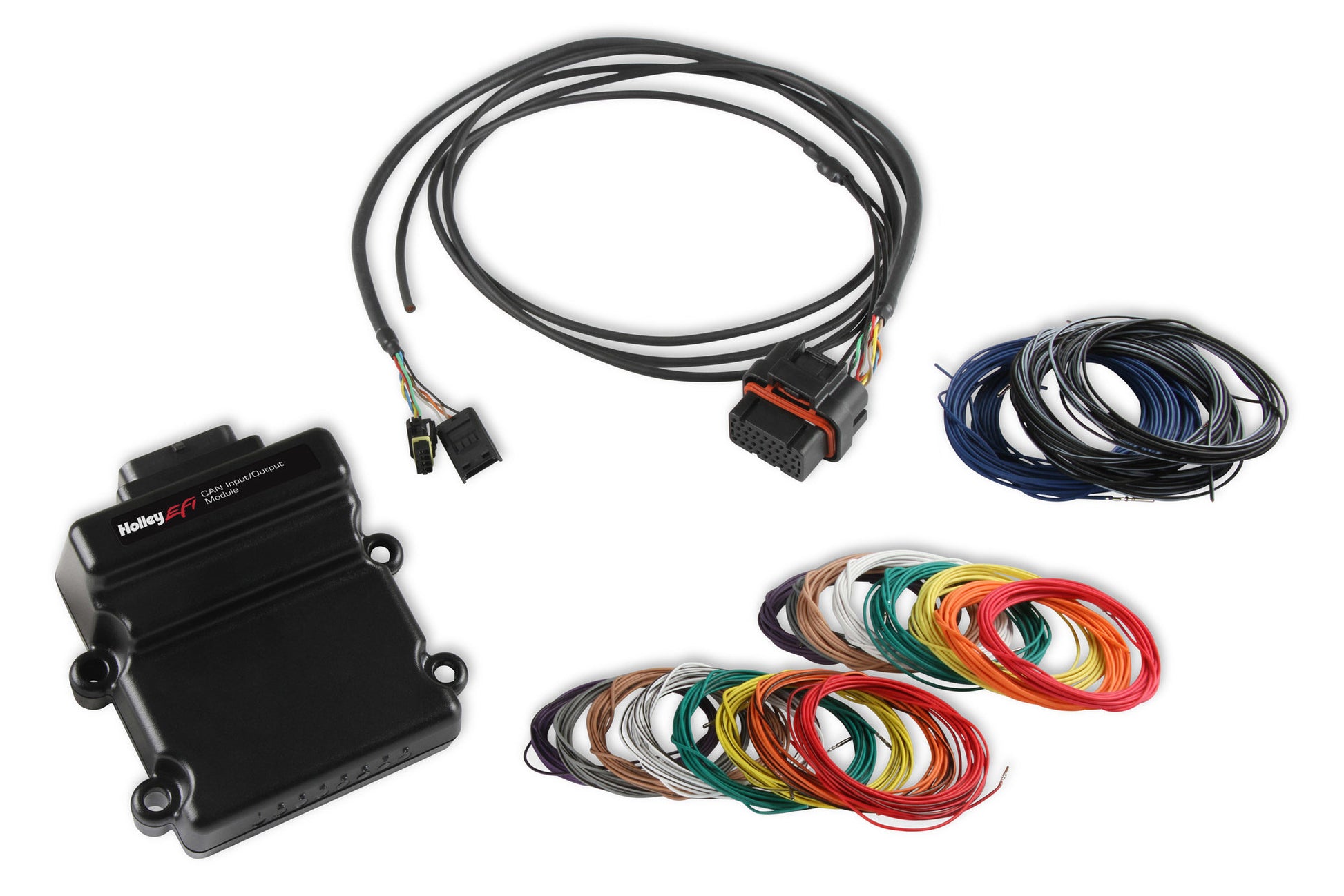

  • Includes a pre-terminated CAN Harness allowing you to quickly install the Holley EFI CAN module to any existing Holley EFI installation

Brand: Holley EFI
Category: Engine
Connector Gender: Male
Emission Code: 5
Grade Type: Performance
Mounting Hardware Included: No
Mounting Hole Quantity: 4
part type: Engine Control Module (ECM)
Product Type: CAN Input Output Module
Sub Category: Control Modules
Terminal Gender: Female
