Holley EFI - 554-124

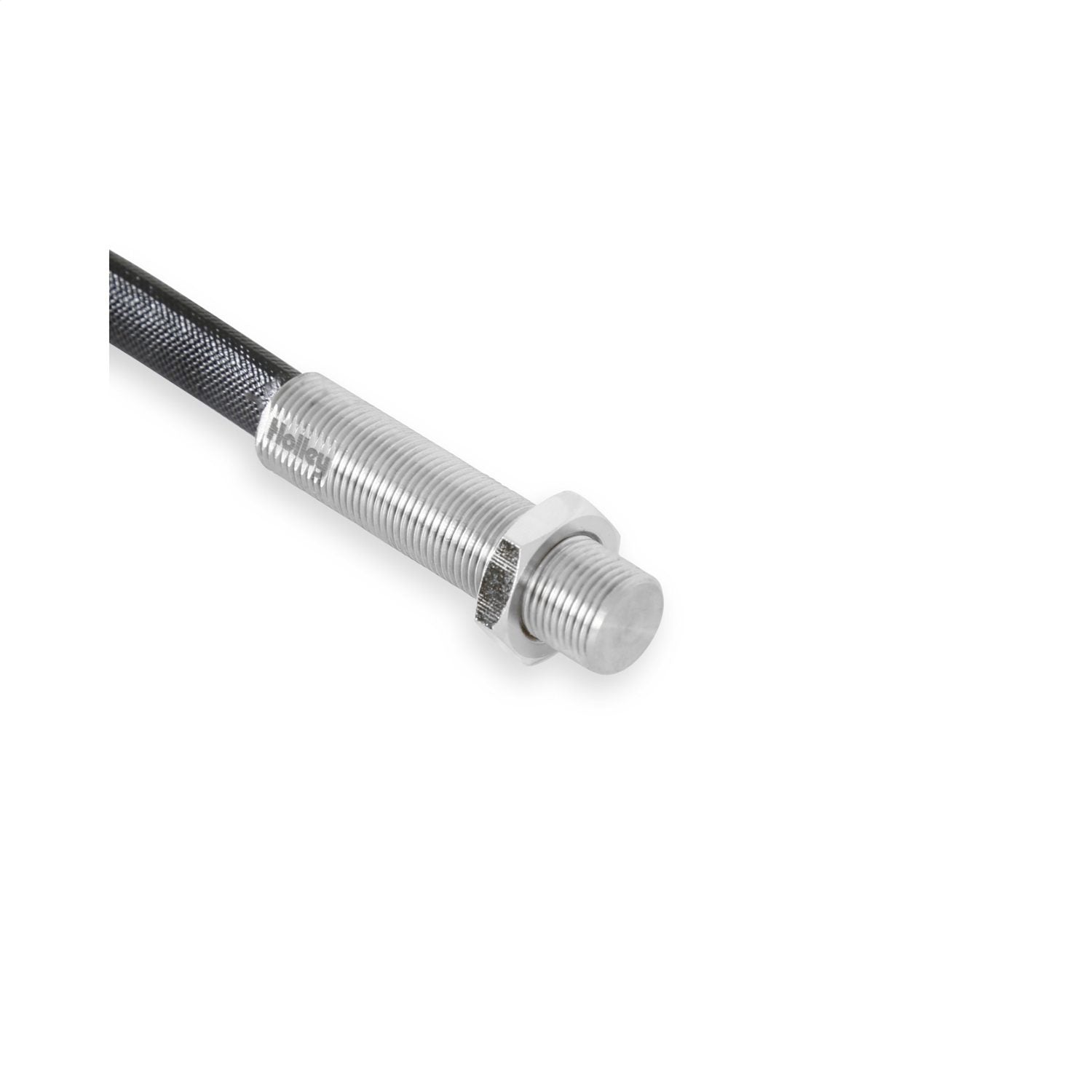

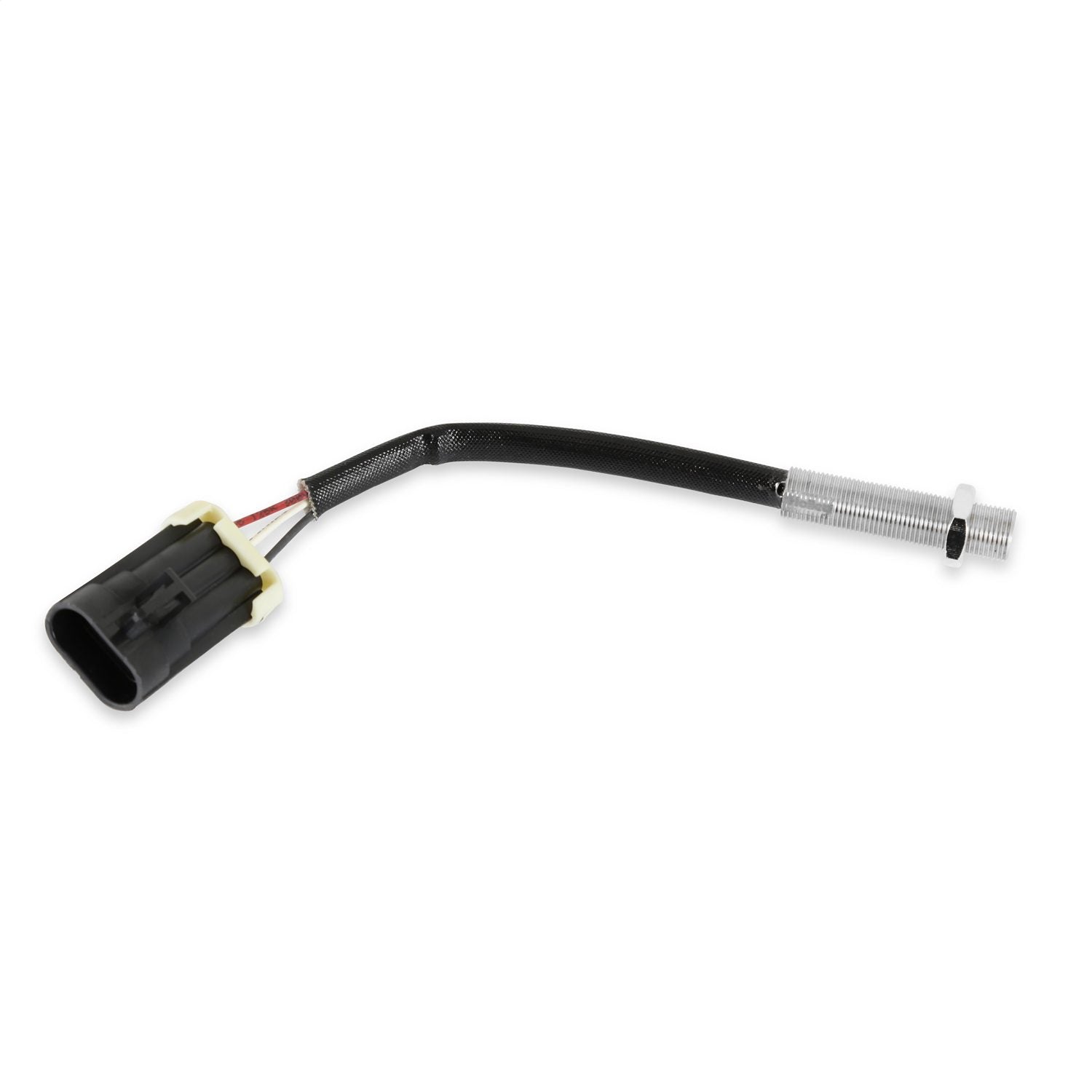

Hall Effect Ferrous Target Crankshaft Signal Sensor
Crankshaft Sensor; 3 Wire Hall-Effect Sensor; For Use w/Ferrous Metal Targets Only; Operates From 8-20 Volts;
Every racer around is well aware that the crank sensor is an integral part of the fuel injection system. Holleys EFI Crankshaft Signal Sensor is designed to generate an RPM input signal to the ECU when used in ferrous target crank trigger setups. This sensor is a Hall Effect sensor, meaning it outputs a digital square wave signal, which is ideal for use with most Electronic Fuel Injection Systems.
- 3 wire hall-effect crankshaft sensor, generates digital
- For use w/ ferrous metal targets only (does not detect flying magnets)

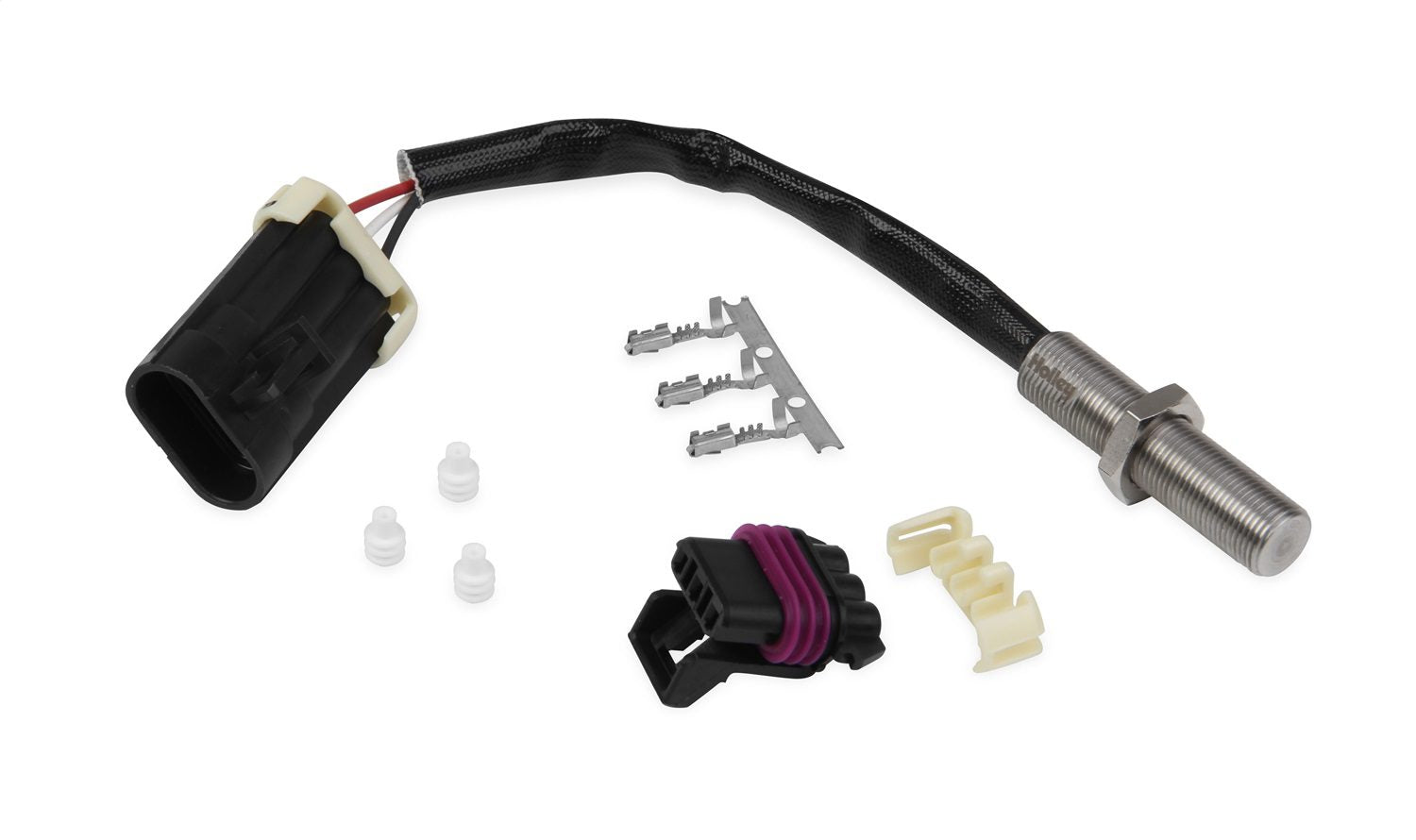

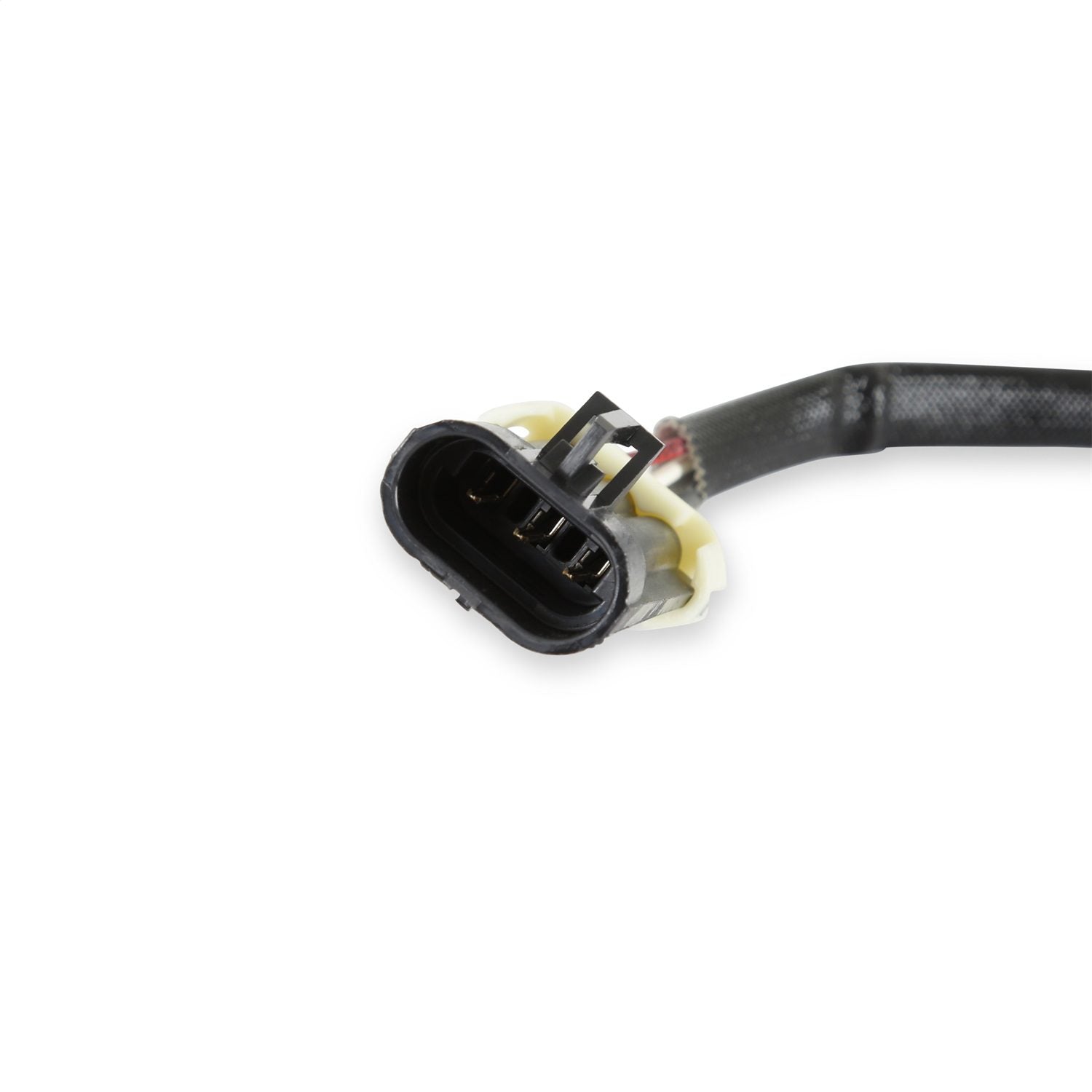

- Can operate from 8-20 volts, mating connector included
- M12x1 threads for finer gap adjustability, Approx. 2” length
- Will function as an auxiliary speed input (i.e. driveshaft)
Brand: Holley EFI
Category: Ignition
Emission Code: 5
Grade Type: Performance
Mounting Bracket Included: No
Mounting Hardware Included: Yes
Mounting Type: Bolt On
Product Type: Hall Effect Sensor
Warning: California Proposition 65
Wire Quantity: 3
