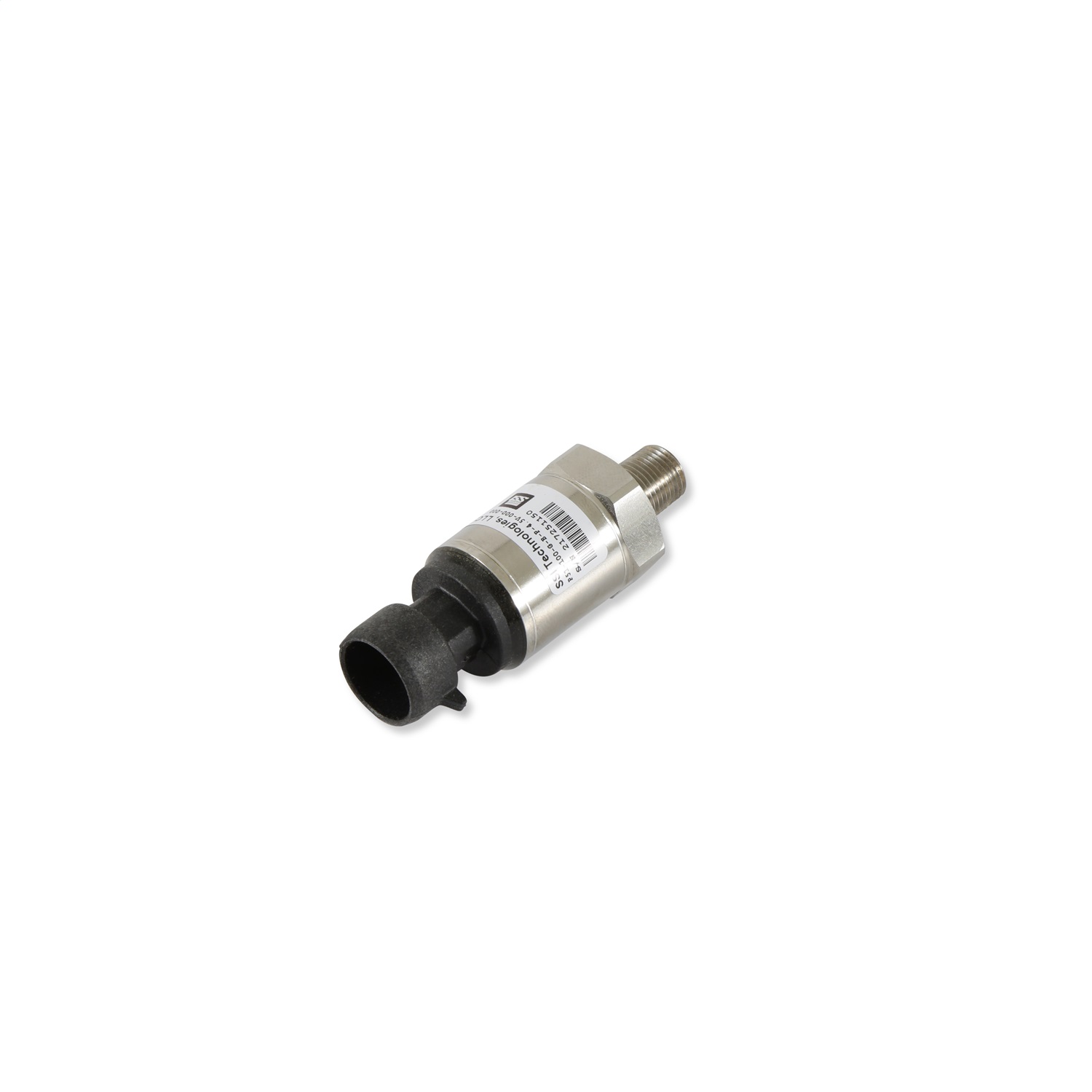

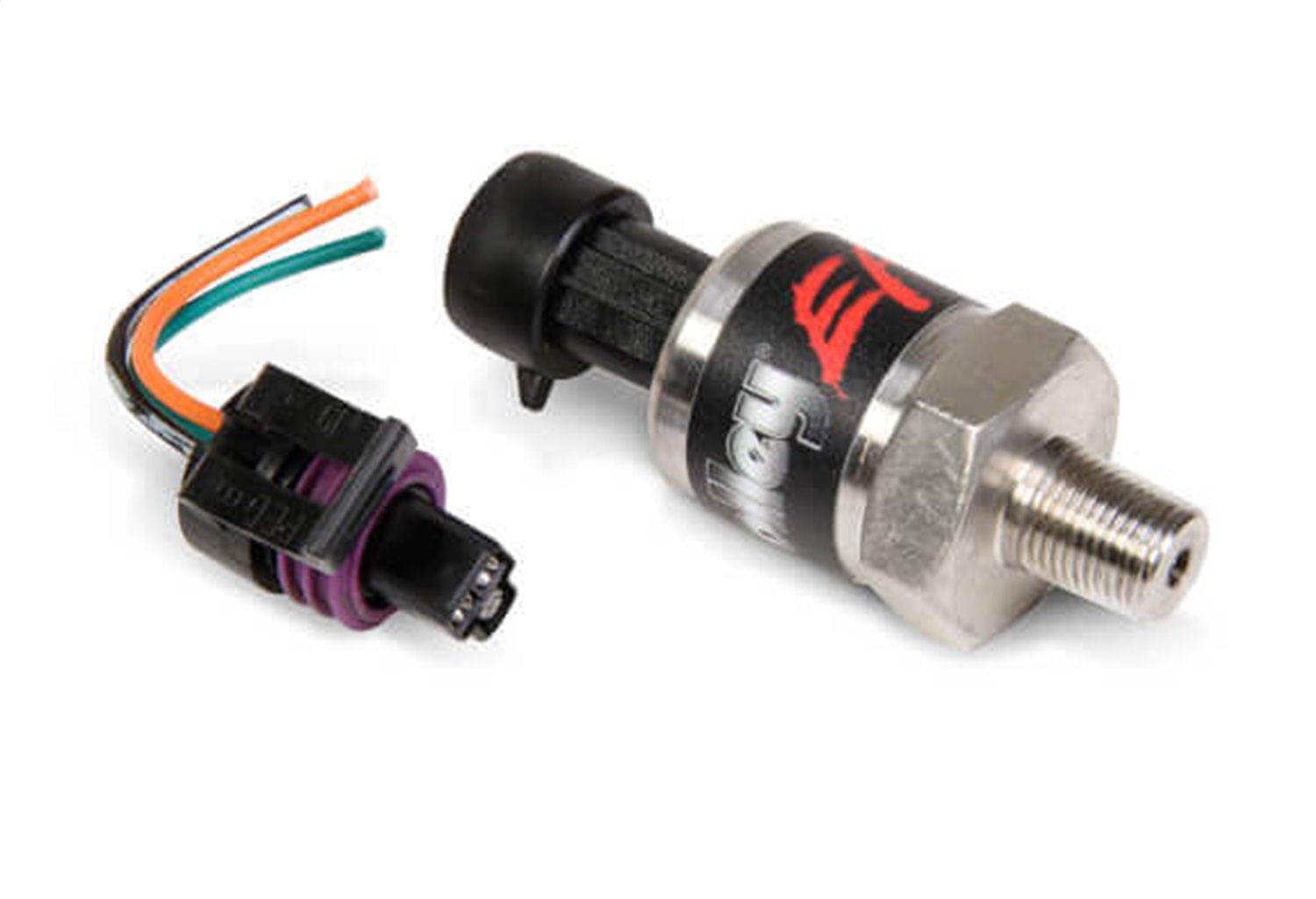

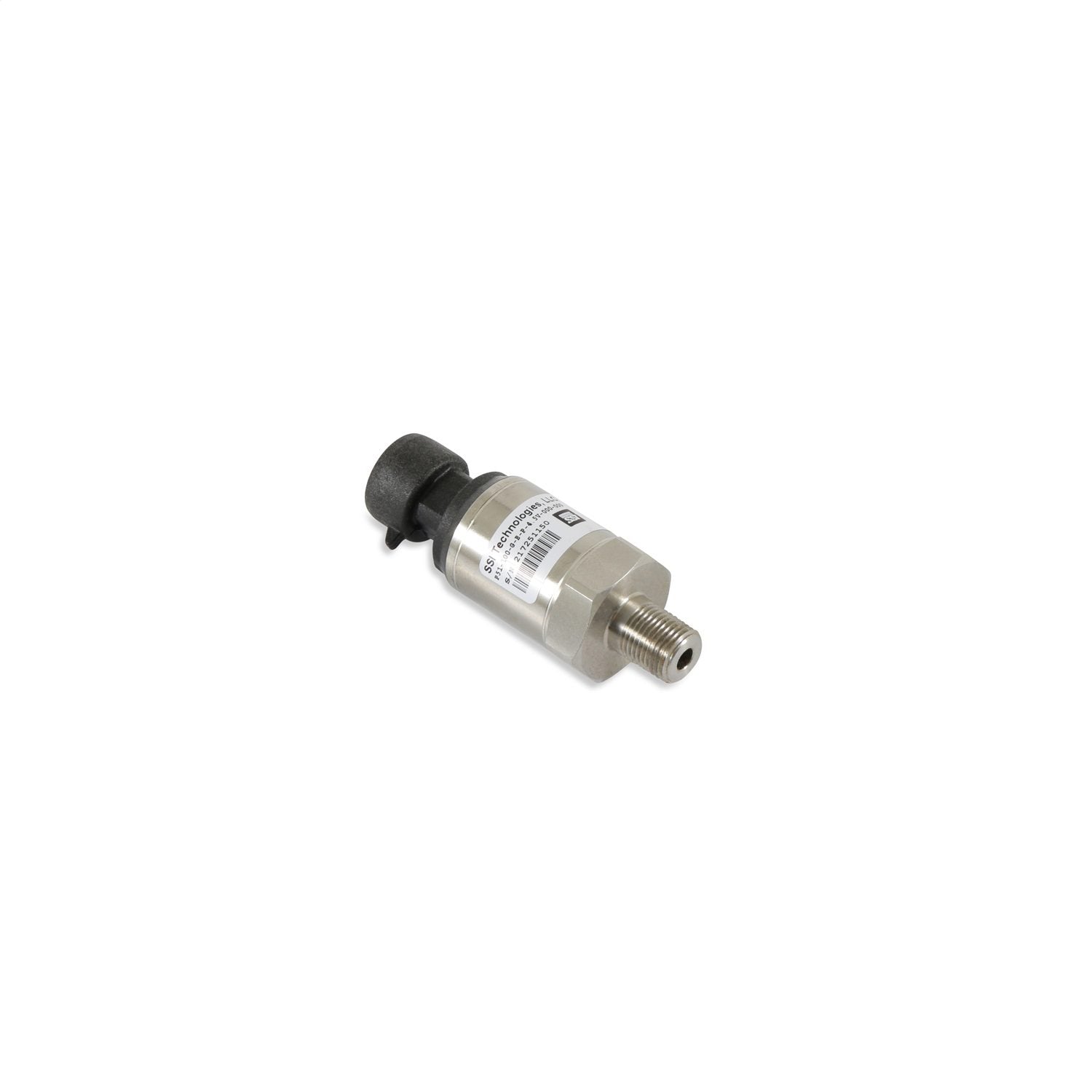

Holley EFI - 554-102
Fuel Pressure Sensor; 0-100 psi; Plug And Play For Fuel And Oil Pressure Inputs w/Holley EFI Systems;
Plug and play for Holley Avenger, Terminator, HP, and Dominator ECU fuel and oil pressure inputs.
- Plug and play for both fuel and oil pressure inputs with Holley EFI systems
- Stainless steel construction
- Linear voltage output of 0.5V - 4.5V

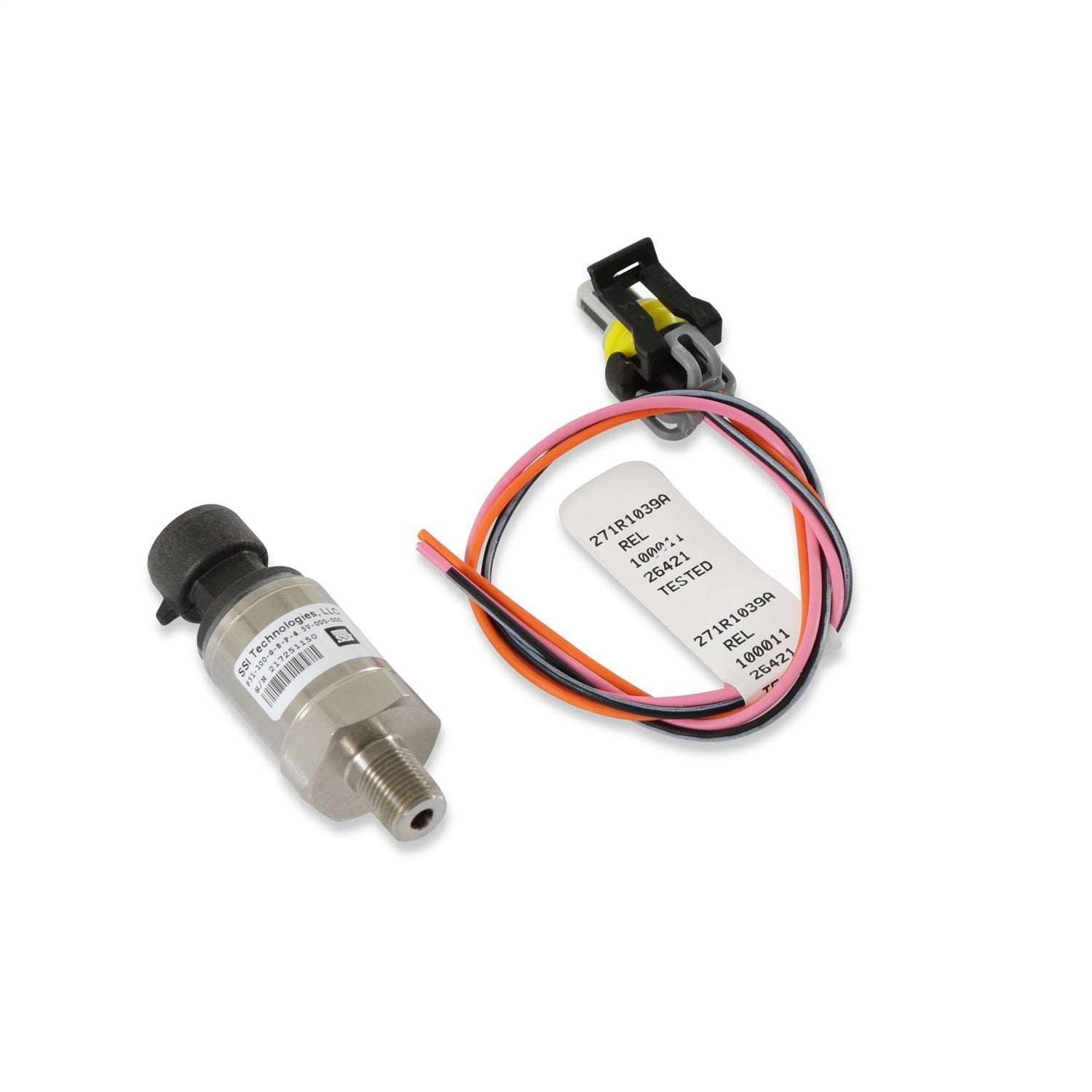

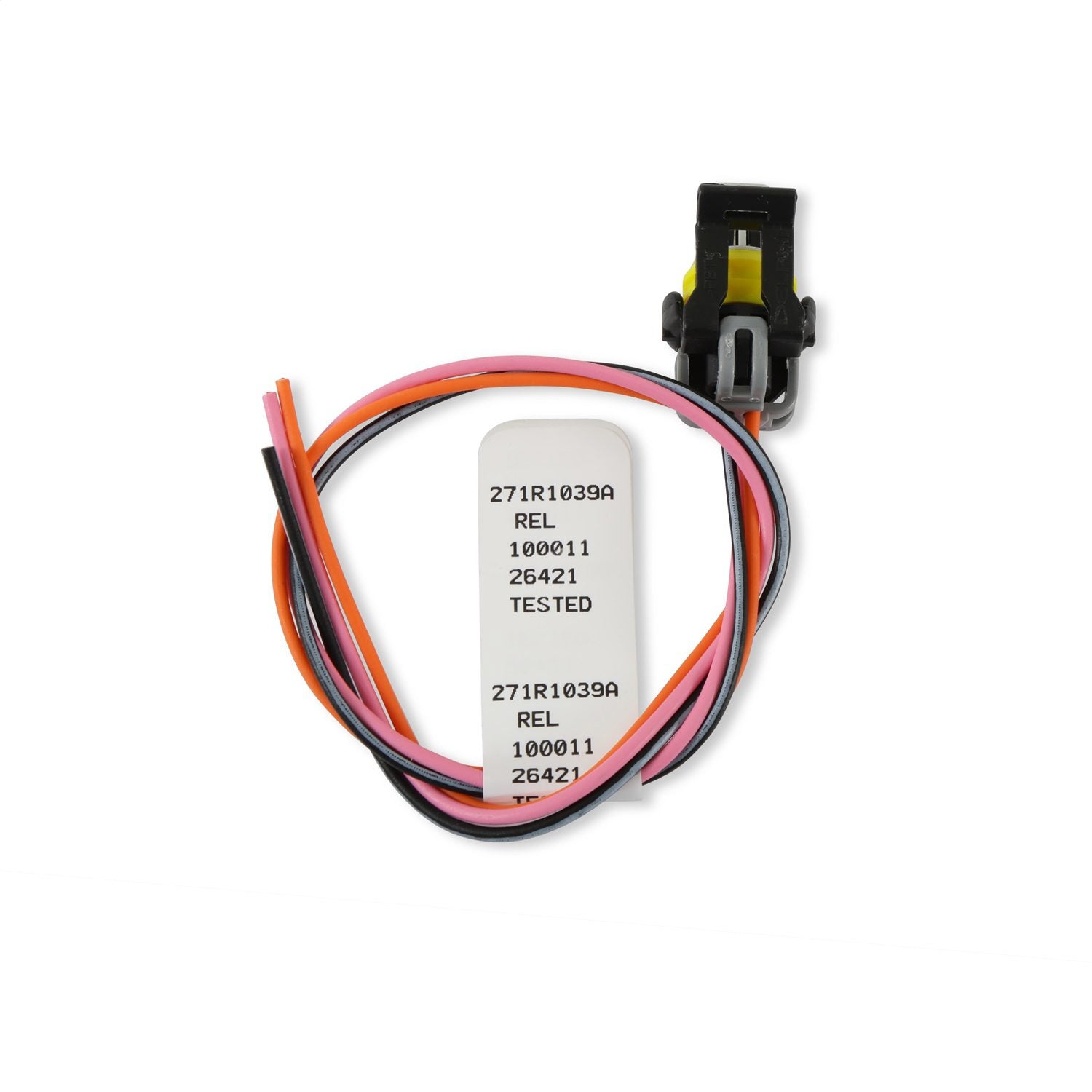

- Includes pigtail connector for custom configurations
Body Diameter: .875"
Body Length: 2.558"
Brand: Holley EFI
Category: Air and Fuel Delivery
Connector Gender: Male Female
Connector Quantity: 1
Emission Code: 5
Fuel System Type: EFI
Grade Type: Performance
Inlet Size: 1/8" NPT
Linear voltage output: .5 - 4.5 Volts
Material: Stainless Steel
Maximum Pressure Reading: 100 PS
Mount Type: Screw-In
part type: Fuel Injection Pressure Sensor
Pressure Range: 0-100 PSI
Product Type: Pressure Senser - Transducer
reference voltage required: 5 Volts
Sub Category: Sensors
Terminal Gender: Female
Terminal Quantity: 1
Threaded End Diameter: 1/8-27 NPT IN
Warning: California Proposition 65
