Holley EFI - 553-127W
Holley EFI Oil Pressure Gauge

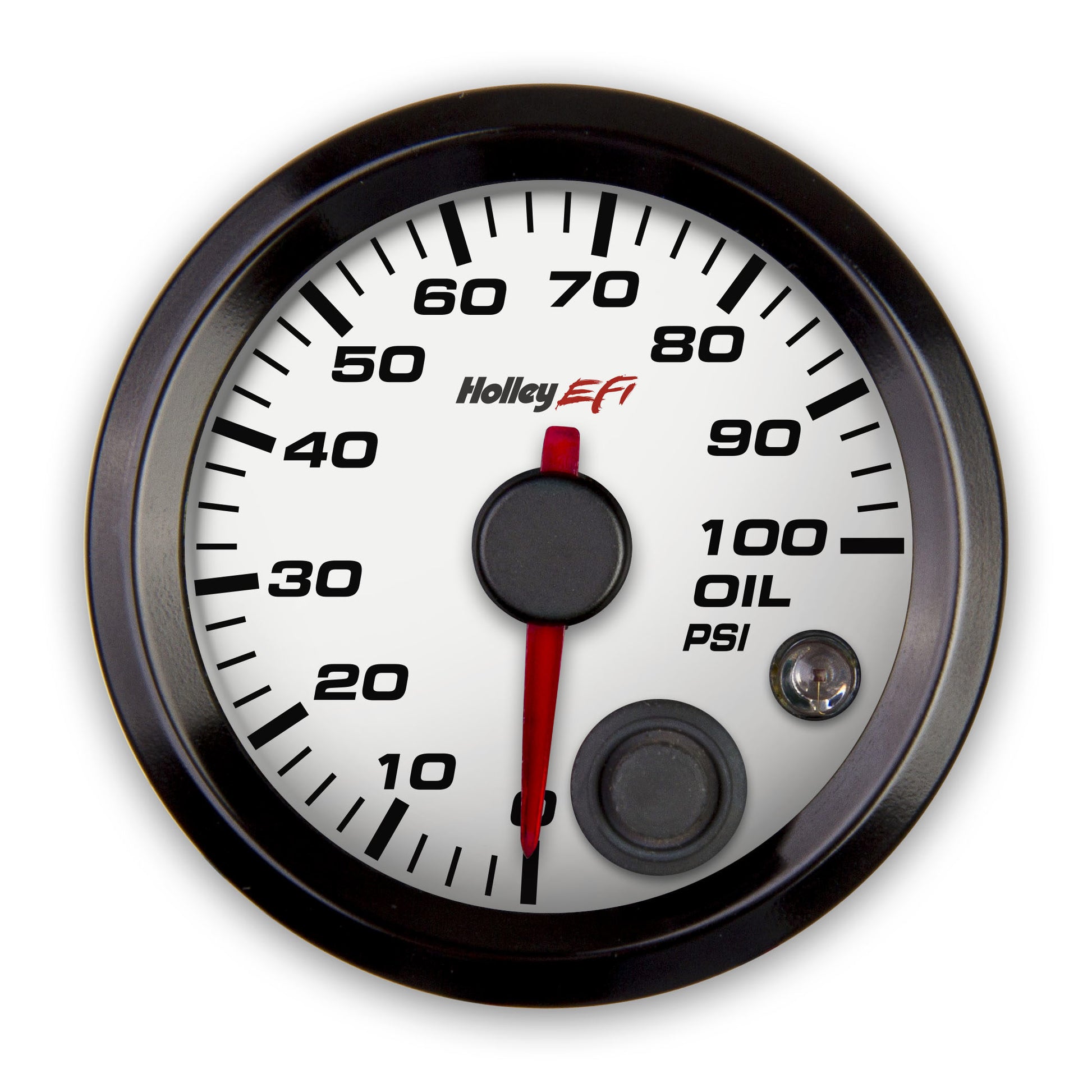

Oil Pressure Gauge - Standard 2-1/16" size - CAN - 0-100 PSI - White Face - Black Bezel

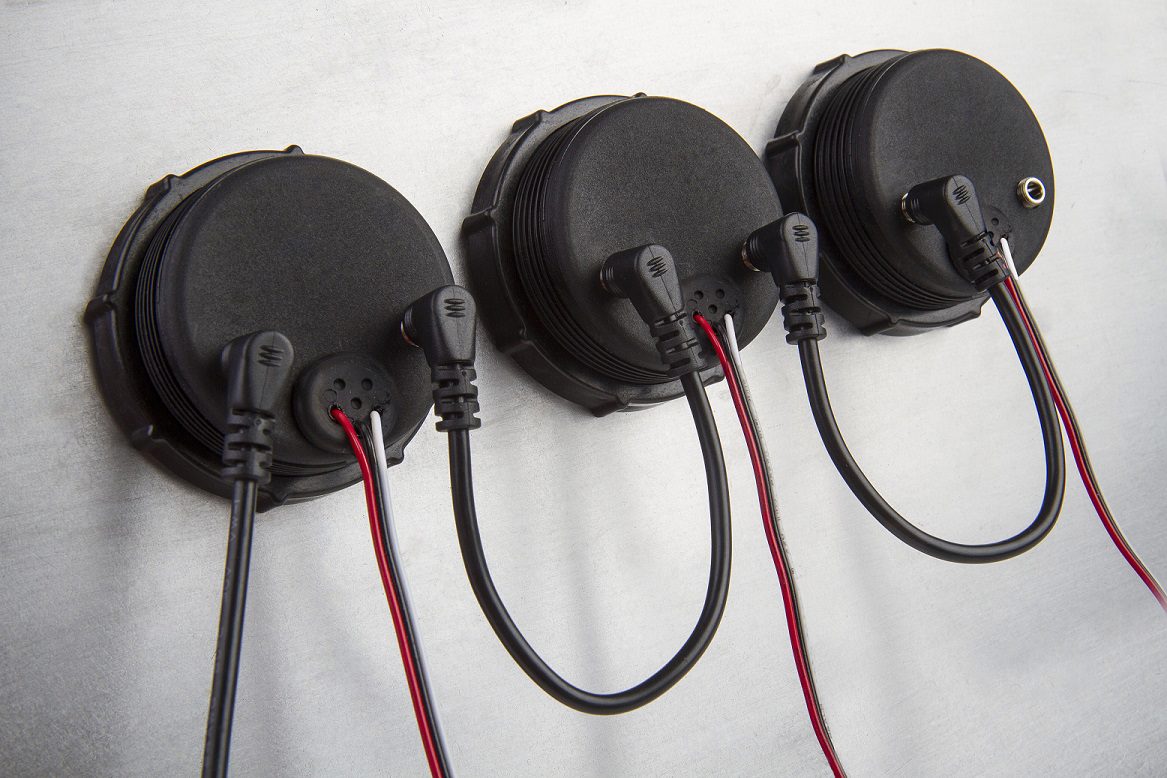

Holley is pleased to announce the continuation of their popular analog-style gauges with the release of a new white face 2-1/16 in. version, designed specifically for use with Holley EFI systems. These gauges are compatible with all Terminator, HP, and Dominator ECUs, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module allows plug and play communication between the ECU and gauges, through a one-wire ECU connection*.
- Plug and play compatibility with all Terminator, HP, and Dominator ECU’s (w/ module P/N 554-130)
- No programming necessary; eliminates the need to install duplicate sending units
- Compatible with all Holley EFI touch screens, dashes, handheld tuners, and other CAN devices
- 270° sweep pointer from 6 to 3 o’clock makes gauges easy to read at a glance
- Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions
- Adjustable LED warning light allows user to set both low and high trigger points
- LED warning light brightness can be configured for both day and night
- Peak recall lets user view the min/max gauge readings with the push of a button
- Spin lock ring threads to back of gauge case for simple and secure gauge mounting
- CNC machined billet aluminum bezels with anodized finish – Bezels are threaded for easy replacement
- Multiple bezel options available separately – User can customize the gauges to their preference

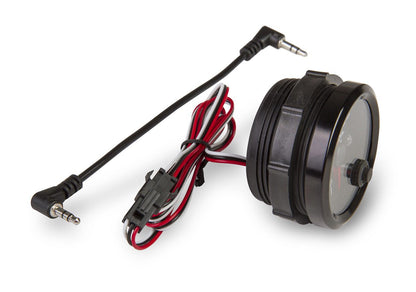

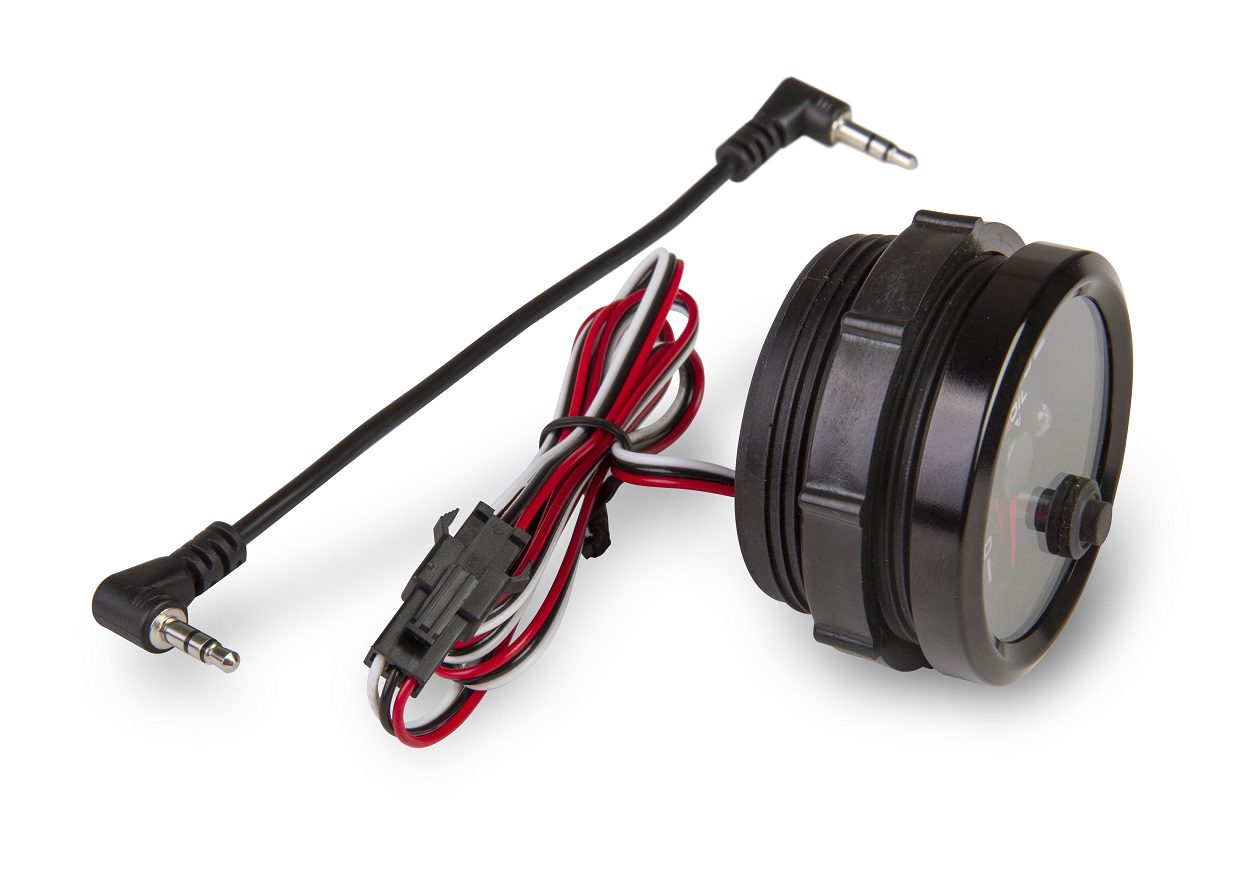

- Gauges include 6 in. daisy chain cable and 3 ft. power harness
- Additional length cables and multi-connection power distribution harness available separately
Bezel Color: Black
Bezel Material: Aluminum
Body Color: Black
Brand: Holley EFI
Bulbs Included: No
Category: Body
Color Change Button: No
Dimmable: No
Display Type: Analog
Emission Code: 5
Face Color: White
Face Diameter: 2-1/16 IN
Gauge Background Color: White
Gauge Type: Oil Pressure
Grade Type: Performance
Illuminated: Yes
Lens Color: Clear
Liquid Filled: No
Maximum Pressure Reading: 100 PS
Minimum Pressure Reading: 0 PS
Mounting Hardware Included: No
Mounting Pod Included: No
part type: Engine Oil Pressure Gauge
Pointer Color: Red
Product Type: Gauge
Sensor Included: No
Sensor Type: Electric
Size: 2-1/16"
Sub Category: Instrument Panel
Universal Or Specific Fit: Universal
Warning: California Proposition 65
Warning Light: Yes
