Holley EFI - 534-298

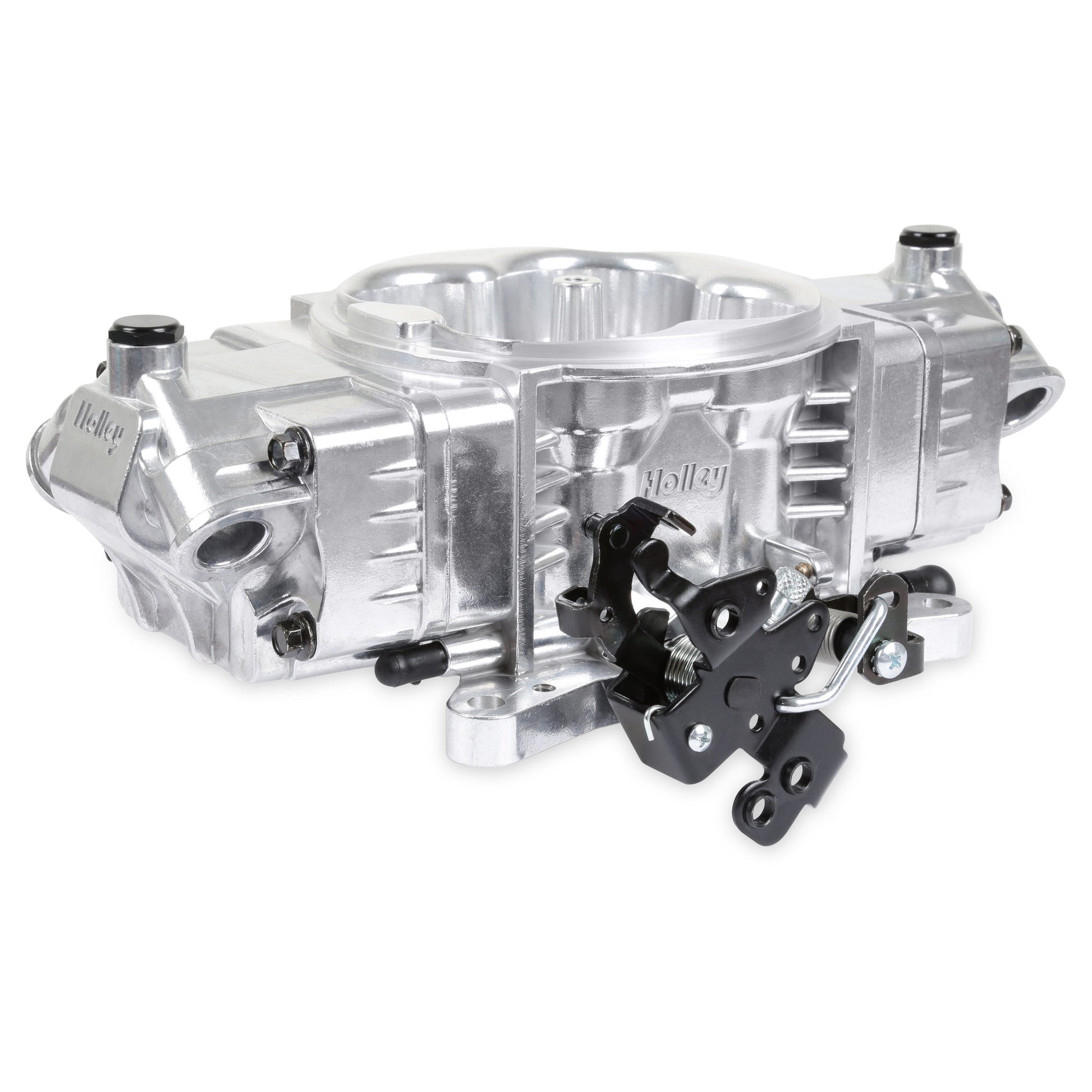

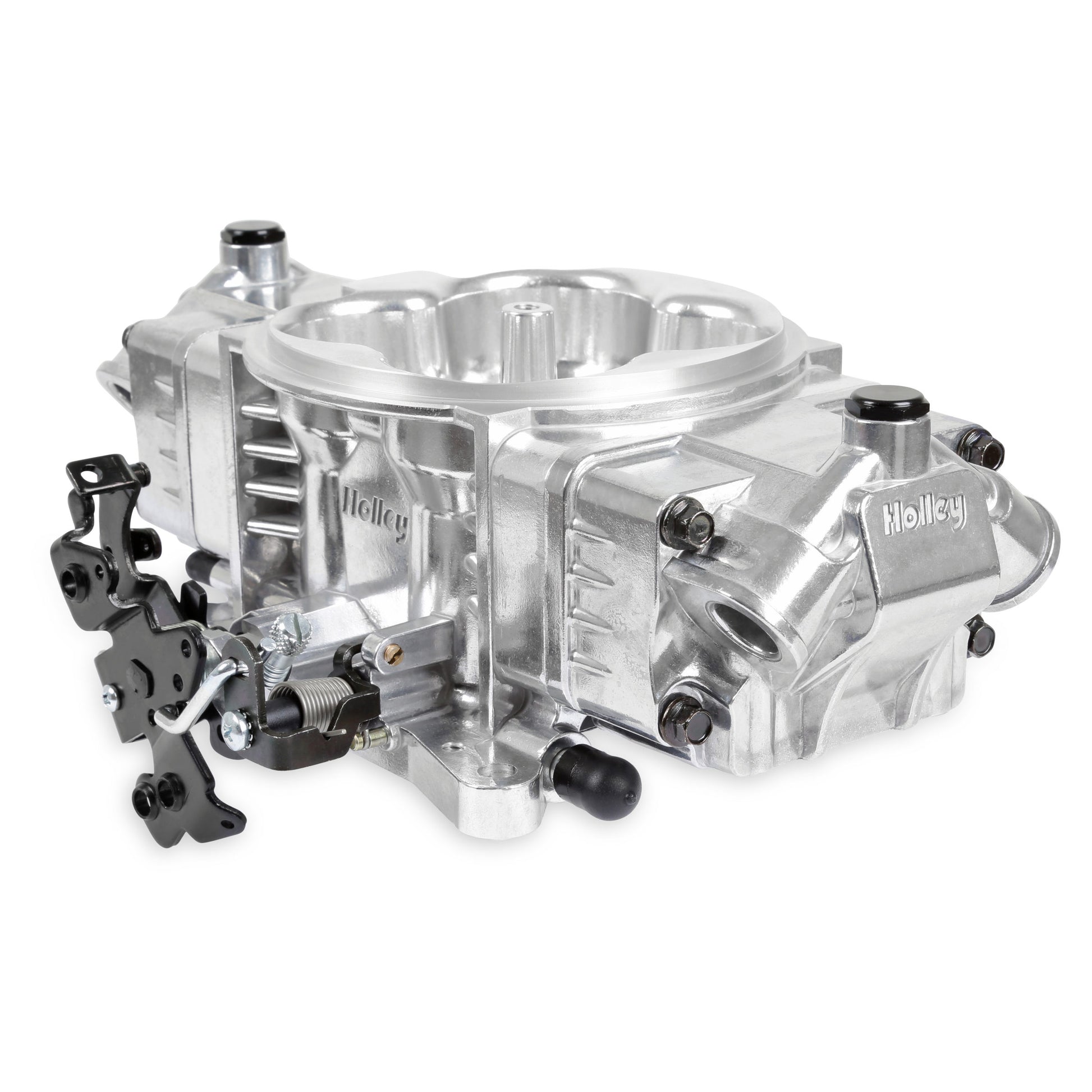

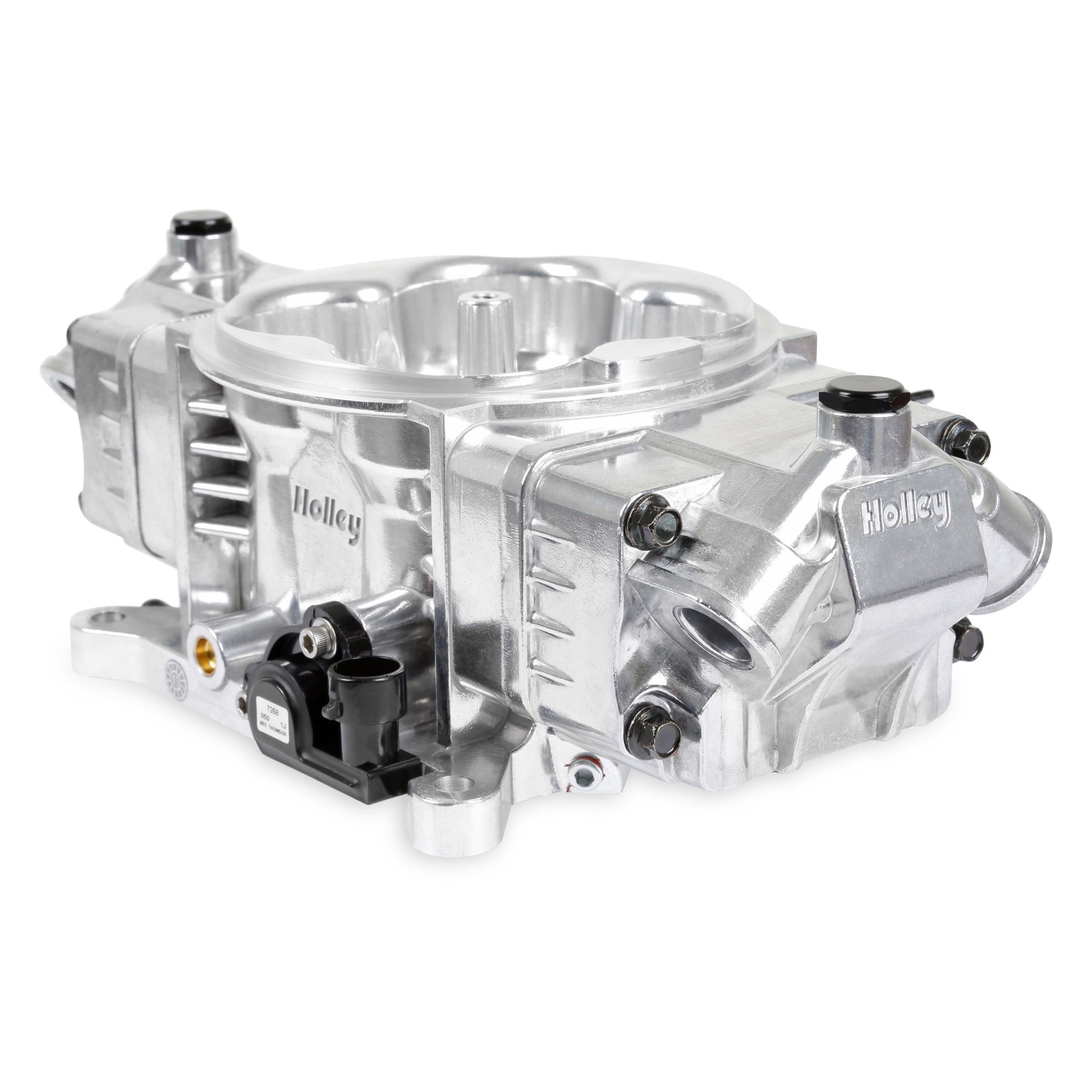

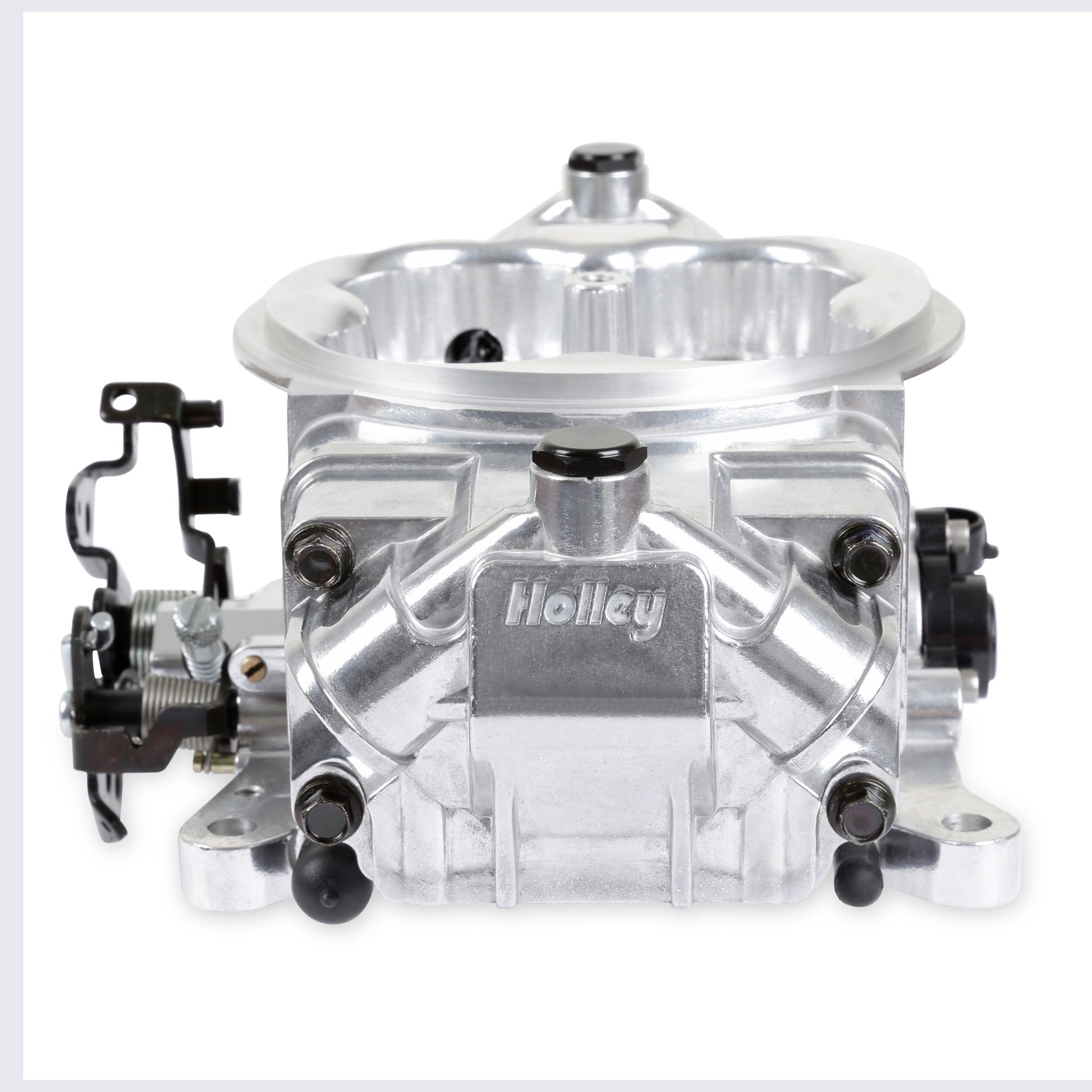

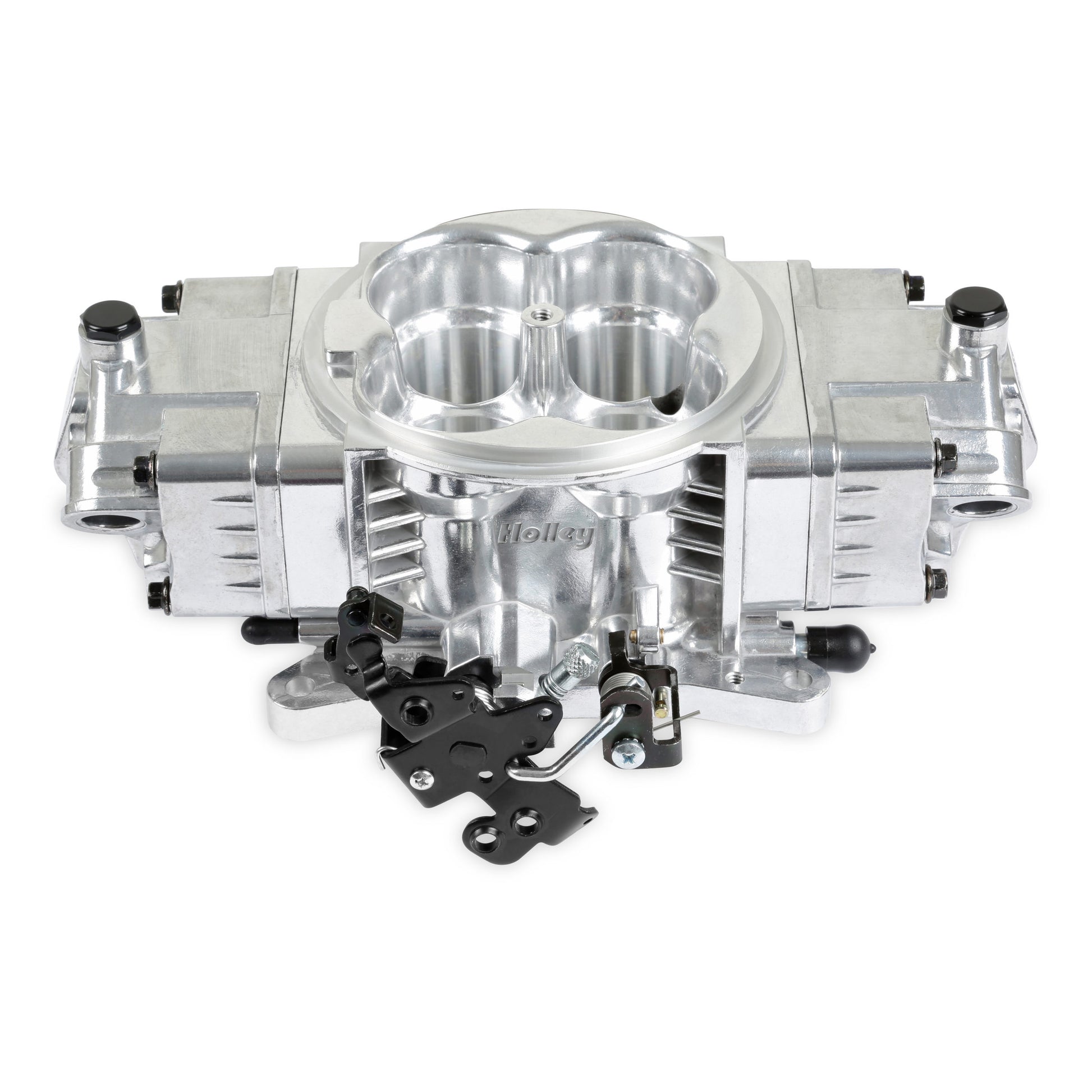

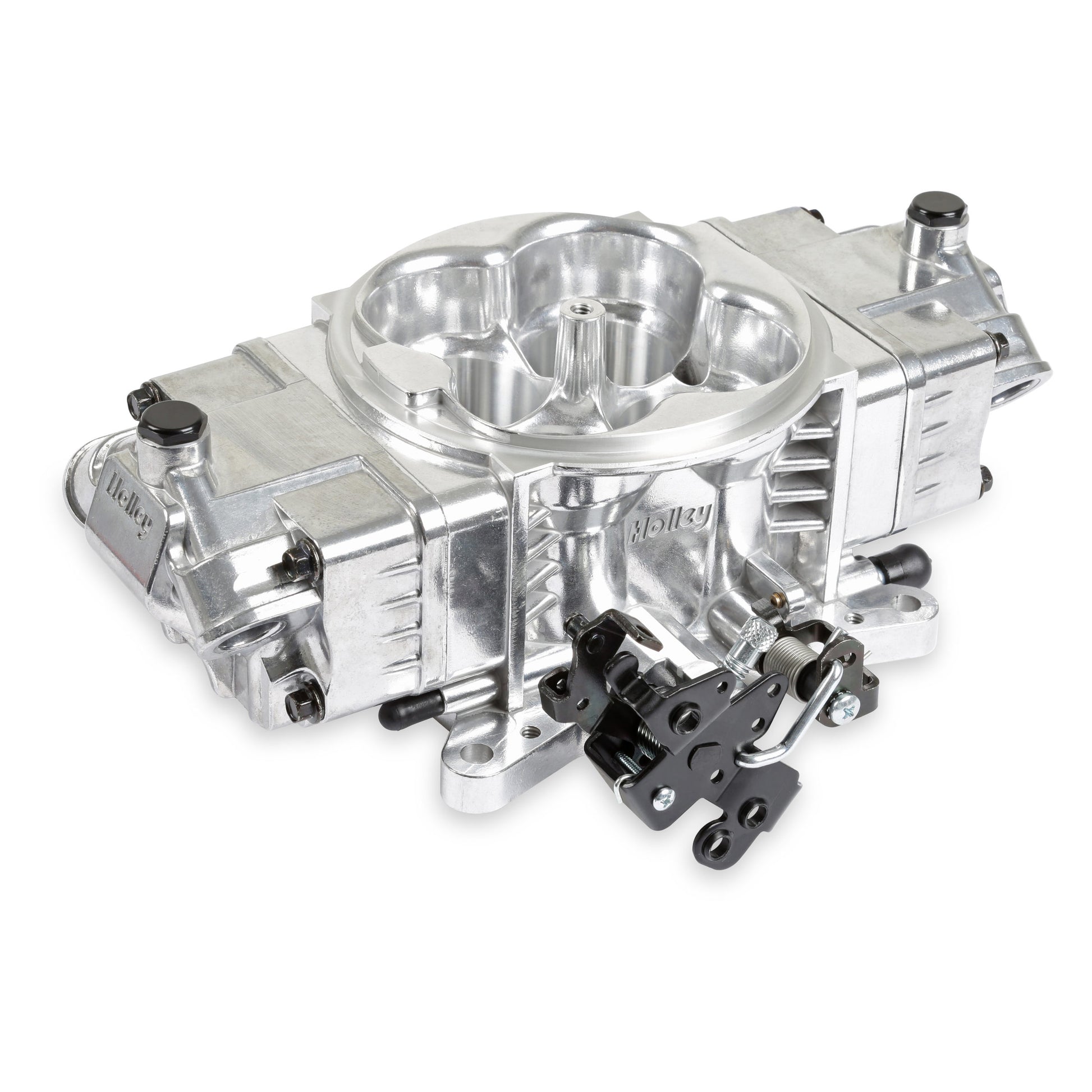

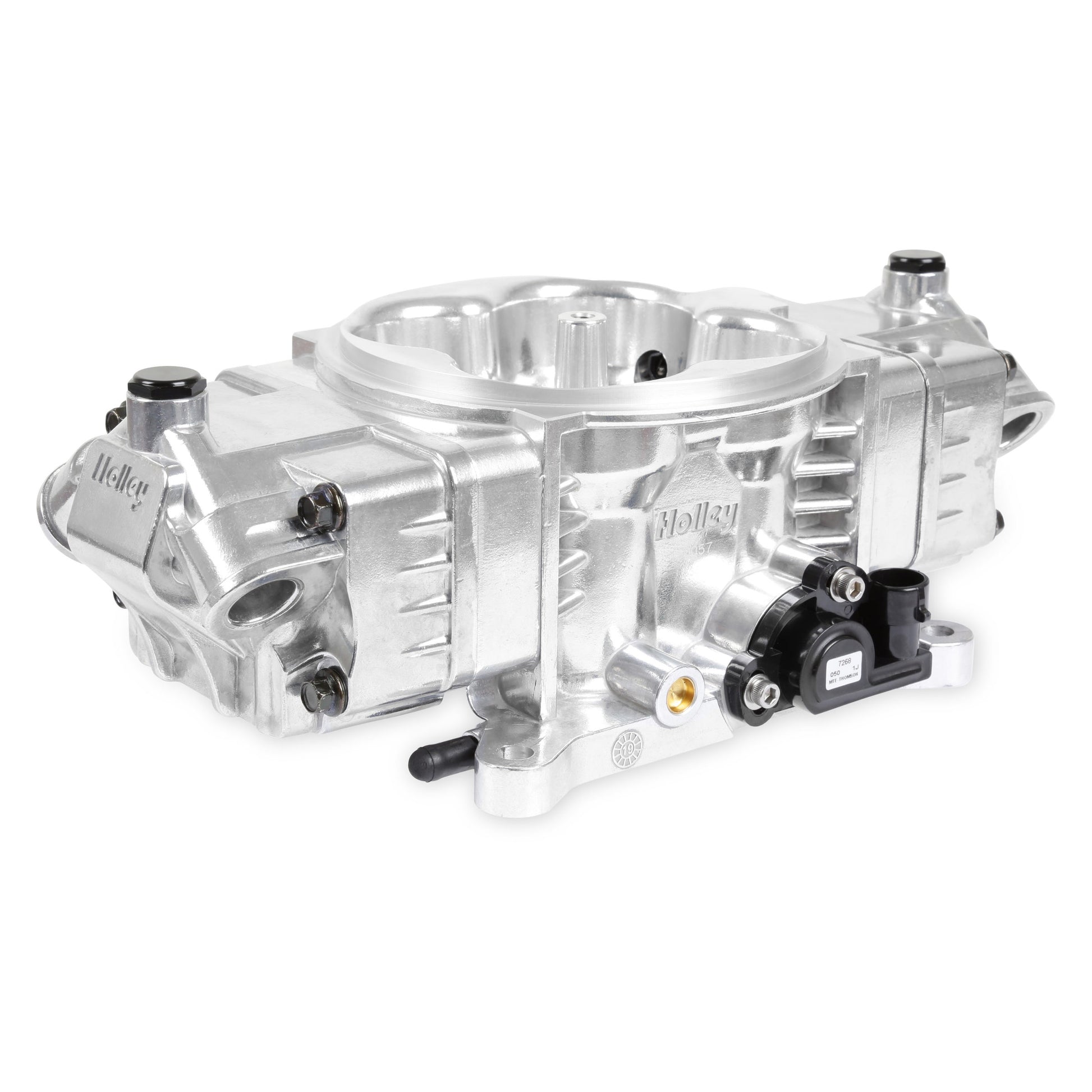

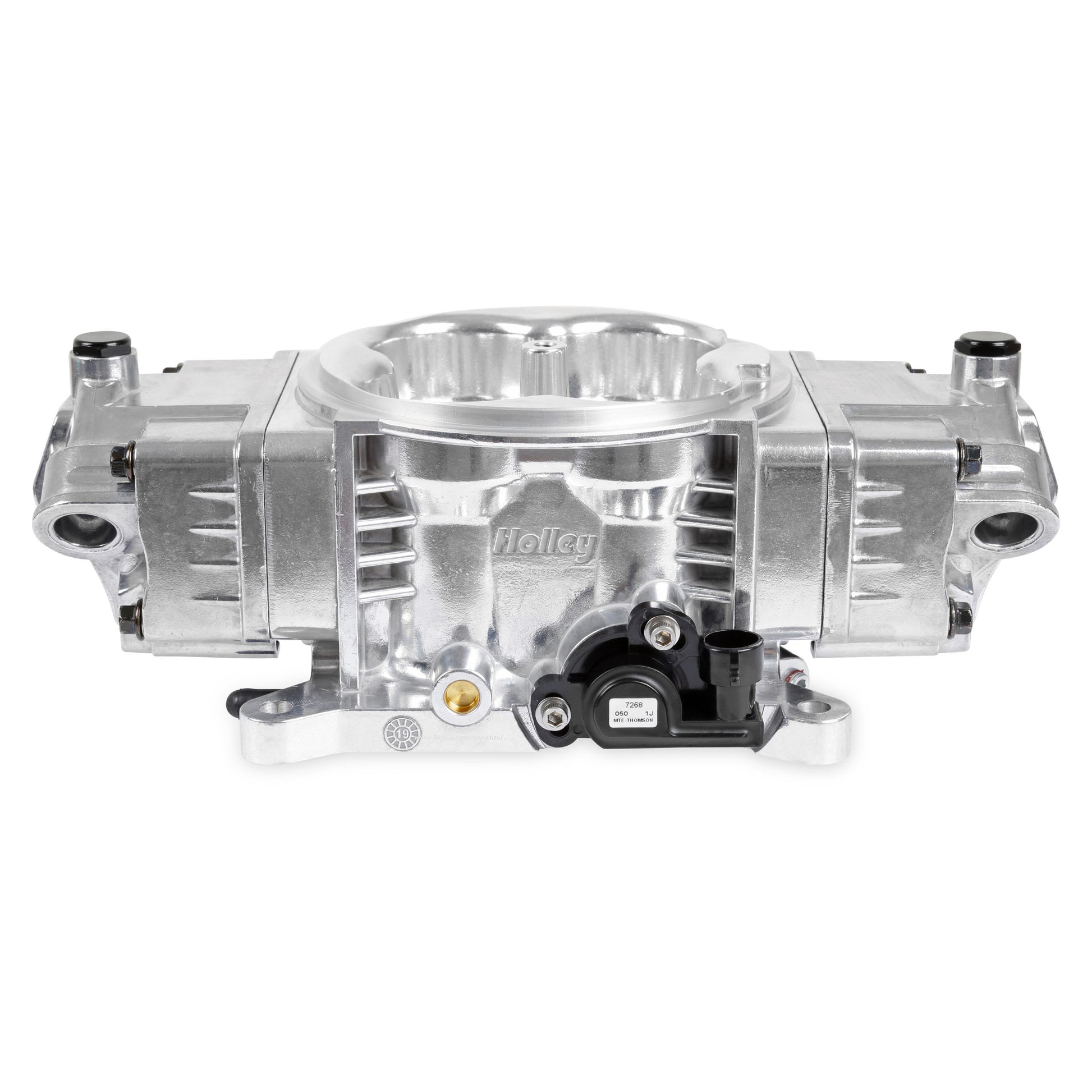

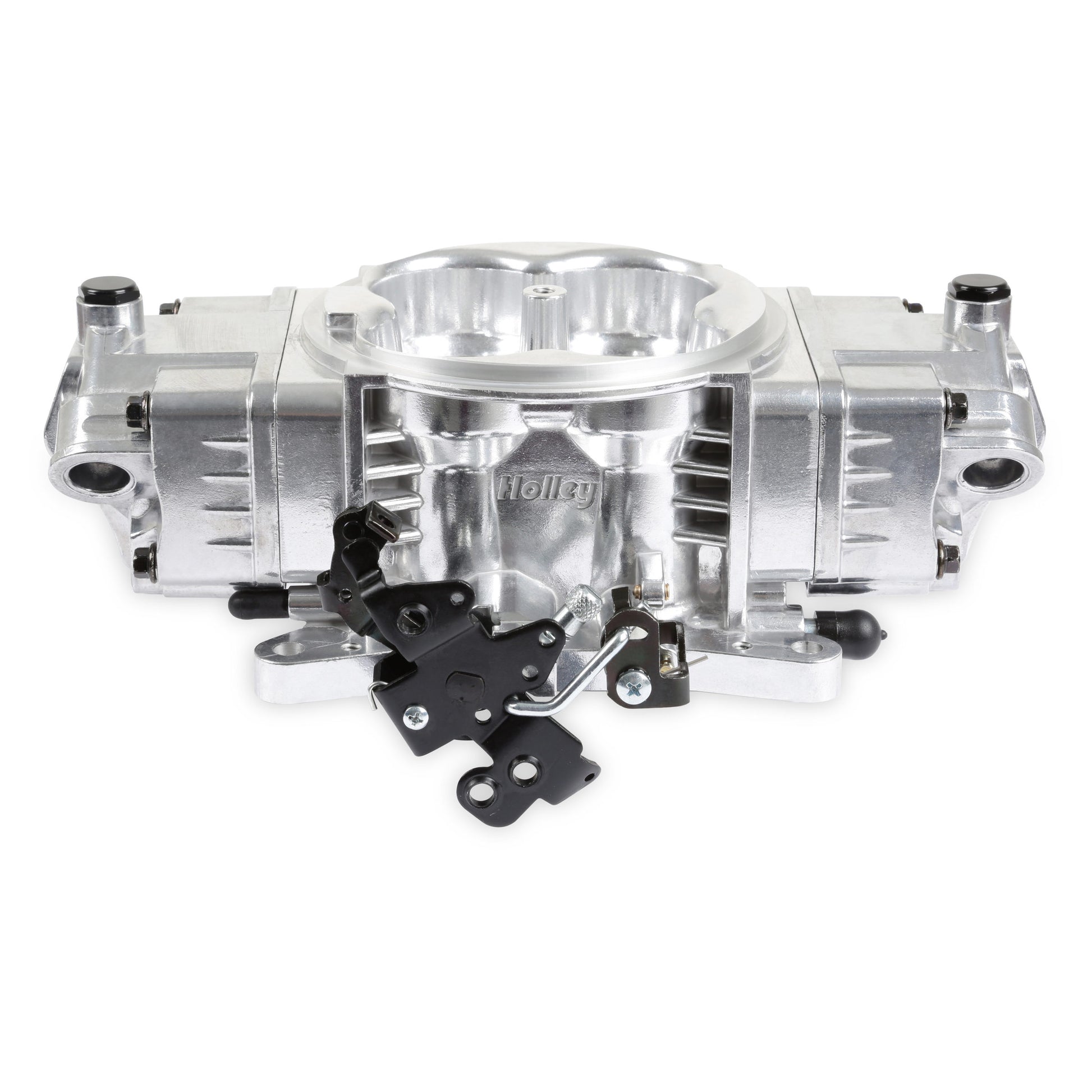

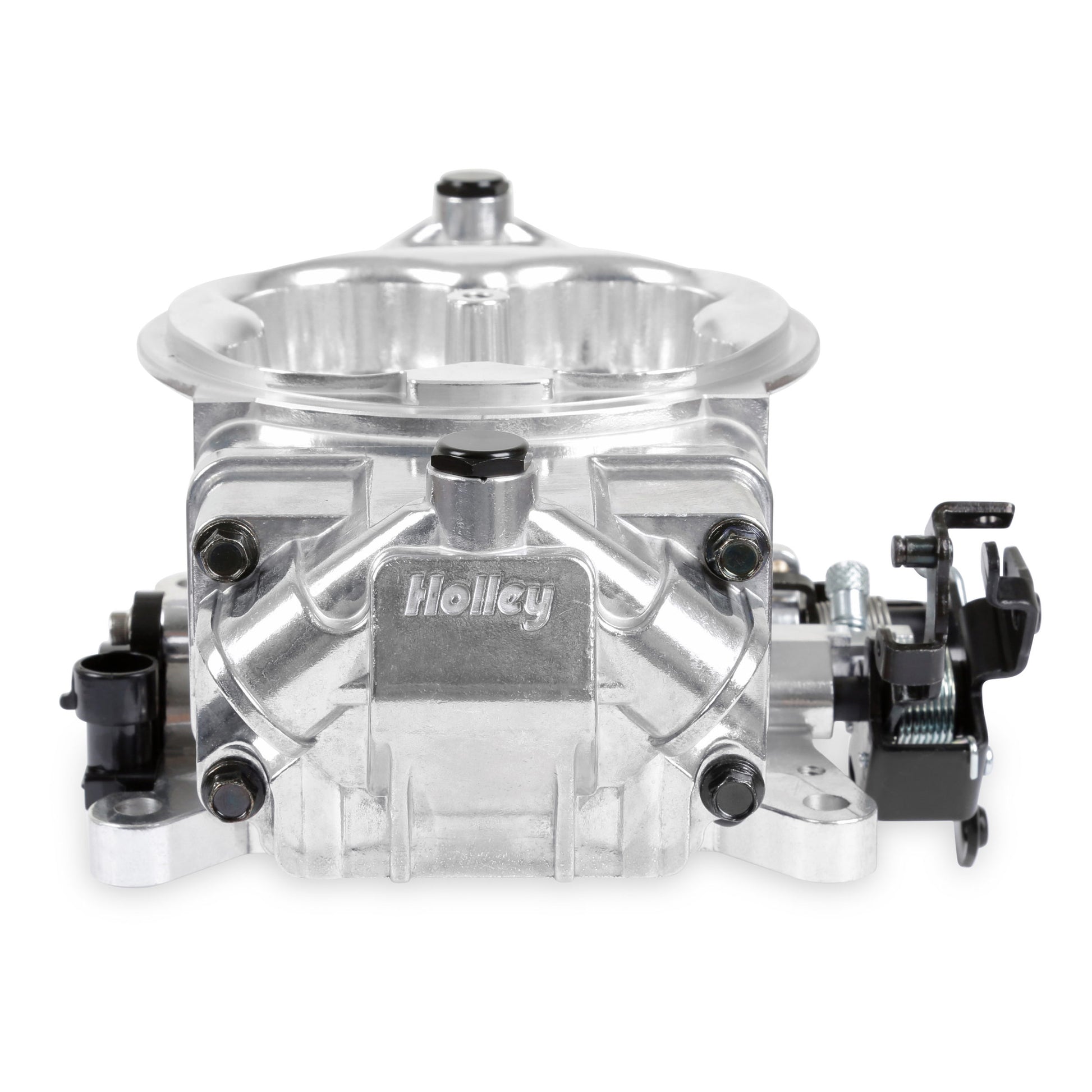

Holley EFI Terminator X Stealth 4150 Secondary Throttle Body - Shiny
Terminator X Stealth 4150 Throttle Body; 2x4 Slave; 4150 Flange; 58.5 PSI; Polished;
Replacement/Service secondary throttle body with injectors, intended to be used as a service component or when building a custom 4150 style 2x4 setup.
- Bolt on 2x4 4150 flange carburetor replacement
- Supports up to 1500 HP naturally aspirated or 1250 HP forced induction
- (8) 100 pound per hour fuel injectors
- Internal 1 Bar MAP sensor built into the Terminator X ECU
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Plug and play with Holley EFI Accessories, such as the 12.3” and 6.86” Pro Dash; CAN EGT; and Digital Analog style EFI gauges
Adjustable: Yes
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Shiny
Emission Code: 3
Finish: Shiny
Flange Size: 4150
Flange Style: Squarebore
Fuel Injectors Included: Yes
Fuel System Type: EFI
Grade Type: Performance
Idle Air Control Motor Included: No
Ignition Type: Universal
Injector Size: 100 lb/hr @ 58.5 PSI
Max Horsepower Rating: 650 Naturally Aspirated
Mounting Hardware Included: No
part type: Fuel Injection Throttle Body
Product Type: Throttle Body
Sub Category: Fuel Injection System and Related Components
Throttle Body Finish: Polished
Throttle Body Material: Cast Aluminum
Throttle Body Spacer Included: No
Throttle Bore: 1.75 in.
Throttle Position Sensor Included: Yes
Warning: California Proposition 65
