Holley EFI - 534-294

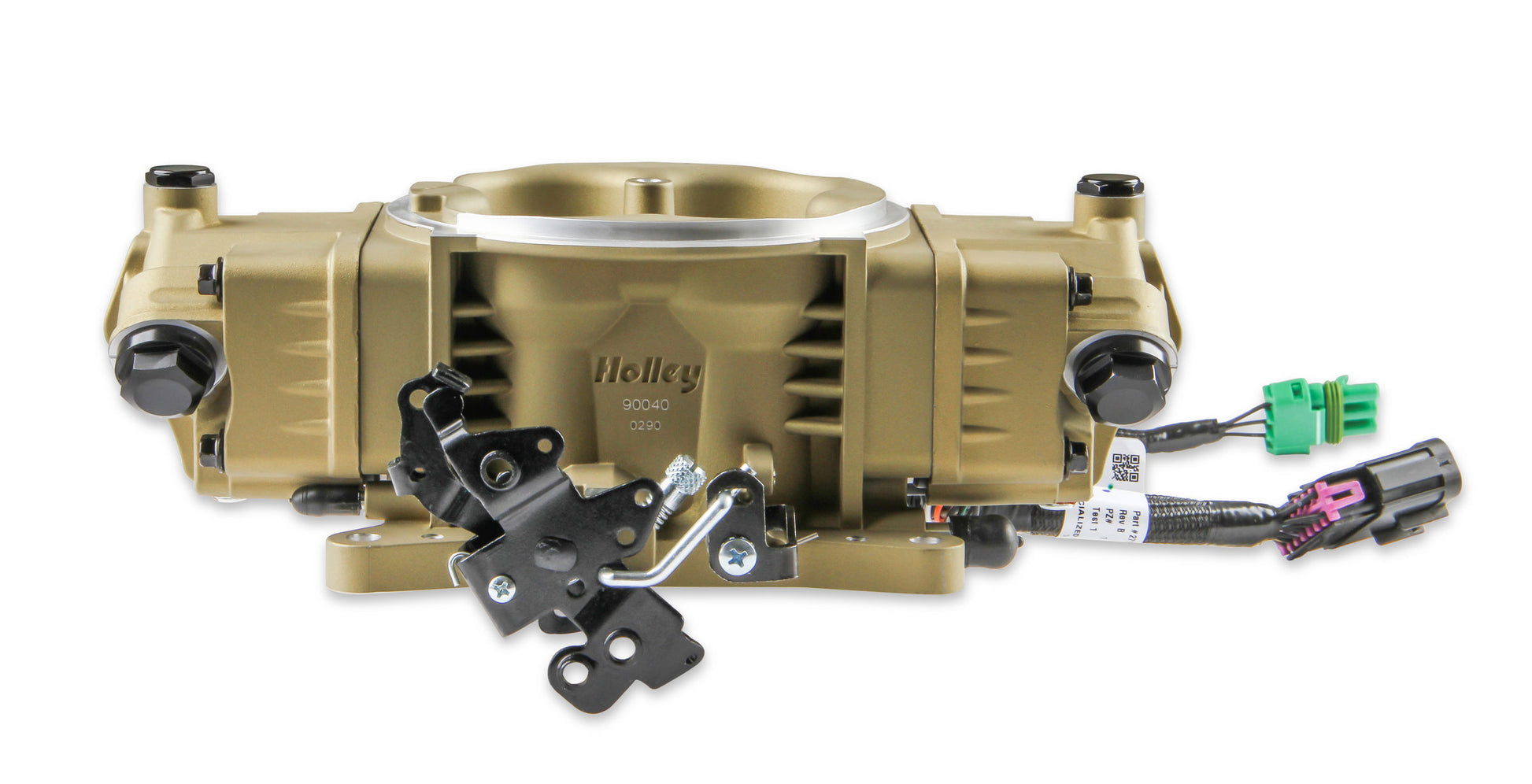

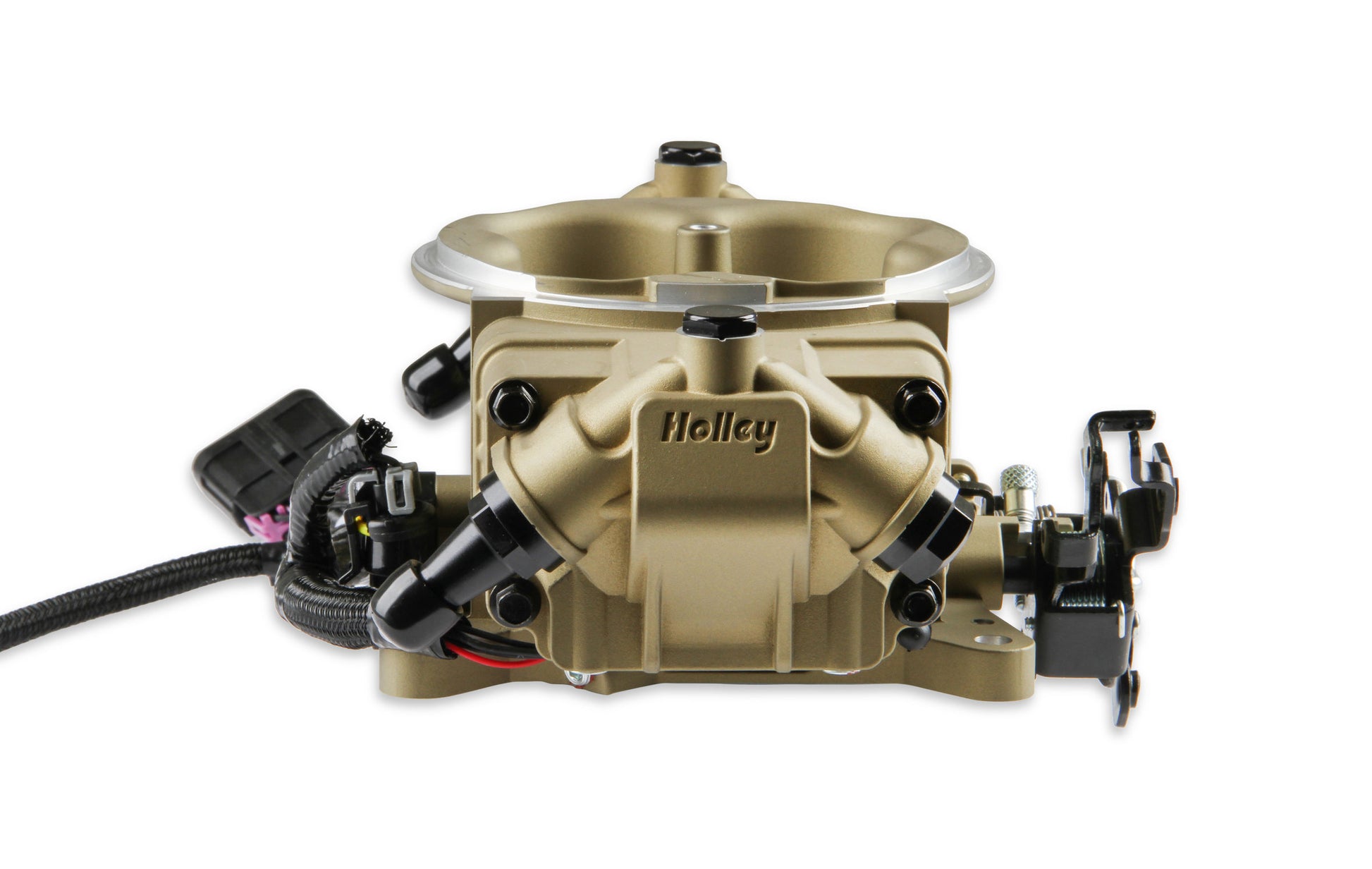

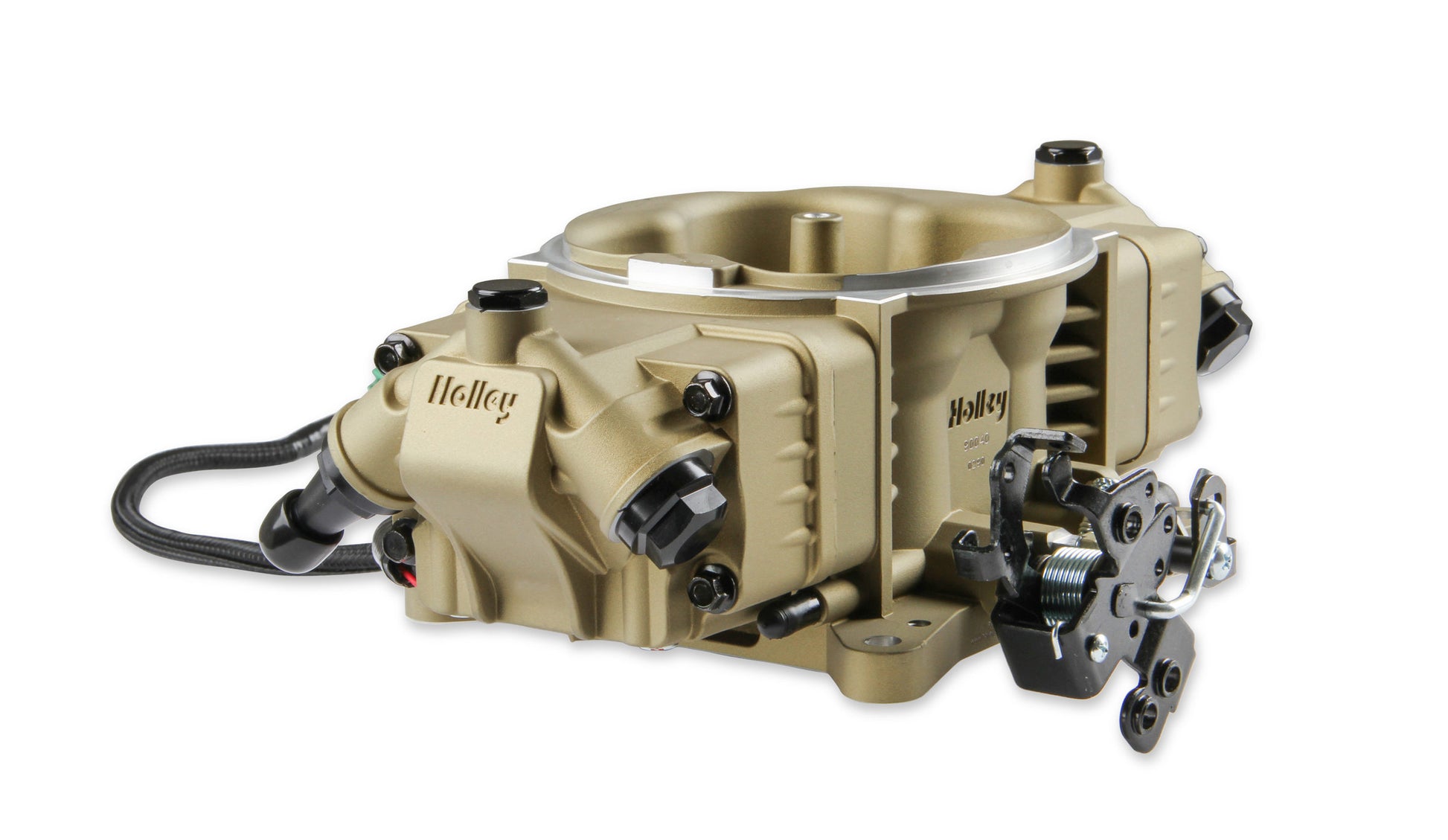

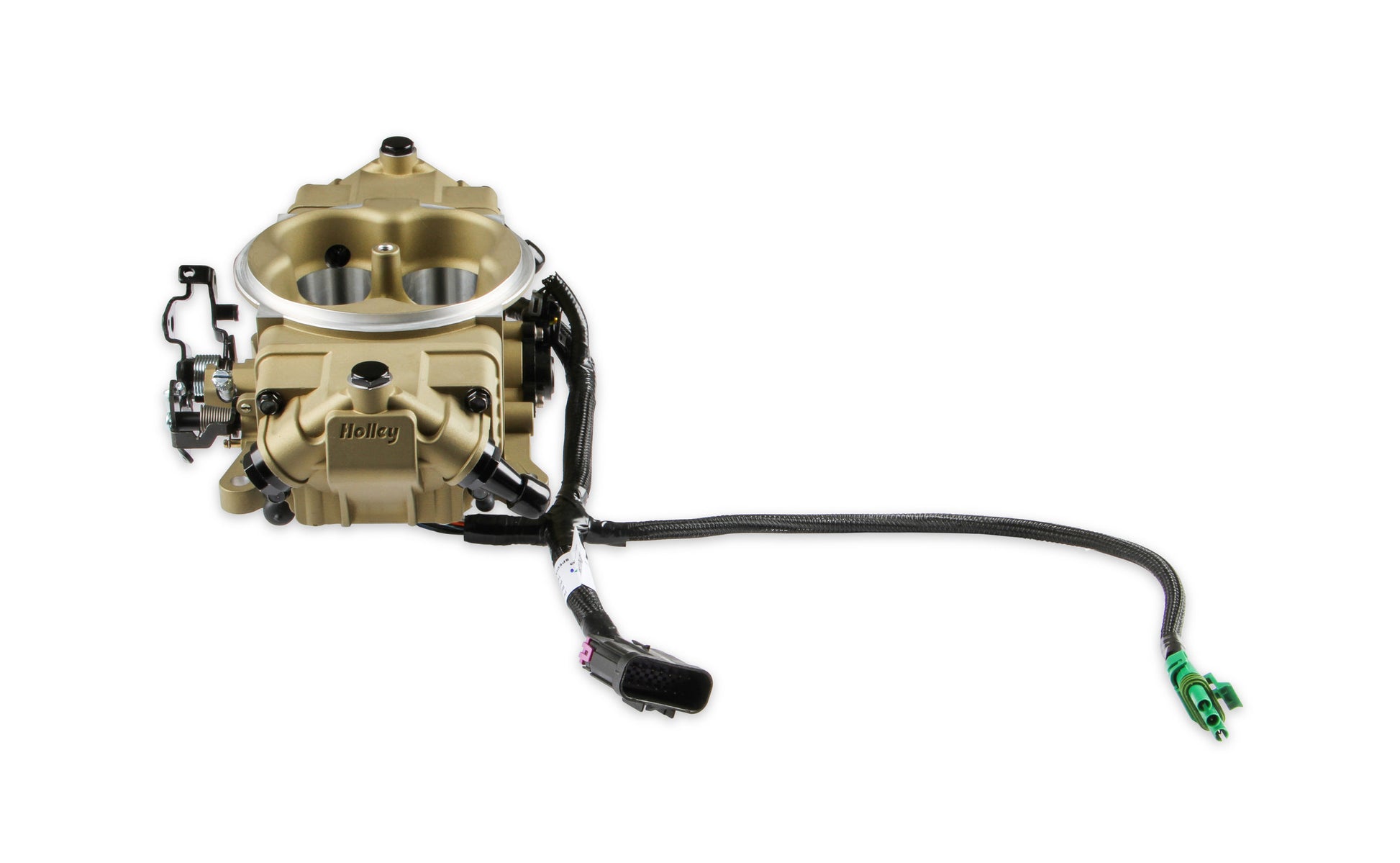

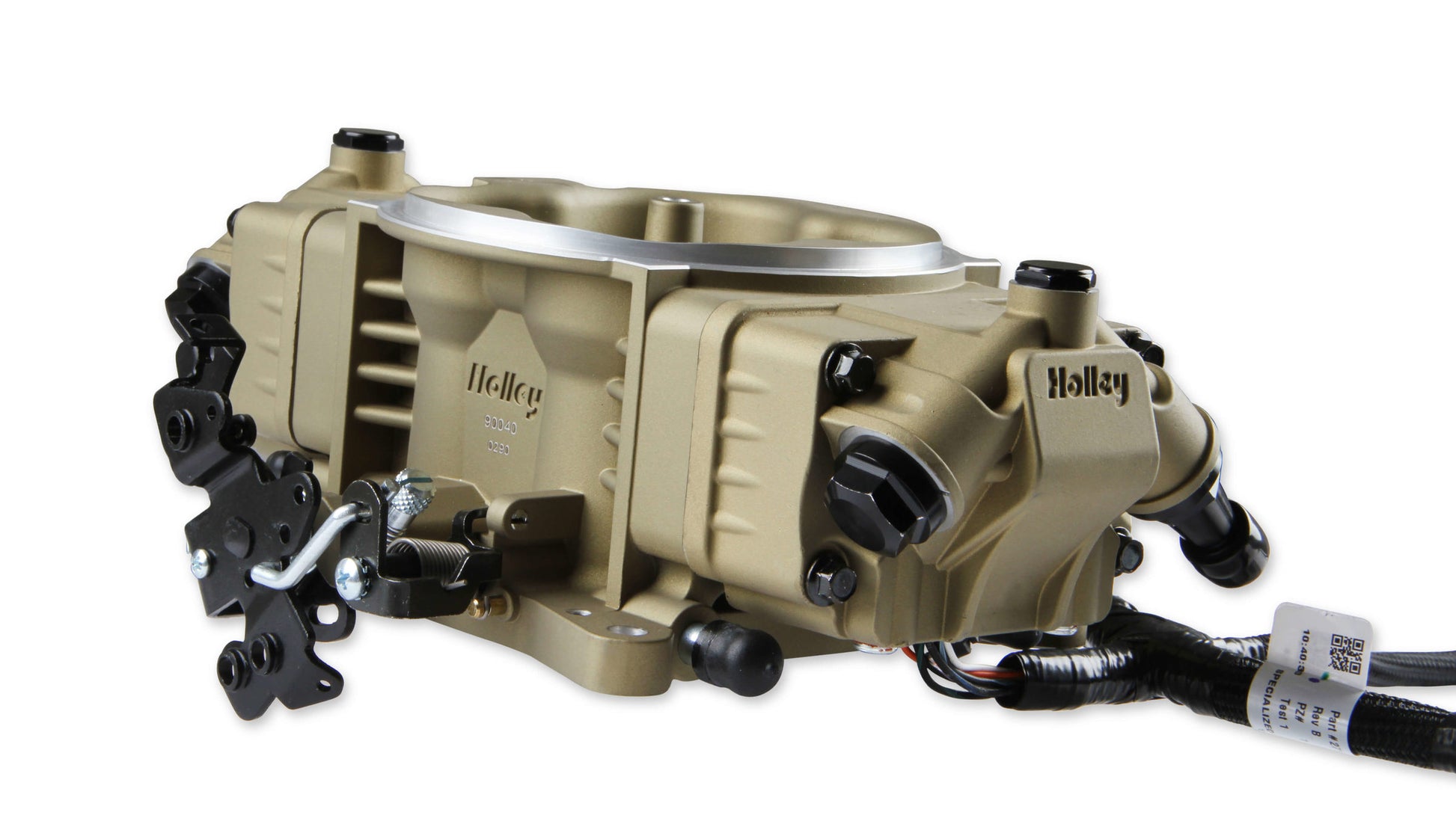

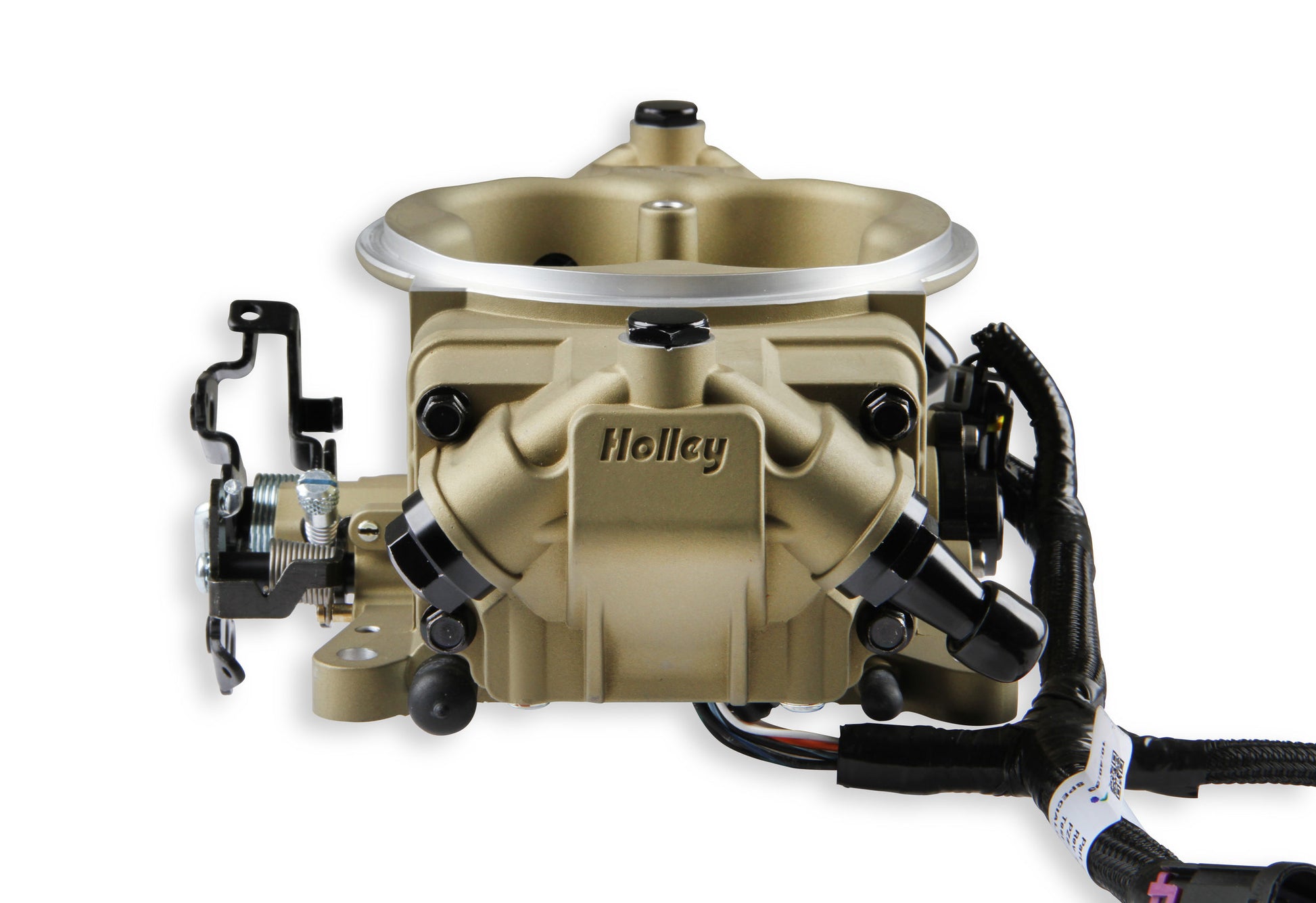

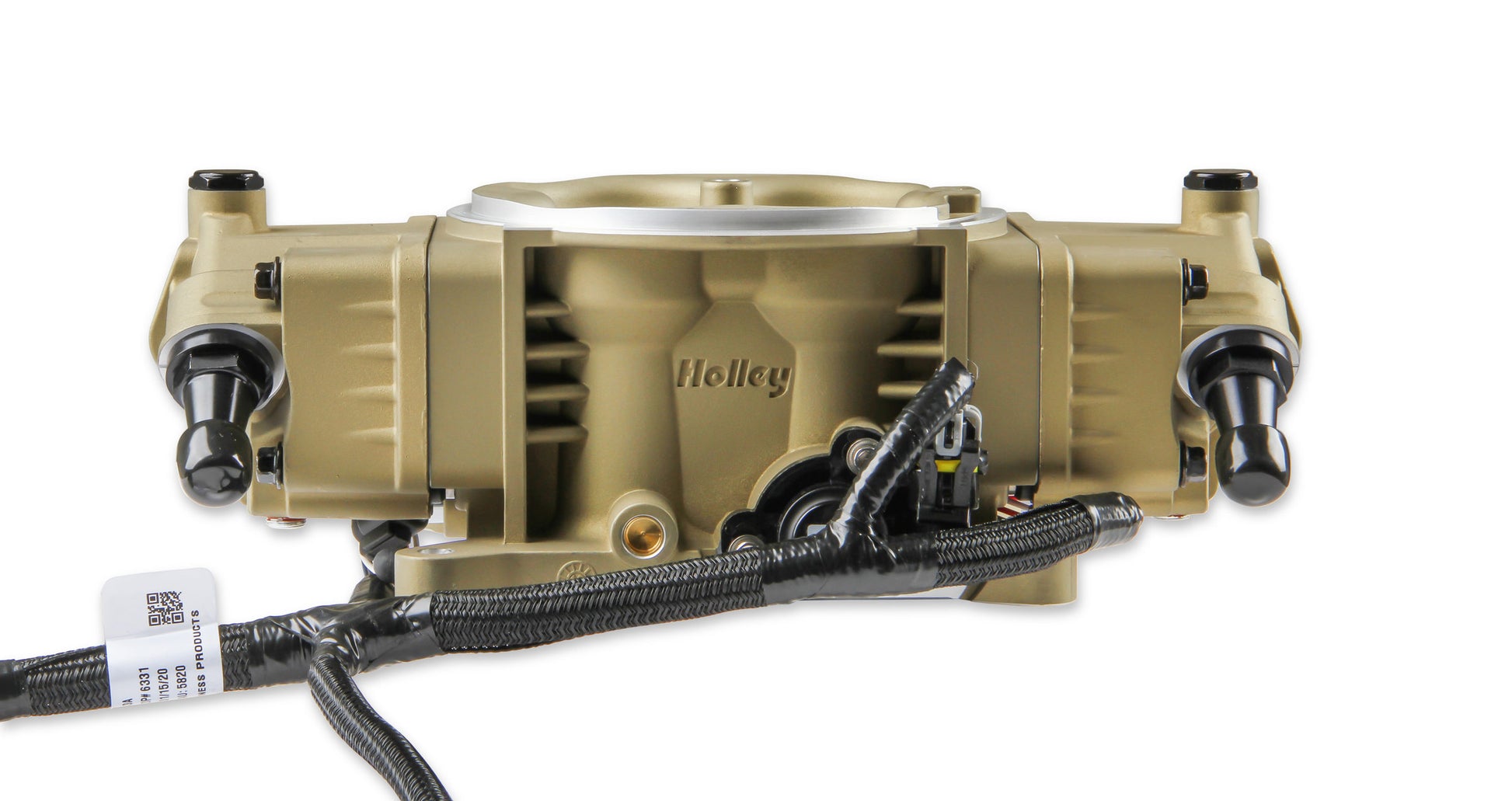

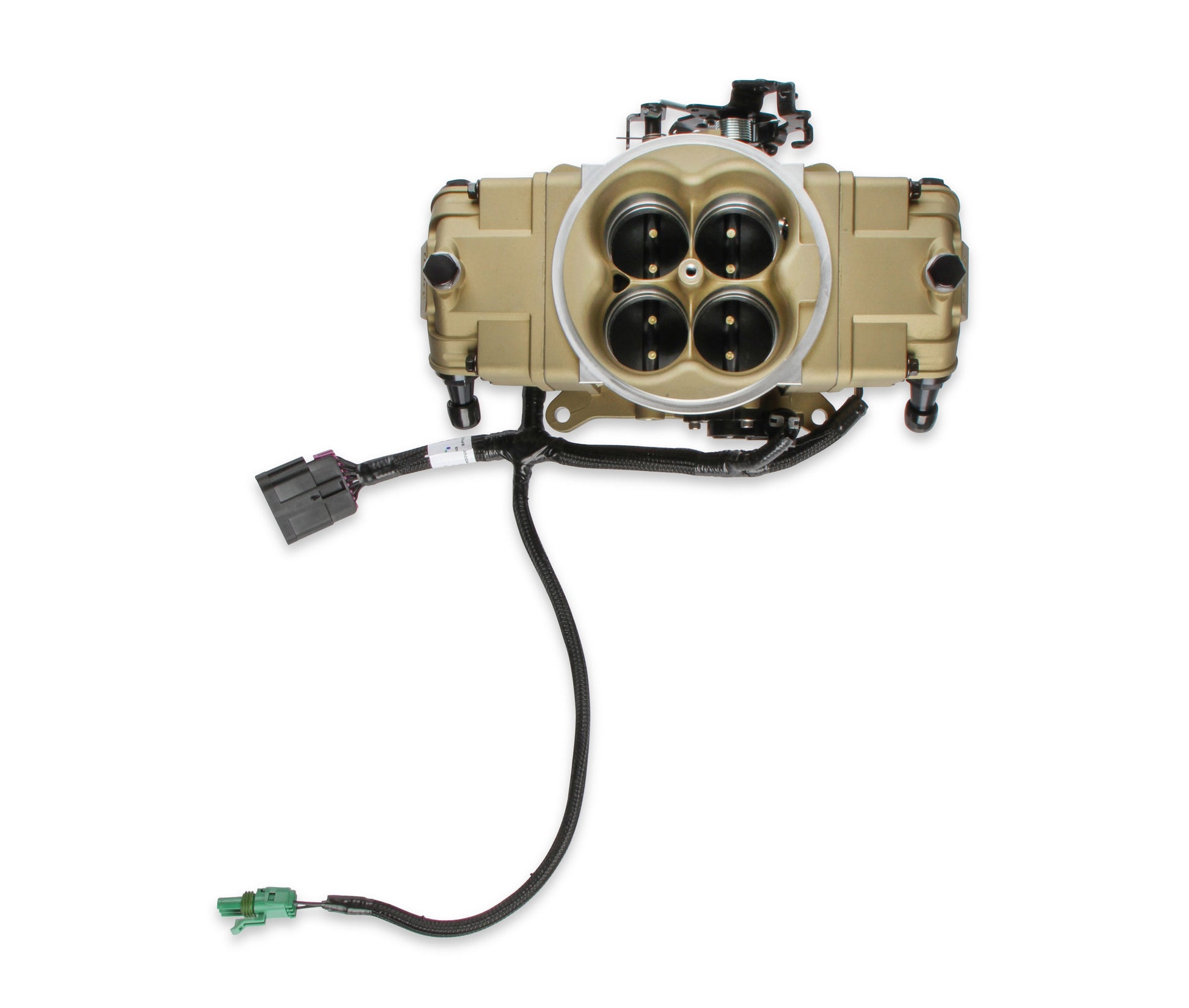

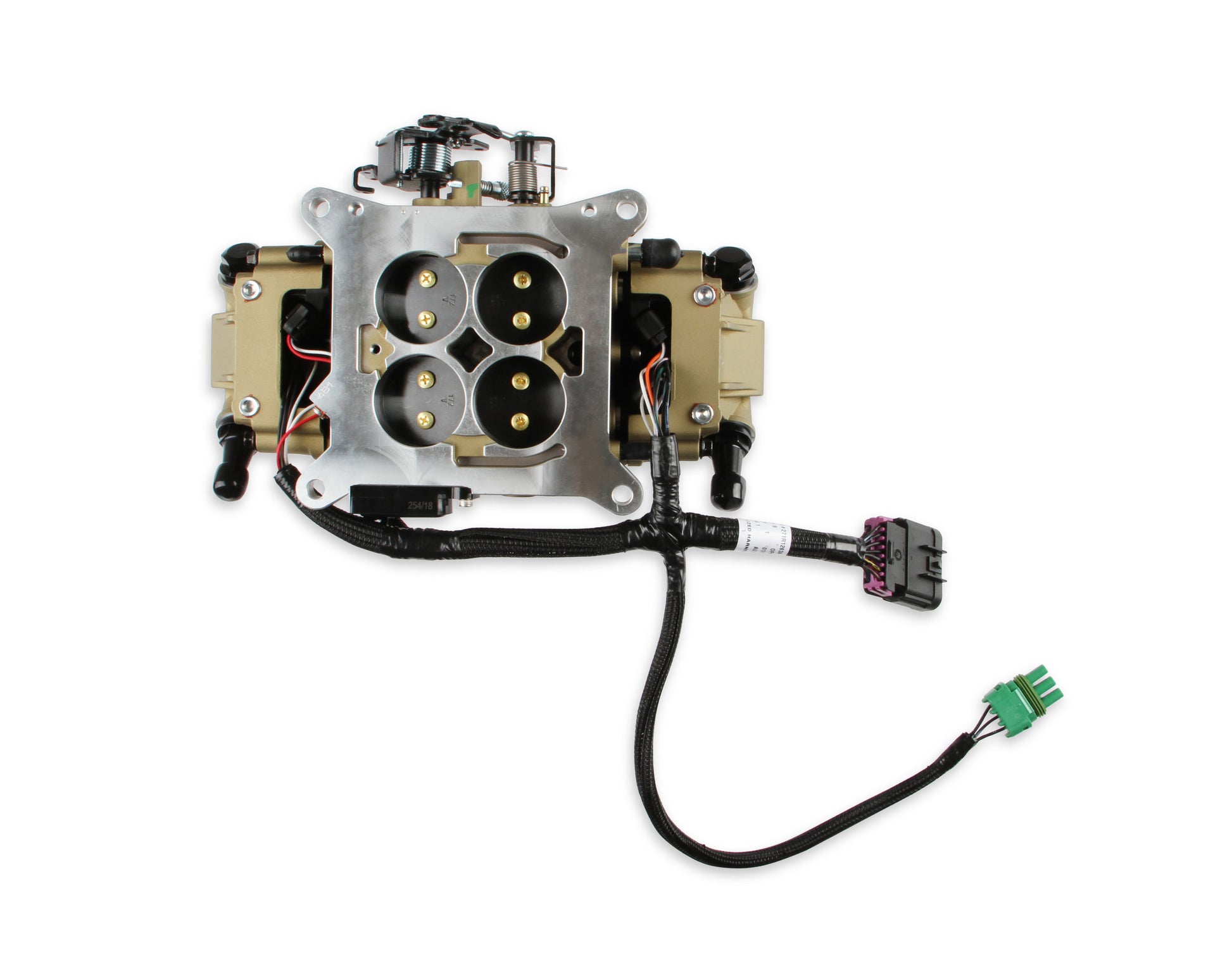

Holley EFI Terminator X Stealth 4150 Throttle Body - Classic Gold
Terminator X Stealth 4150 System; 4 Injector Fits w/Up To 650HP Naturally Aspirated/600HP Forced Induction; Gold Finish;
Keep the traditional look of a carburator but have the improvements of Holley EFI with an externally mounted ECU with our 4150. This is a stand alone system used with Terminator X and Terminator X Max (not included, throttle body only). Improve your vehicle with onboard diagnostics, full control of ignition timing, input and output, and a wideband O2 sensor with fuel map self learning capabilities (not included, throttle body only). With this system, you'll have better idle quality, improved reliability, and overall better driveability.
- Bolt On 4150 Flange Carburetor Replacement
- Supports Up To 650HP With Four 100lb/hr Injectors
- Includes High Pressure Fuel Crossover Line
- All Of The Wiring Exits Below The Rear Fuel Injector Cover
- Timed Spark Part For Easy Access To The Distributor
- Air Entry Machined Fit Most With Air Cleaner Locator Provisions
- 58.5 PSI External Fuel Pressure Regulator Required
- Integrated Ignition Timing Control Improves Idle Stability
- High Resolution Full Color Touchscreen For Initial Setup
- Simple Calibration Wizard No Laptop Required
- OEM Style TPS/IAC For Years Of Dependable Service
Adjustable: Yes
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Gold
Emission Code: 3
Finish: Gold
Flange Size: 4150
Flange Style: Squarebore
Fuel Injectors Included: Yes
Fuel System Type: EFI
Grade Type: Performance
Idle Air Control Motor Included: No
Injector Size: 100 lb/hr @ 58.5 PSI
Max Horsepower Rating: 650 Naturally Aspirated
Mounting Hardware Included: No
Product Type: Throttle Body
Throttle Body Finish: Classic Gold
Throttle Body Material: Cast Aluminum
Throttle Body Spacer Included: No
Throttle Bore: 1.75 in.
Throttle Position Sensor Included: Yes
Warning: California Proposition 65
