Holley EFI - 534-265
Ford 7.3L Godzilla Billet Fuel Rails
EFI Fuel Rail Kit; Fits w/Ford 7.3L Godzilla Engine; 5/8 in. Diameter Fuel Passage;

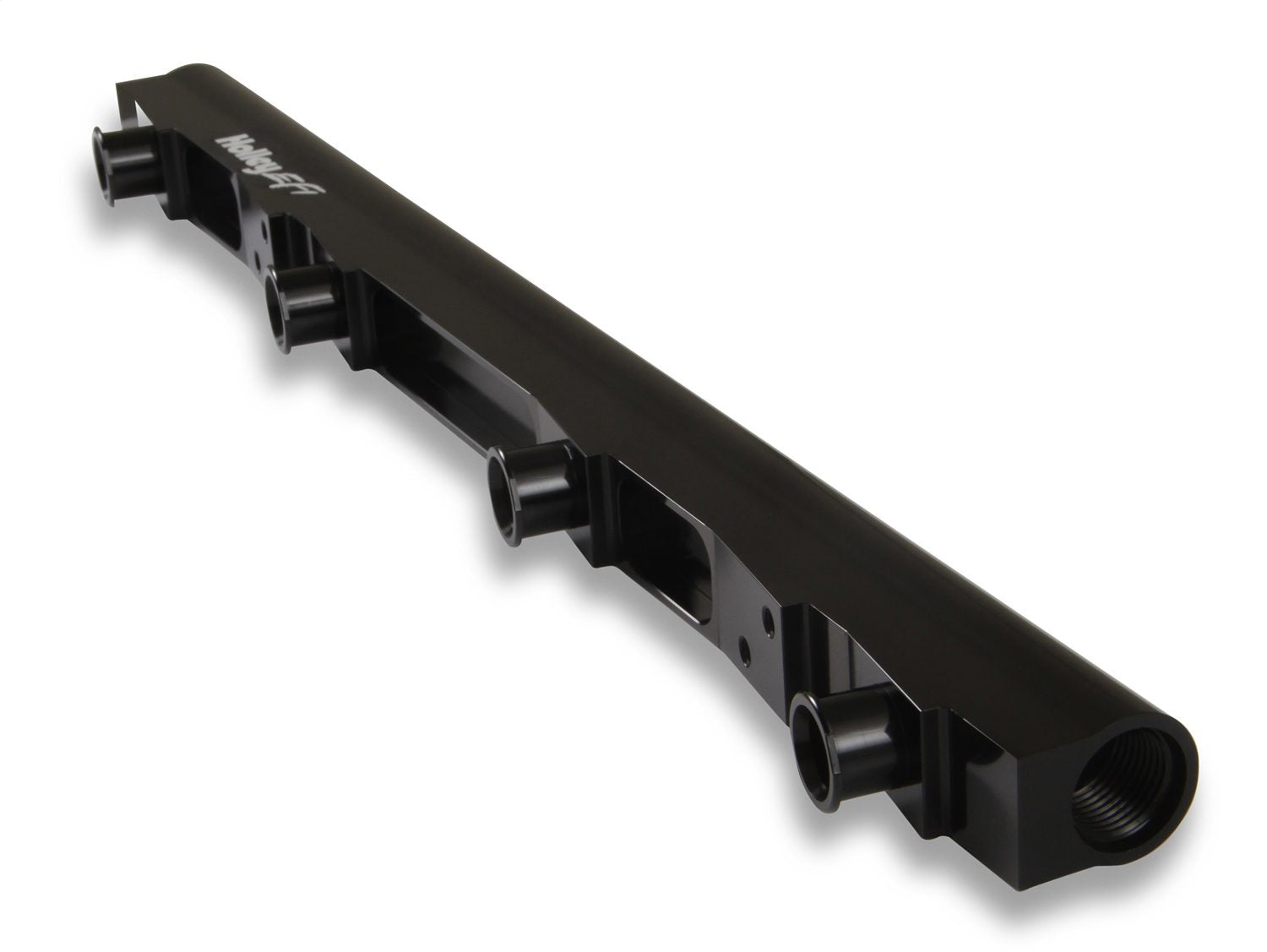

The new Hi-Flow billet fuel rails are a direct fit for the Ford 7.3l Godzilla engines. The fuel rails feature a 5/8 in. diameter fuel passage that provides more flow capacity for high horsepower applications over the stock rails. The black anodized rails have -8 ORB ports on each end and an 1/8 in. NPT port for a fuel gauge installation if you choose to do so. The 534-265 includes fuel rails, mounting brackets and required mounting hardware. The 534-266 fuel rail kit includes everything from the 534-265 plus (6ft) braided hose, (4) 90 degree and (2) straight -6 hose ends.
- Bright dip, black anodized finish with laser etched EFI logo
- 5/8” diameter fuel passage provides the flow capacity for higher horsepower applications
- Fuel rails fit stock intake manifold and factory injectors
- Fuel rails machined to accept -8 (3/4-16) O-ring fittings

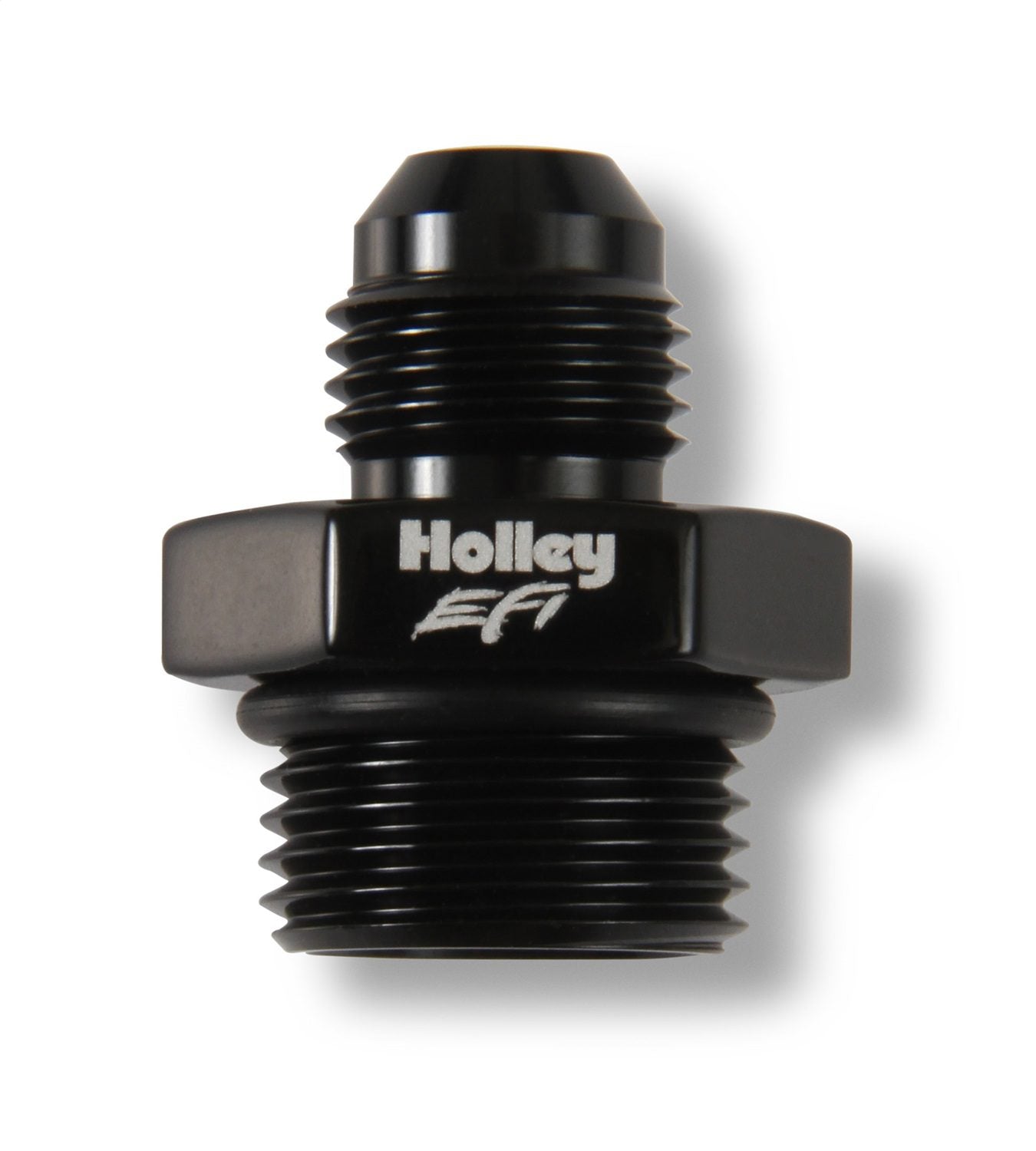

- Includes (4) -6 to 3/4-16 O-ring adapters

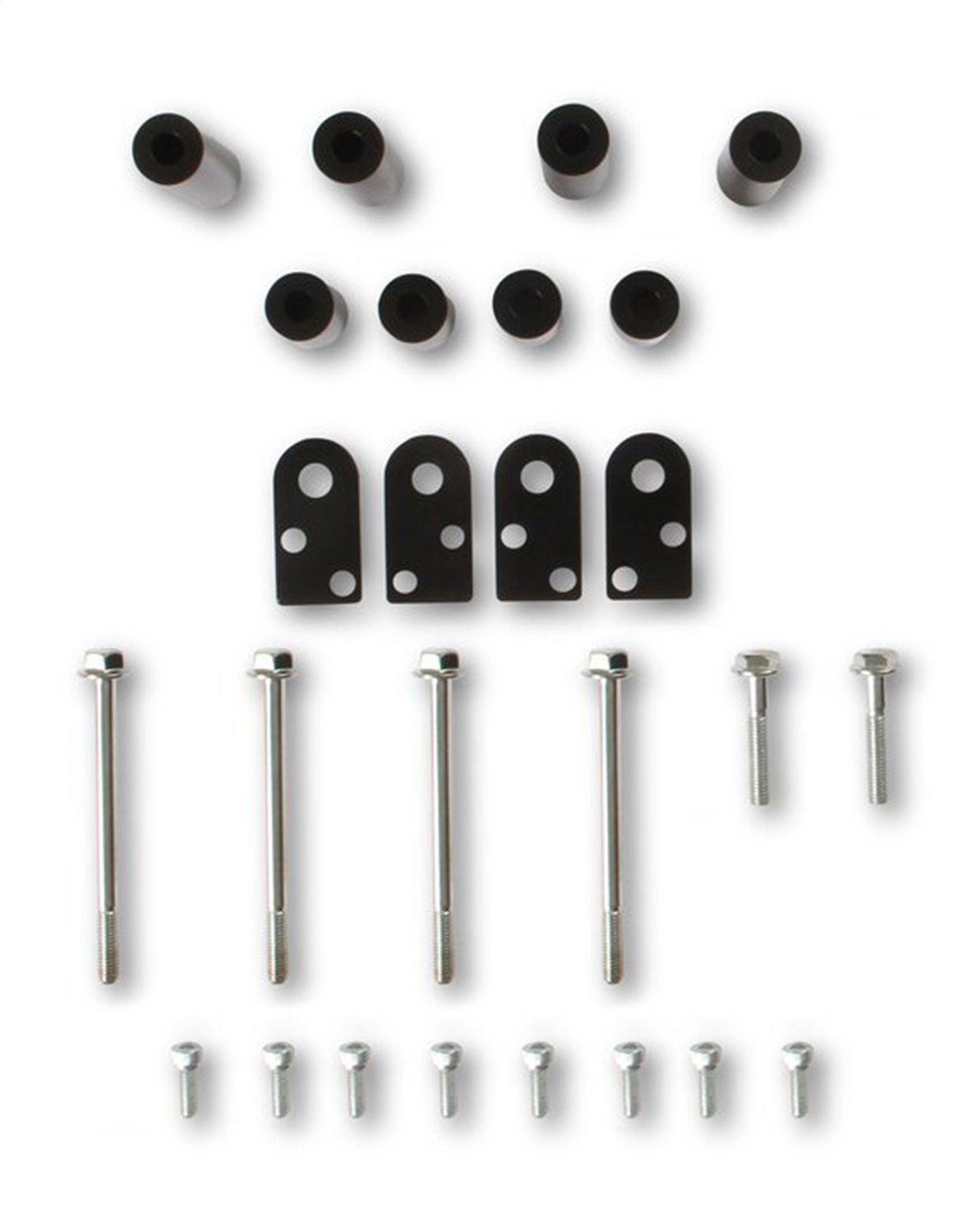

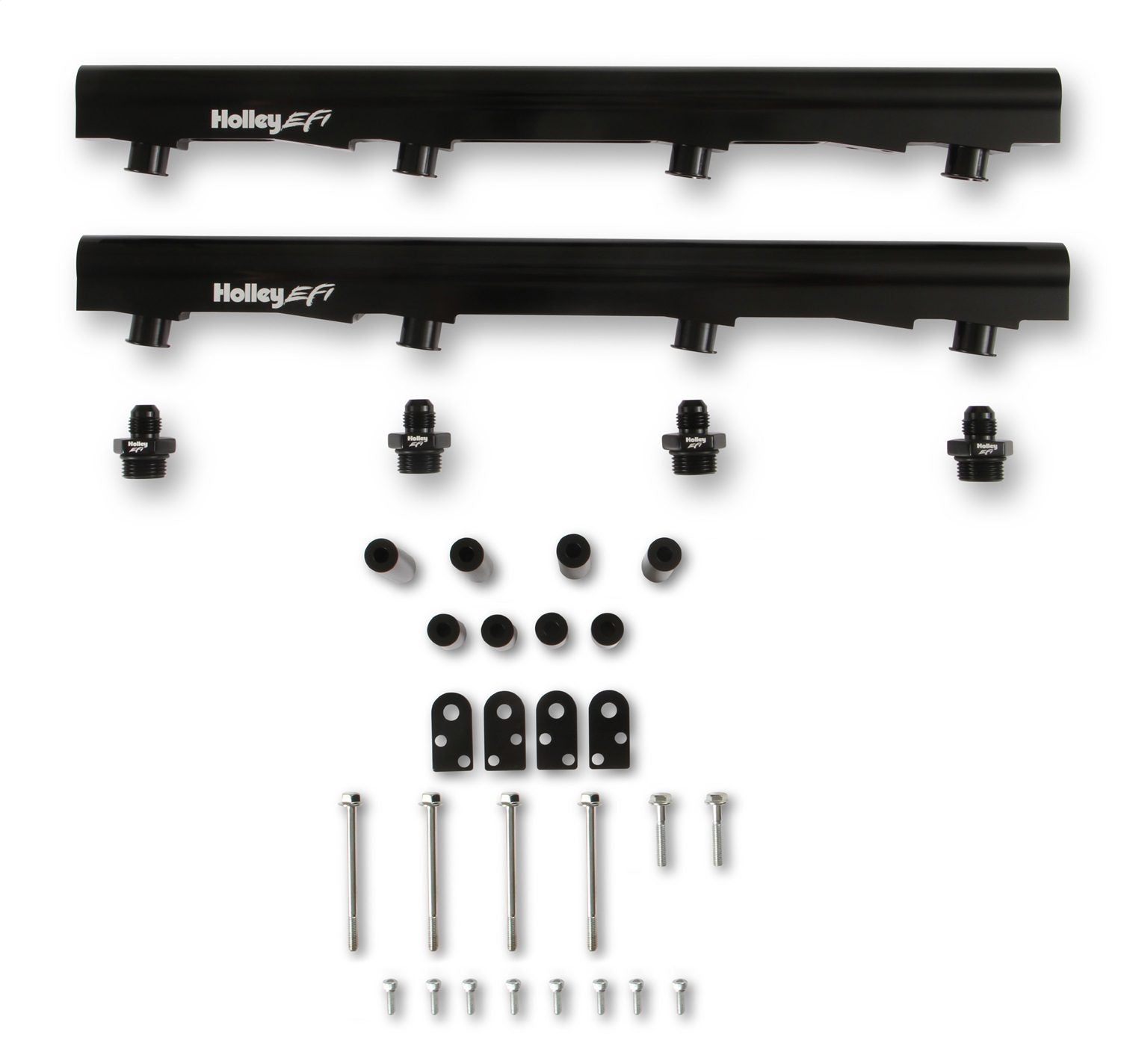

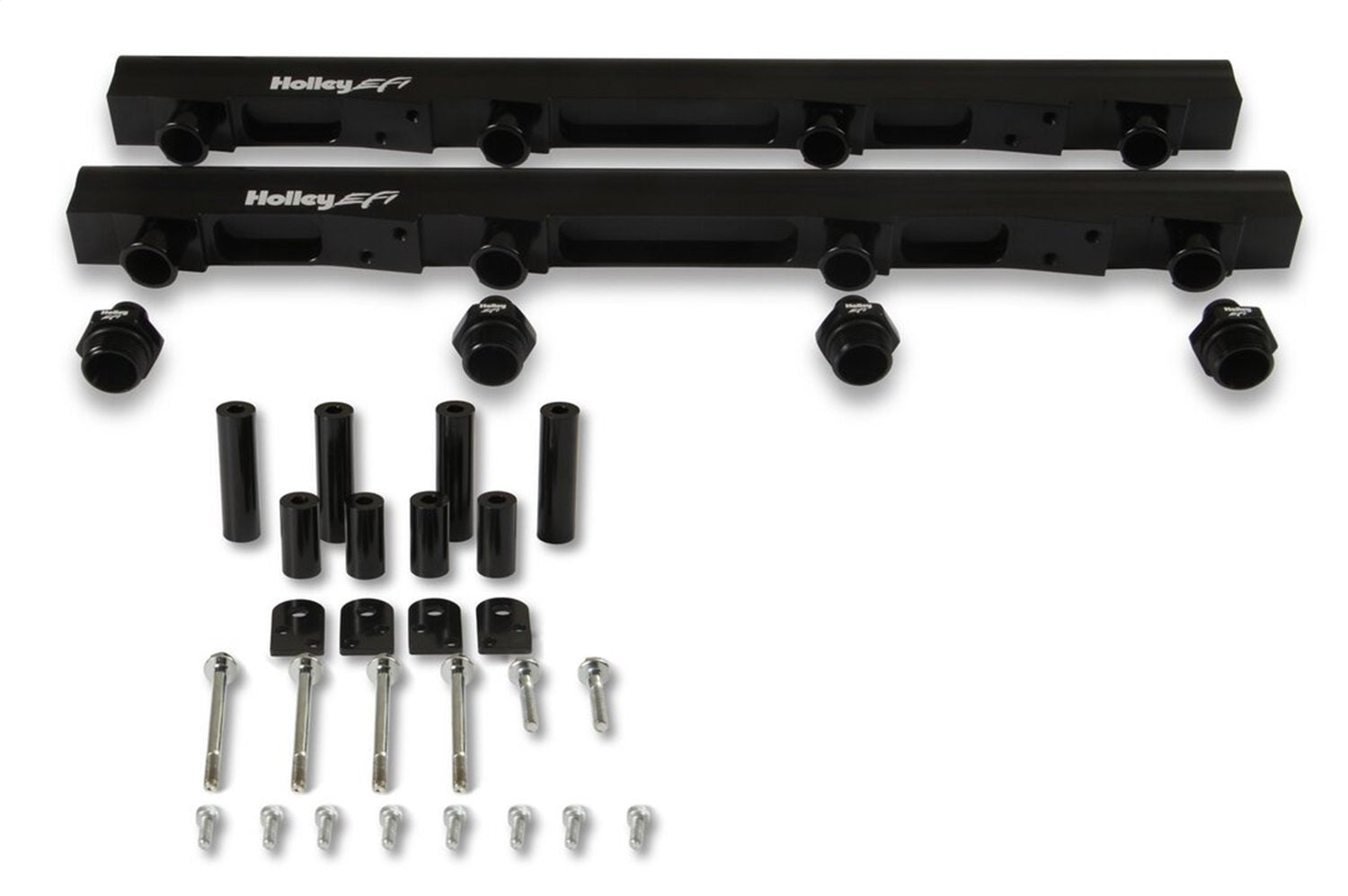

- Includes fuel rails, mounting brackets, and required mounting hardware
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Black
Emission Code: 5
Engine: Ford 7.3L Godzilla
Fittings Included: Yes
Fuel Injection Type: Port
Fuel Injectors Included: No
Fuel System: EFI
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Material: Aluminium
part type: Fuel Injector Rail
Product Type: Fuel Rail
Sub Category: Fuel Injection System and Related Components
Type of Component: Fuel Rail
Warning: California Proposition 65
