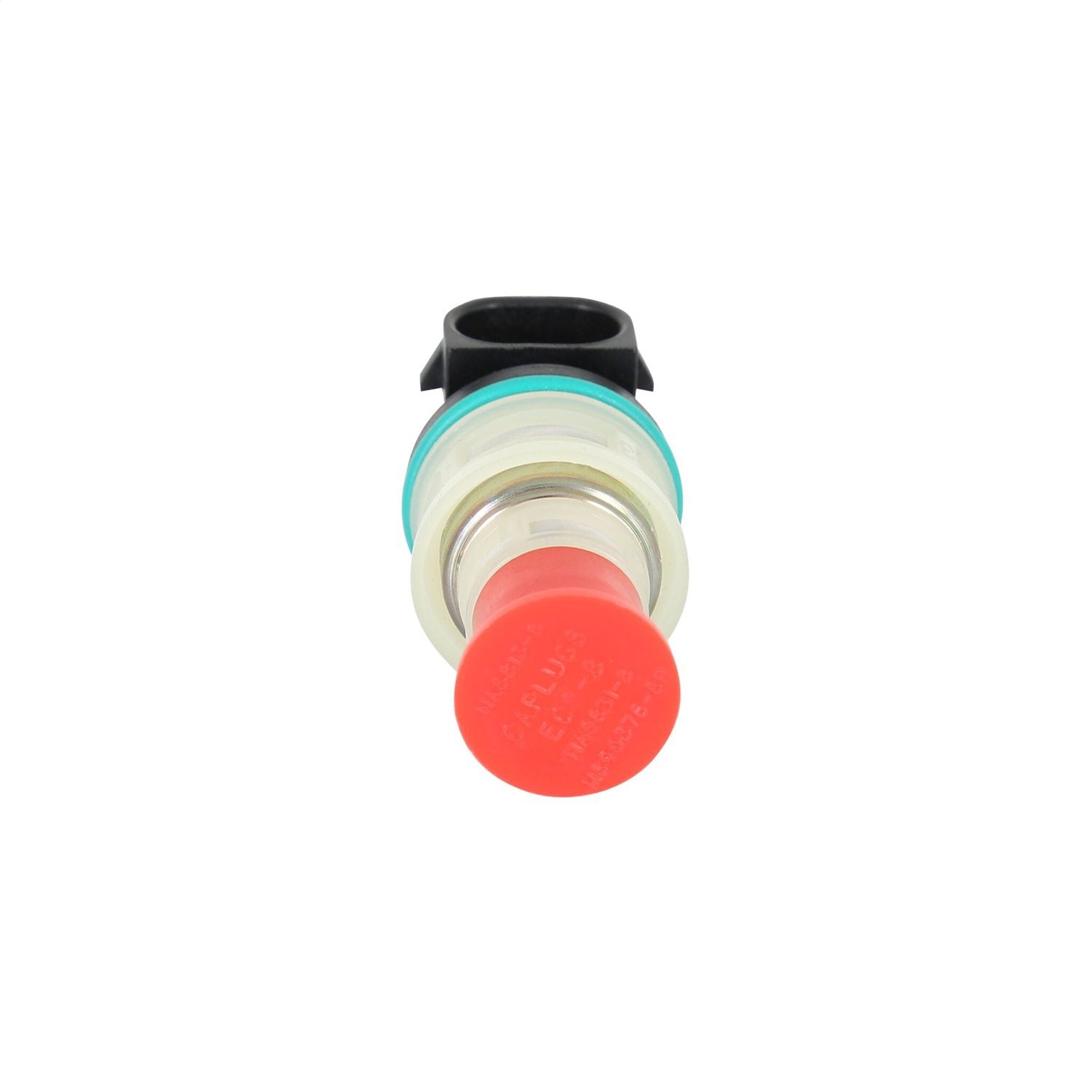

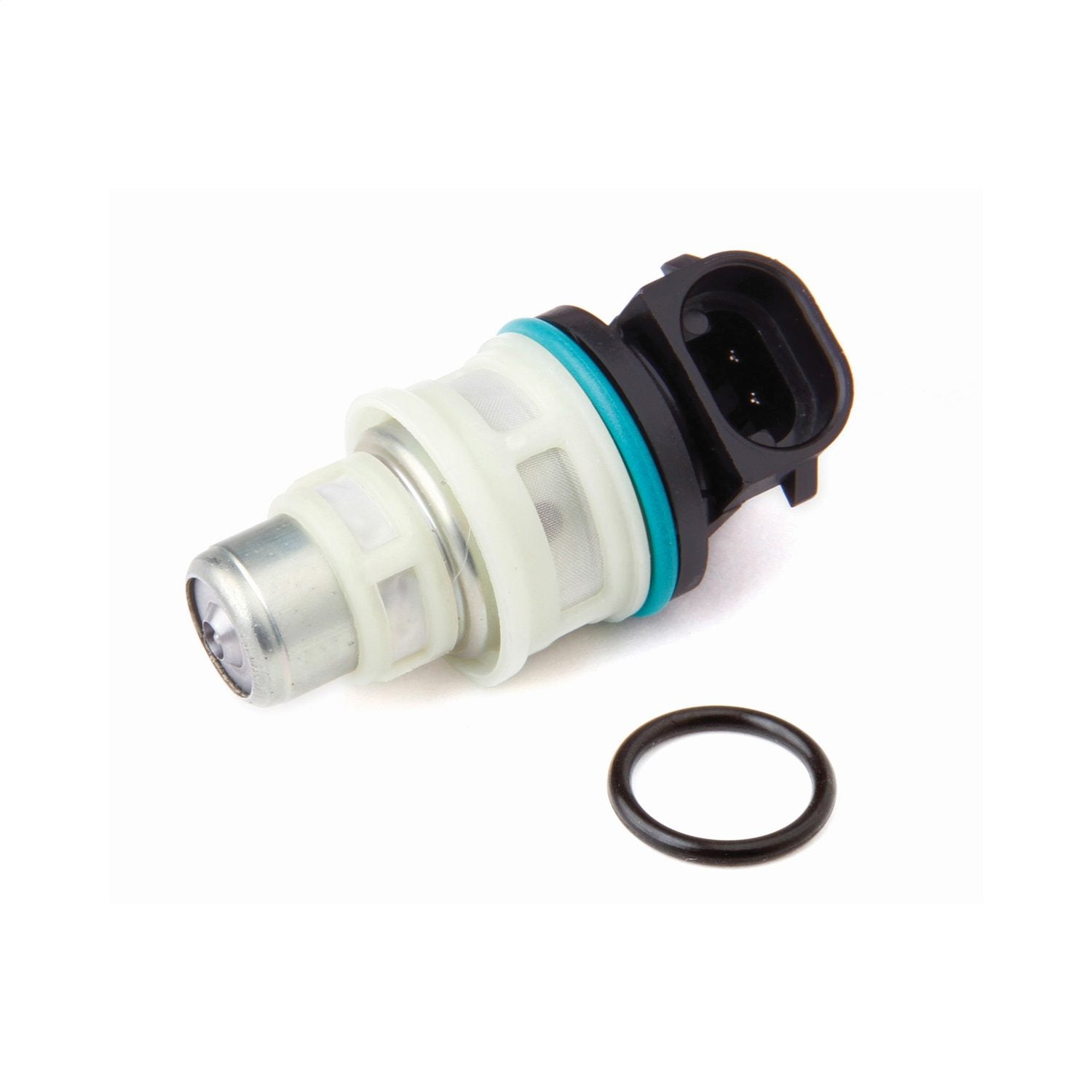

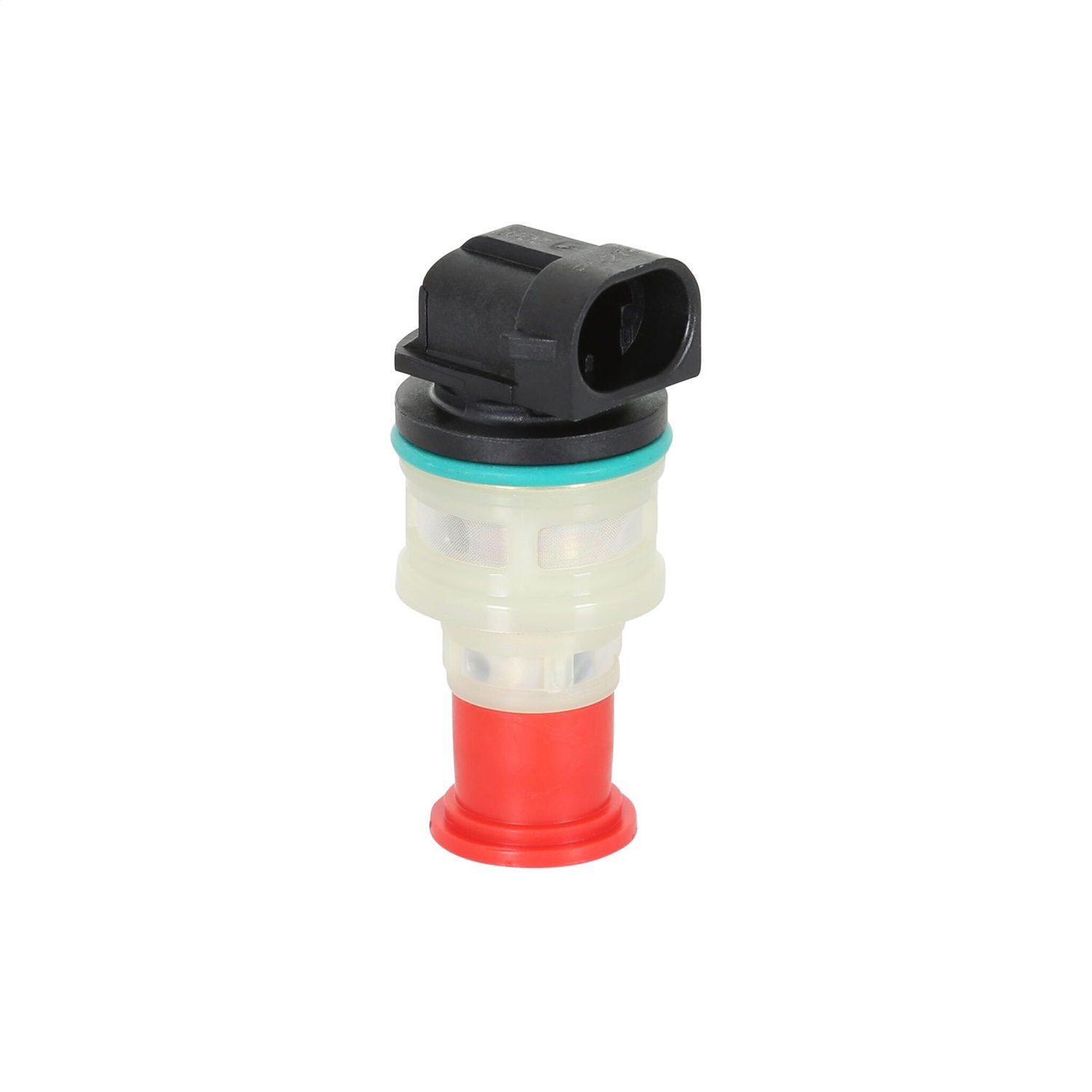

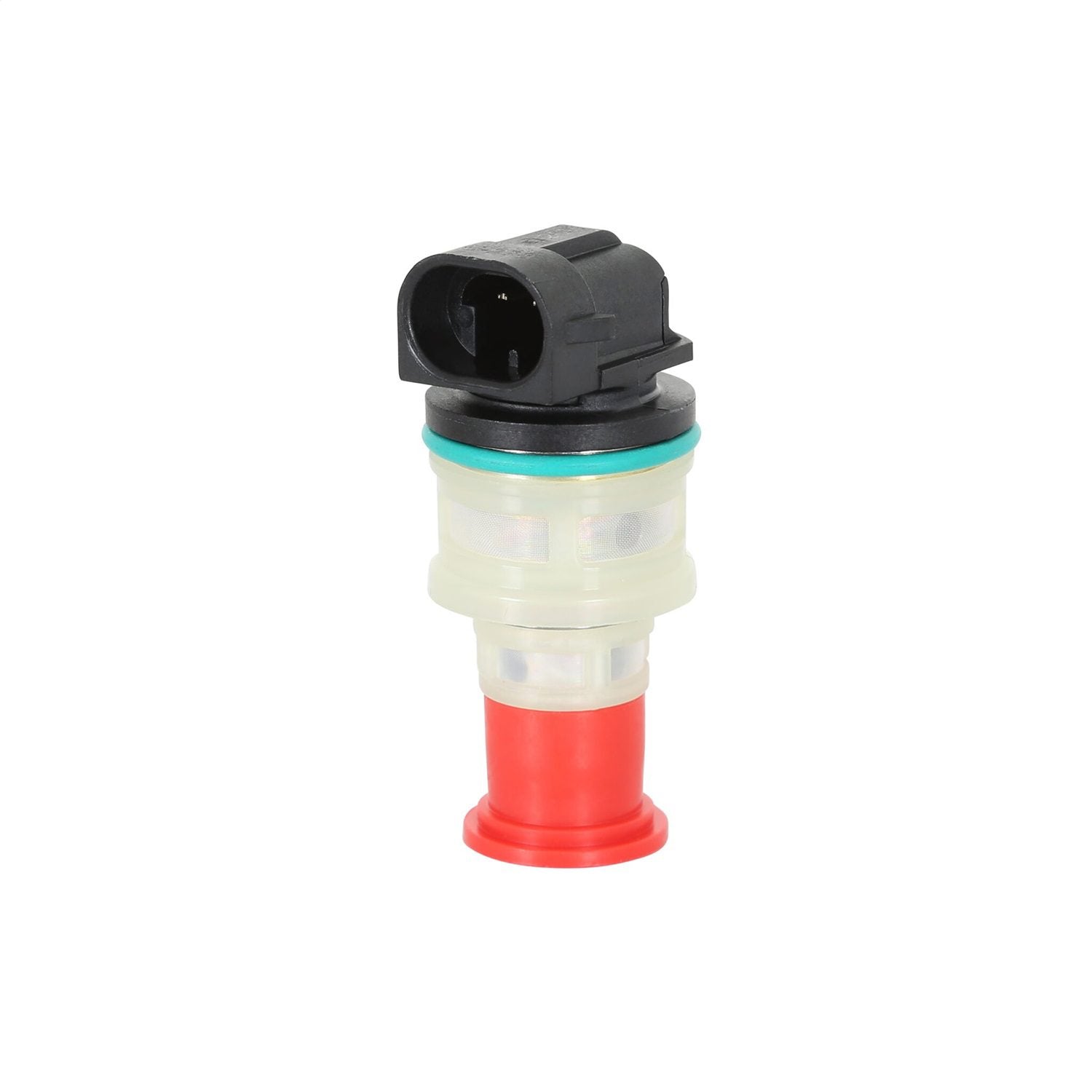

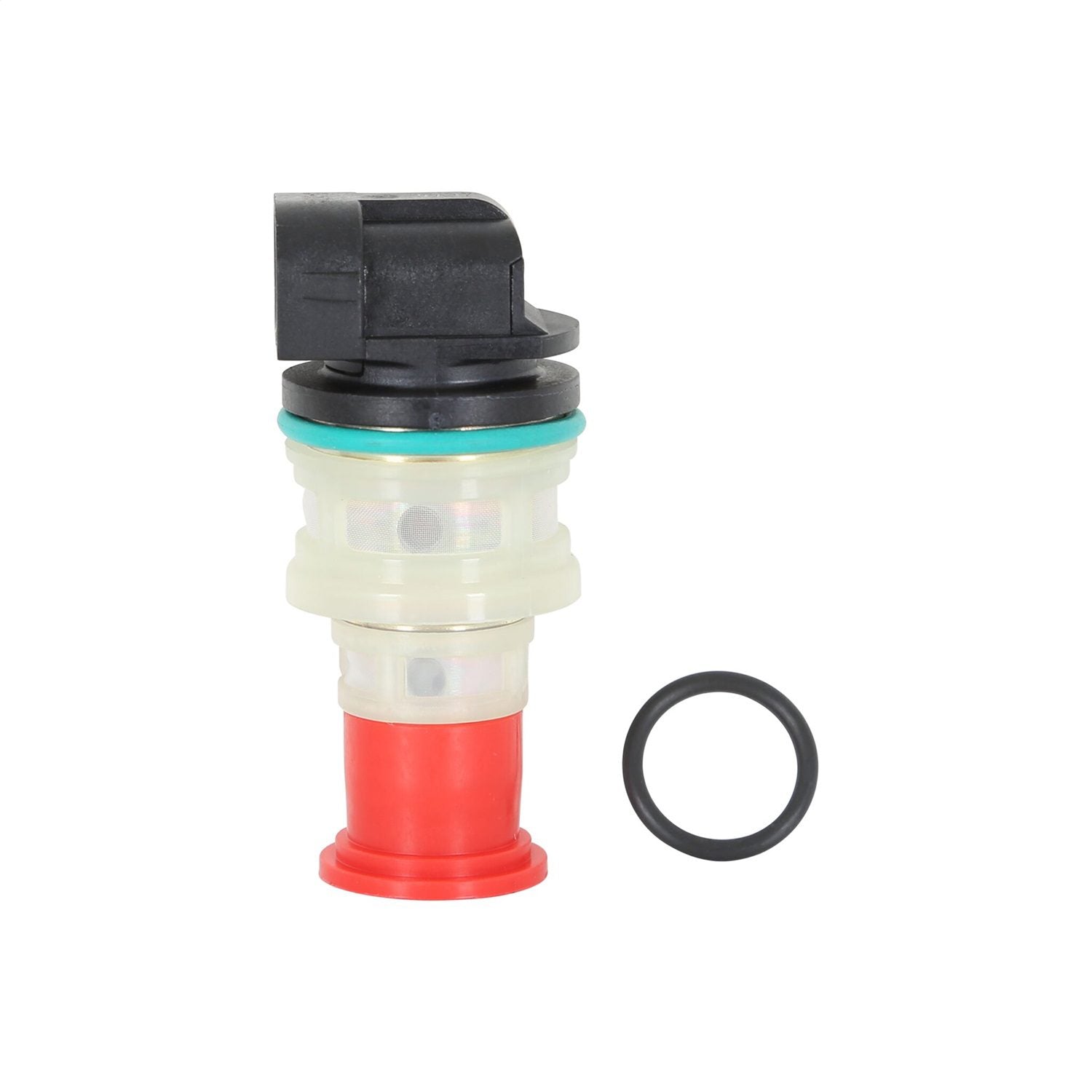

Holley EFI - 522-80
Bottom-Fed Fuel Injector
Fuel Injector; Performance; Commander 950 Systems; 50 PPH@12 psi; 72 PPH@21 psi;
This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
- Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
- TBI Flow @70kPa 6.35g/s
- Commander 950 Systems 50 PPH@12 PSI 72 PPH@21 PSI
- Silver color
- Sold individually
Body Diameter: 0.97
Body Length: N/A
Body Style: N/A
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Black

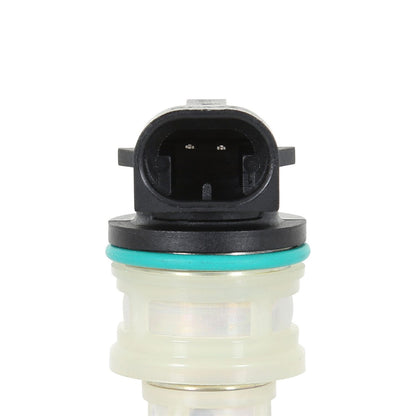

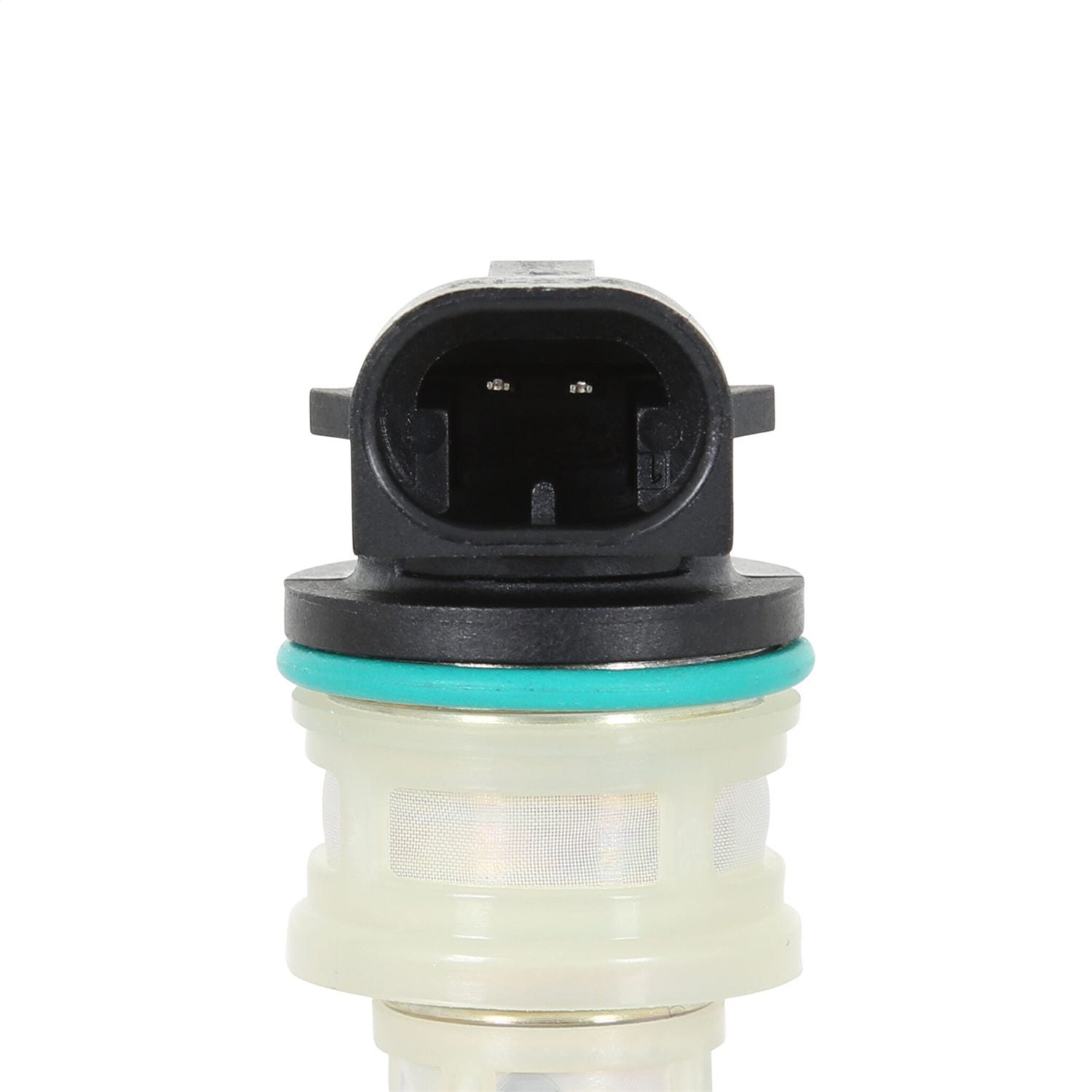

Connector Series: Early TBI
Connector Shape: Early TBI
Emission Code: 4
Flow Rate: 72 4U
Fuel Injection Type: Port
Fuel Type: E-85, Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
Impedance: Low (2.0 Ohm)
Mounting Hardware Included: No

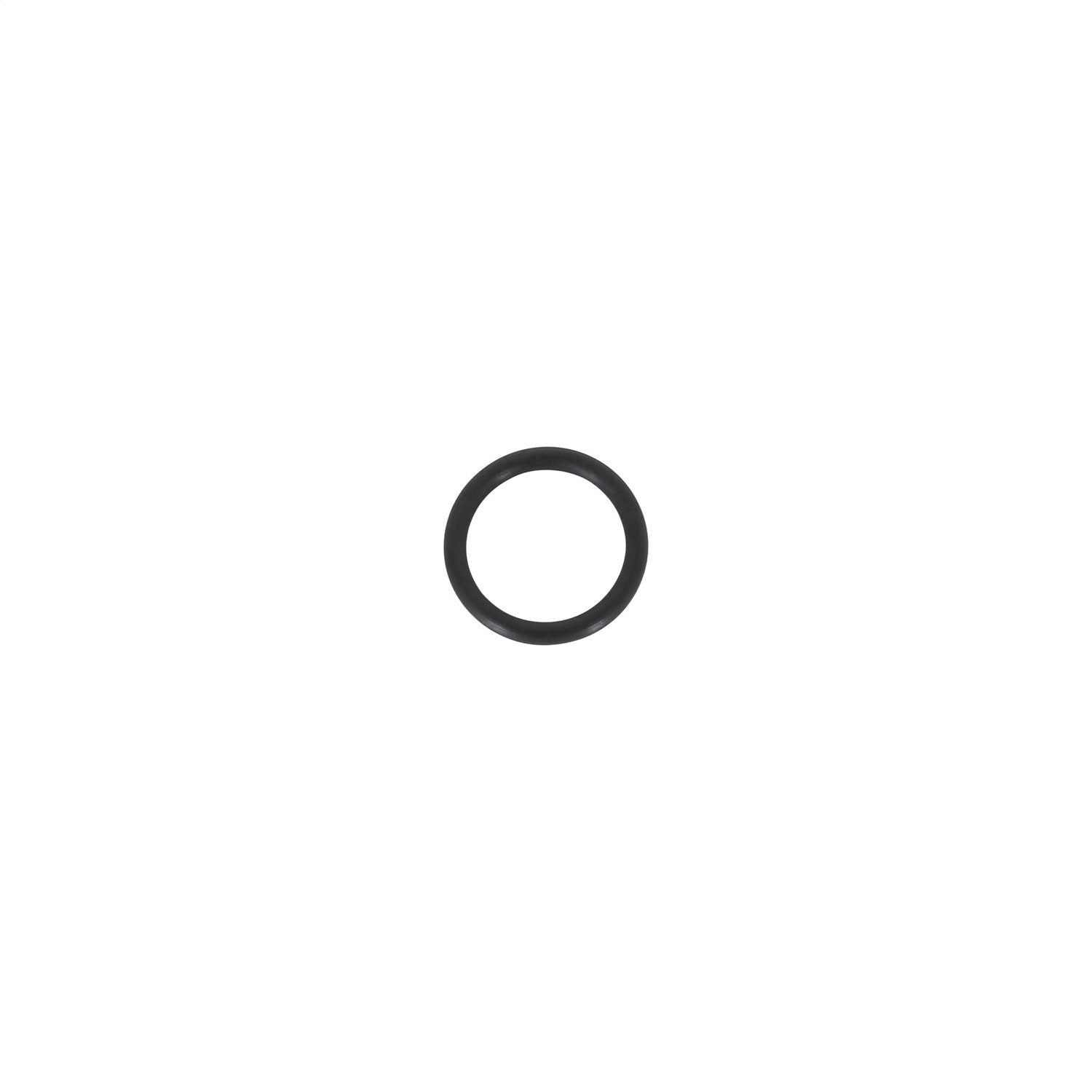

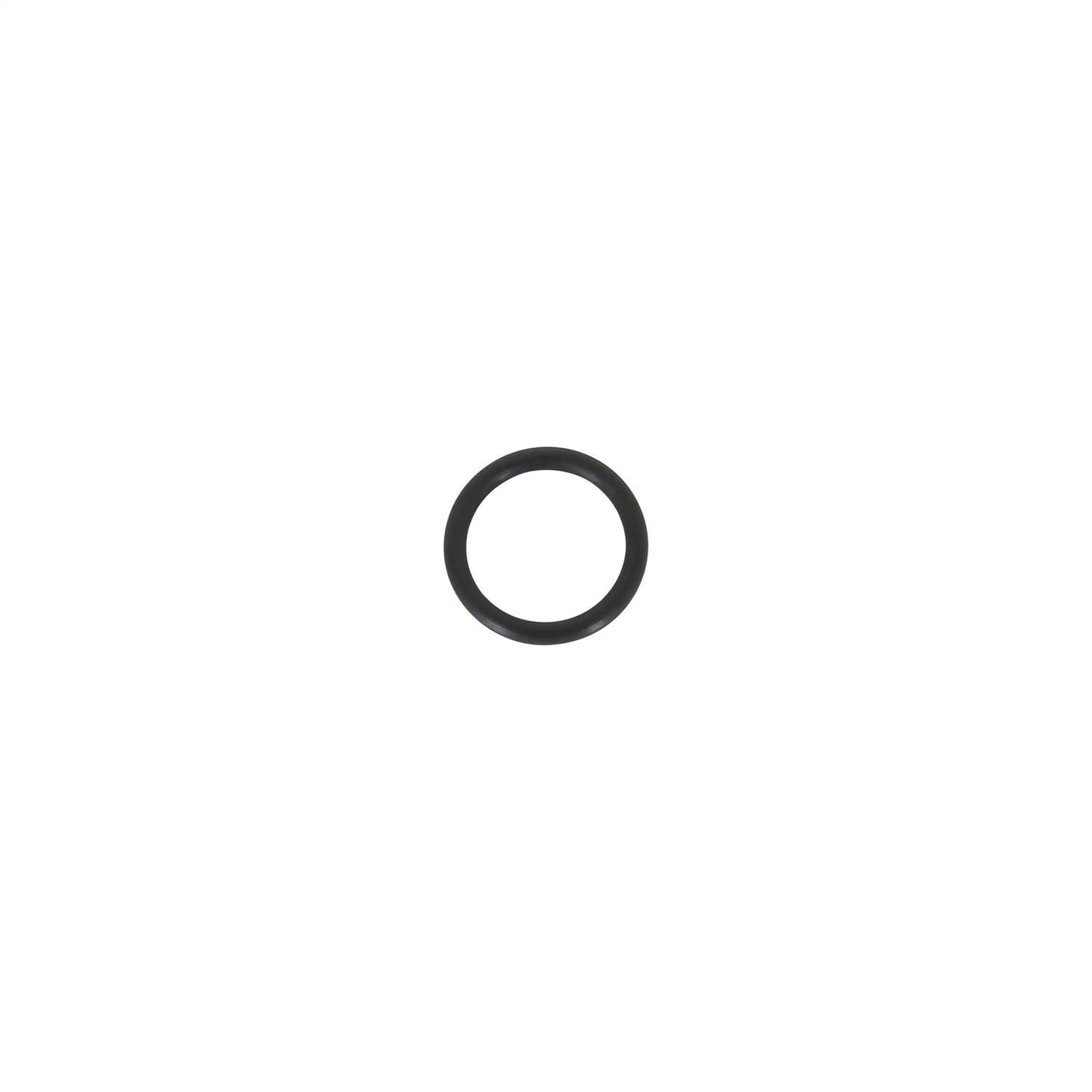

O-Ring Quantity: 2 per injector
O-Ring to O-Ring: N/A
part type: Fuel Injector
Product Type: Fuel Injector
Rated Injector Flow: 72 lb/hr
Retainer Clips Included: No
Sub Category: Fuel Injection System and Related Components
Terminal Gender: Female
Warning: California Proposition 65
