Holley EFI - 522-488
Holley Terminator X Fuel Injectors - Set of Eight
Universal Fuel Injector; 48 lbs./hr.; High Impedance; Qty. 8;

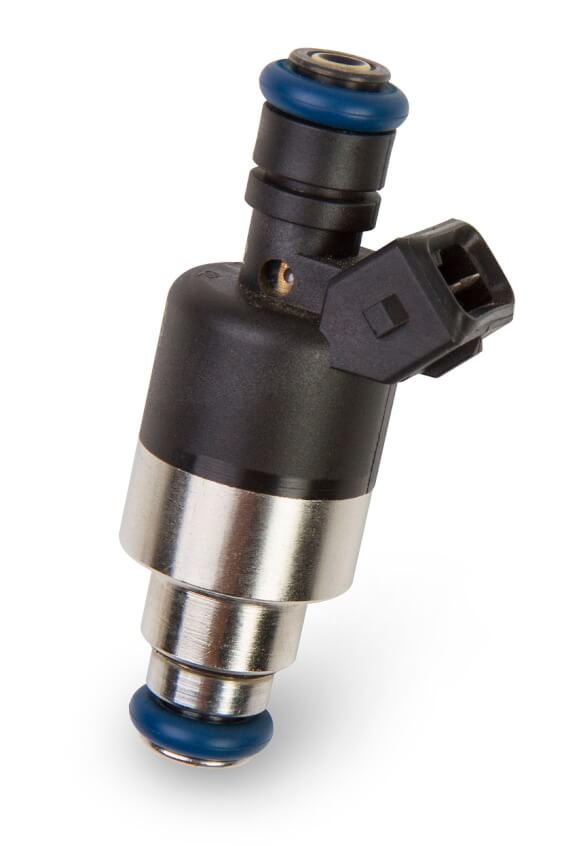

Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb./hr. flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.

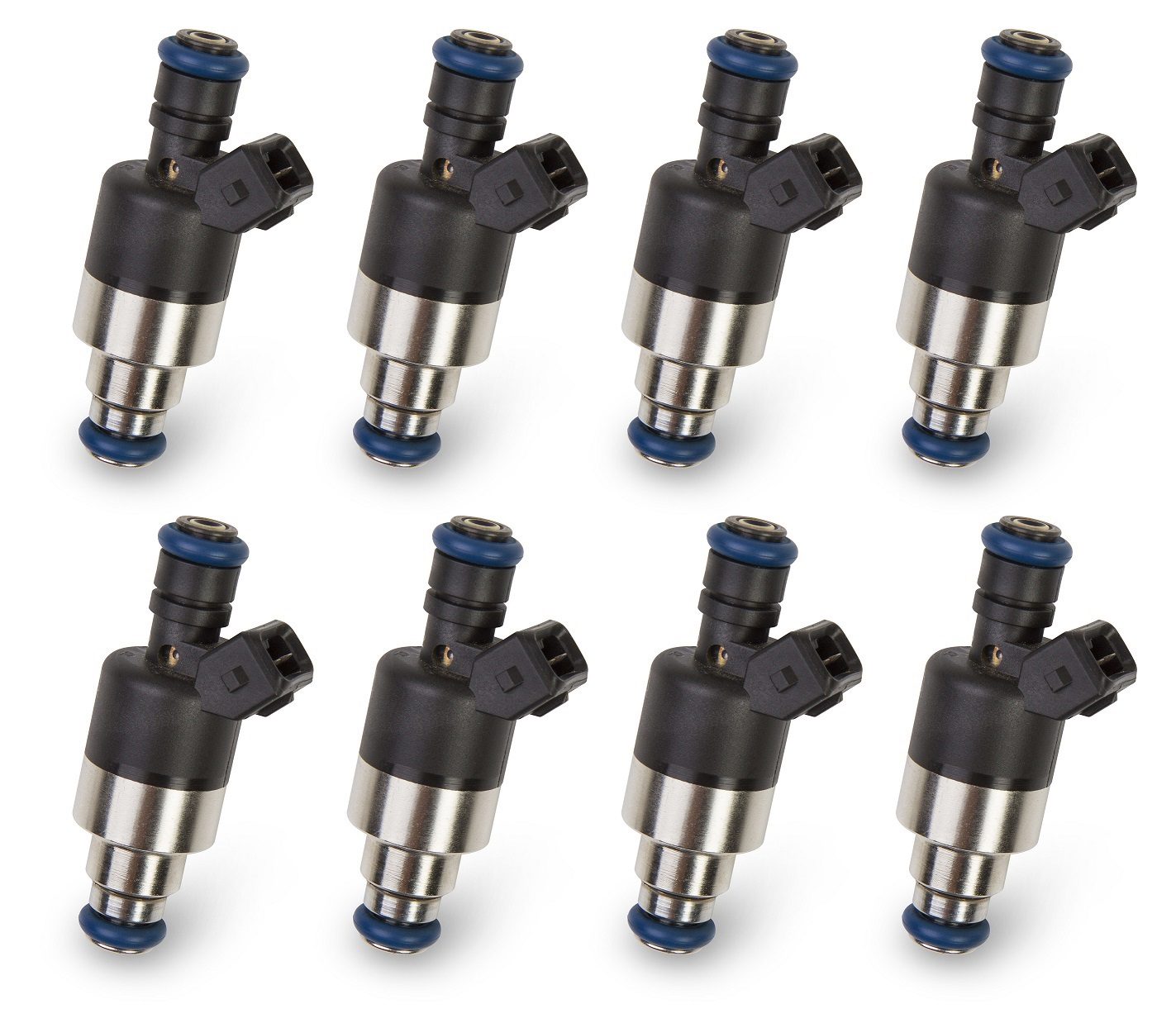

- Bosch/EV1 style performance injectors - Set of 8
- High impedance (12.2 Ohms) for use with saturated drivers
- Rated injector flow: 48 lb/hr @ 43 PSI
- Supports up to 765 horsepower
- Tri-cone spray pattern
Body Diameter: 0.97
Body Length: 2.85"
Body Style: EV1
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Black

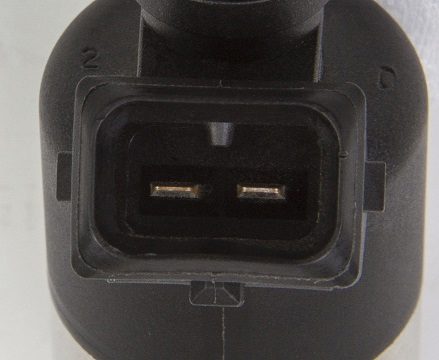

Connector Series: EV1 - Jetronic - (Bosch Style)
Connector Shape: EV1 - Jetronic - (Bosch Style)
Emission Code: 3
Flow Rate: 48 4U
Fuel Injection Type: Port
Fuel Type: E-85, Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
Impedance: High (12.2 Ohm)
Mounting Hardware Included: No
O-Ring Quantity: 2 per injector
O-Ring to O-Ring: 2.415"
part type: Fuel Injector
Product Type: Fuel Injector
Rated Injector Flow: 48 lb/hr
Retainer Clips Included: No
Sub Category: Fuel Injection System and Related Components
Terminal Gender: Female
Warning: California Proposition 65
