Holley EFI - 522-168FM
160 lb/hr Performance Fuel Injectors - Set of 8
Flow Matched Fuel Injector Set; Bosch/EV1 Style Injectors; 169 lb/hr @ 43 psi; Set of 8;

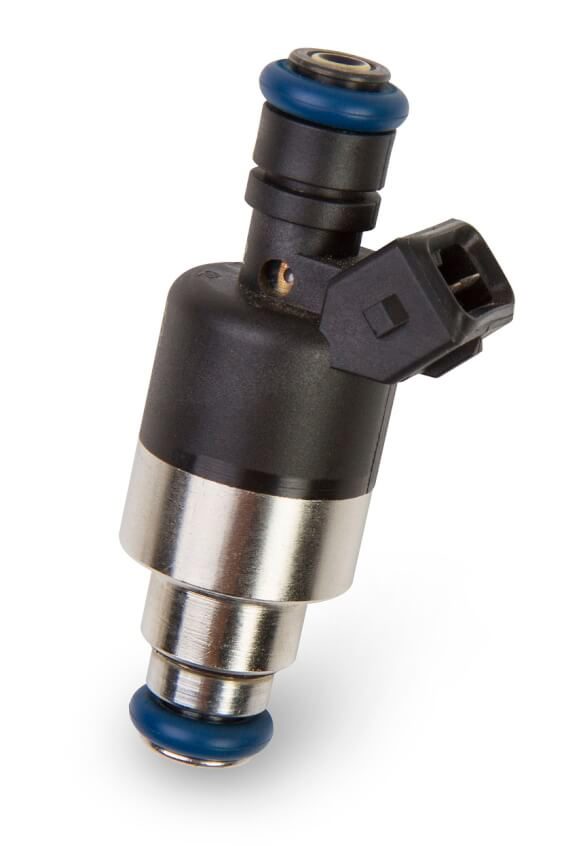

Holley EFI 160lb/hr. Flow Matched Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. The Holley EFI Flow Matched Fuel Injectors provide precision fuel delivery you can depend on.

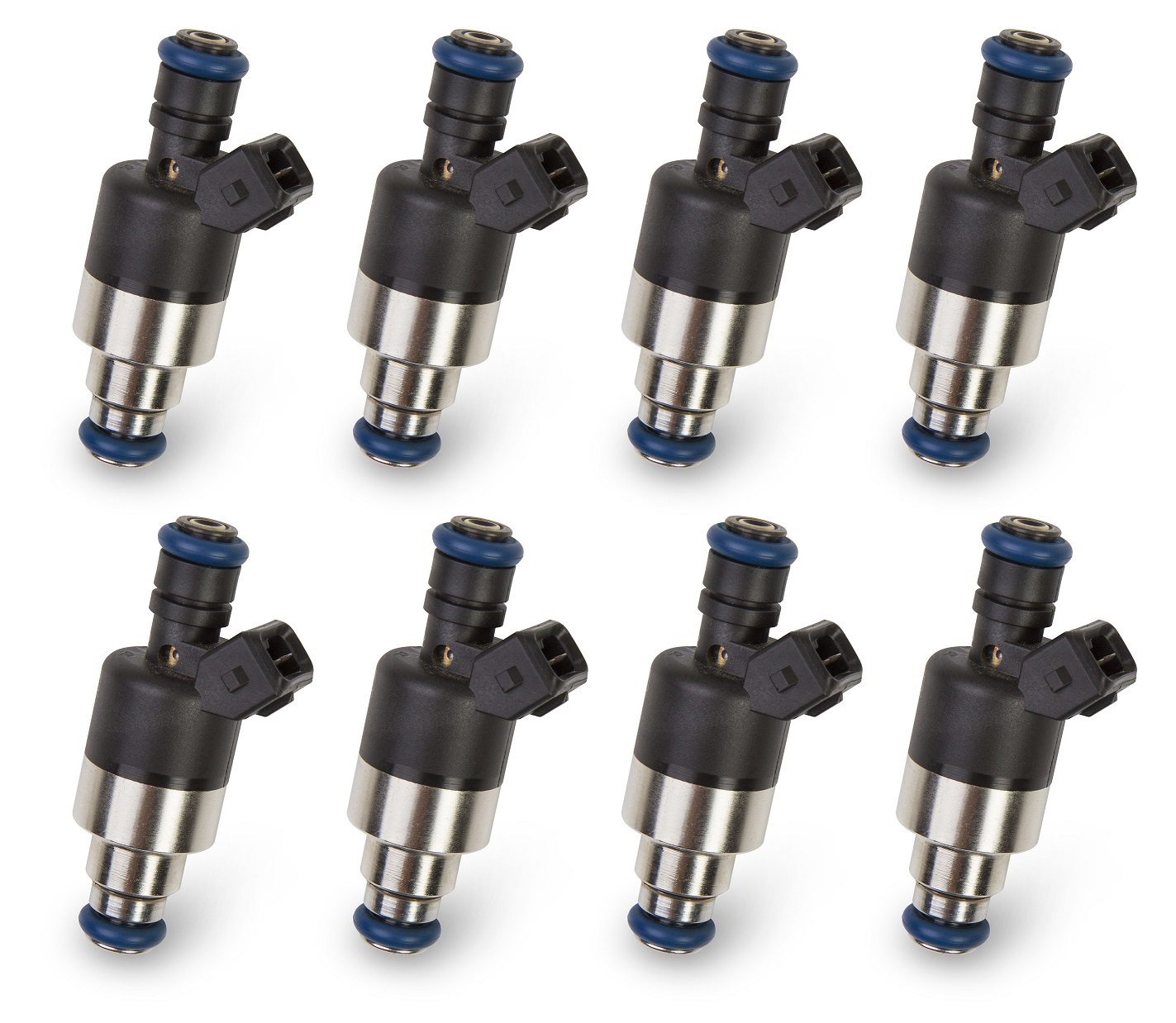

- Bosch/EV1 style performance injectors - Set of 8
- Low impedance (2.0 Ohms) for use with peak and hold drivers
- Rated injector flow: 160 lb/hr @ 43 PSI
- Supports up to 2525 horsepower
- Tri-cone spray pattern
- Maximum recommended fuel pressure: 75 PSI
- Dynamic Flow Matched within 1%

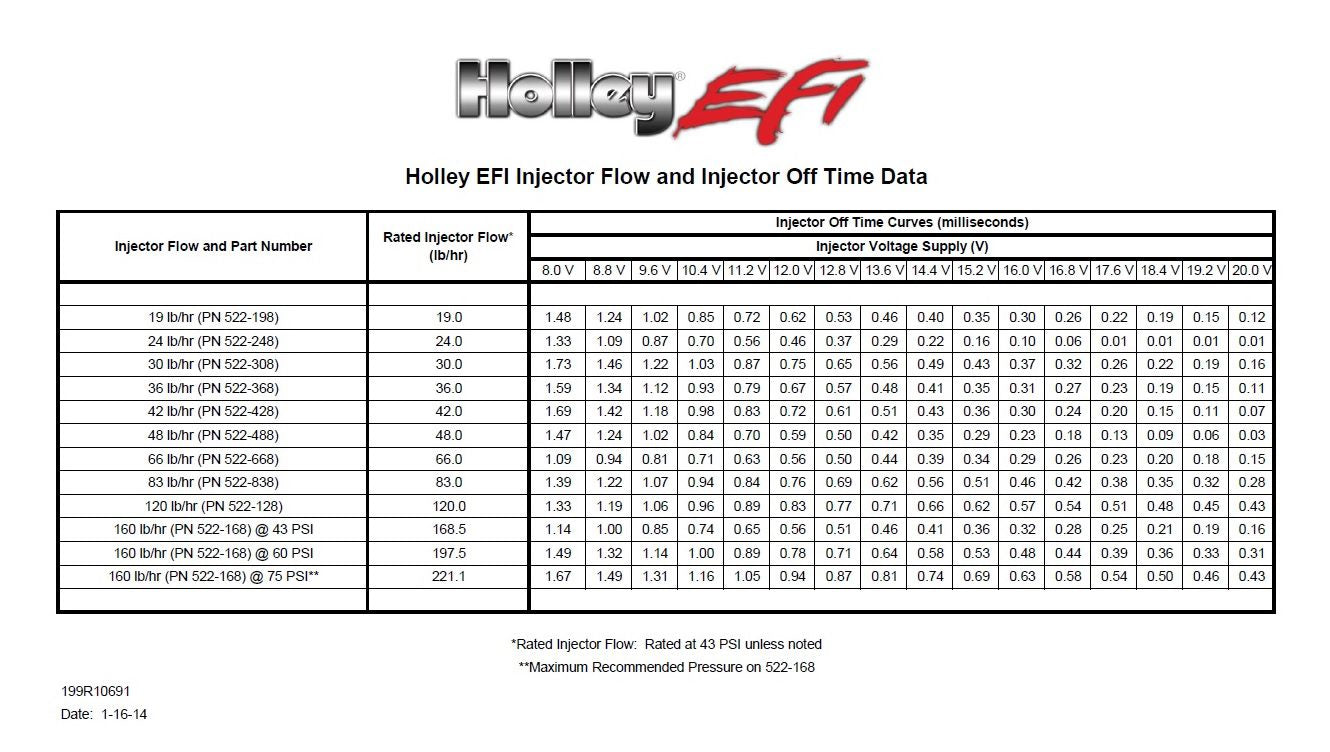

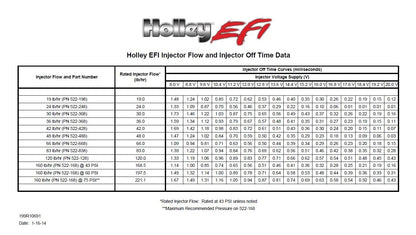

- Injector Dead Times matched within 20 microseconds

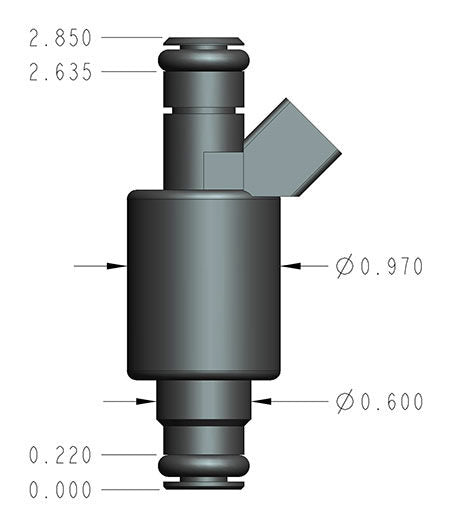

Body Diameter: 0.97
Body Length: 2.85"
Body Style: EV1
Brand: Holley EFI
Category: Air and Fuel Delivery
Connector Series: EV1 - Jetronic - (Bosch Style)
Emission Code: 3
Fuel Type: E-85, Gasoline
Grade Type: Performance
Impedance: Low (2.0 Ohm)
O-Ring to O-Ring: 2.415"
part type: Fuel Injector Set
Product Type: Fuel Injector
Rated Injector Flow: 160 lb/hr
Sub Category: Fuel Injection System and Related Components
Terminal Quantity: 1
Universal Or Specific Fit: Universal
Warning: California Proposition 65
