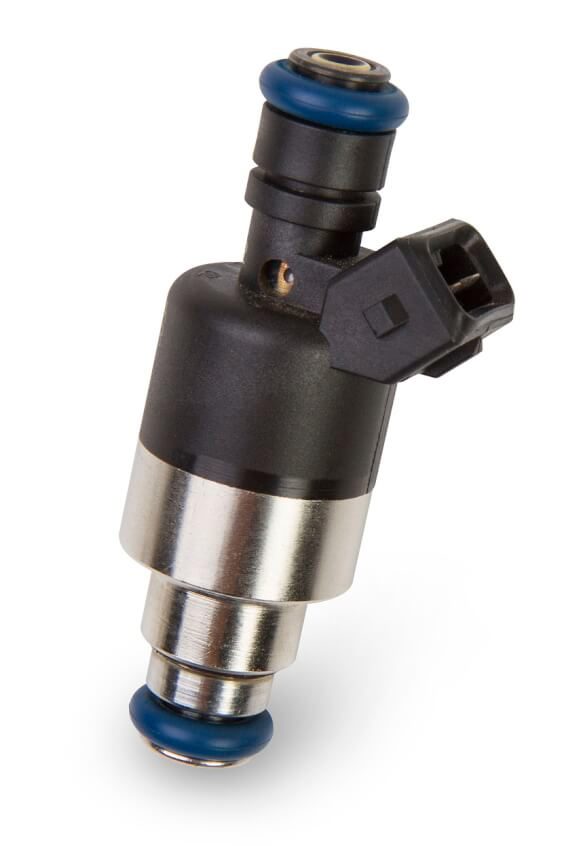

Holley EFI - 522-161
160 lb/hr Performance Fuel Injector - Individual
Universal Fuel Injector; 160 lbs./hr.; Low Impedance; 1 Each;
Holley EFI Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp O-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. They are available from 19 to 160 lb./hr. flow rates to accommodate a variety of vehicles. Holley EFI Fuel Injectors provide precision fuel delivery you can depend on.
- Bosch/EV1 style performance injector- Individual
- Low impedance (2.0 Ohms) for use with peak and hold drivers
- Rated injector flow: 160 lb/hr @ 43 PSI
- Tri-cone spray pattern
- Maximum recommended fuel pressure: 75 PSI
Body Diameter: 0.97
Body Length: 2.85"
Body Style: EV1
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Black

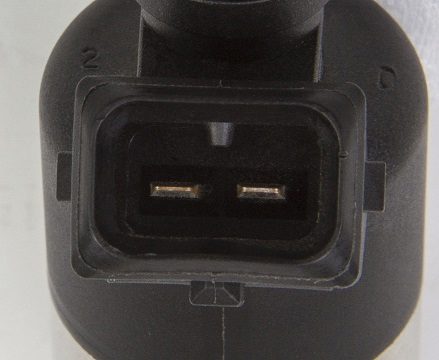

Connector Series: EV1 - Jetronic - (Bosch Style)
Connector Shape: EV1 - Jetronic - (Bosch Style)
Emission Code: 3
Flow Rate: 160 4U
Fuel Injection Type: Port
Fuel Type: E-85, Gasoline
Gasket Or Seal Included: Yes
Grade Type: Performance
Impedance: Low (2.0 Ohm)
Mounting Hardware Included: No
O-Ring Quantity: 2 per injector
O-Ring to O-Ring: 2.415"
part type: Fuel Injector
Product Type: Fuel Injector
Rated Injector Flow: 160 lb/hr
Retainer Clips Included: No
Sub Category: Fuel Injection System and Related Components
Terminal Gender: Female
Warning: California Proposition 65
