Holley EFI - 300-306BK
8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top-Black
Holley EFI Hi-Ram Intake Manifold; Fits w/8.2 in. Deck SBF Ford w/95 mm Throttle Body Flange Side Mount Top; Cast Aluminum; Black Finish;

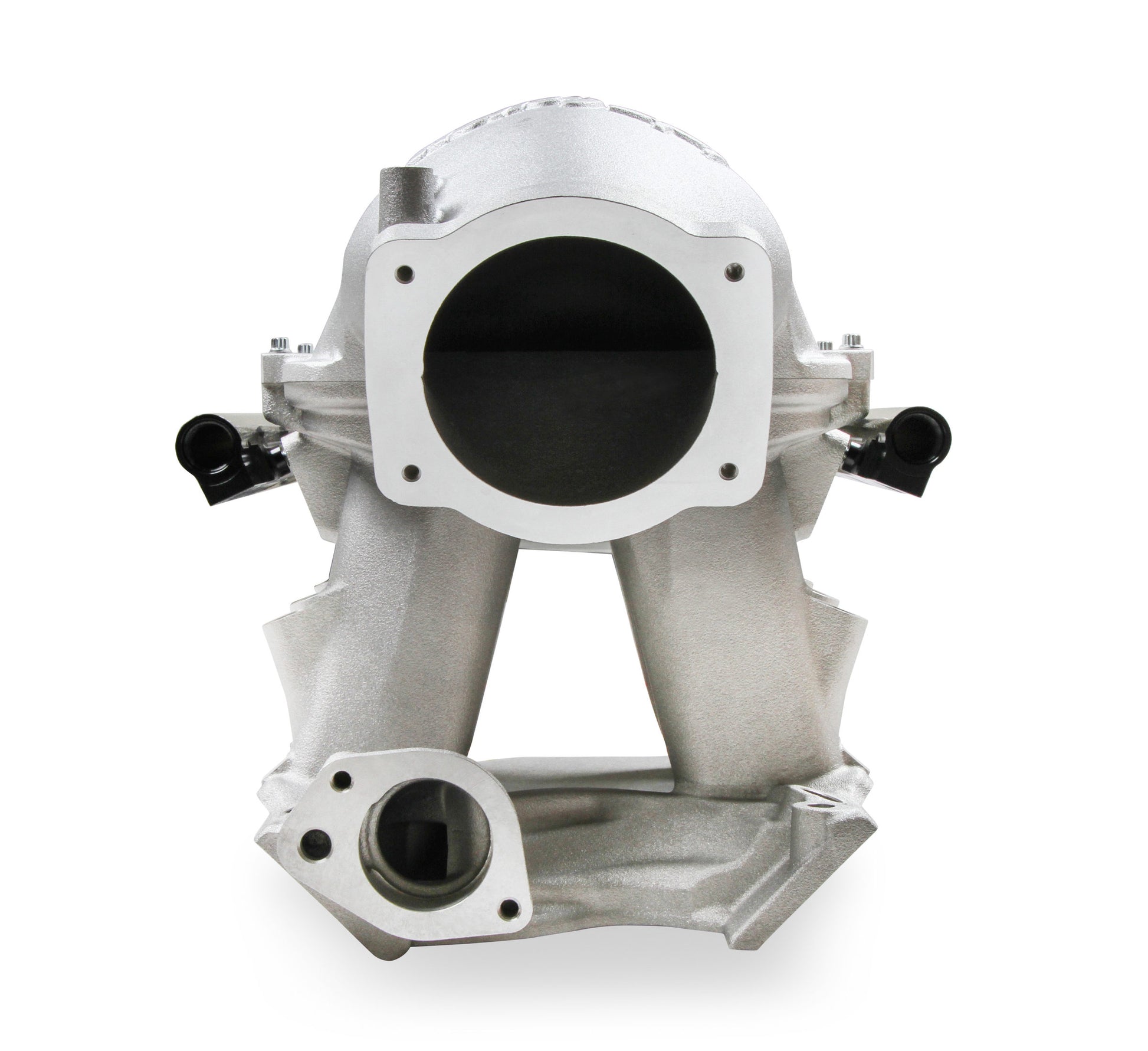

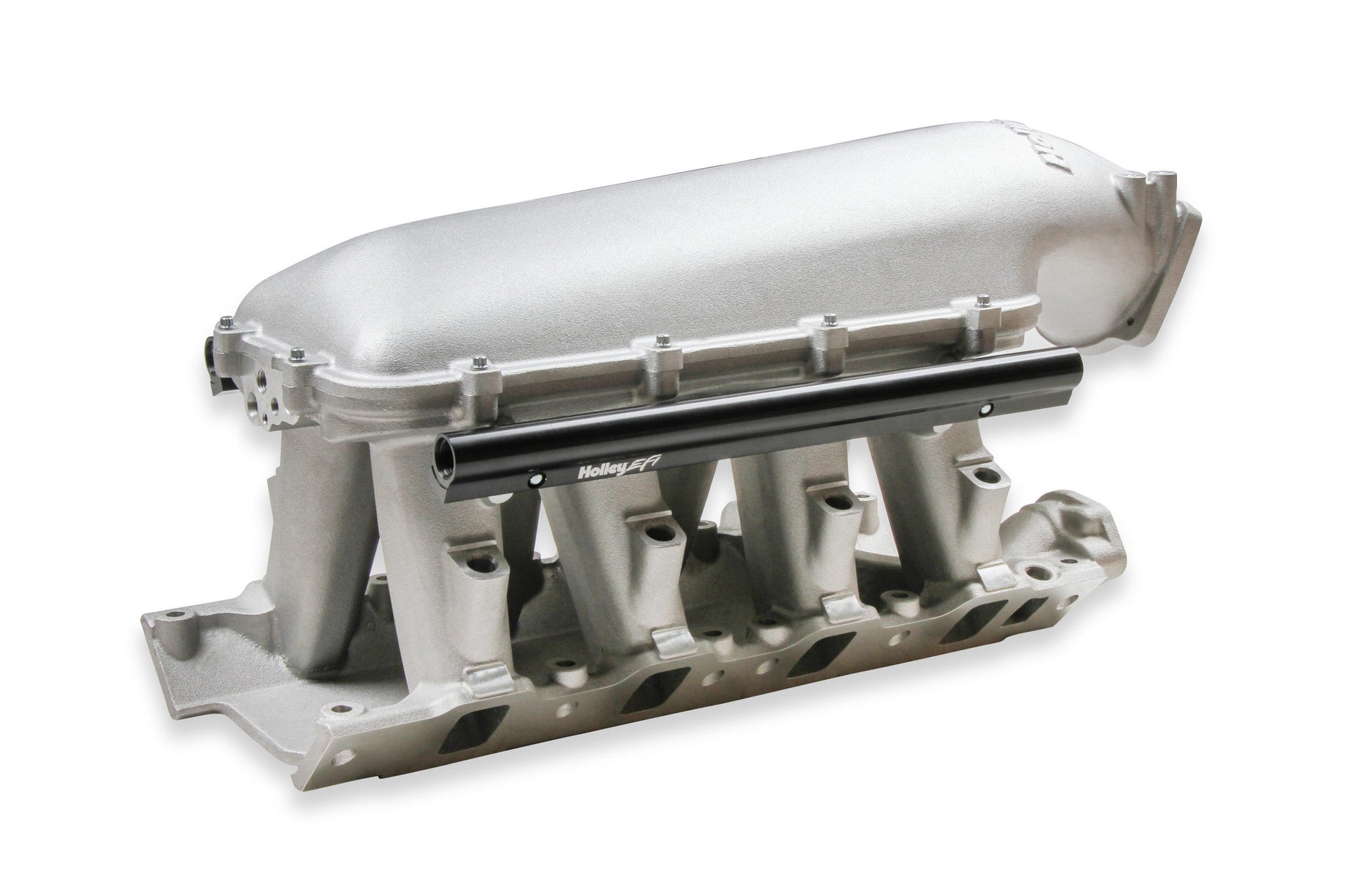

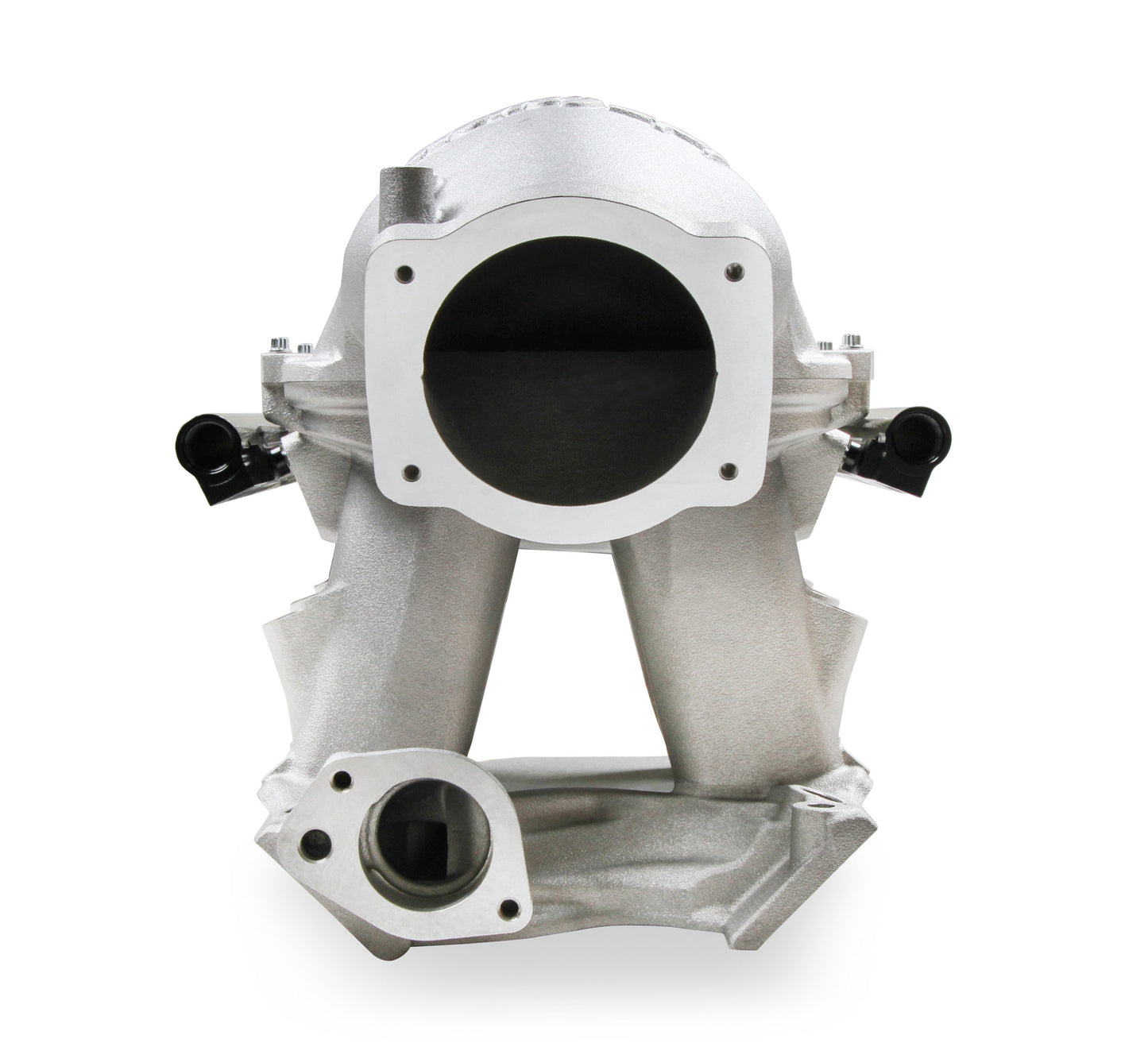

The EFI Hi-Ram manifold line has a new addition for the 8.2 in. SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2 in. deck height. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Black finish.*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.

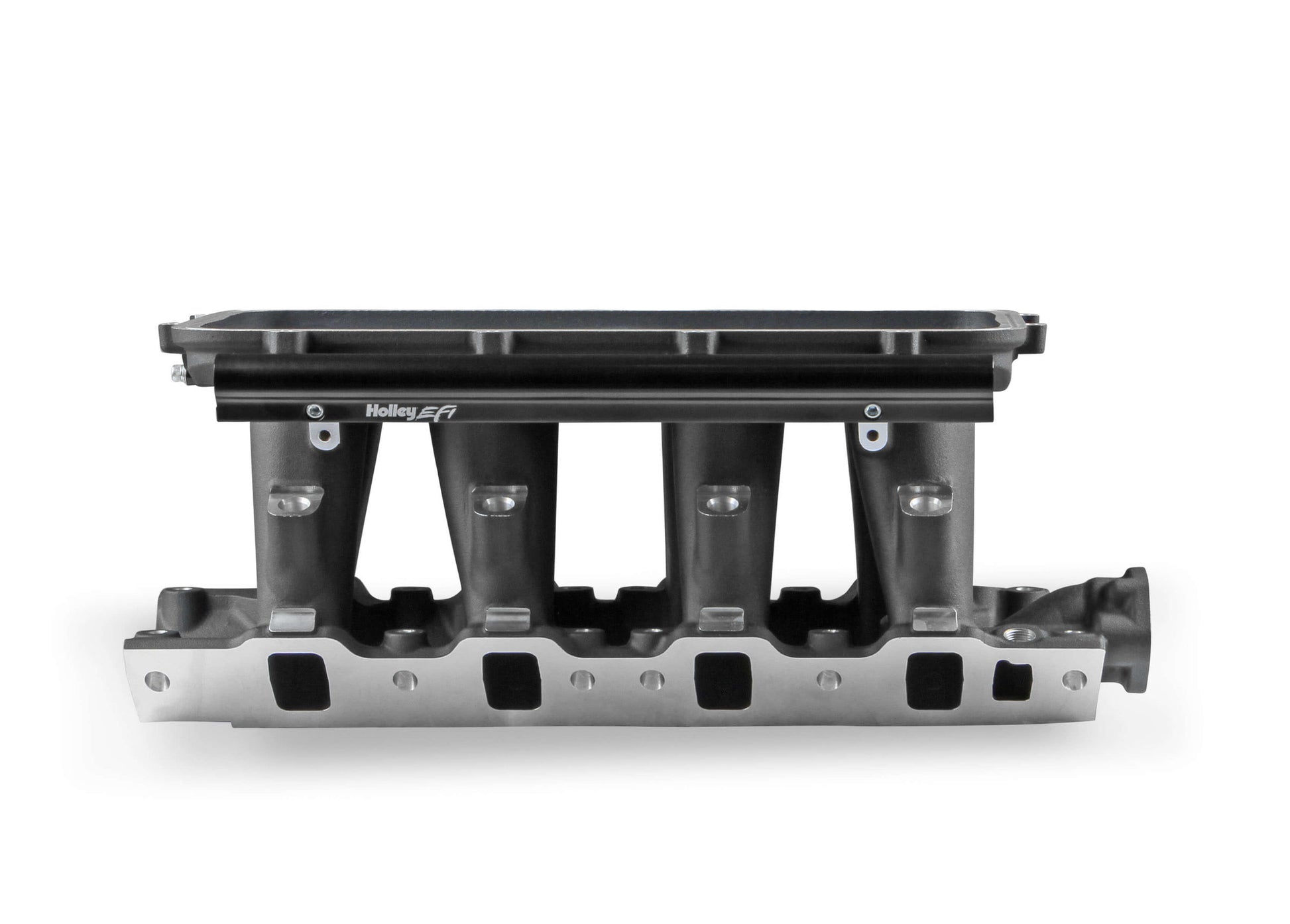

- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

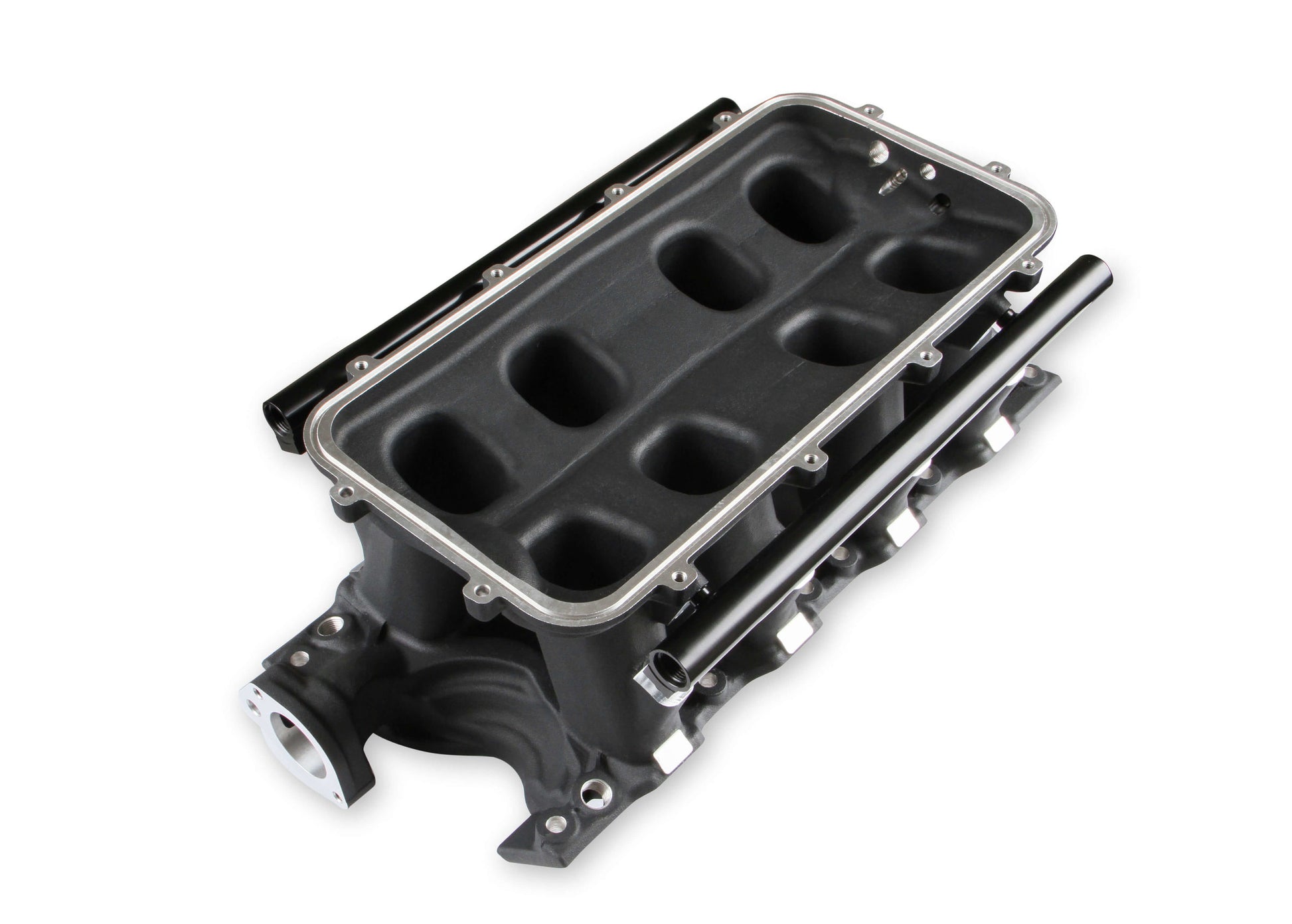

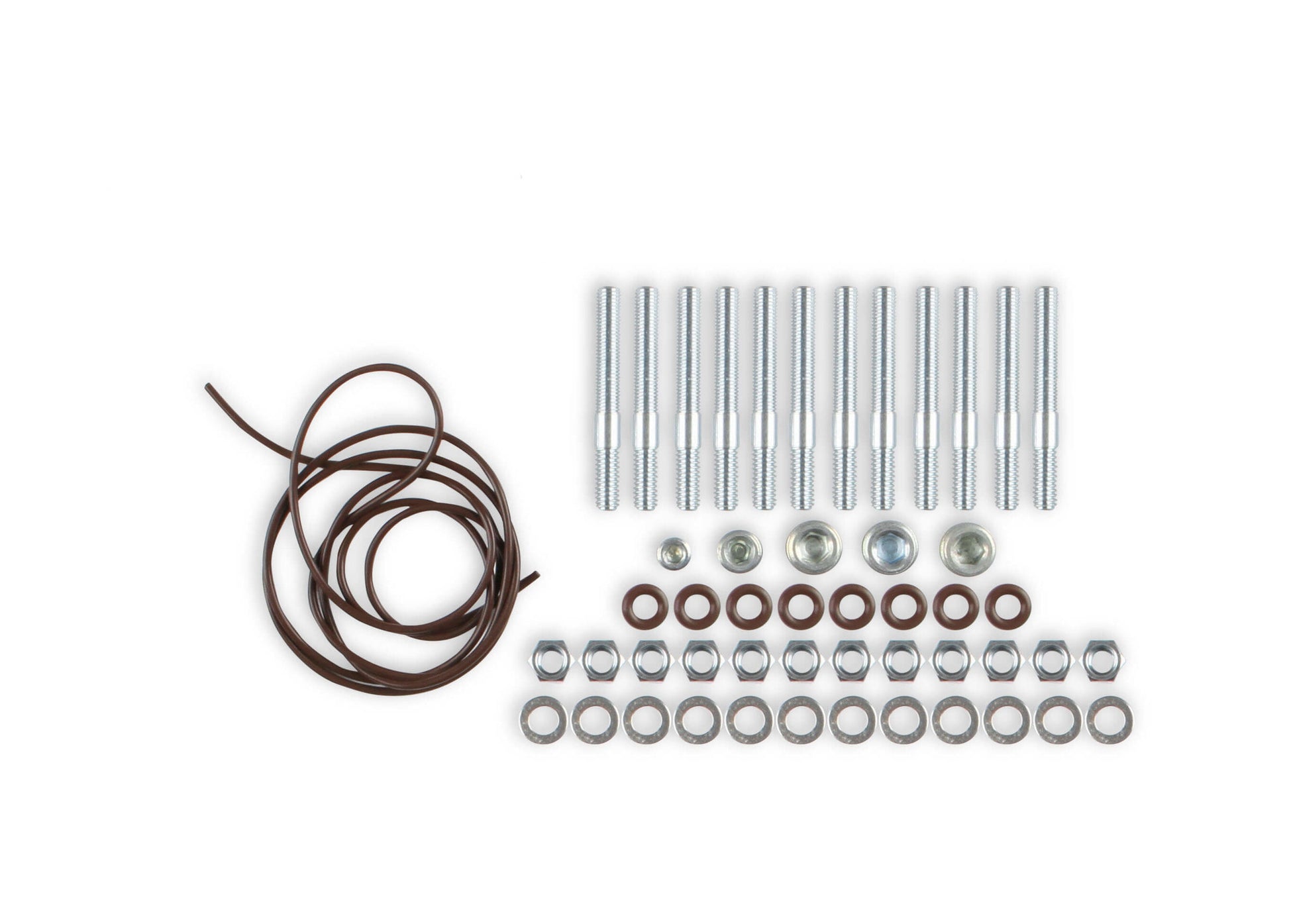

- Plenum Top Gasket Type – 3/32” Round O-ring Cord

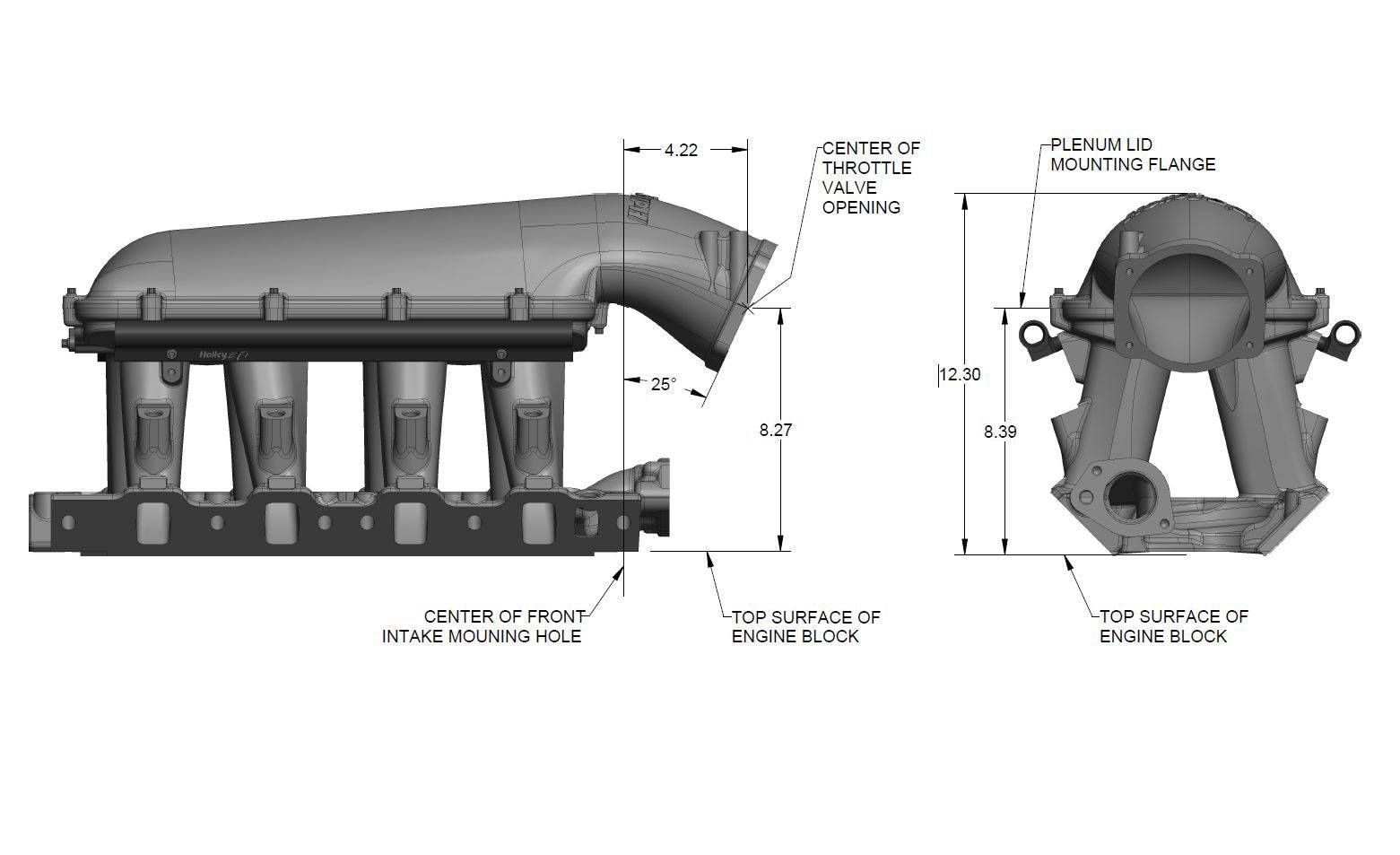

- Manifold is designed for a 8.2" SBF deck height.

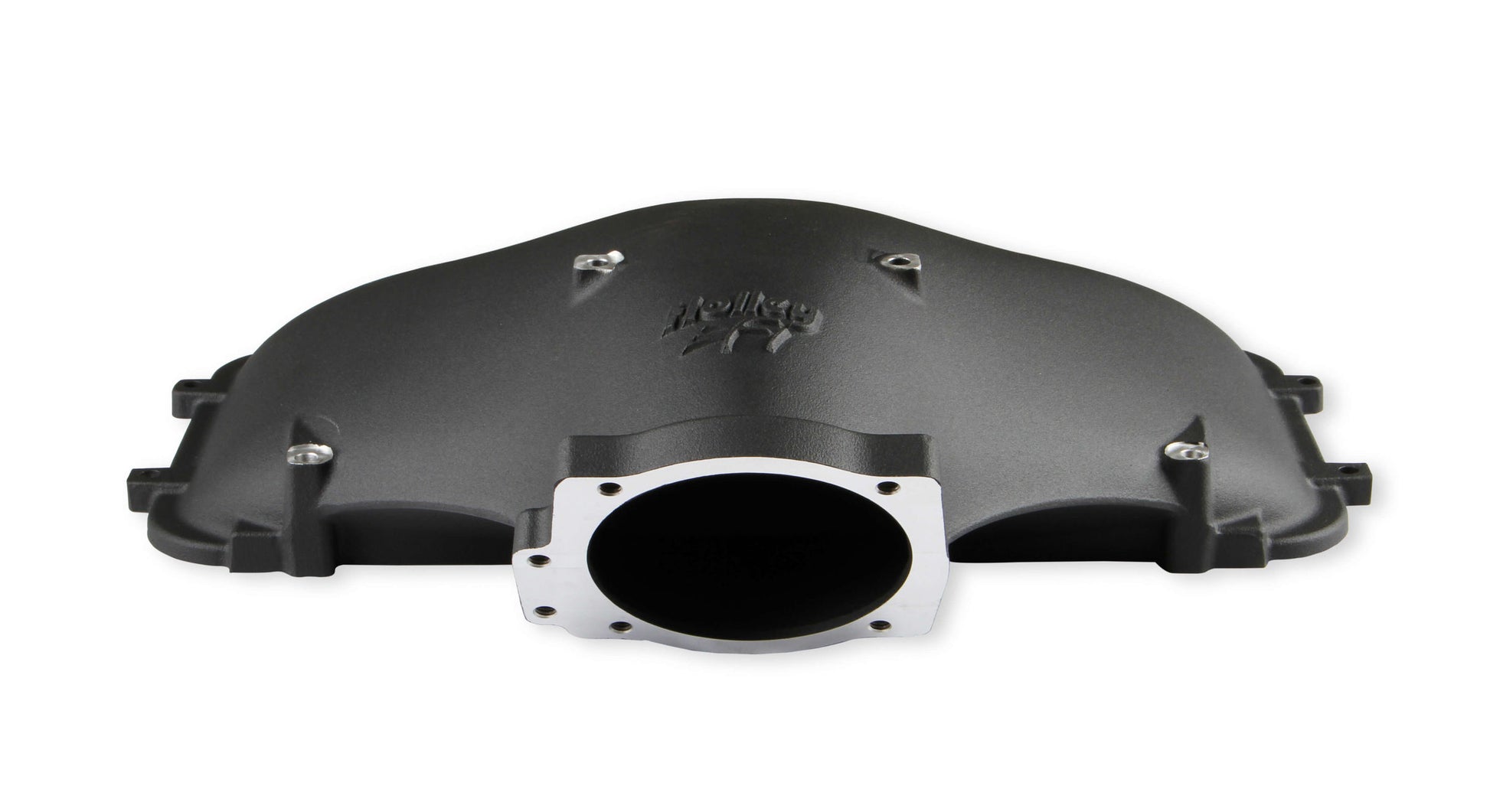

- The 8.2 SBF manifold is available to work with 95MM throttle bodies
- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.

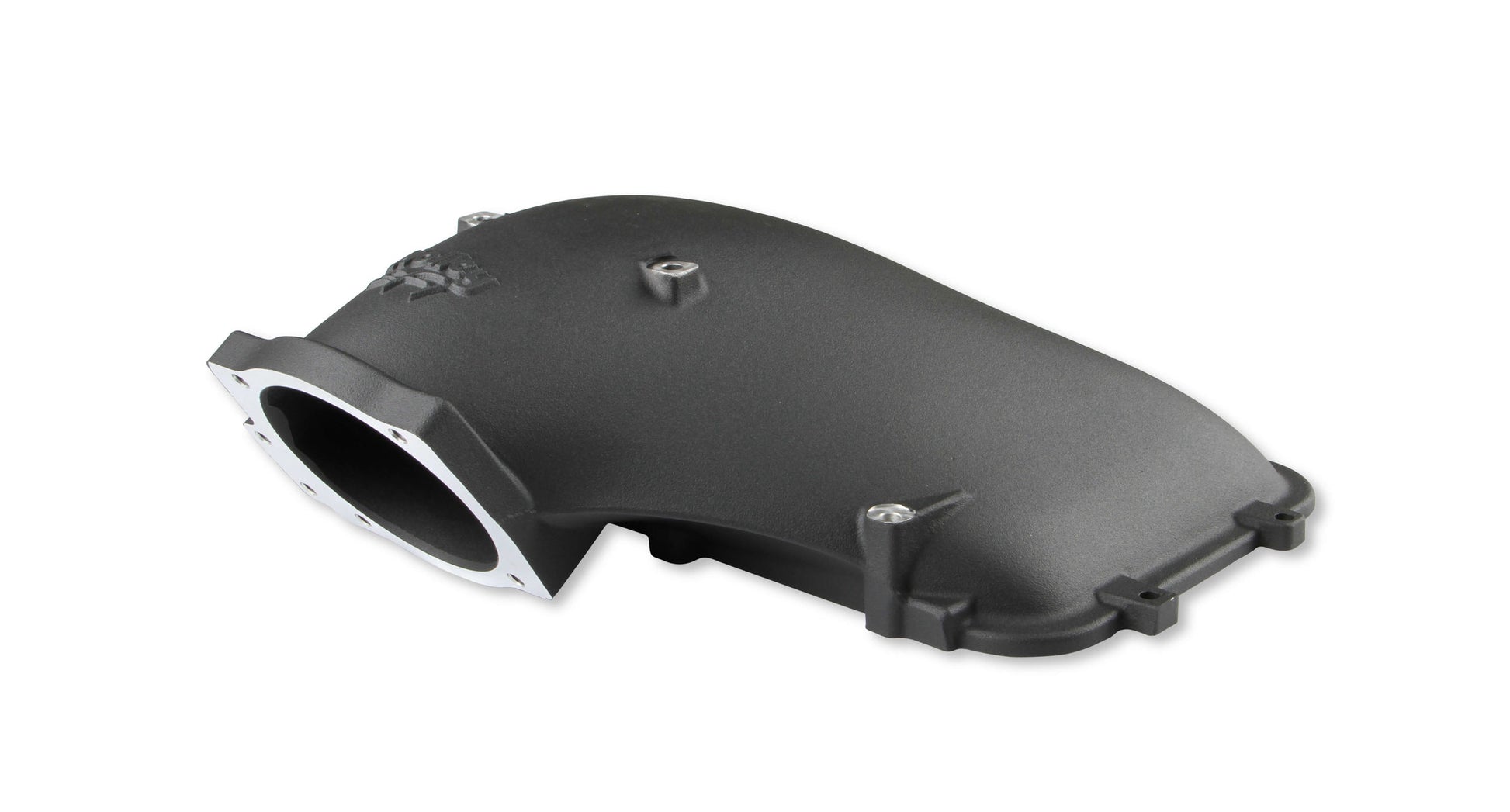

- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
