Holley EFI 300-276 - EFI 4150 SINGLE PLANE FUEL INJECTION INTAKE MANIFOLD
HOLLEY EFI 4150 SINGLE PLANE FUEL INJECTION INTAKE MANIFOLD
EFI Single Plane Intake Manifold Small Block Ford 289-347

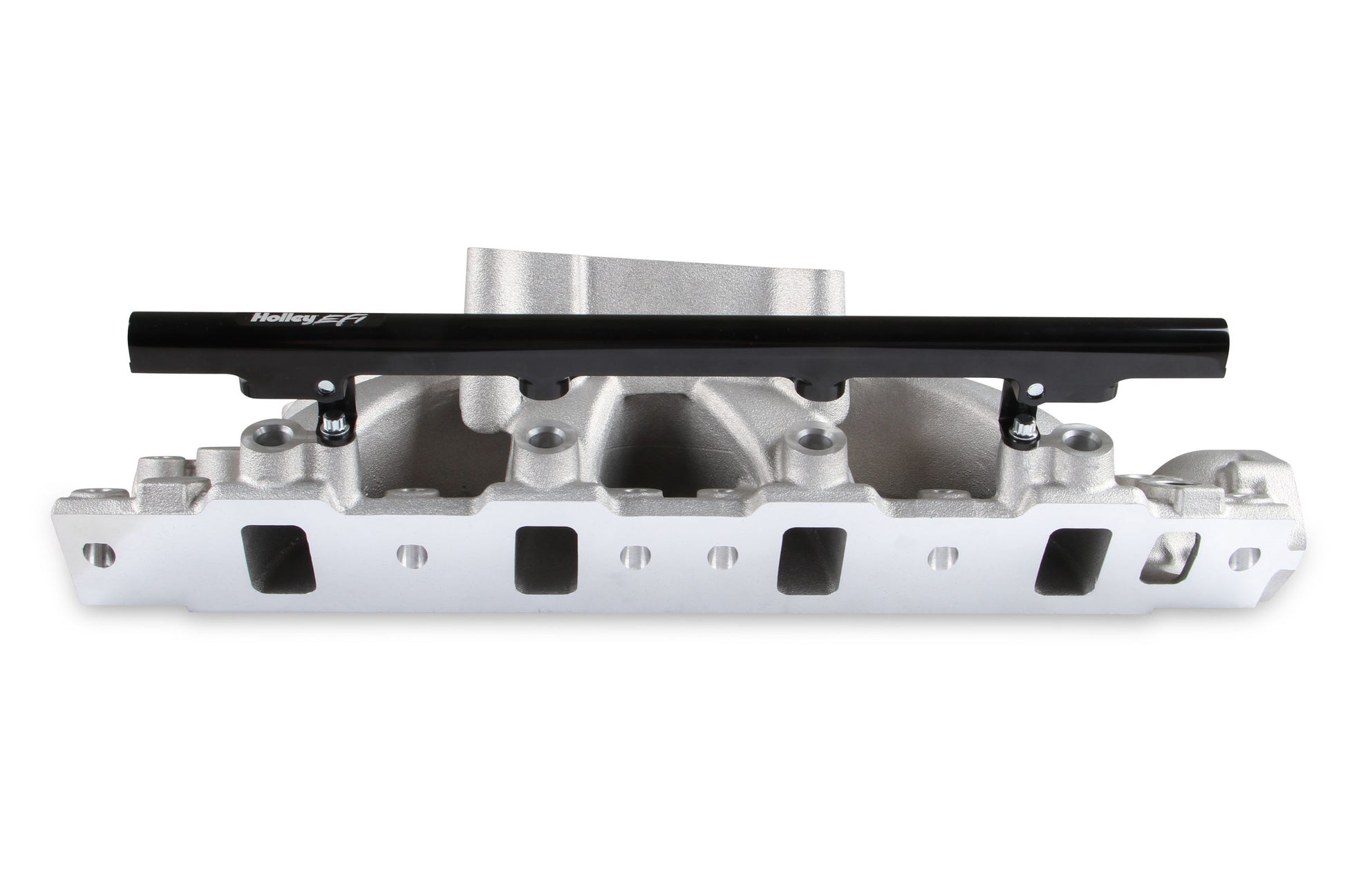

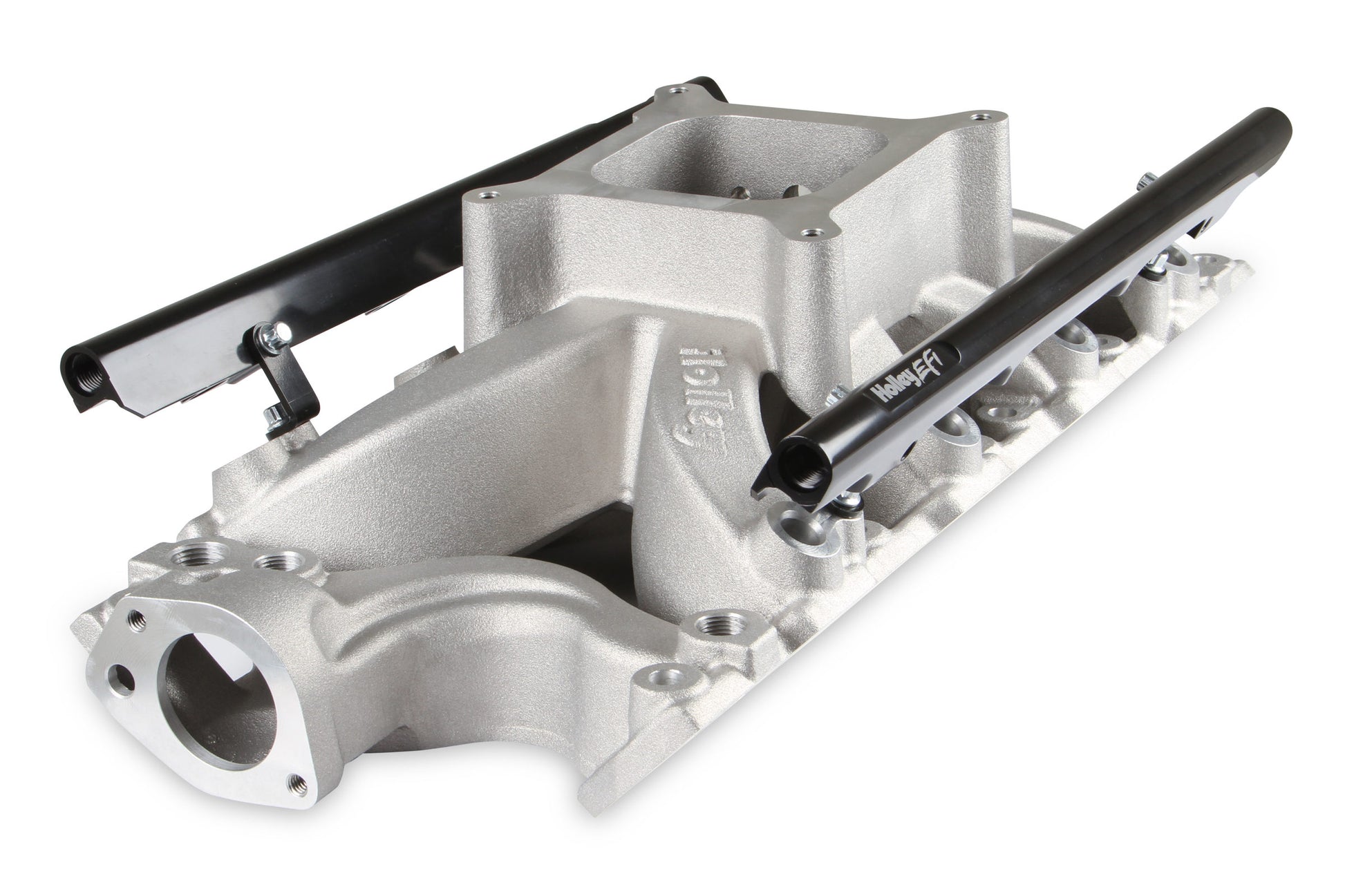

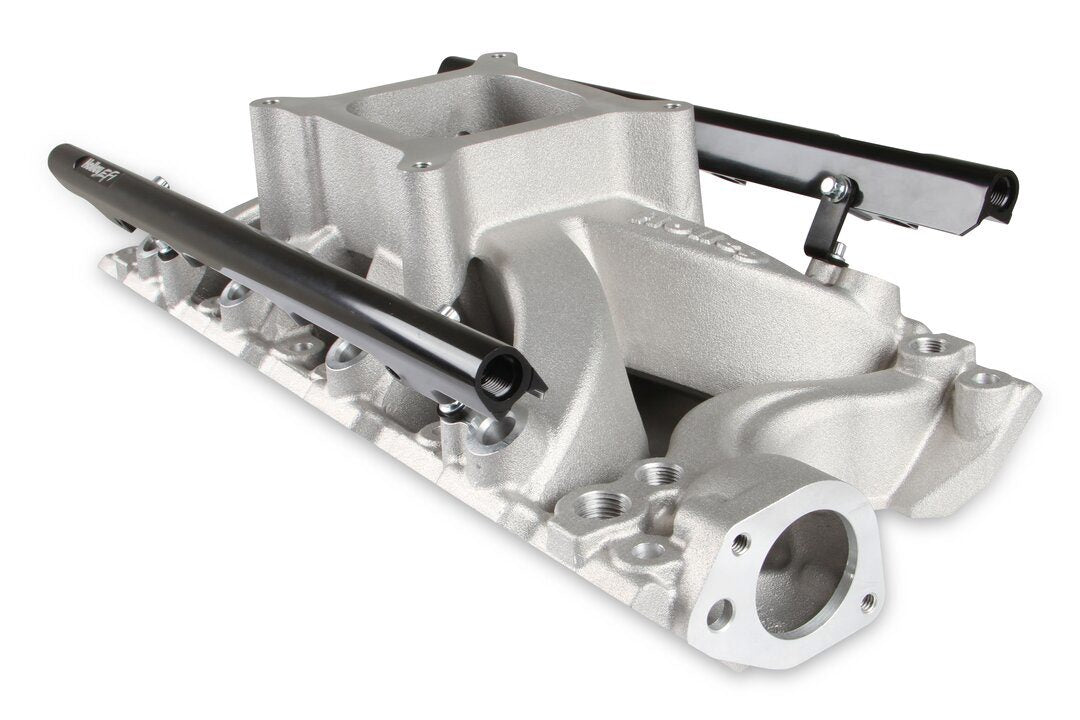

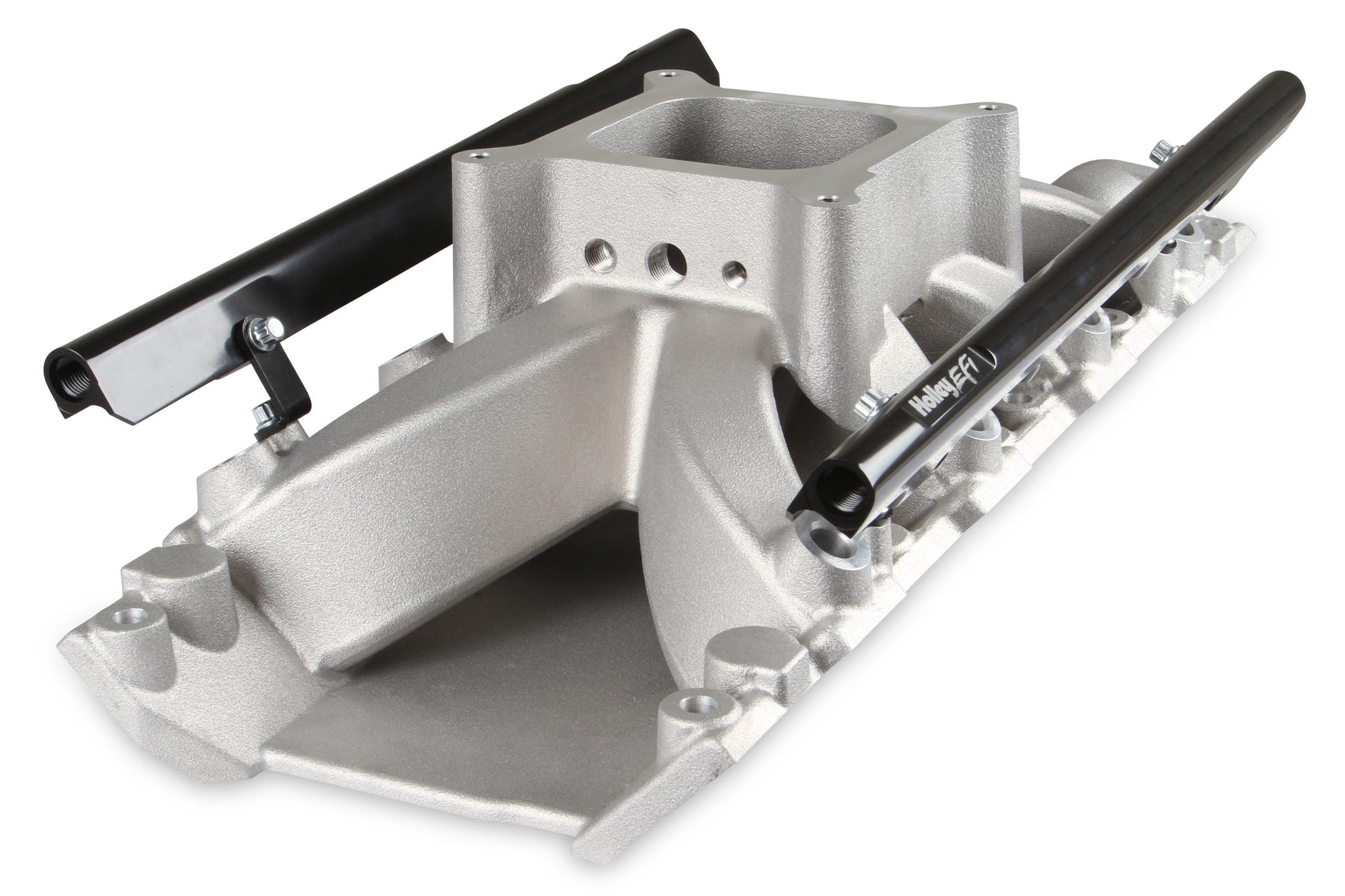

The 300-276 EFI manifold includes black anodized fuel rails and rail bracket assortment for an easy installation with the injectors that you choose to use for your combination. The intake manifolds are designed for use with 289-347 cubic inch Small Block Ford engines 8.2" deck height.

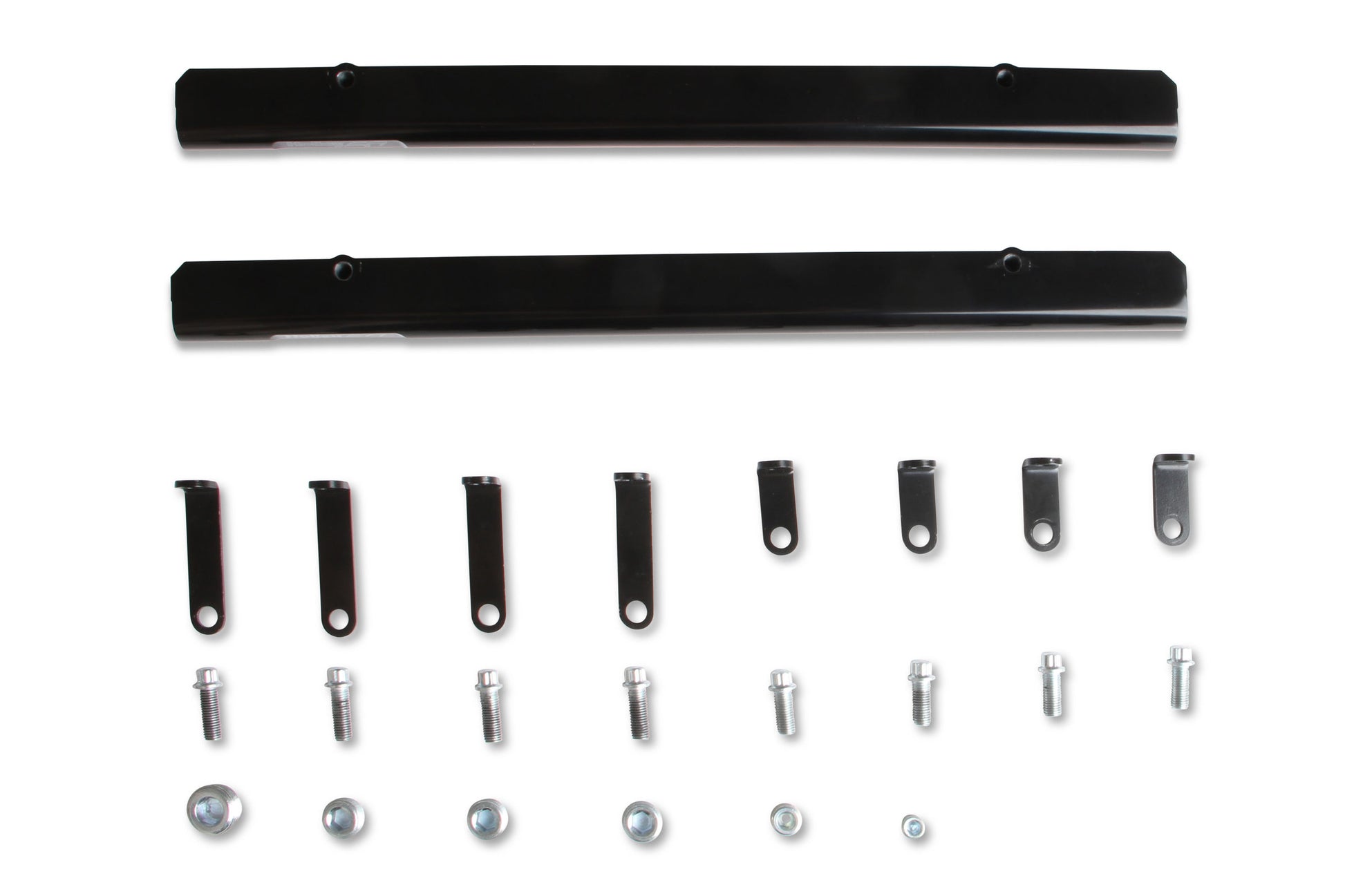

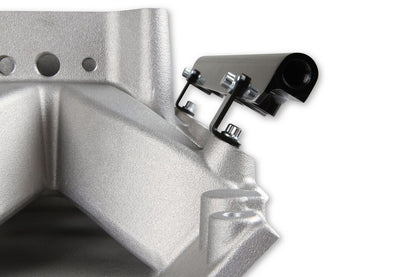

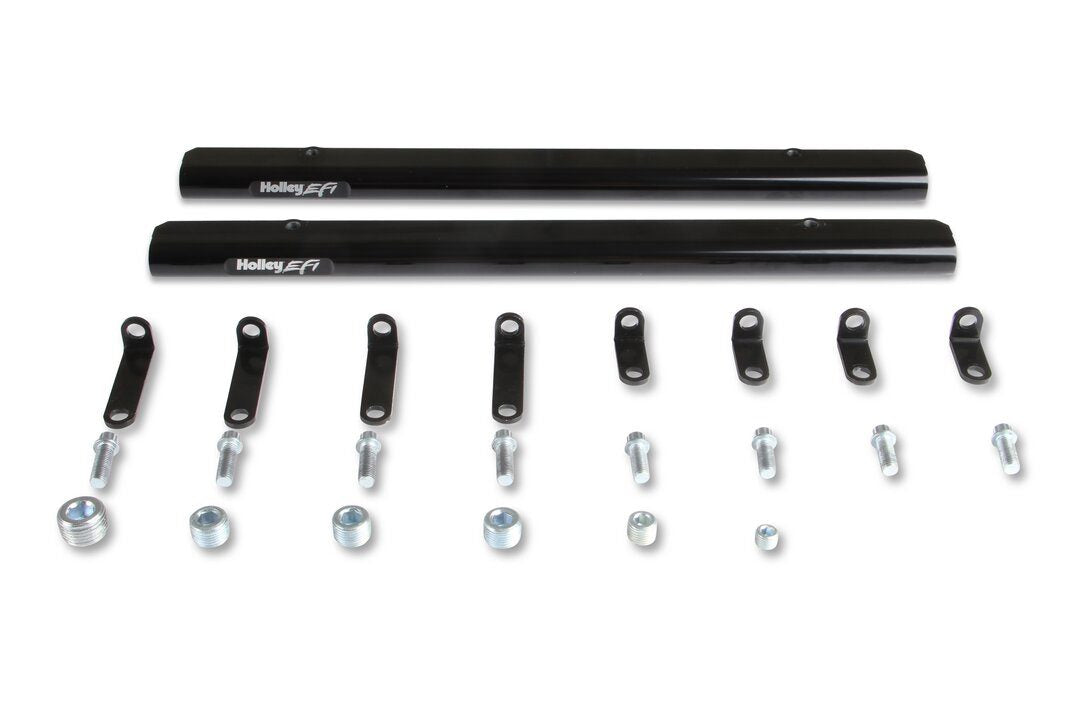

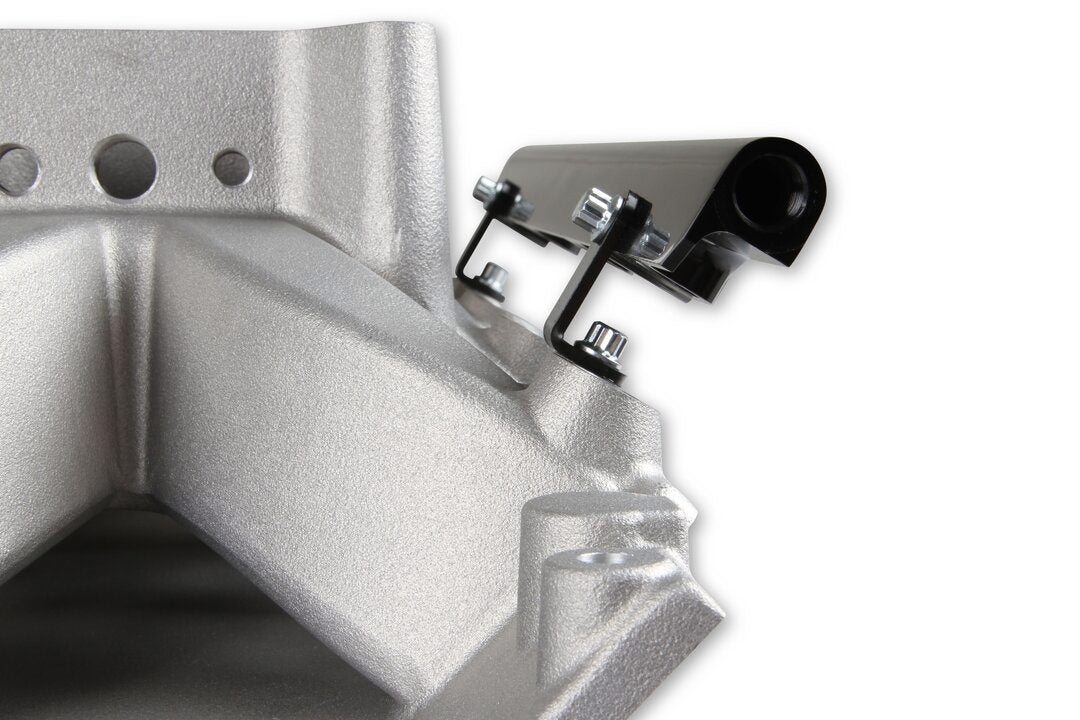

- Includes fuel rail mounting brackets in two sizes for more options in fuel injectors (EFI Model)
- Anodized aluminum fuel rails with laser-etched logo (EFI model) 6AN
- Height: front 5.58”, rear 6.40”

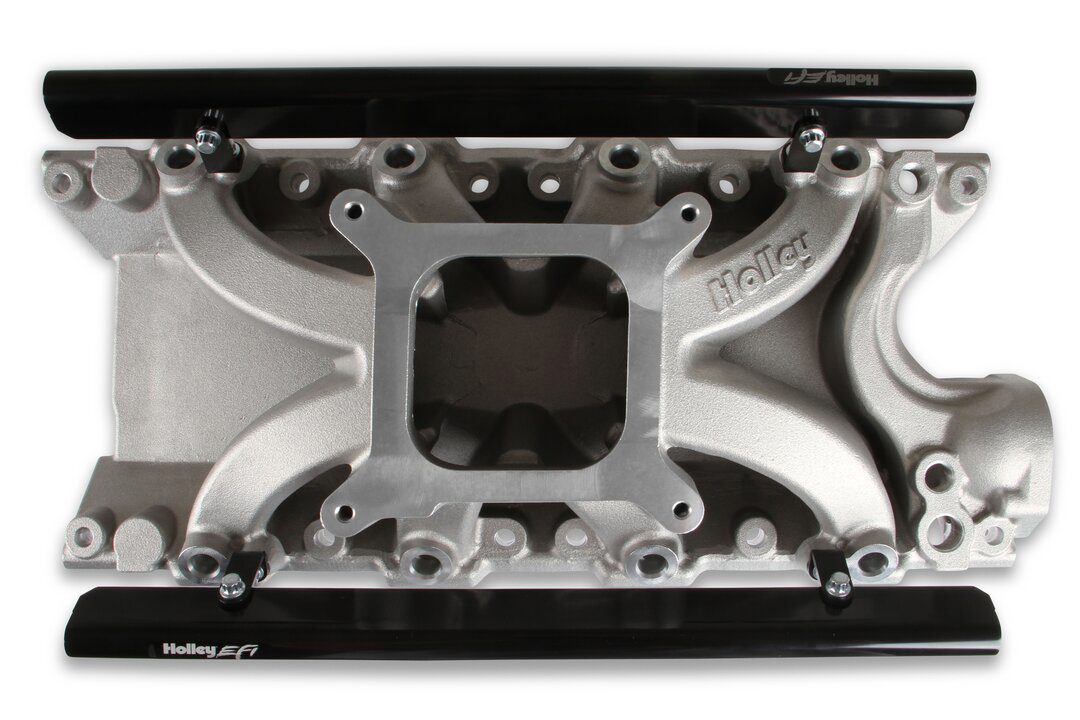

- 4150 square bore mounting flange
- Extra material allows for porting to 2.00” height, 1.20” width

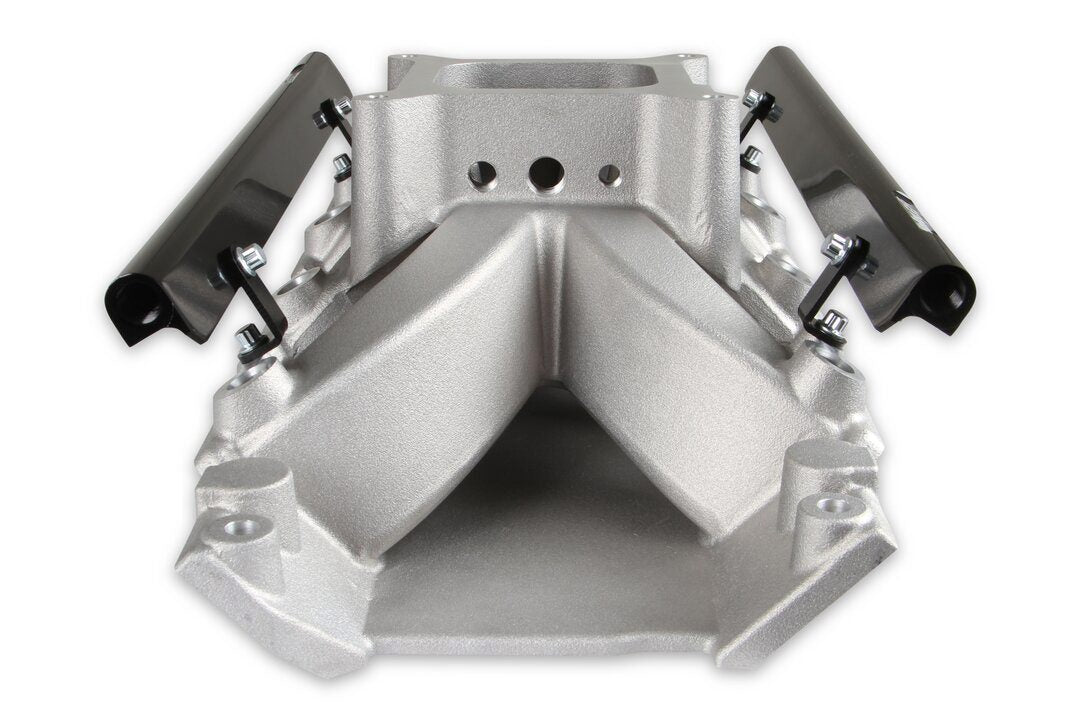

- Accessory ports under the carburetor in 1/8 NPT, 1/4 NPT and 3/8 NPT sizes
- Port size: 1.82” height, 1.04” width
- Single plane design with isolated plenum for cooler charge air temperatures
- Power band: 2500-7500 RPM
Basic Operating RPM Range: 2500-7500
Brand: Holley EFI
Carburetor Flange: 4150 Square Bore
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Natural
Construction: Cast
Cylinder Head Port Shape: Rectangle
Deck Height: 8.2
EGR Port: No
Emission Code: 3
Engine: Ford Small Block
Flange Style: 4150 Square Bore
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Single Plane
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Natural
Product Type: Intake Manifold
Removable Runners: No
Removable Top/Lid: No
Single Or Dual Plane Type: Single Plane
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Vacuum Ports: Yes
