Holley EFI - 300-269BK
Holley Single Plane EFI Intake - GM LS7-Black
EFI Intake Manifold; Single Plane; 4150 Square Bore Flange; RPM Power Band 2500-7000; For Use w/GM LS Gen III Engine w/LS7 Cylinder Heads; Black Cast Aluminum; Black Finish;

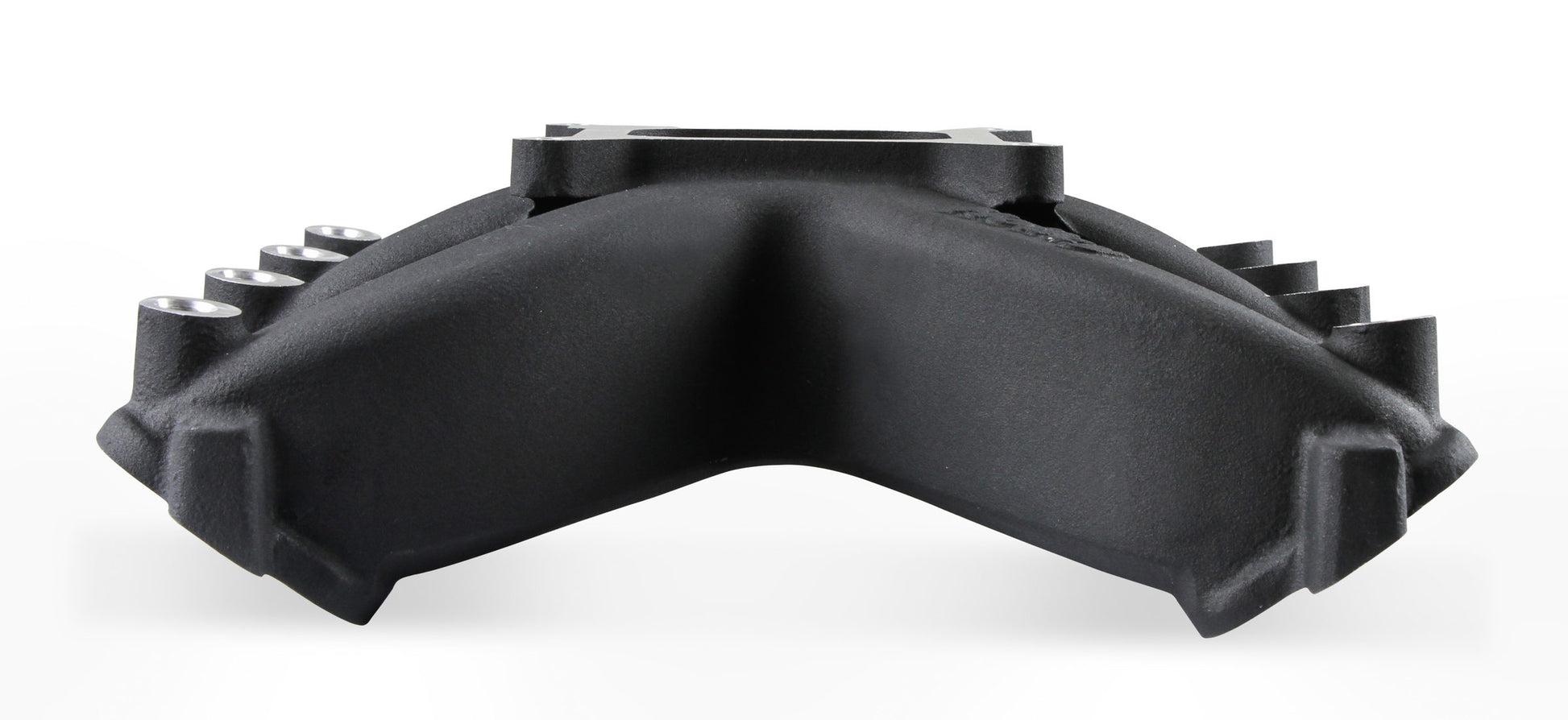

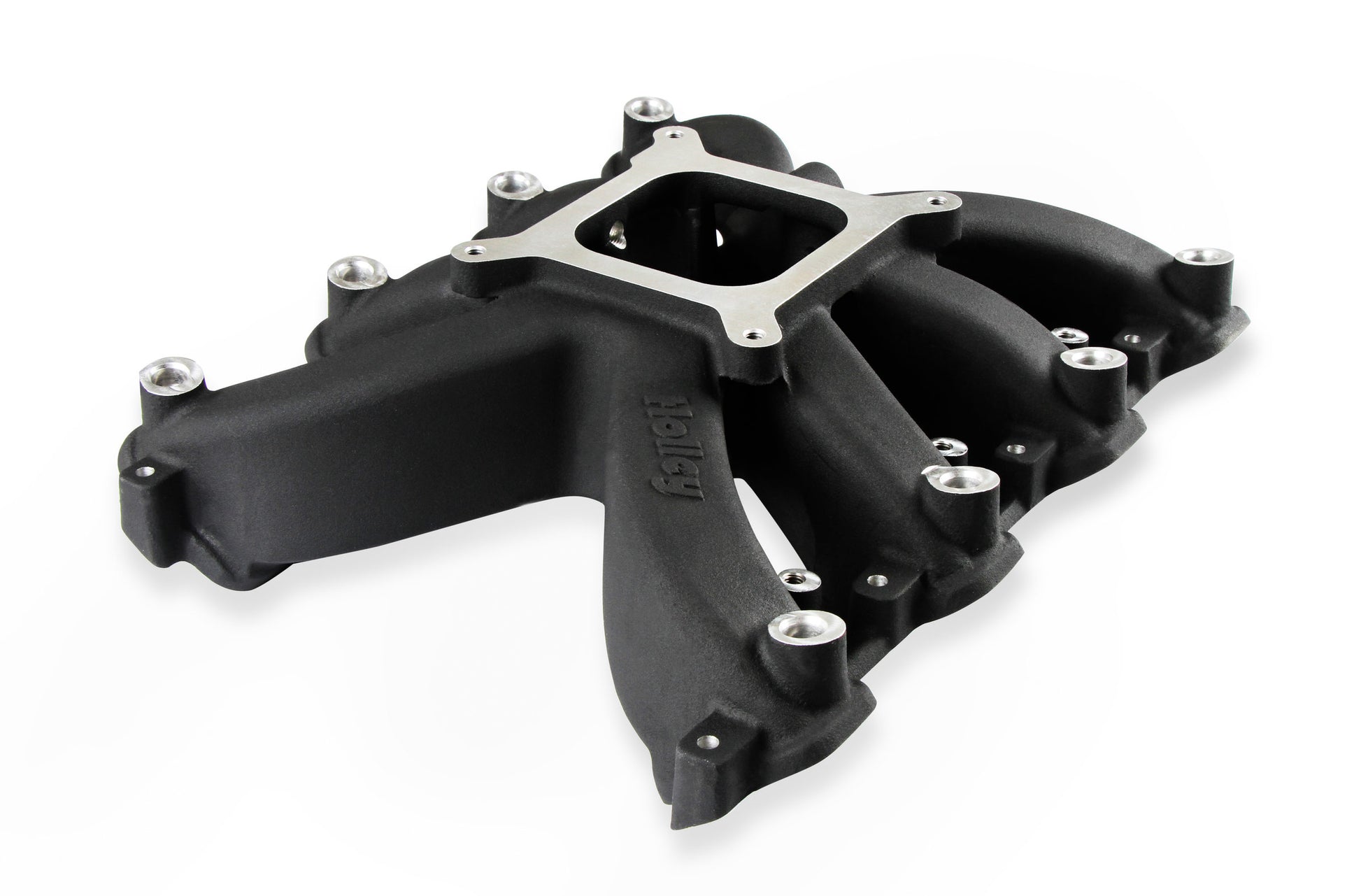

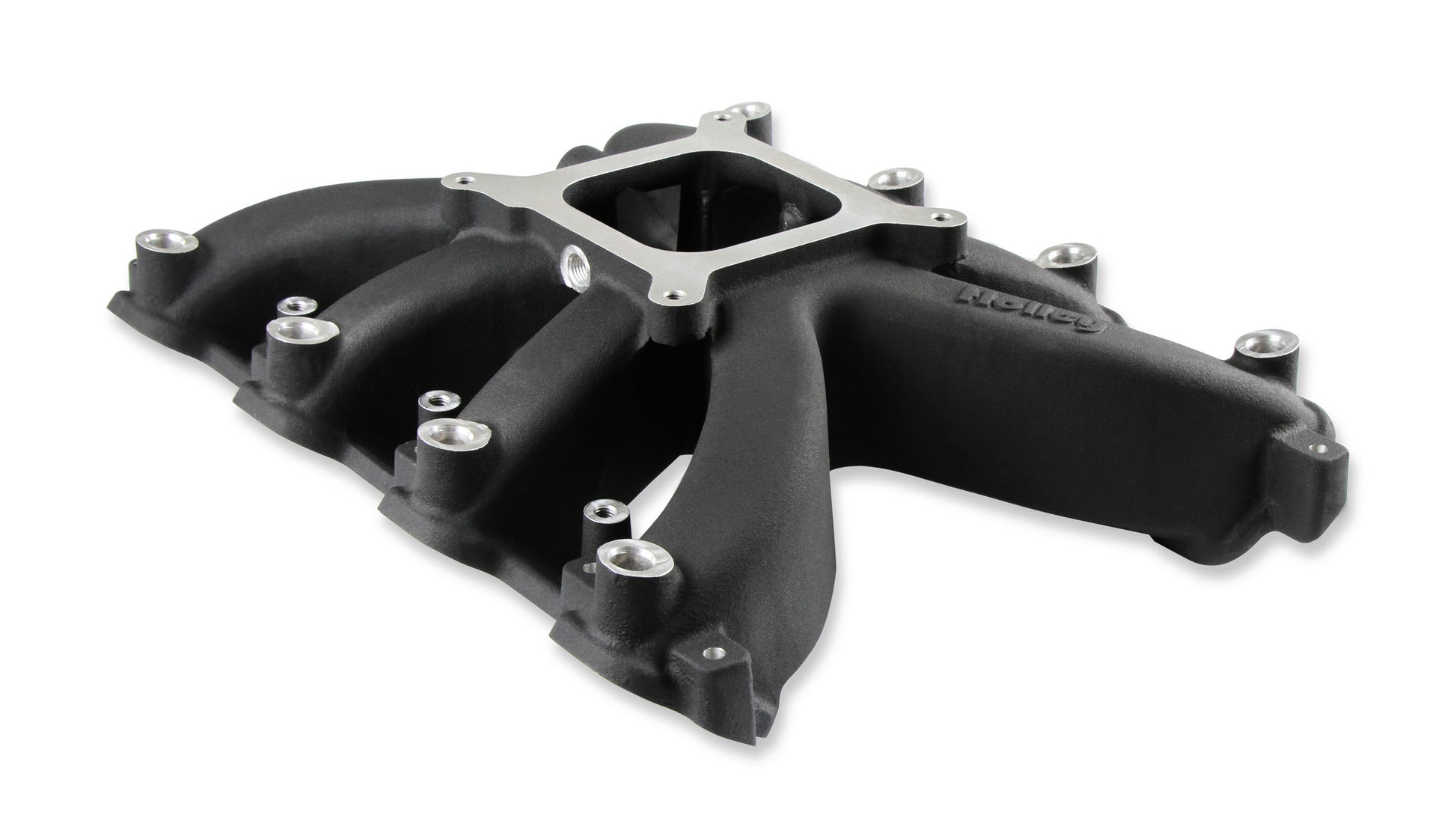

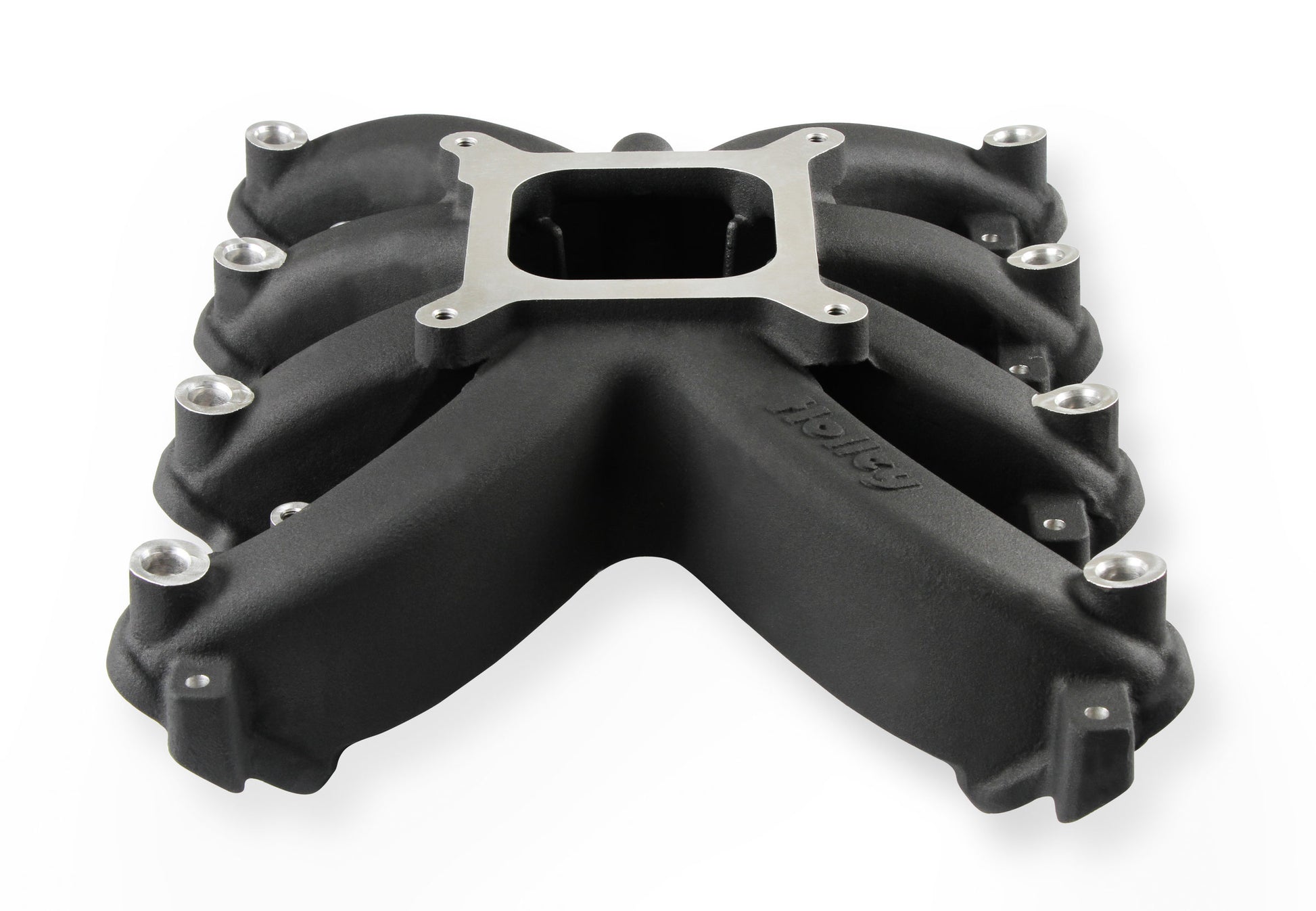

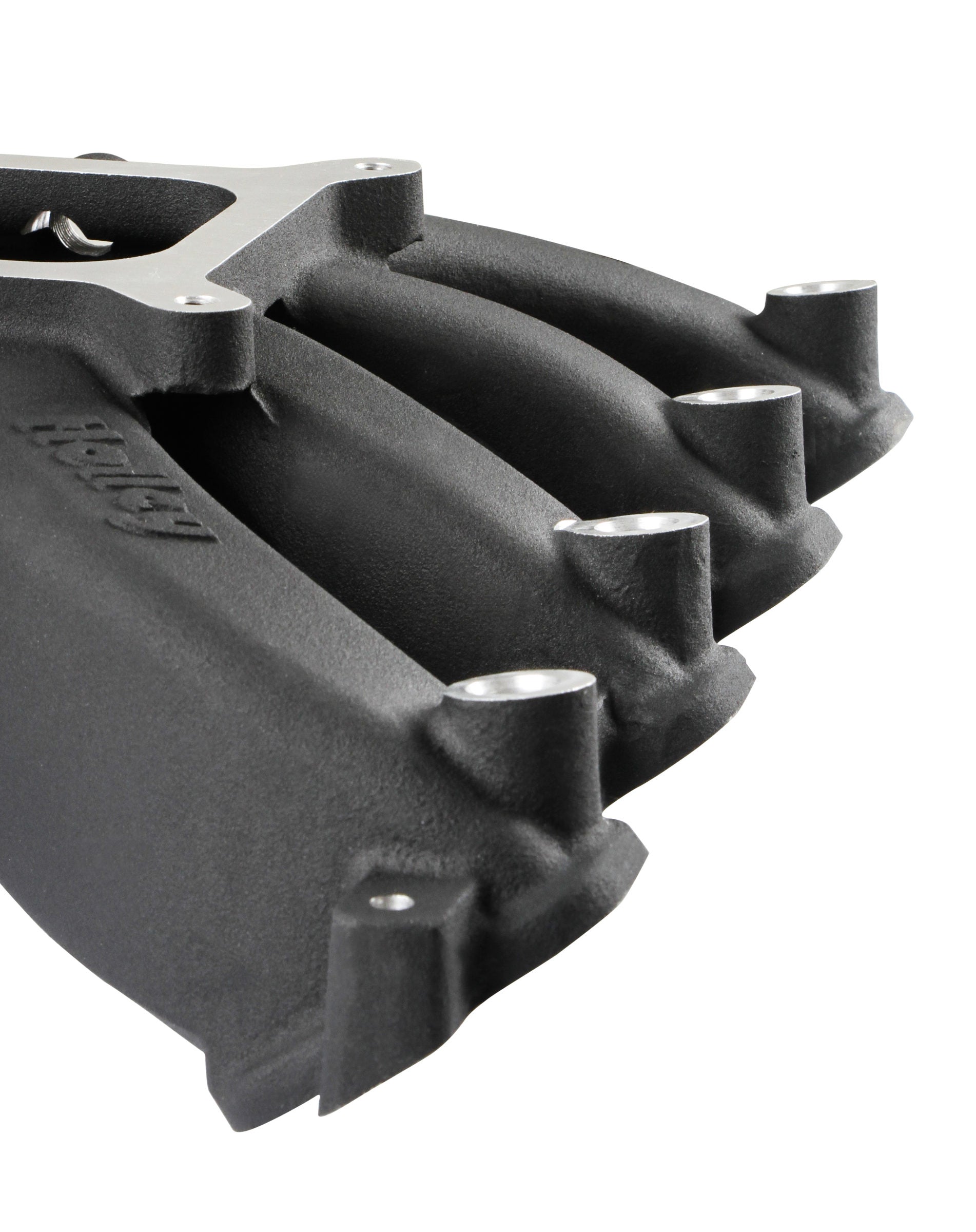

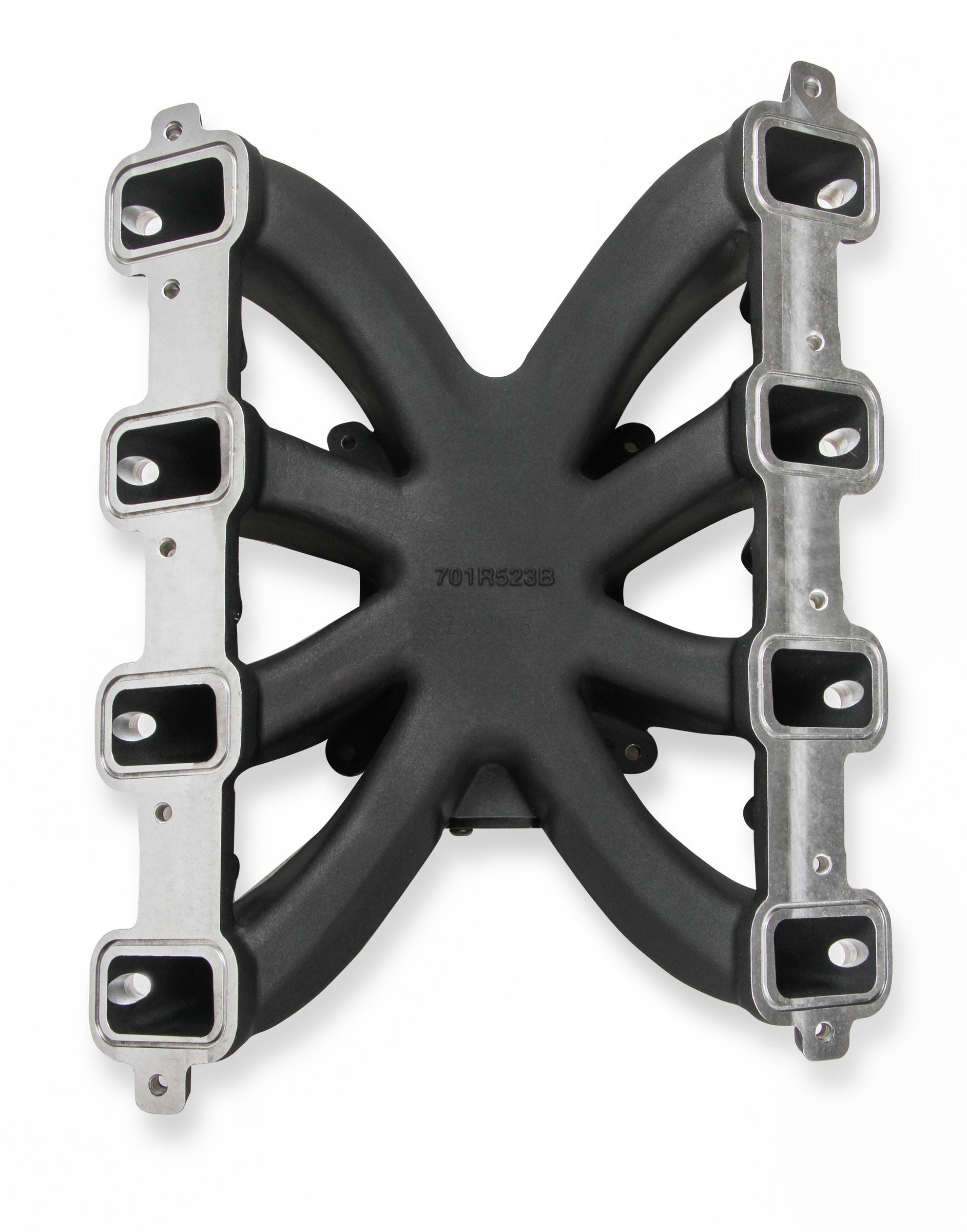

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS7 cylinder heads. Designed with a 4150 Square bore flange. Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM. Minimum carb flange height - fit in vehicles with minimum hood modifications. Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- 2500-7000 RPM power band

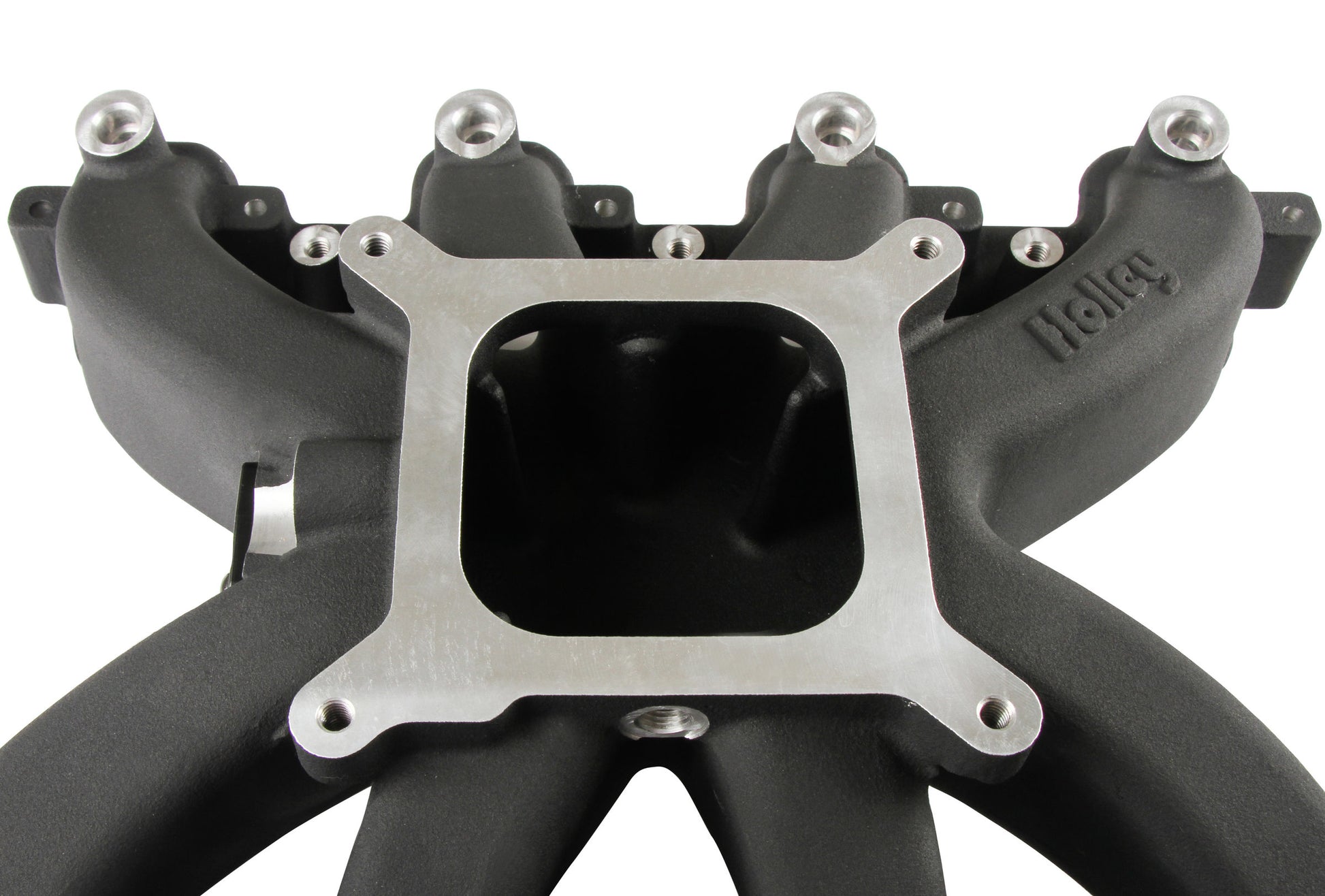

- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange

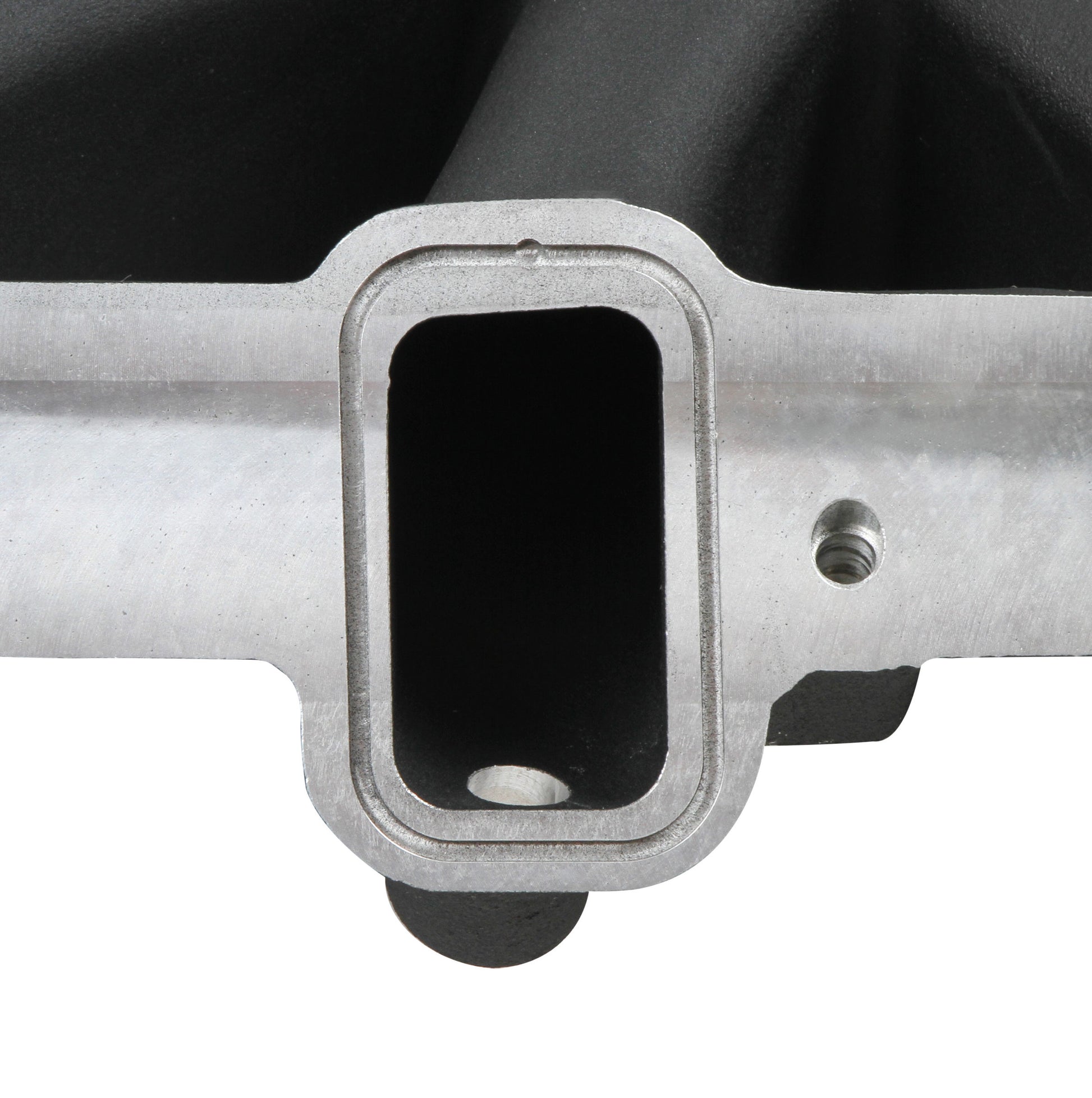

- Port size - 2.33" height x 1.27" wide

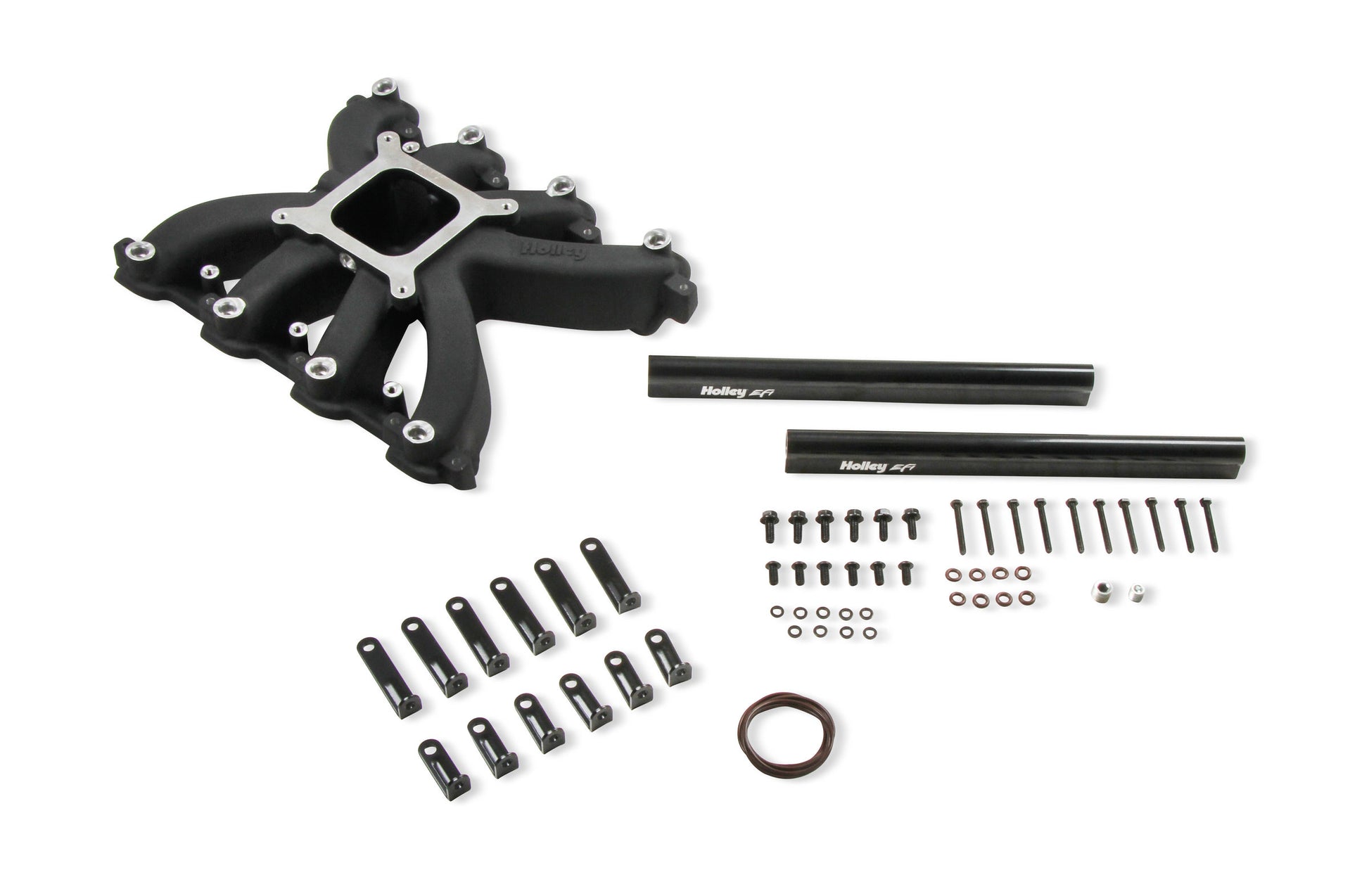

- Includes FKM o-ring intake to cylinder head gaskets
Basic Operating RPM Range: 2500-7000
Brand: Holley EFI
Carburetor Flange: Square/4150
Carburetor Studs Included: No
Category: Intake Manifolds
Color: Black
Construction: Cast
EGR Port: No
Emission Code: 3
Engine: GM LS7
Finish: Black
Flange Style: 4150 Square Bore
Front Height: 5.417 inch
Front Maximum Height: 5.417
Fuel Injectors Included: No

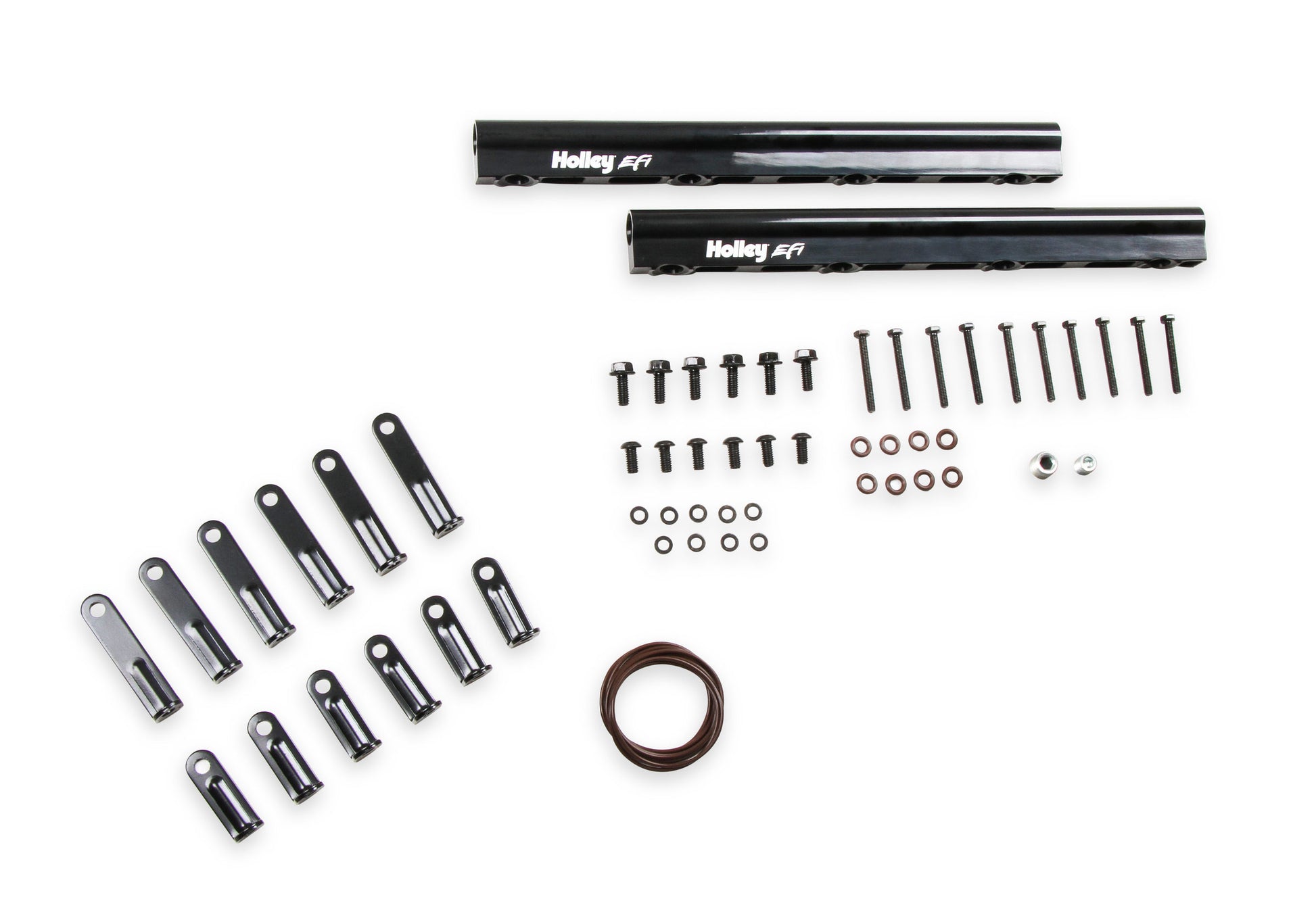

Fuel Rail(s) Included: Yes
Fuel System Type: EFI
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Single Plane
Material: Aluminum
Nitrous Bung(s) Included: No
Plenum Finish: Black
Product Type: Intake Manifold
Rear Height: 5.417 inch
Rear Maximum Height: 5.417
Recommended Use: Forced Induction
Removable Runners: No
RPM Power Band: 2500-7000 RPM
Single Or Dual Plane Type: Single Plane
Throttle Body Included: No
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
