Holley EFI - 12-895
Holley EFI Fuel Regulator 8AN
EFI Fuel Pressure Regulator; 15-90 PSI Range; -8 AN Port Size; 1/8 in. NPT Boost Reference Port;

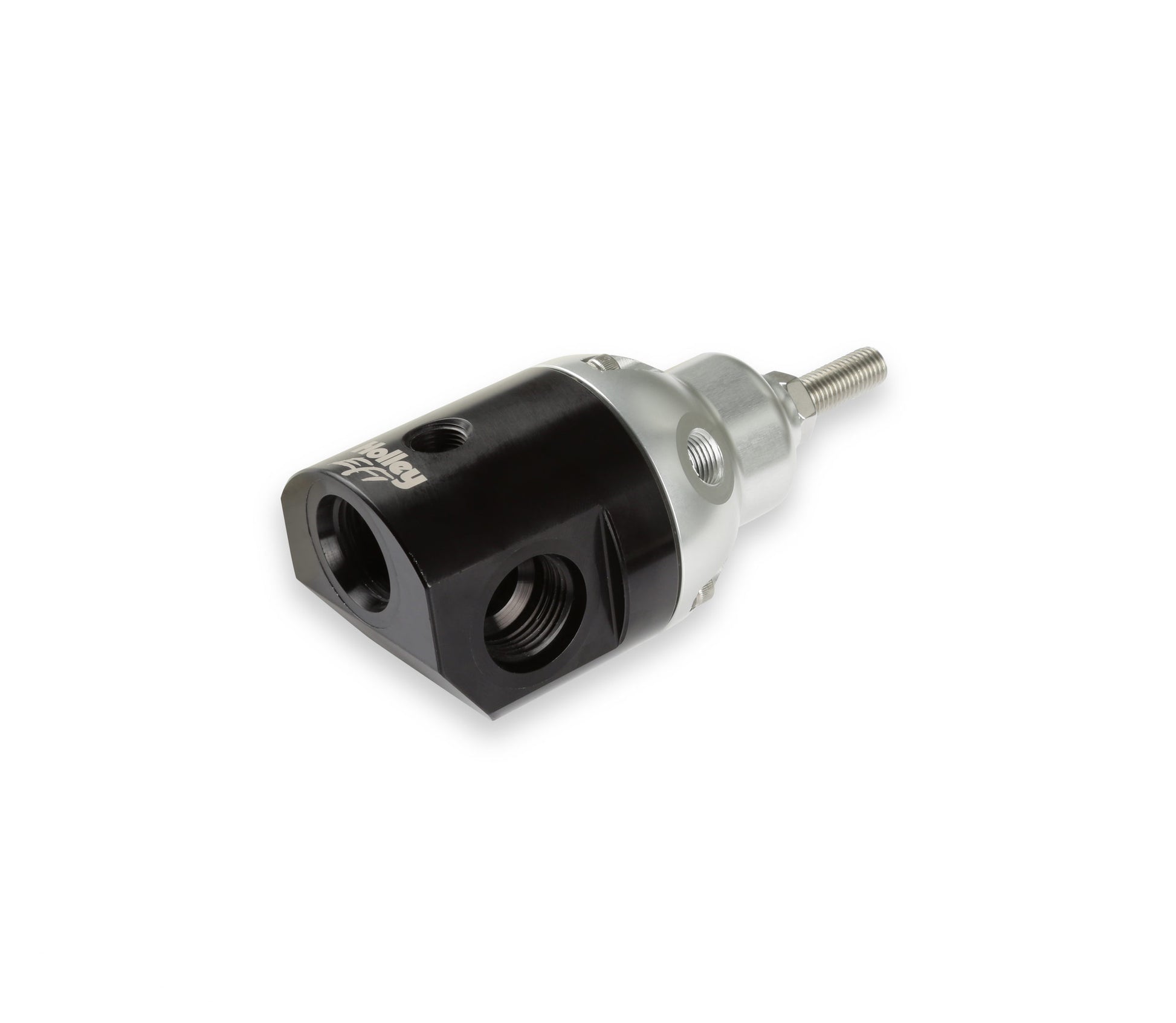

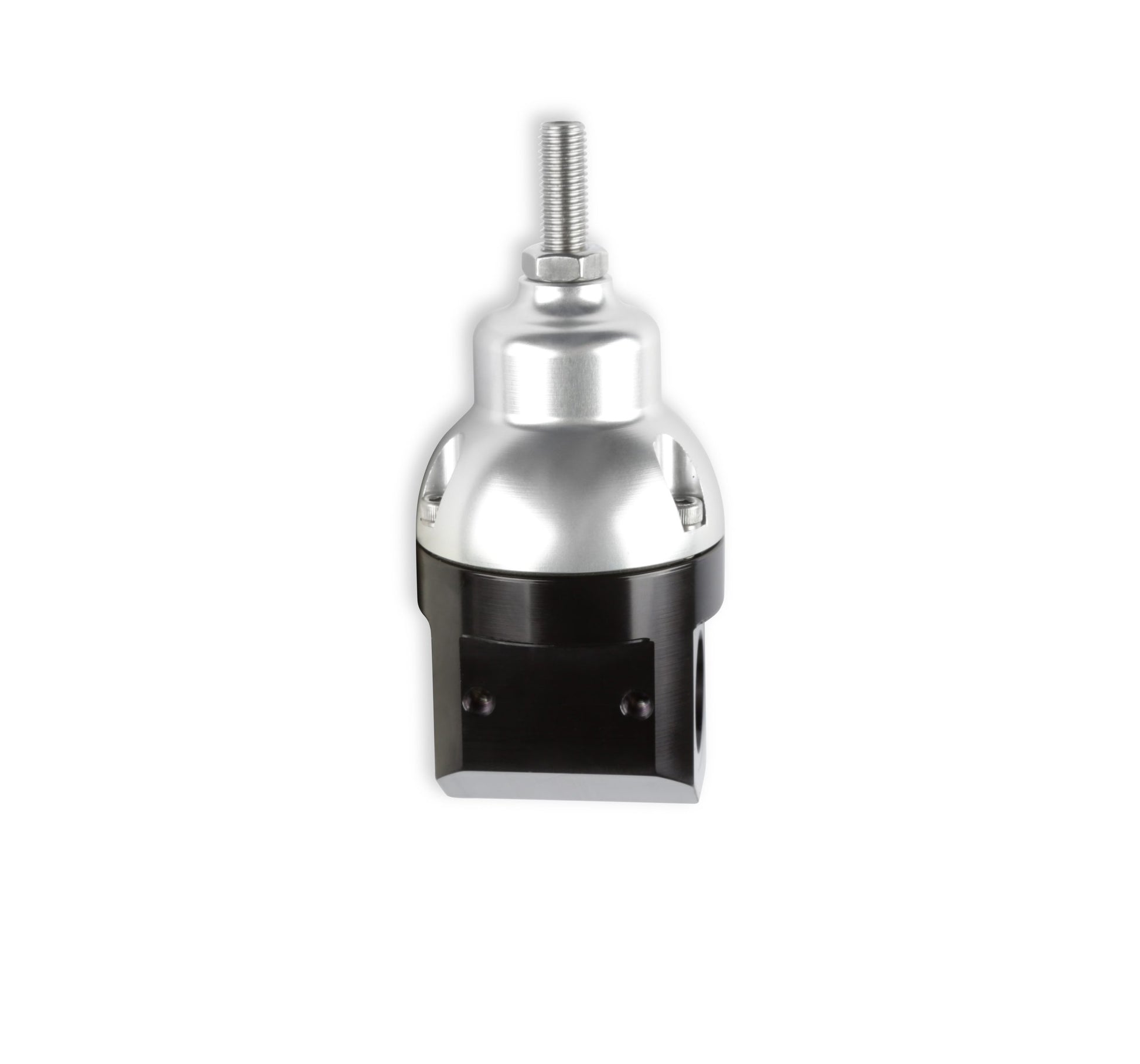

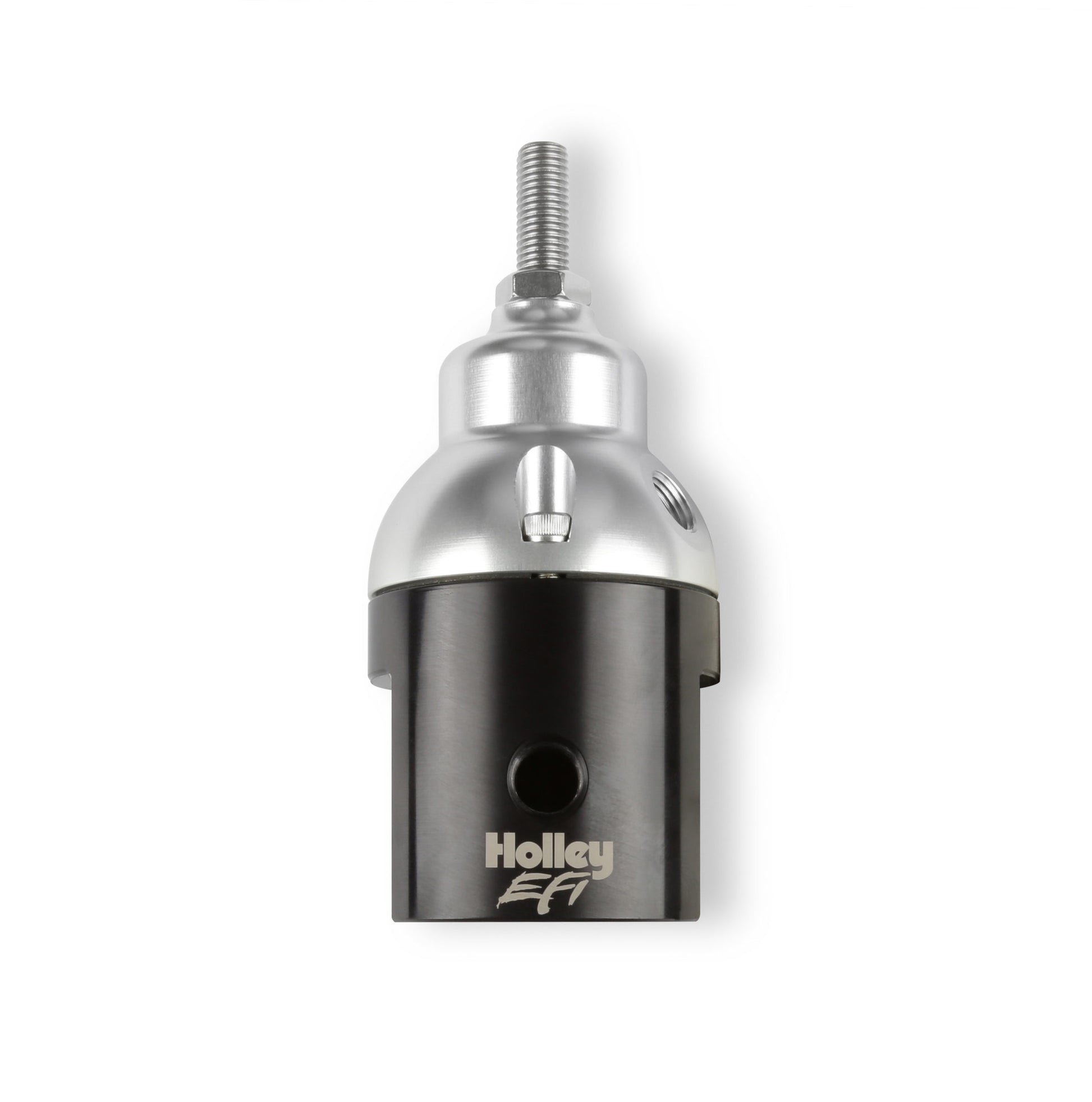

Holley EFI universal bypass fuel pressure regulators are for use with fuel systems in street or track applications. They feature adjustable base pressure from 15-90 psi, a gauge port, and a boost reference port as well. The regulators are ideal for vehicles/systems where superior flow and pressure control are desired. The regulators are precision machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. The Holley 12-894 has -6AN port sizes and the 12-895 has -8AN port sizes.
- Adjustable from 15-90 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks

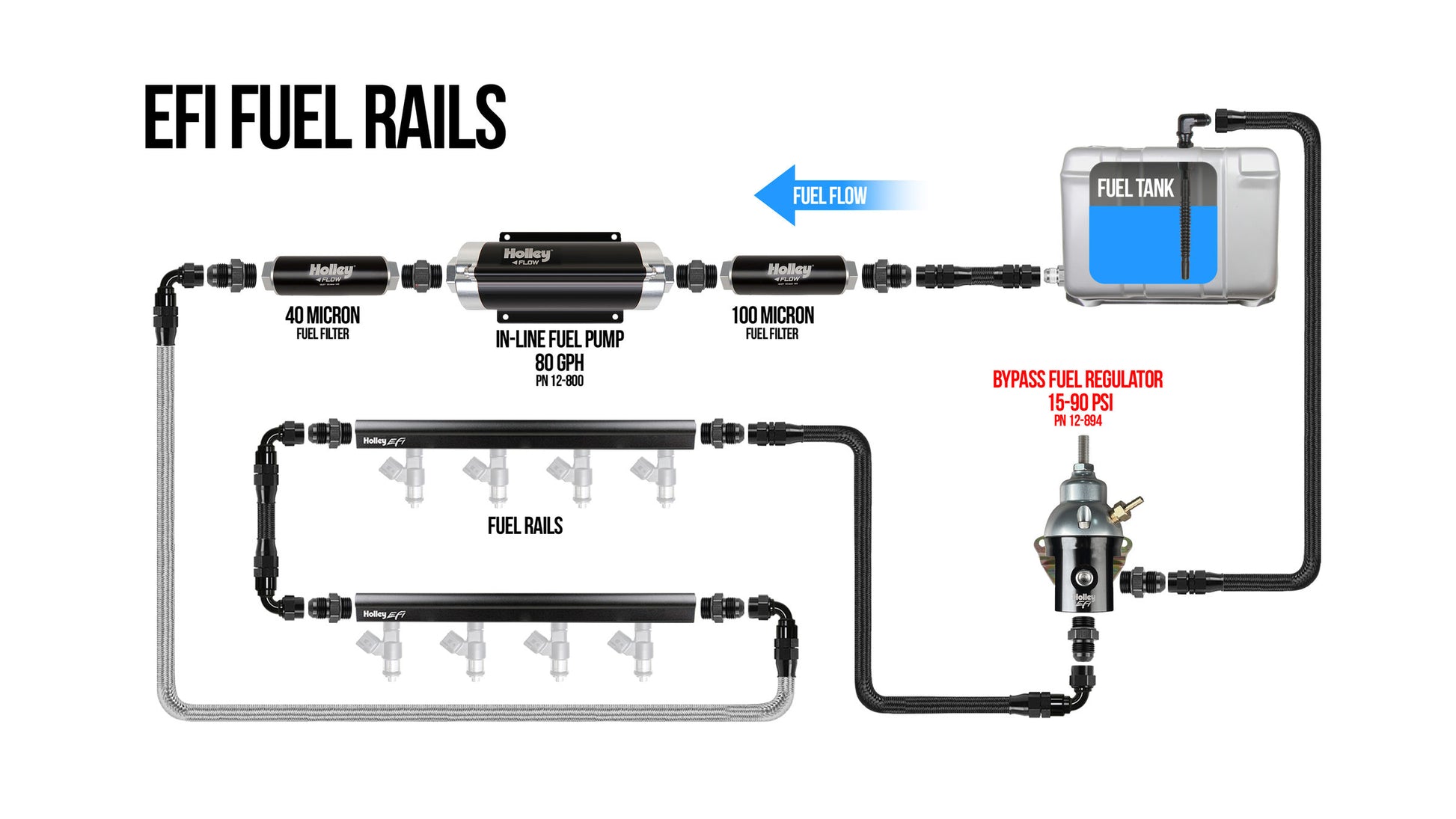

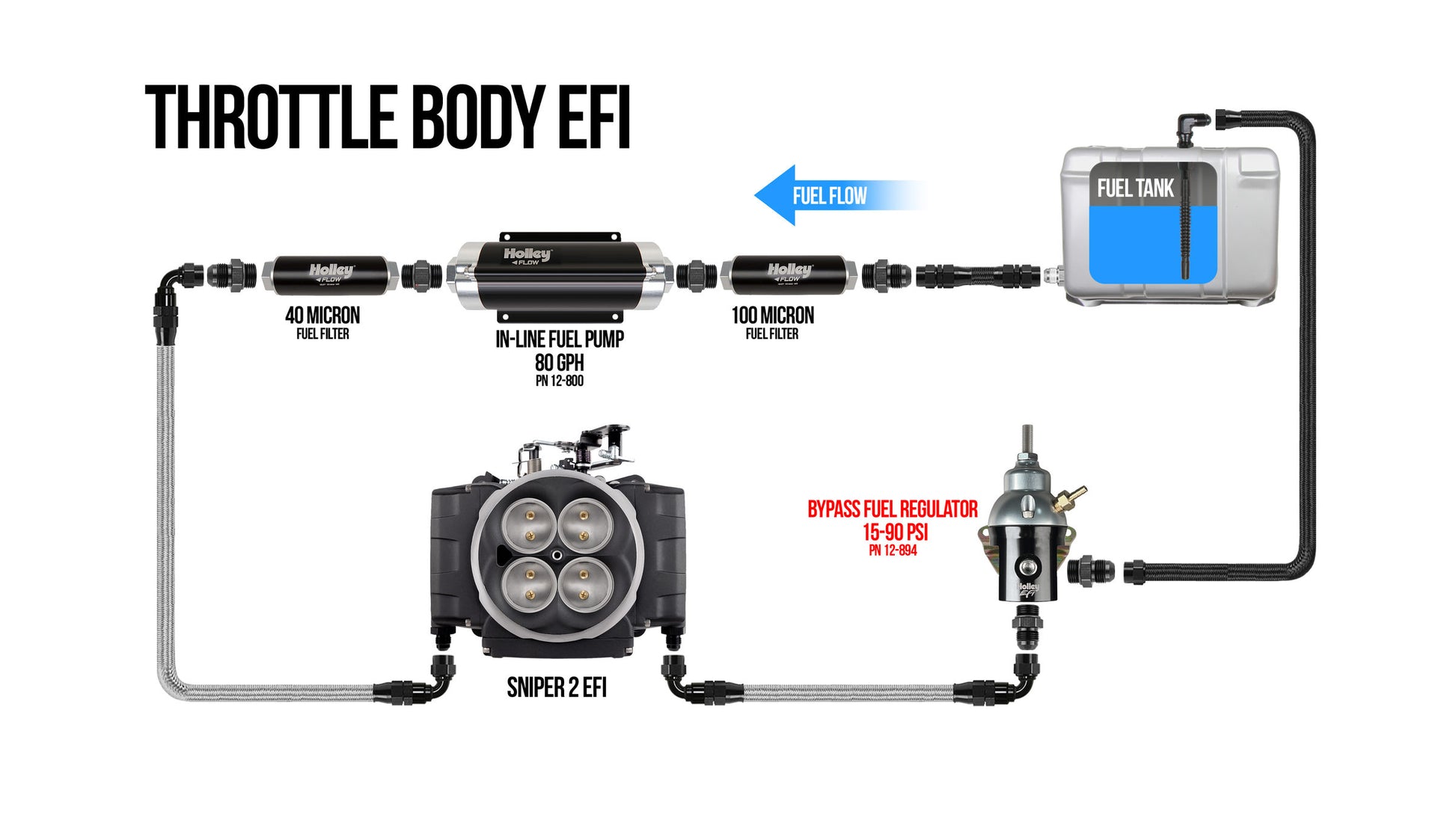

- Used in systems with a return line back to tank
- Includes fitting for manifold reference
- Use with electric pumps only
- Available in -6AN and -8AN Port sizes
- 1/8-inch NPT Boost Reference Port (Ratio 1:1)
- 1/8-inch NPT Fuel Gauge Port

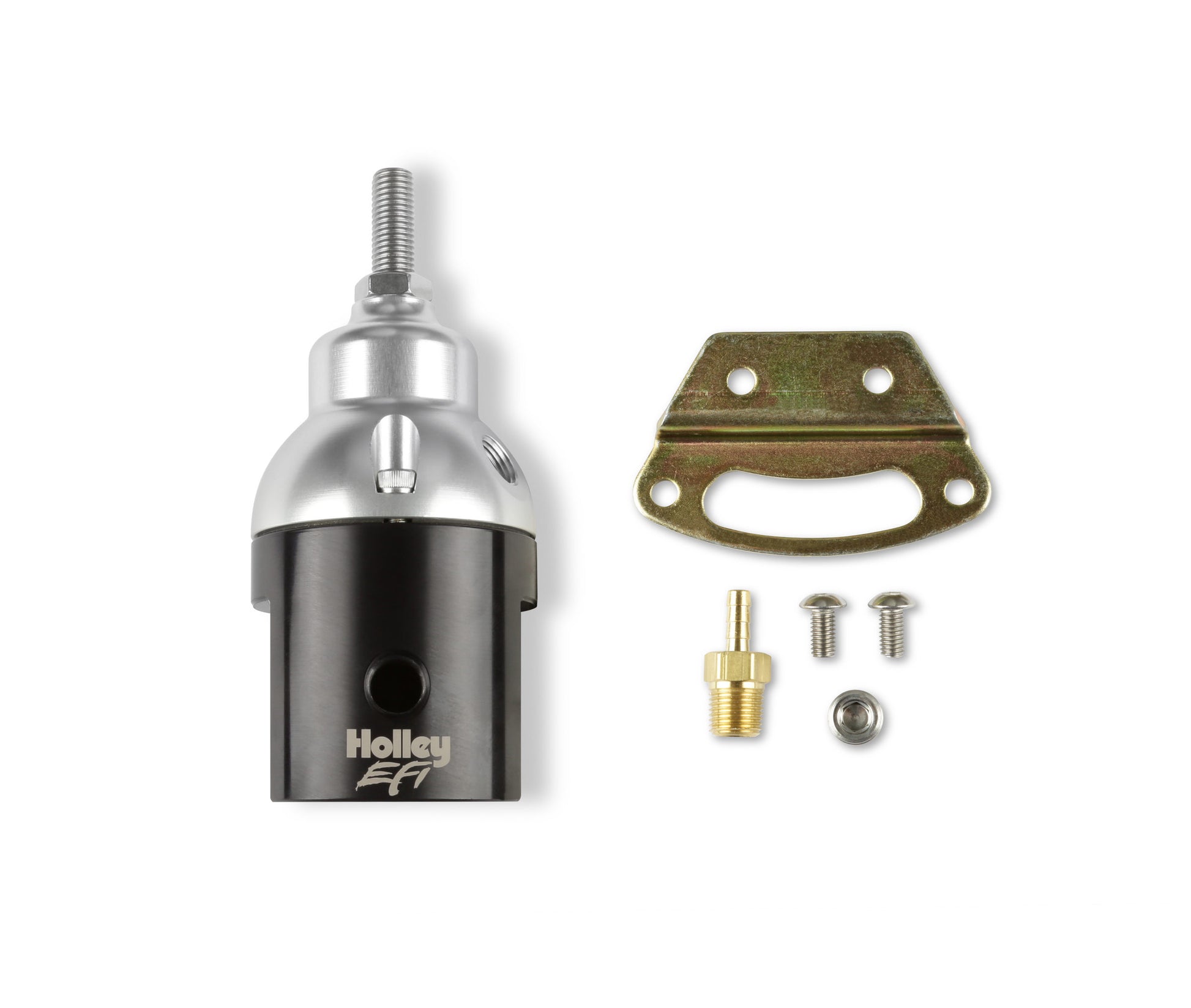

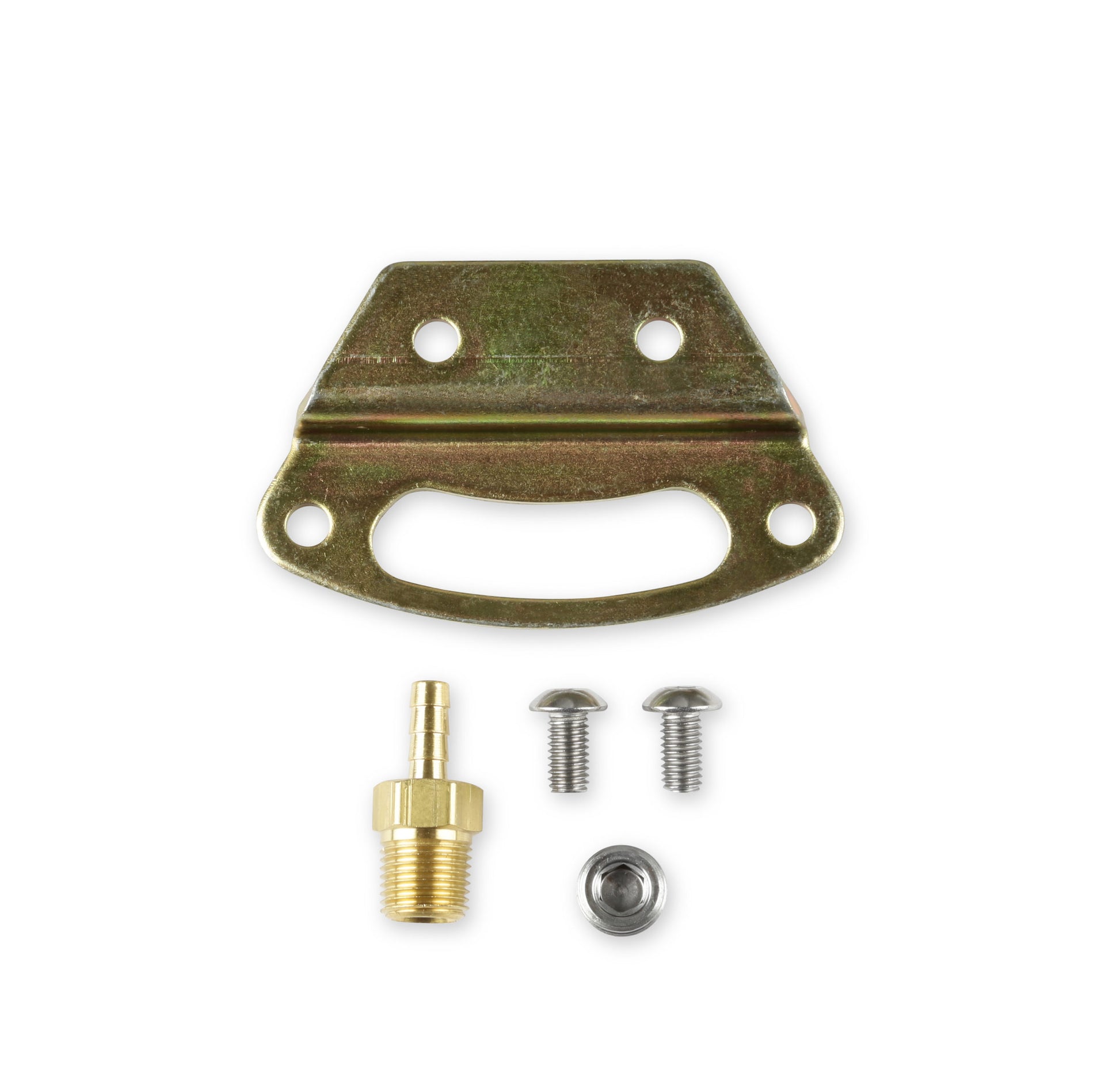

- Mounting bracket included
