Holley EFI - 12-848KIT
Holley EFI Billet Bypass Fuel Pressure Regulator Kit
Included gauge and fittings

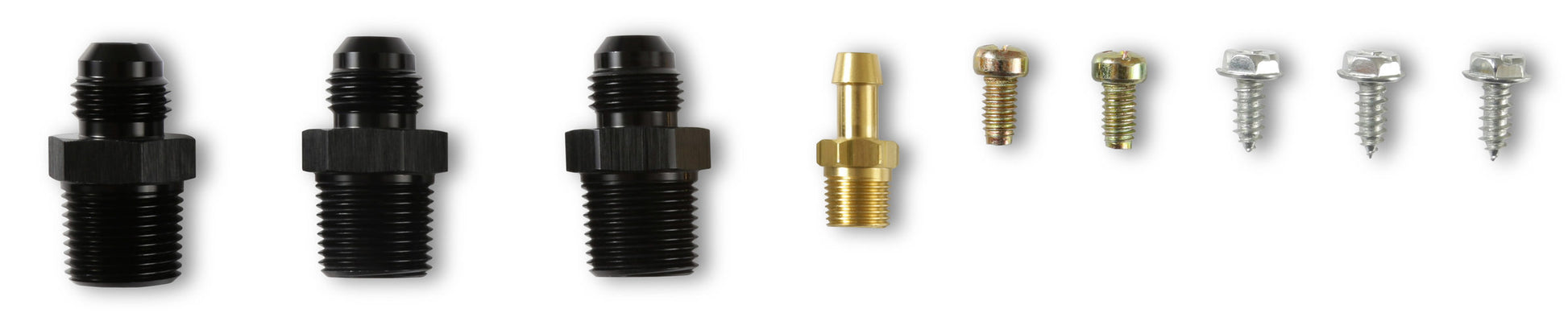

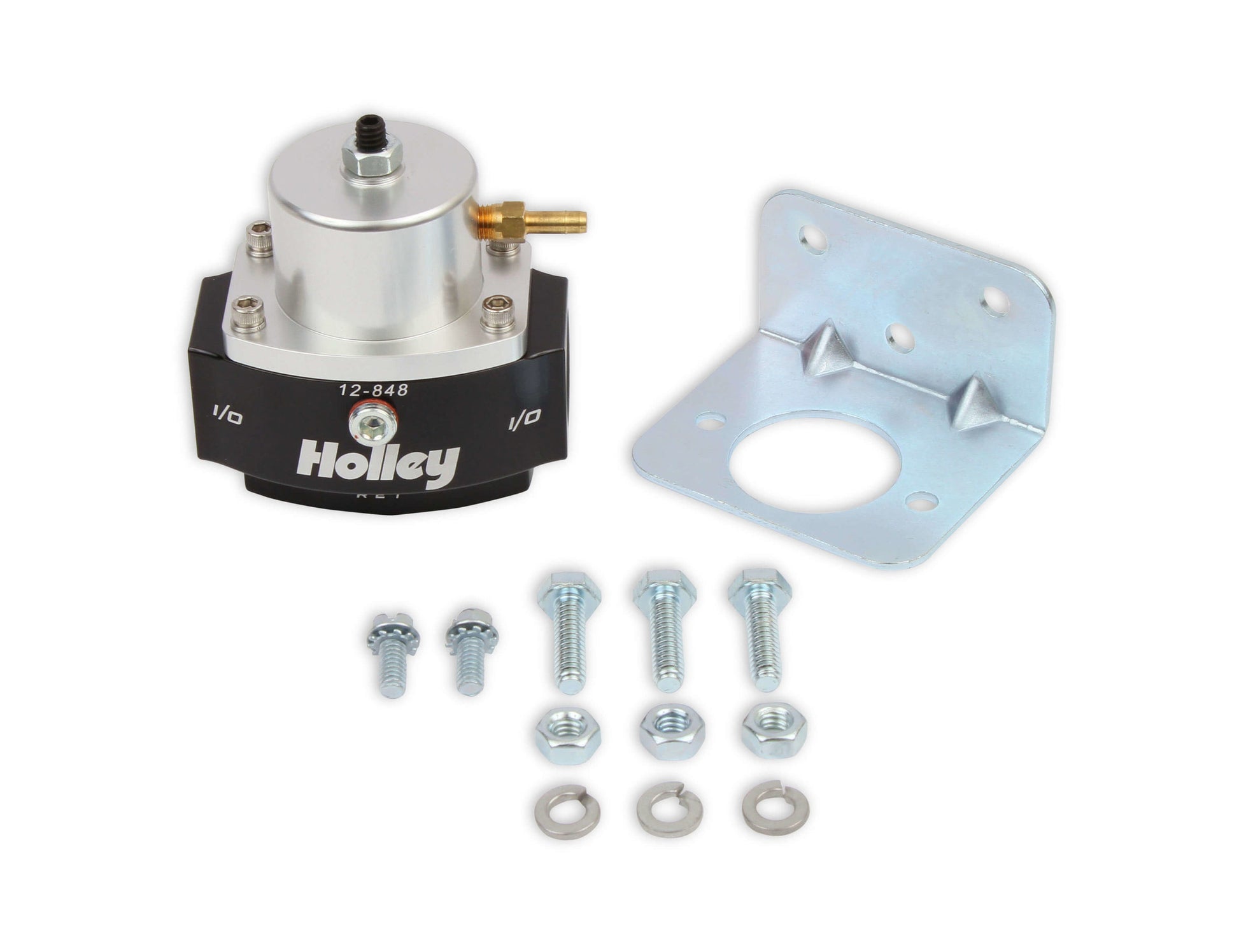

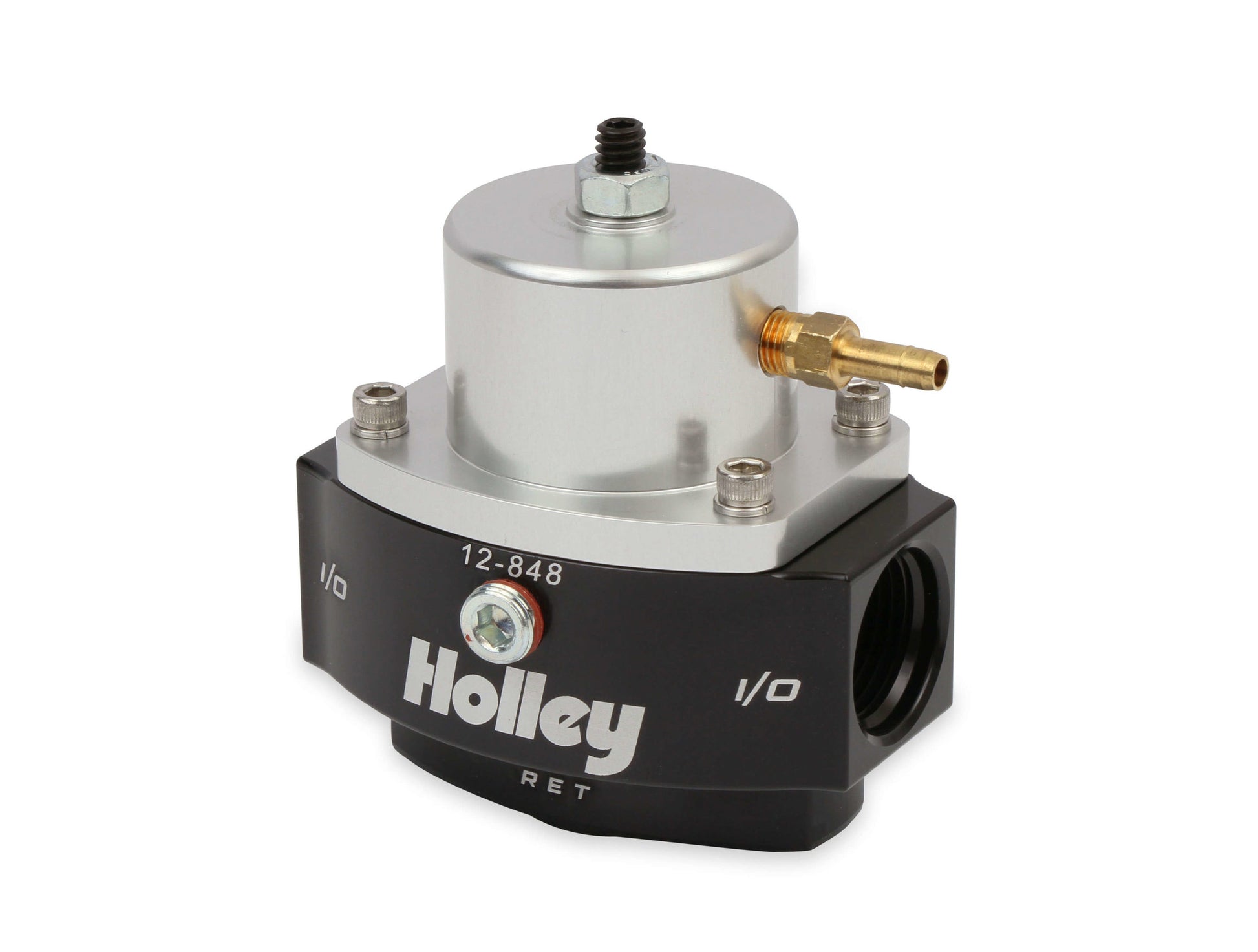

Holley EFI billet bypass fuel pressure regulator kit is part of a complete line of fuel system products from Holley. The included 12-848 regulator features a billet aluminum body and a black finish for corrosion resistance. The regulator contains 10 AN in/out ports, a 8 AN return port, a 1/8" NPT gauge port, and a 1/8" NPT vacuum port for boost reference (1:1). In addition, 3 adapter fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included for an easy installation.
- Die Cast Aluminum Construction
- Adjustable from 15-60 PSI for precise fuel pressure adjustments
- Used in return style systems with a line back to the fuel tank
- 10 AN O-ring inlet, outlet, and 8 AN O-ring return port

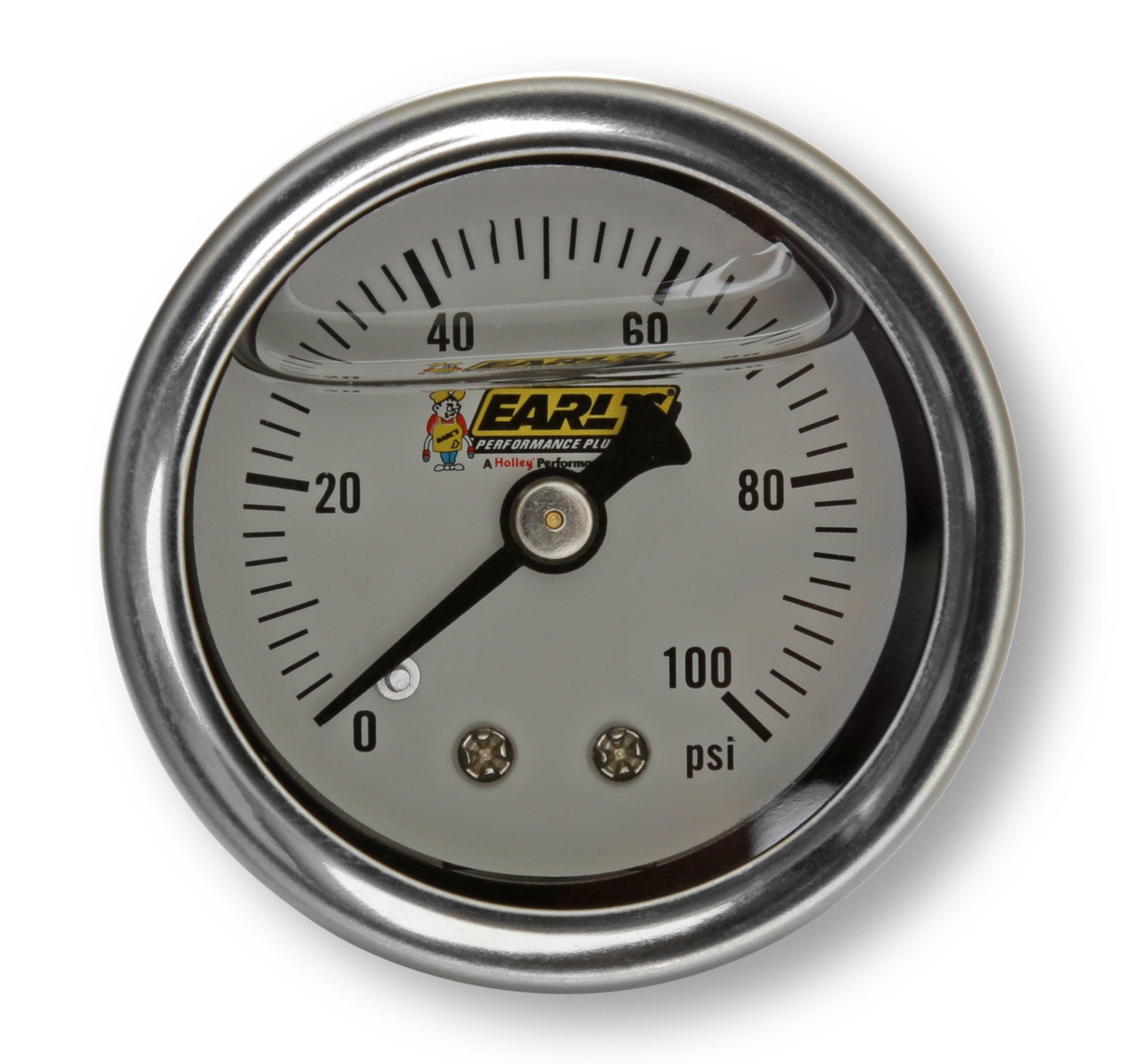

- 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL)
- 1/8" NPT boost reference (1:1) and barbed fitting
- Included mounting bracket
Adjustable: Yes
Brand: Holley EFI
Category: Air and Fuel Delivery
Color: Black
Emission Code: 5
Fuel Pressure Range: 15-60
Fuel System: EFI
Fuel Type: Gasoline
Gauge Port: Yes
Grade Type: Performance
Inlet Port Diameter: -10AN
Inlet Quantity: One
Inlet Size: 10 AN O-ring
Inlet Type: ORB
Material: Aluminium
Maximum Pressure Reading: 60
Mounting Hardware Included: Yes
Mounting Type: Bolt On
Outlet Port Diameter: -10AN
Outlet Quantity: Two
Outlet Size: 10 AN O-ring
Outlet Type: ORB
part type: Fuel Injection Pressure Regulator
Port Quantity: 5
Pressure Range: 15-60 PSI
Product Type: Fuel Pressure Regulator
Return Size: 8 AN O-Ring
Style: Bypass
Sub Category: Fuel Injection System and Related Components
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
