Holley EFI 12-354 - EFI Fuel Pump Module - 525 LPH

Holley EFI 12-354 - EFI Fuel Pump Module - 525 LPH

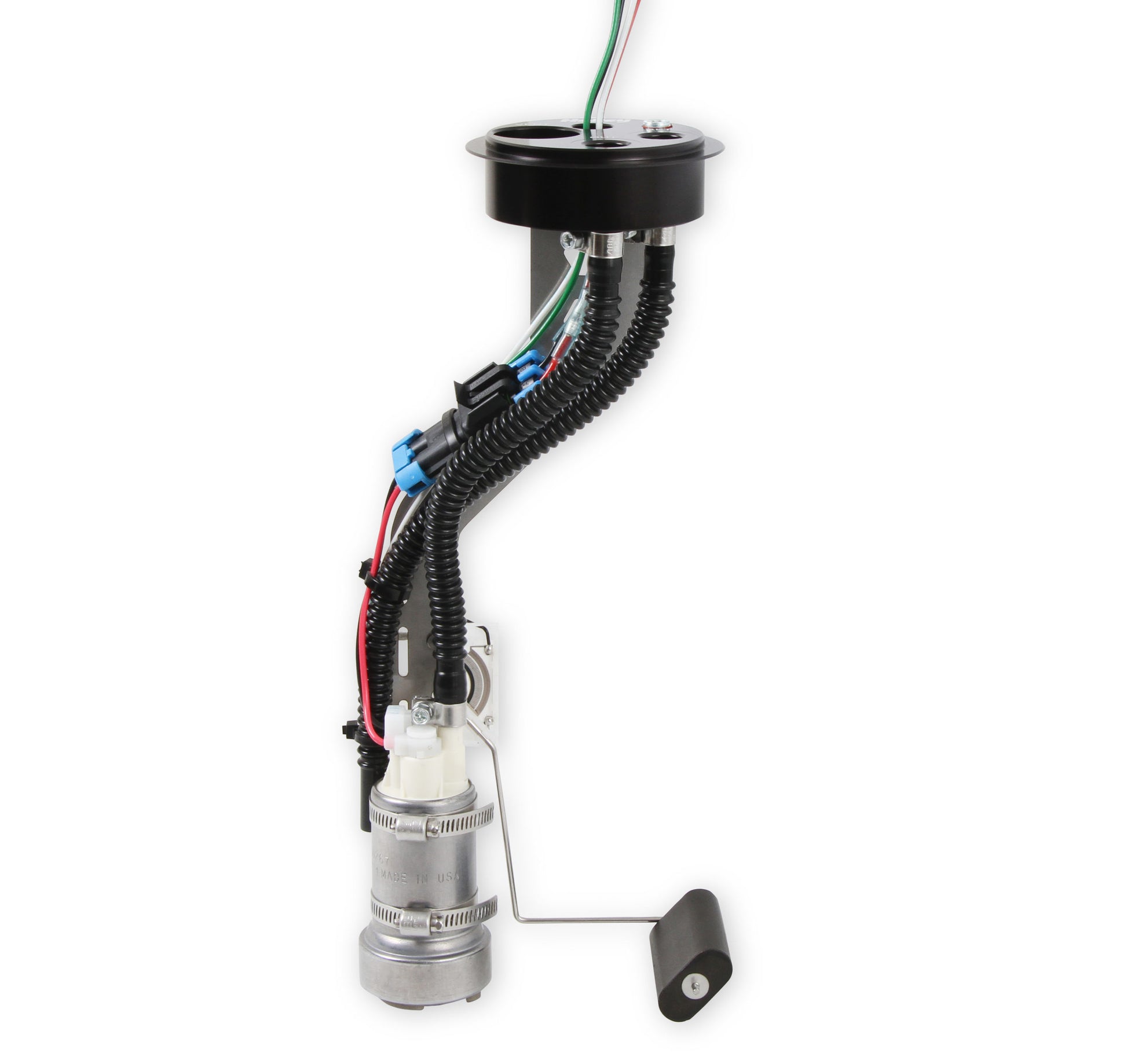

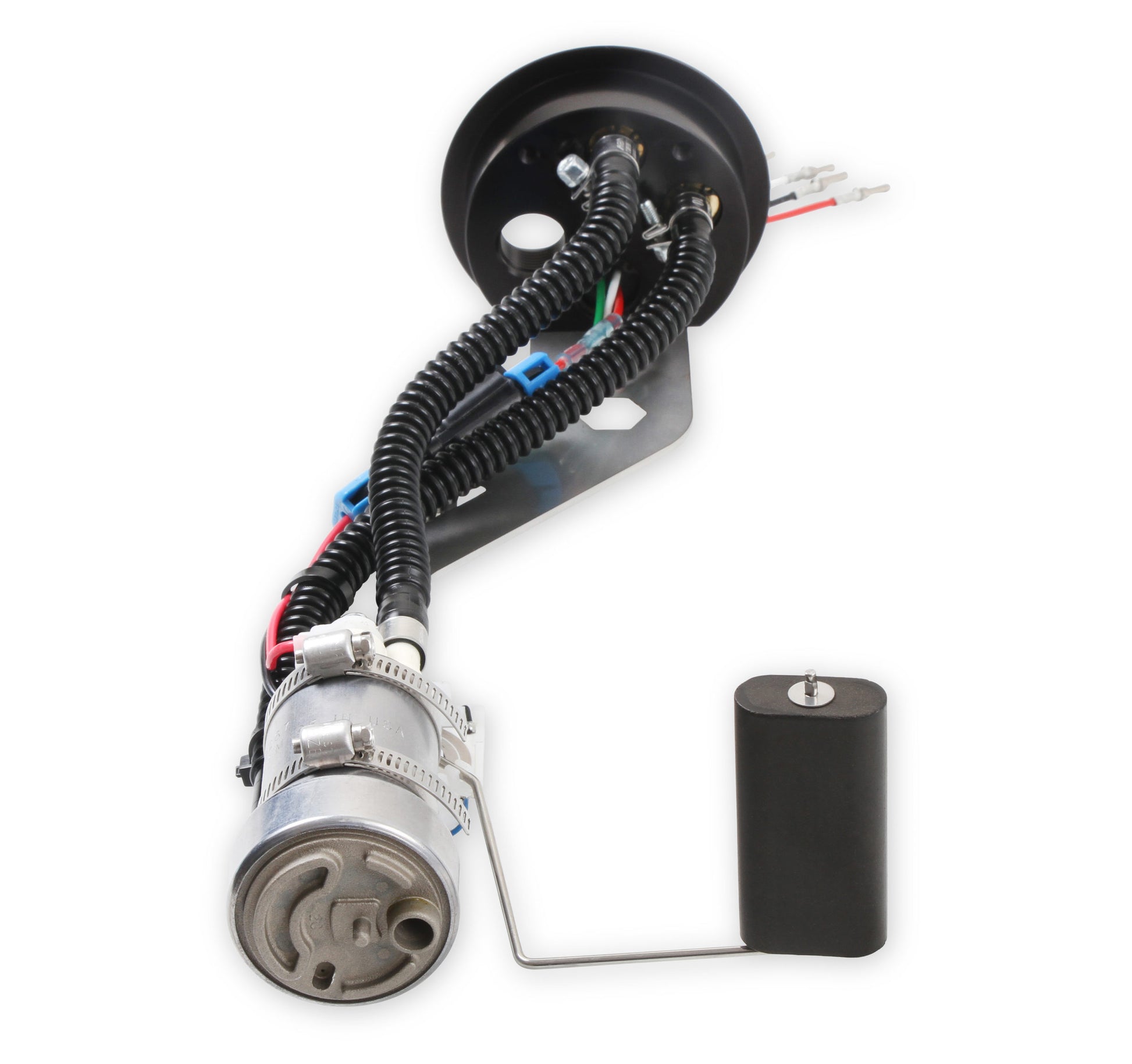

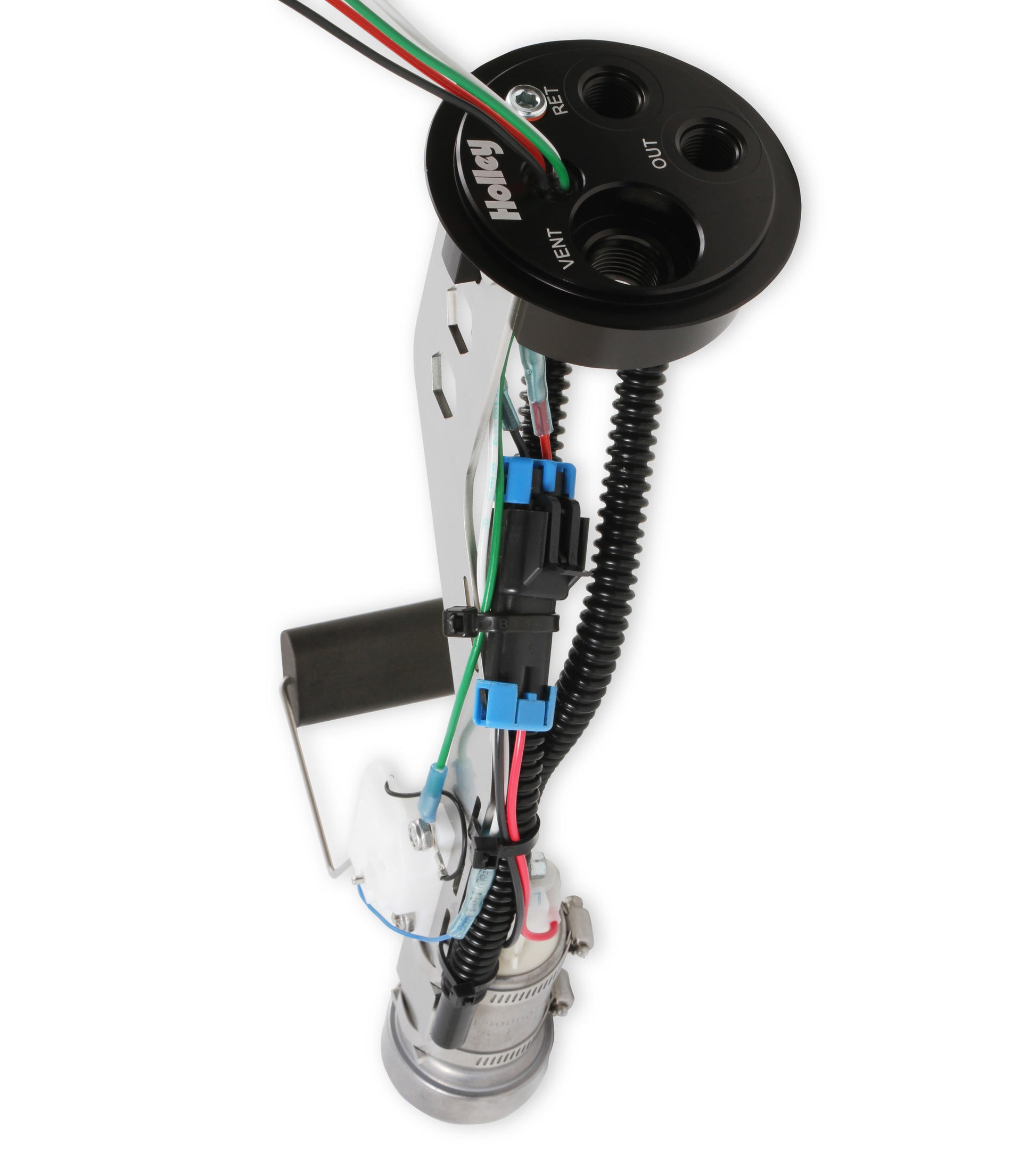

Holley EFI Fuel Pump Module - 525 LPH

Fuel Pump Module; 525 LPH; Incl. Pre-Calibrated Fuel Level Sending Unit;

This direct fit fuel pump module will drop directly into any 1988-1998 GM C/K Series trucks and 1990-1997 Ford Truck EFI fuel tanks. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw) We also have a 525 LPH module for the 1988-1998 GM C/K Trucks that supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.

• 6061-T6 billet aluminum flange, anodized black
• 525 LPH pump flow at 60psi and 13.5 volts / 16.9 amp draw
• Capable of supporting EFI engines producing up to 1200 HP
• Fuel sending unit designed to work with the factory gauges

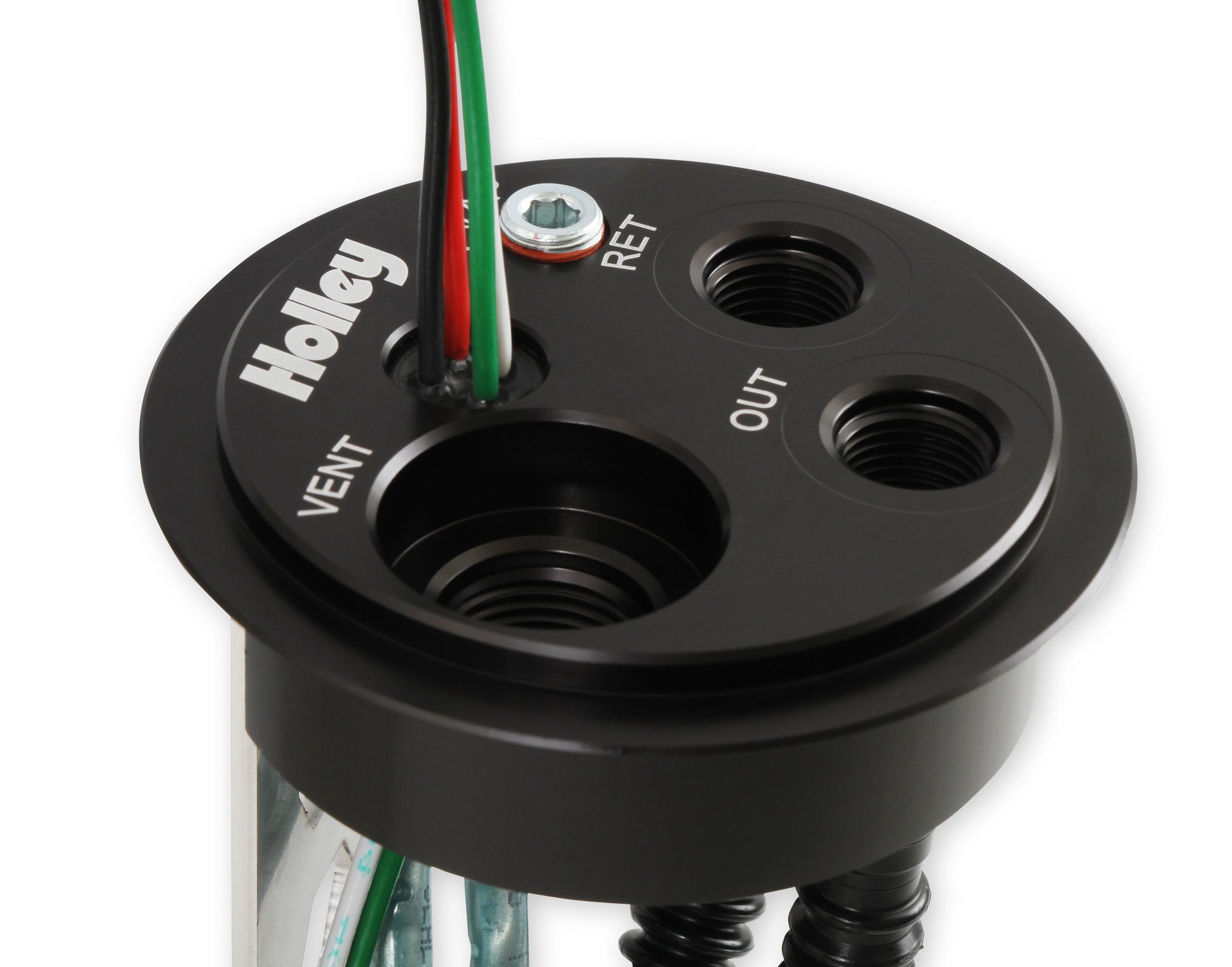

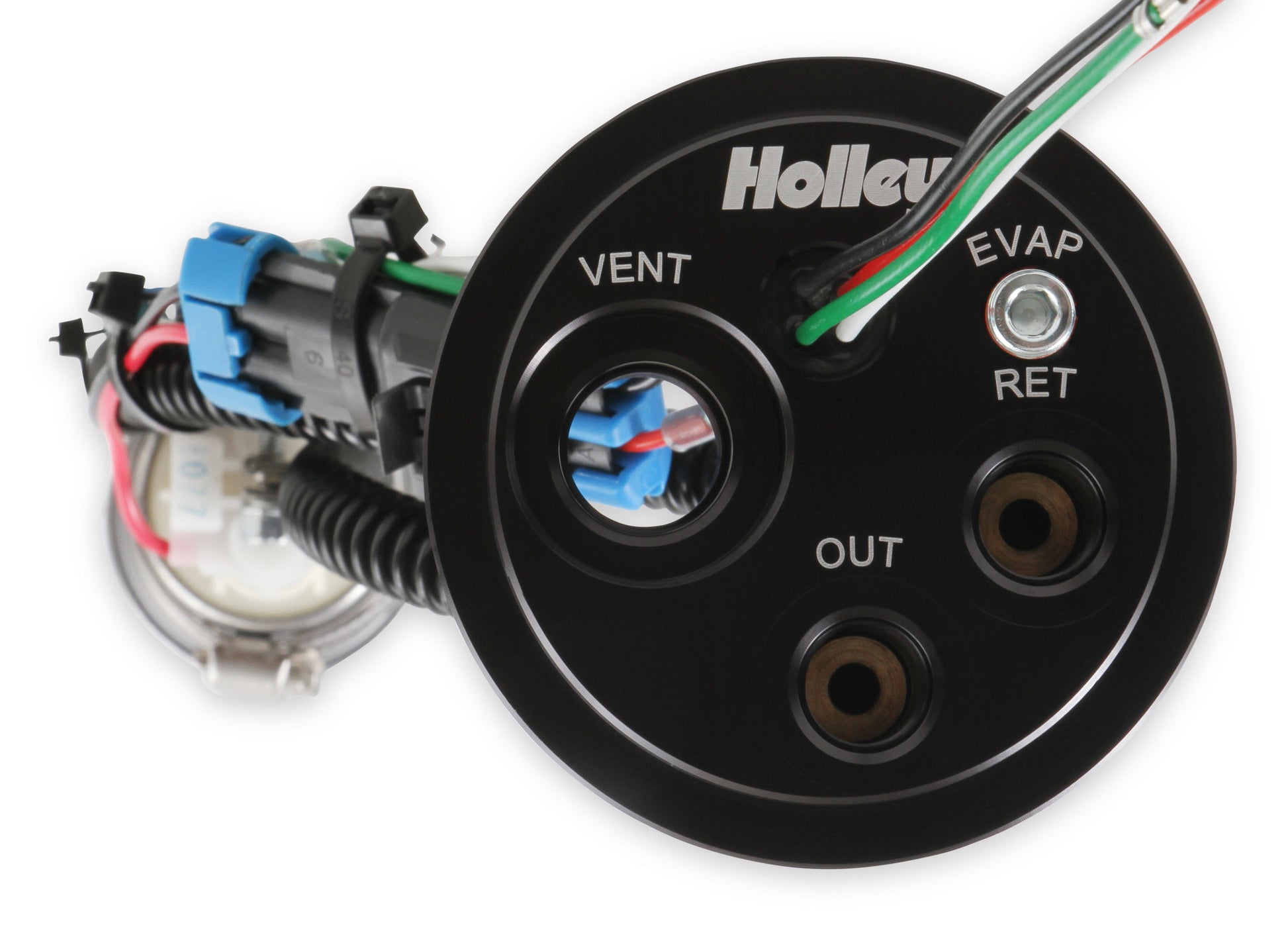

• 6 ORB outlet and return ports
• 8 ORB vent port
• 1/8" NPT evap port

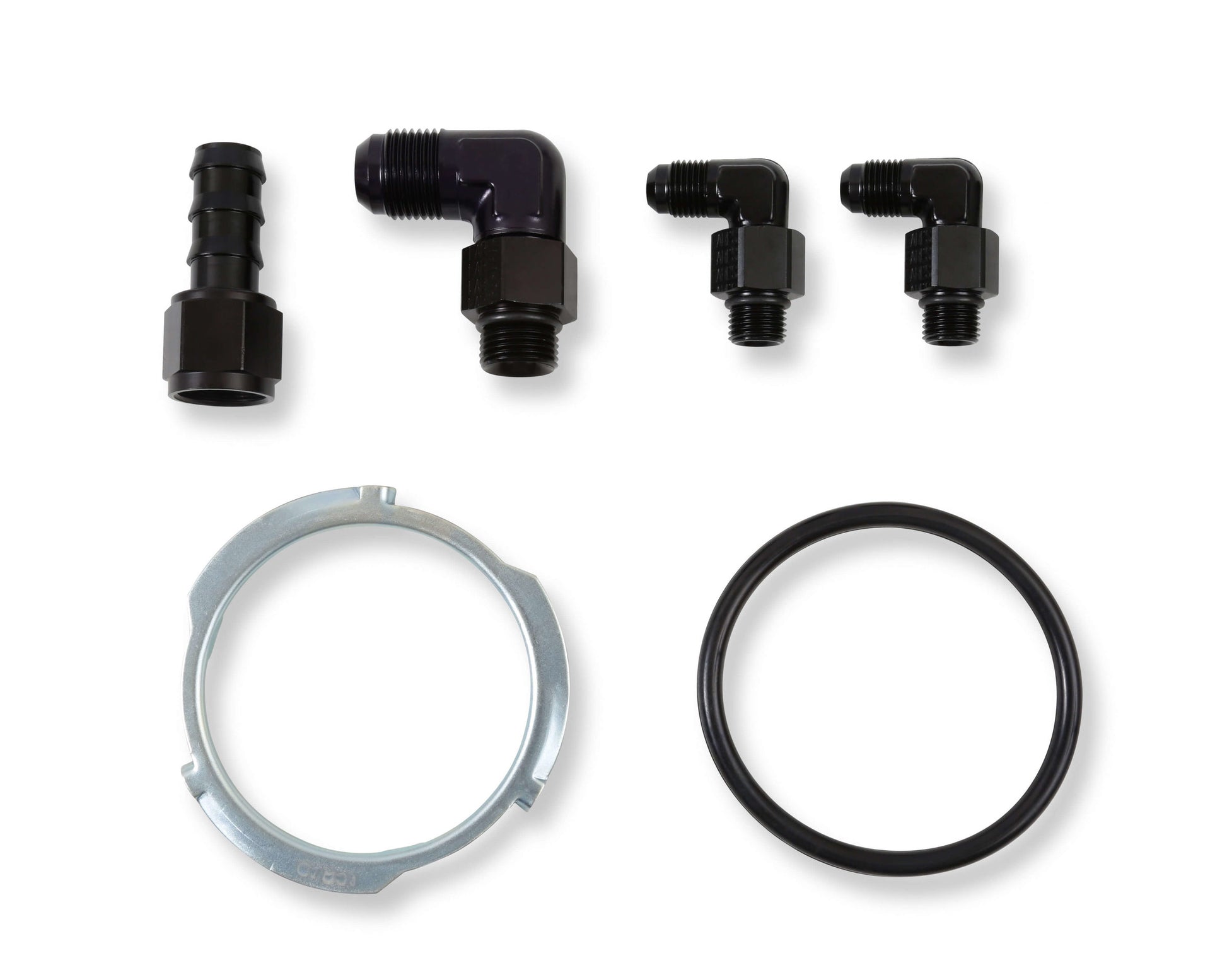

• Includes filter, o-ring, and fuel tank lock ring
