Holley EFI - 112-588

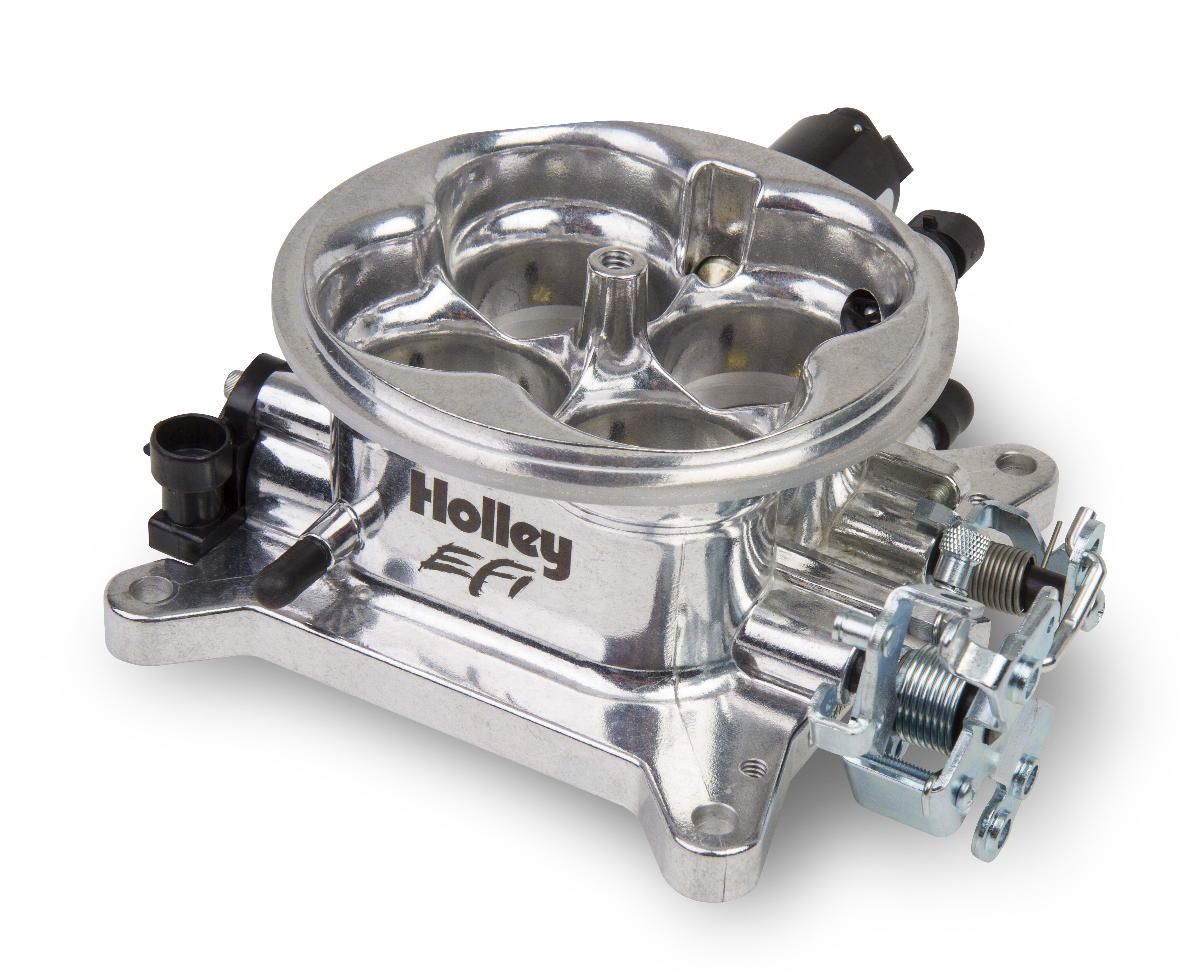

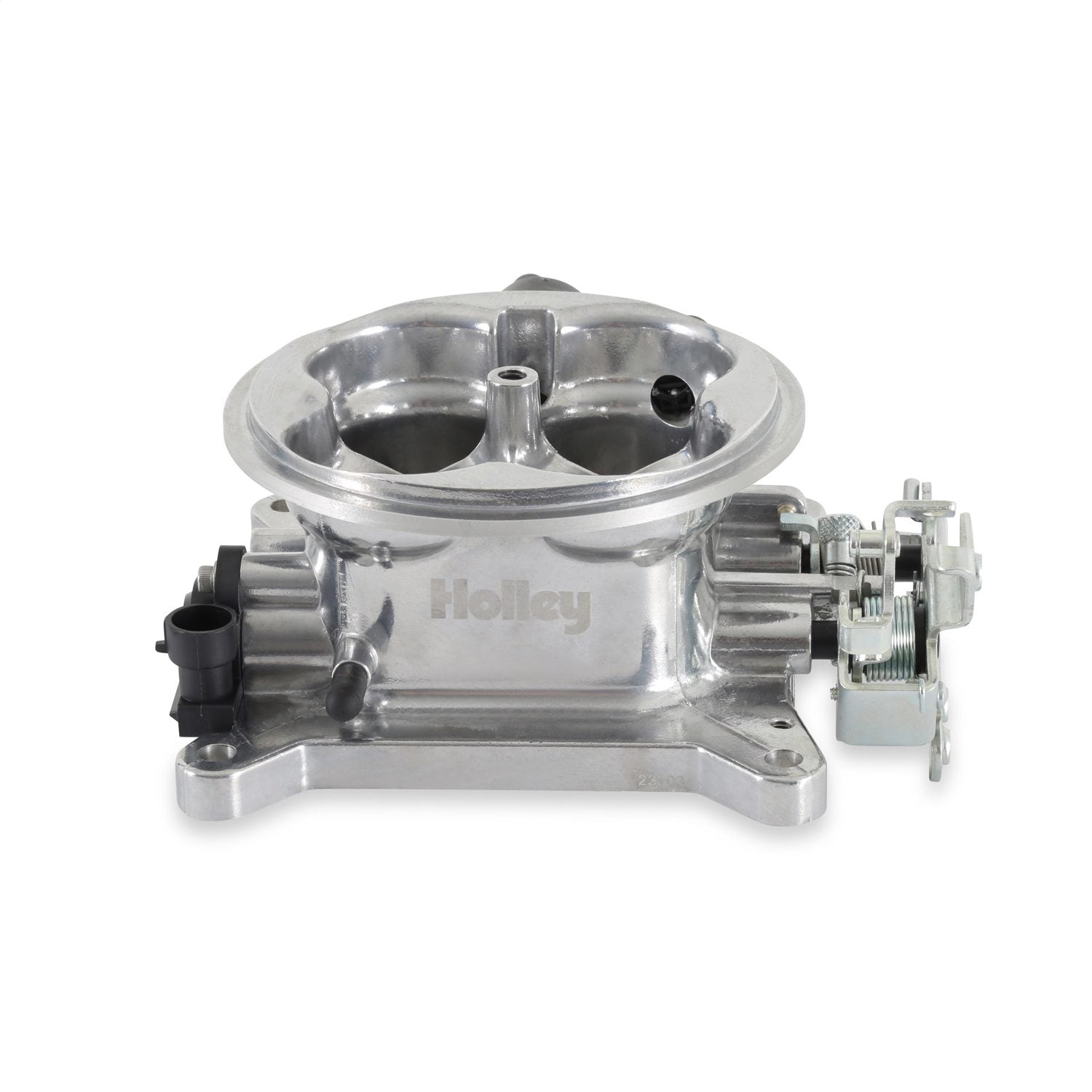

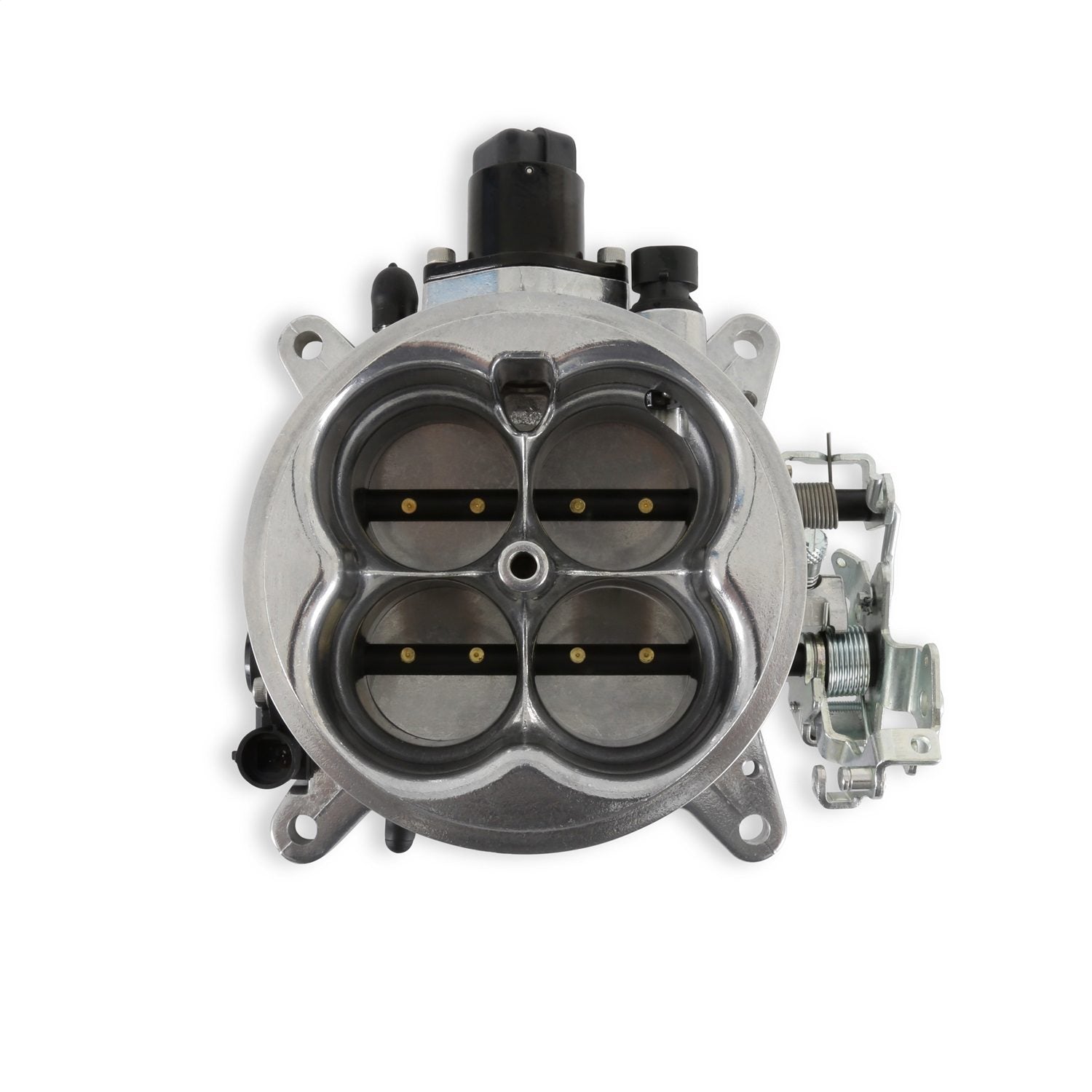

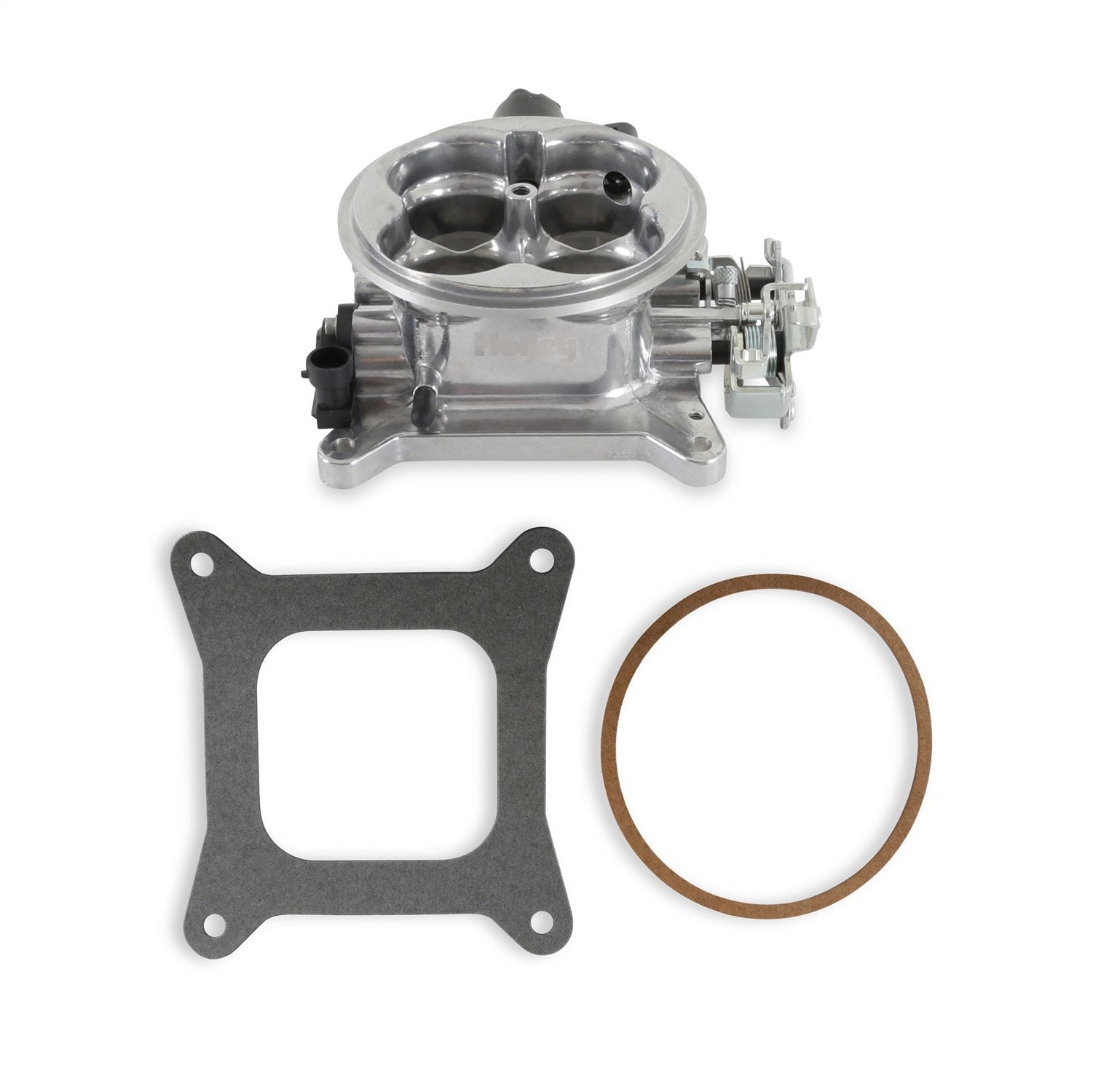

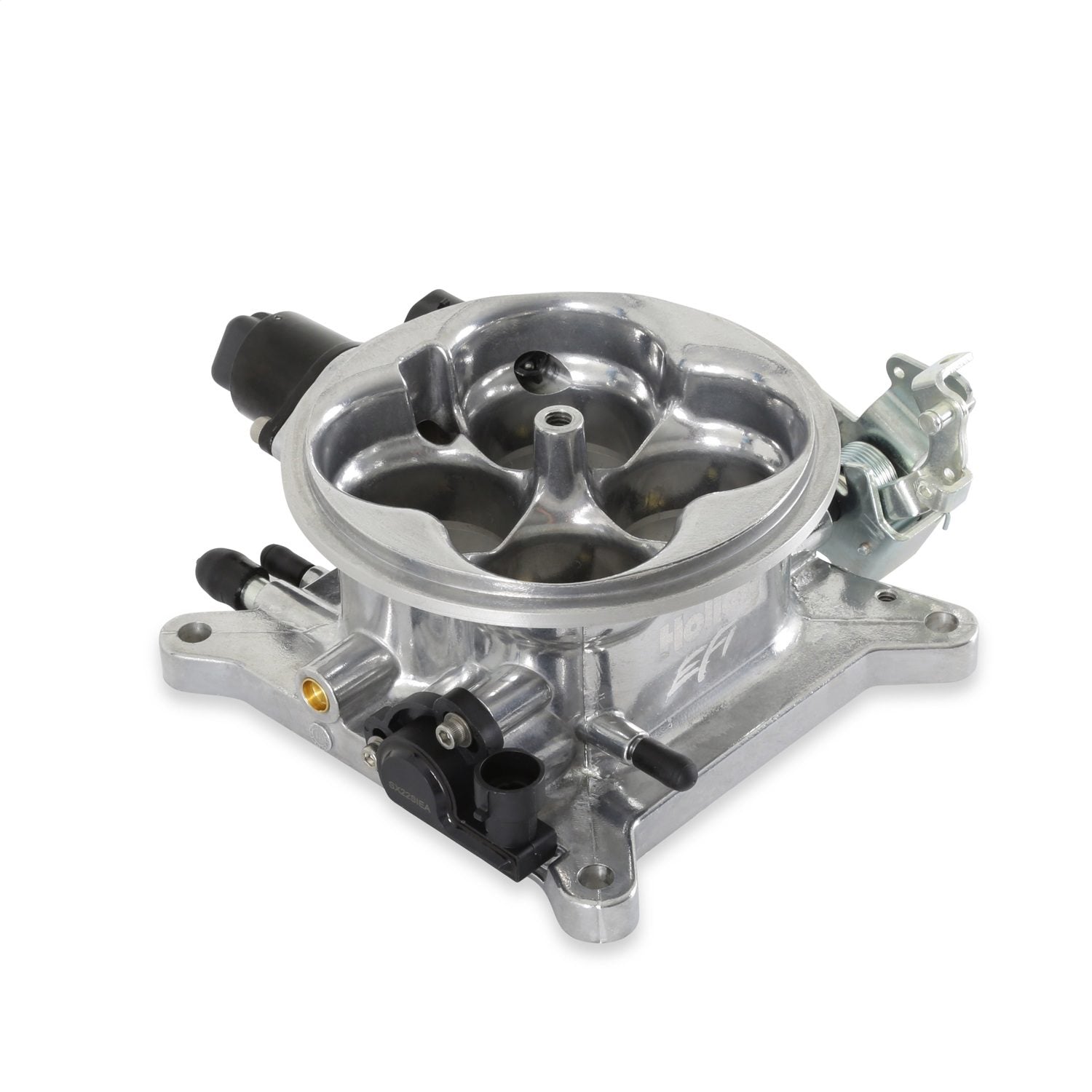

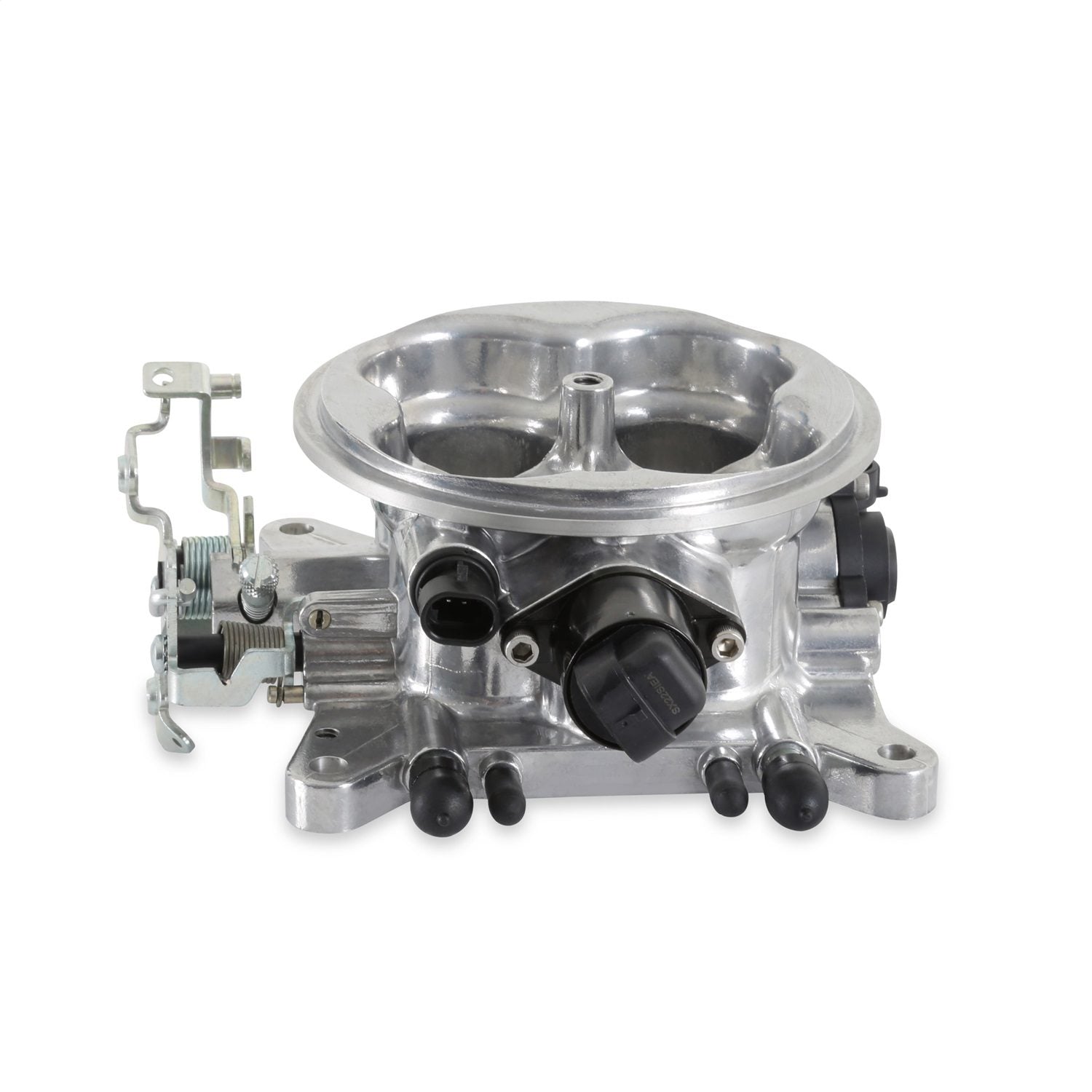

Universal 4BBL 1000CFM 4150 Flange Throttle Body - Polished Finish
Holley's new 1000 CFM throttle body shares the same air entry area design that powers every NASCAR Sprint Cup Series™ car. The throttle body features integrated throttle position, idle air control, and intake air temperature sensors. Ford and GM transmission kick down levers as well as all necessary vacuum ports.
- Standard square bore mounting pattern for installation on various intake manifolds
- Flows 1000 CFM to handle high horsepower engines
- Exclusive CFD computer modeled air entry area delivers maximum velocity and accelerated air speed
- Integrated TPS, IAC, and Air Temperature Sensor
- Hi Flow IAC passages for larger cubic inch engines for idle stability
- Ford transmission kick down lever for use with Ford automatic transmissions
- Integrated GM 700R4 transmission kick down location, no adapters needed
- (1) timed spark, (2) 3/8" and (2) 3/16" full manifold necessary vacuum ports
- 1.75" throttle plates mounted to PTFE coated throttle shafts for higher flow and a smoother feel
- High quality die cast aluminum for strength and weight reduction
- Tumble polished finish
Adjustable: Yes
Barrels: 4
Bore Diameter: 4x1.75 IN
Brand: Holley EFI
Category: Air and Fuel Delivery
CFM: 1000
Emission Code: 3
Flange Style: 4150/4160 Square Bore
Fuel Injectors Included: No
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance
Height: 2.80"
Idle Air Control Motor Included: Yes
Mounting Hardware Included: No
Product Type: Throttle Body
Throttle Body Finish: Polished
Throttle Body Material: Cast Aluminum
Throttle Body Spacer Included: No
Throttle Bore: 1.750 inch
Throttle Position Sensor Included: Yes
Warning: California Proposition 65
