Holley - 712-815-1
Fuel Pump - Marine Black - Electric - In-Line - 120 gph at 9 psi - 3/8 in NPT Female Inlet / Outlet - Silver - Gas - Each
Marine Electric Fuel Pump; Free Flow GPH 140; Free Flow LPH 530; Gasoline/Methanol; Carbureted; 3/8 in. NPT Inlet/Outlet Size; Silver Body/Silver Bracket/Red Logo;
The world famous Red(R), Blue(R) and Black(R) fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70s. Their time proven rotor/vane design is known to get the job done in an affordable package. Designed with a fume tube for marine use and meets U.S. Coast Guard regulations.
- Tumble polished billet look
- Lower housing casting designed for enhanced fuel flow.
- Improved design for street/strip applications
- Distinctive “Black” logo
- Compatible with alcohol or methanol fuels
- Not designed for use on aircraft of any type.
- Flows 140 GPH (free flow)
- Flows 120 GPH at 9 psi
- Maximum pressure is 14 psi
- 3/8” NPT inlet and outlet ports
- Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol)
- Motor draws only 4 amps current
- 7 1/2 amp fuse recommended
- Provides constant fuel flow with no pulsation
- Has externally accessible pressure relief valve (max 14 psi)
- Rotor/vane pump design is more tolerant of contaminated fuels
- Weighs only 3 lbs

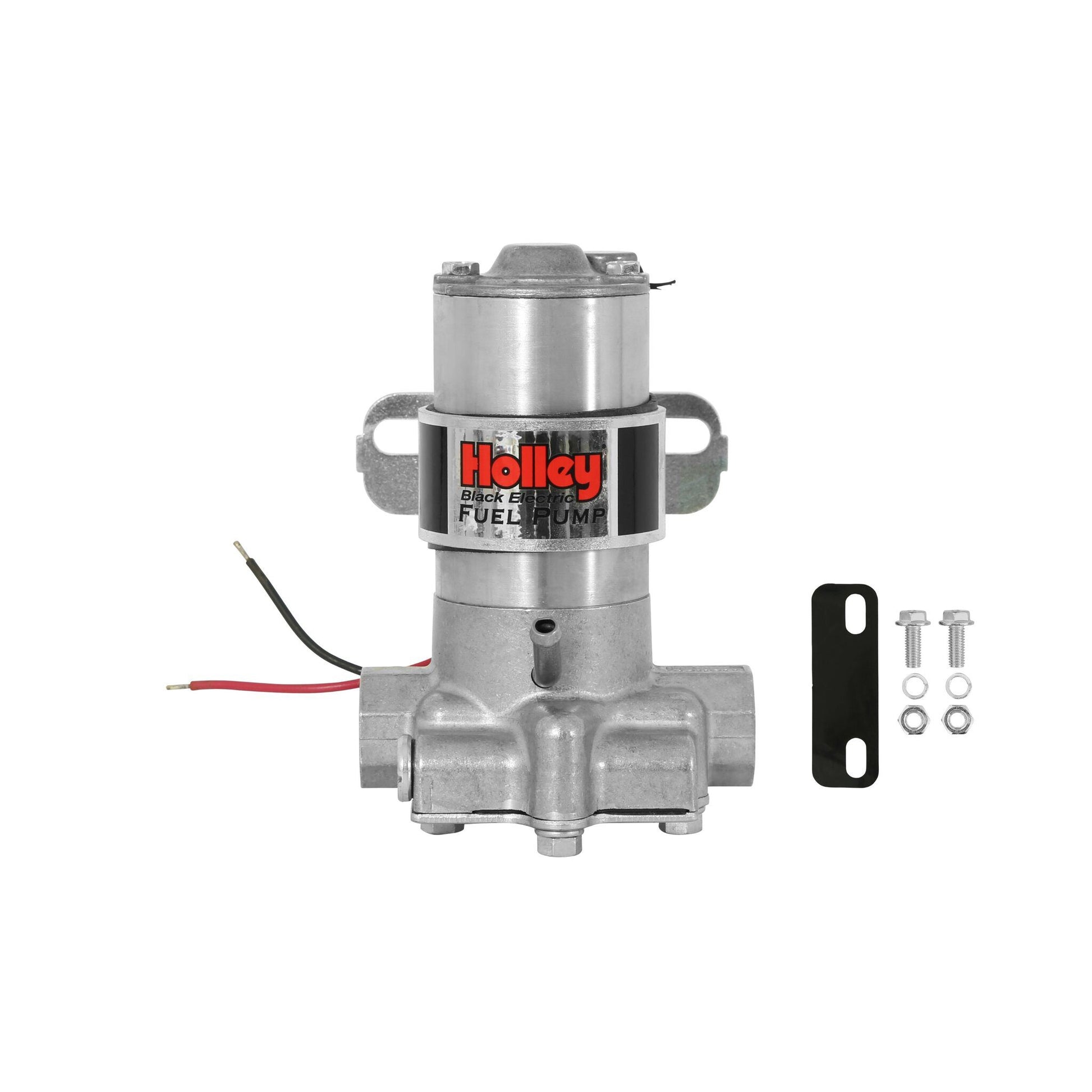

- Includes mounting bracket
- Repair kits are readily available
- Can be serviced from the pump end
- Use of safety shut-off switch, P/N 12-810, strongly recommended
- Not designed or recommended for use with fuel injection systems
- Meets U.S. Coast Guard regulations
- Includes Fuel/vapor tube
Application: Marine
Bracket Color: Silver
Brand: Holley
Category: Air and Fuel Delivery
Emission Code: 5
Free Flow GPH: 140
Free Flow LPH: 530
Fuel Delivery Type: Carburetor
Fuel Pump Type: Electric
Fuel Sending Unit Included: No
Fuel System: Carbureted
Fuel Type: Gasoline
Fuel Type: Methanol
Gasket Or Seal Included: No
Grade Type: Performance
Inlet Fitting Thread Size: 3/8
Inlet Size: 3/8 inch NPT
Inlet Type: NPT
Internal Or External: External
Material: Aluminum
Maximum Amperage Draw: 4
Maximum Flow Rating: 140
Maximum Pressure: 14
Motor Finish: Silver
Negative Ground: Yes
Outlet Fitting Thread Size: 3/8
Outlet Quantity: 1
Outlet Size: 3/8 inch NPT
Outlet Type: NPT
part type: Electric Fuel Pump
Product Type: Fuel Pump
Pump Body Color: Silver
Regulator Included: No
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Universal
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Quantity: 2
