Holley - 319-575
- Includes Flywheel, Clutch, Hydraulic Release Bearing, Hardware

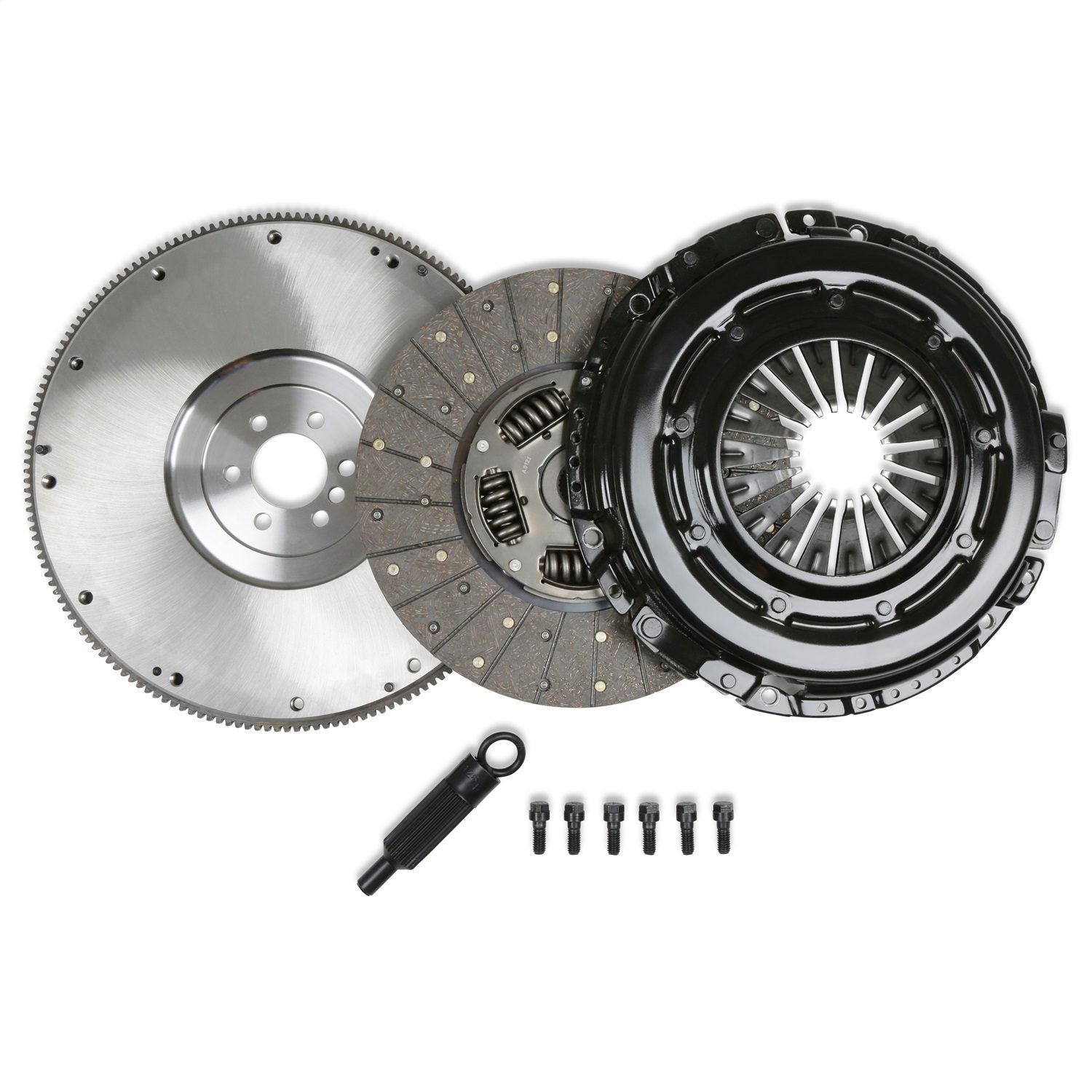

Clutch Installation Kit; For GM LS Engine Using T-56 Transmission; Incl. Pressure Plate/Disc/Flywheel/Alignment Tool/Pilot Bearing/Pressure Plate Bolts;
This Kit includes all the hardware and components needed for a complete clutch install on a 6-bolt crank LS engine using a T-56 transmission. A 12-inch organic disc with a 6 spring helix sprung hub provides the superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30% more clamping pressure and transmits that through a Billet steel flywheel.

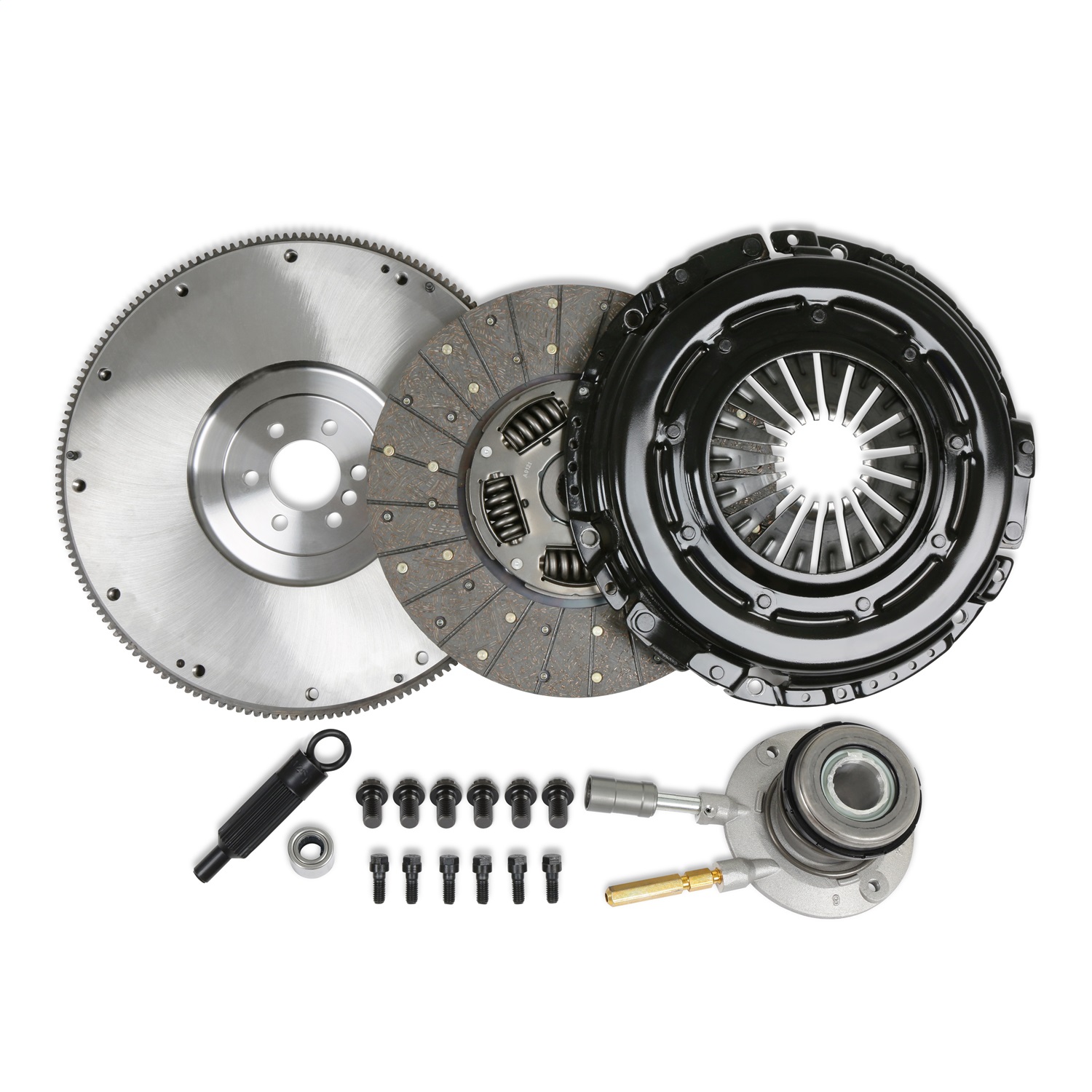

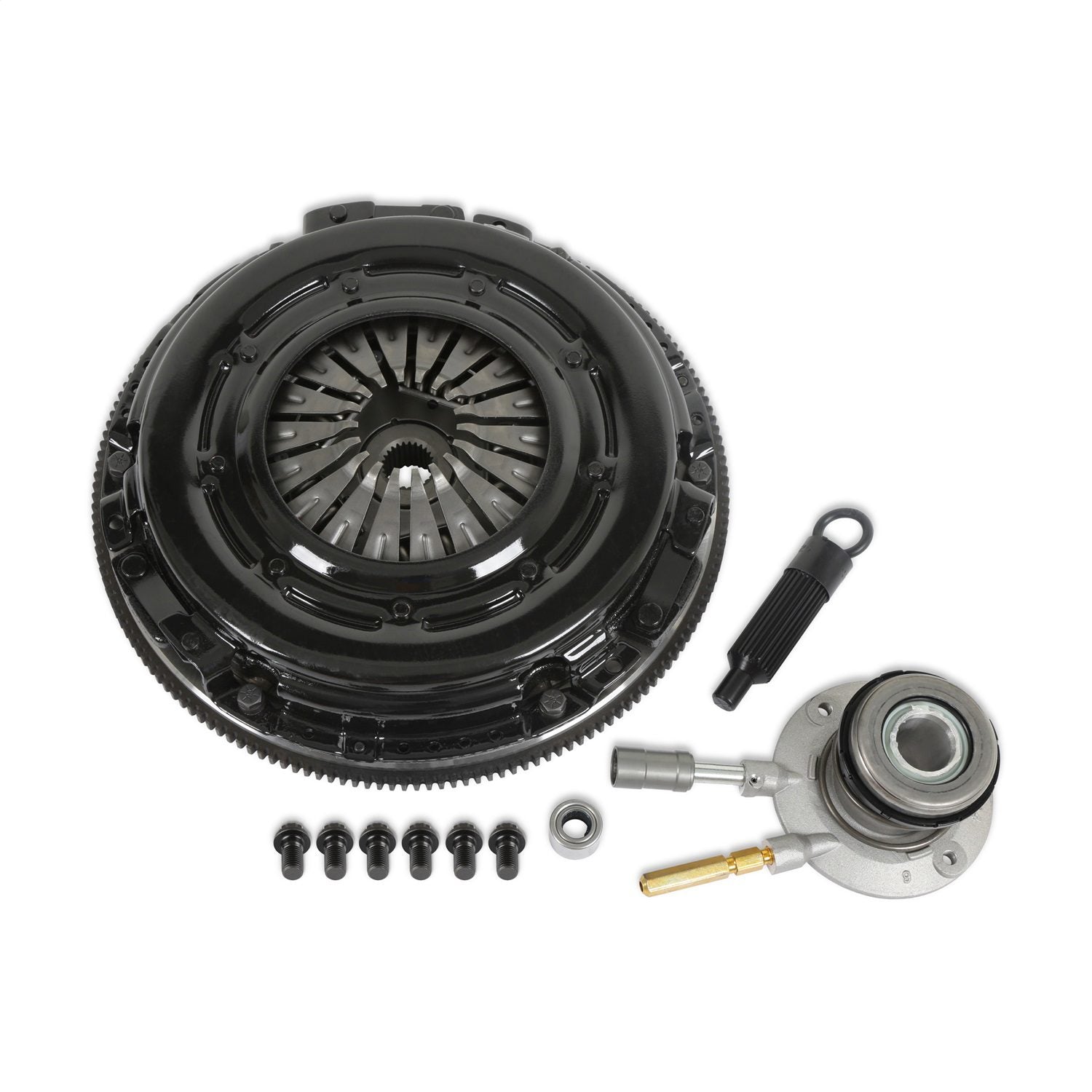

- Includes Pressure Plate, Disk, Flywheel, Alignment Tool, Pilot Bearing, Pressure Plate Bolts, Flywheel Bolts and Hydraulic release bearing (hydraulic release bearing to transmission bolts not included)

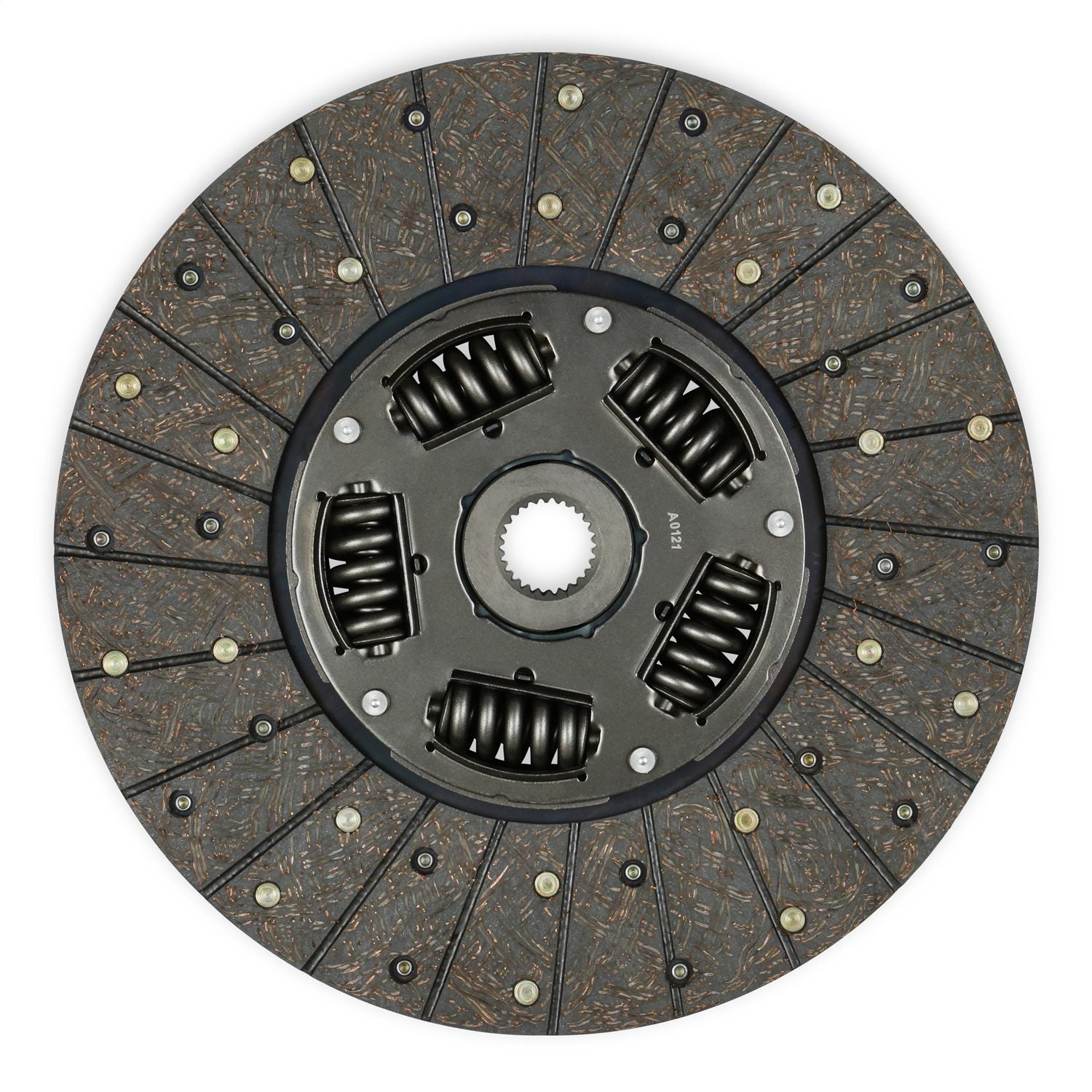

- 12-inch Organic Single Disc Clutch with 1-1/8-inch 26 Spline Hub for LS Engines with 6 Bolt Crankshaft

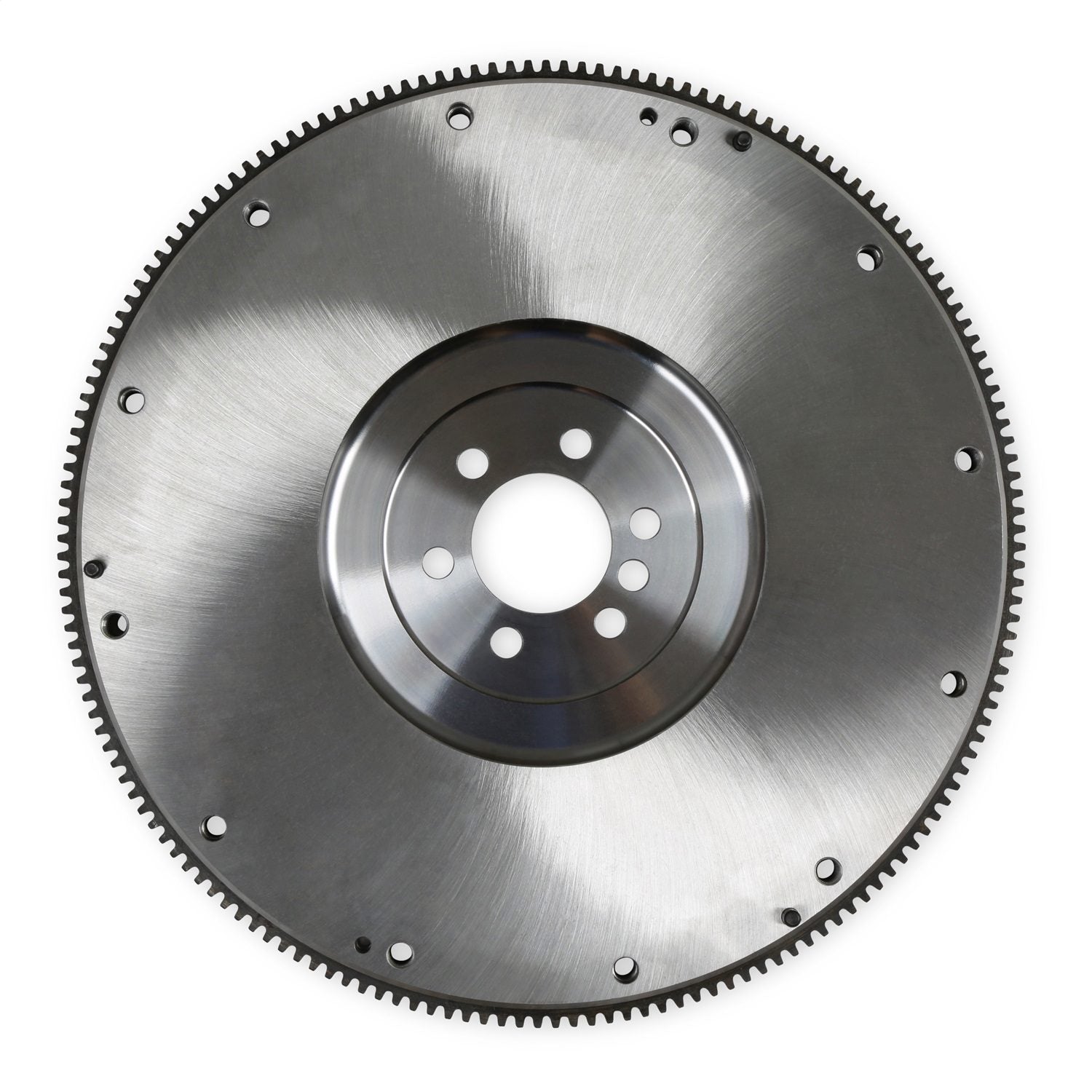

- 6-Bolt Billet Steel Flywheel provides strength and a fresh, new foundation for the clutch
- Street/Strip Clutch Kit Provides Excellent Holding Strength with a Smooth Daily Driver Pedal Feel
- Designed for Power Levels up to 550 Naturally Aspirated Horsepower
Alignment Tool Included: Yes
Brand: Holley
Cable Included: No
Category: Transmission
Disc Diameter: 12
Disc Material: Organic
Disc Style: Spring Hub
Disc Type Sprung Solid: Sprung
Emission Code: 5
Engine: GM Gen III/IV (LS)
Engine Make: GM
Flywheel Bolts Included: Yes
Flywheel Material: Billet Steel
Grade Type: Performance
Grease Included: No
Hardware: Steel
Input Shaft Diameter: 1-1/8 in.
Input Spline: 26
Input Spline Quantity: 26
Mounting Hardware Included: Yes
New Or Remanufactured Clutch: New
part type: Transmission Clutch and Flywheel Kit

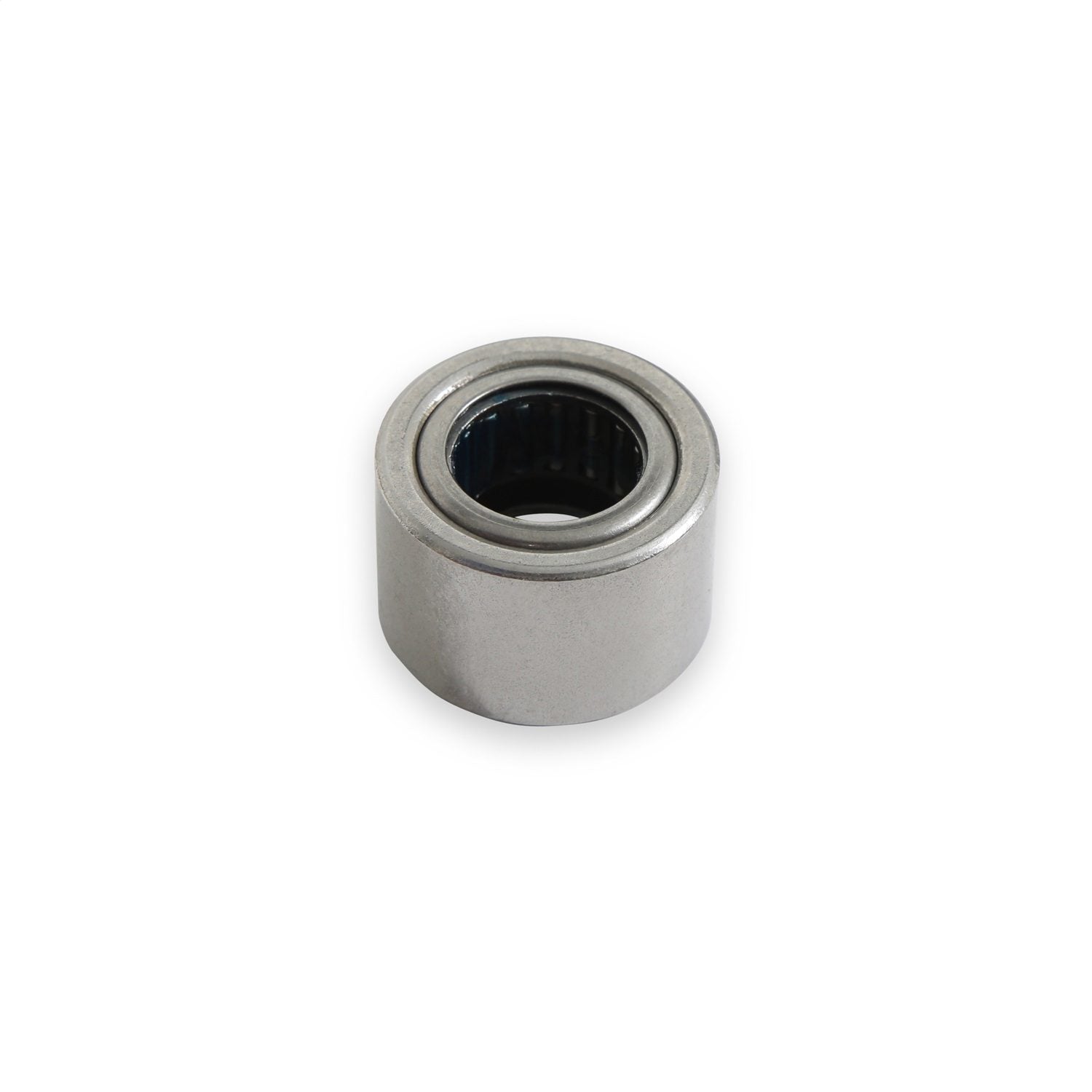

PILOT BEARING: Roller
Pilot Bushing Included: Yes
Pressure Plate Bolts Included: Yes

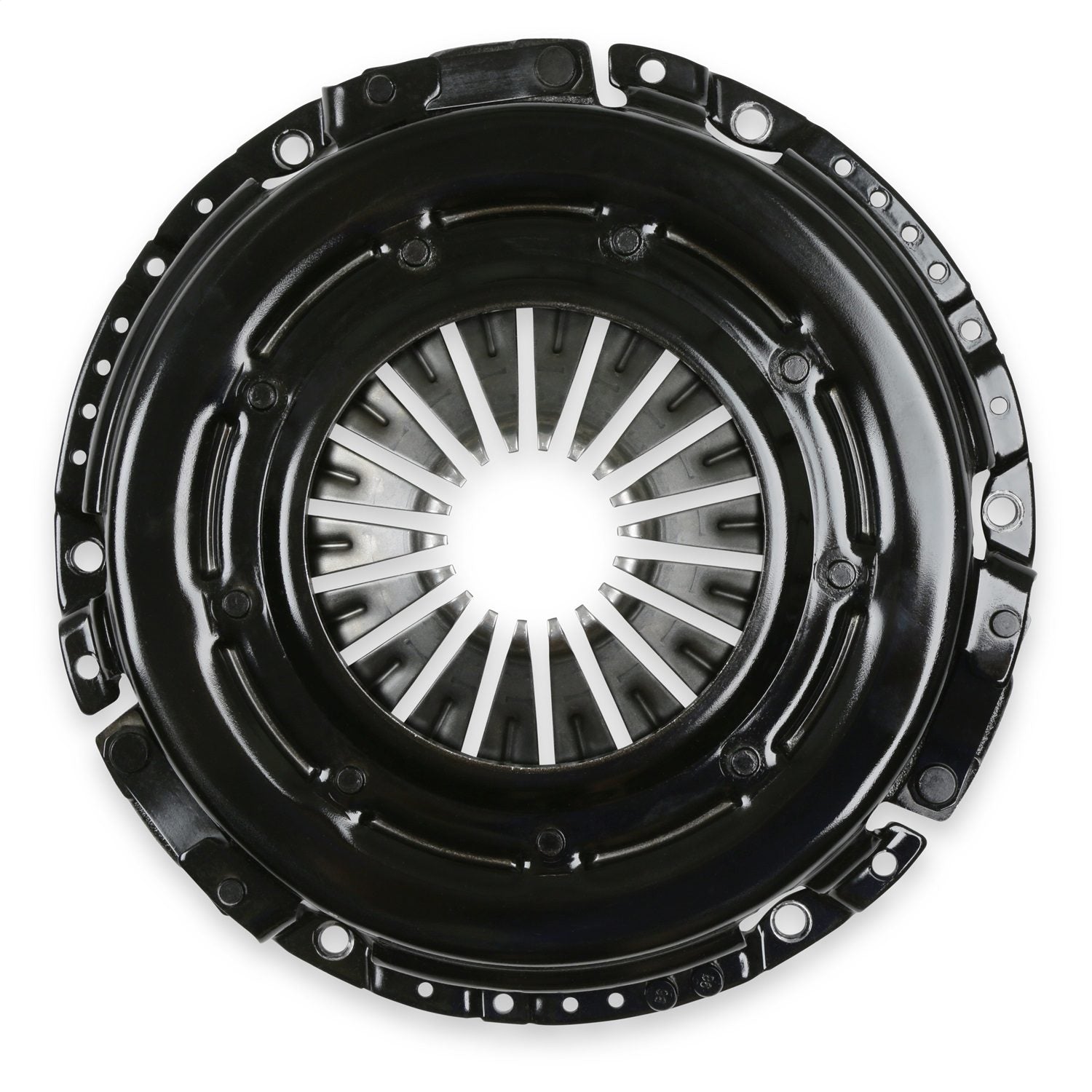

Pressure Plate Style: Diaphragm
Product Type: Clutch Installation Kit

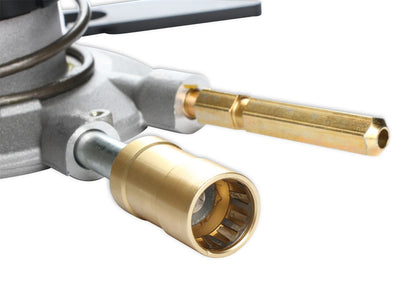

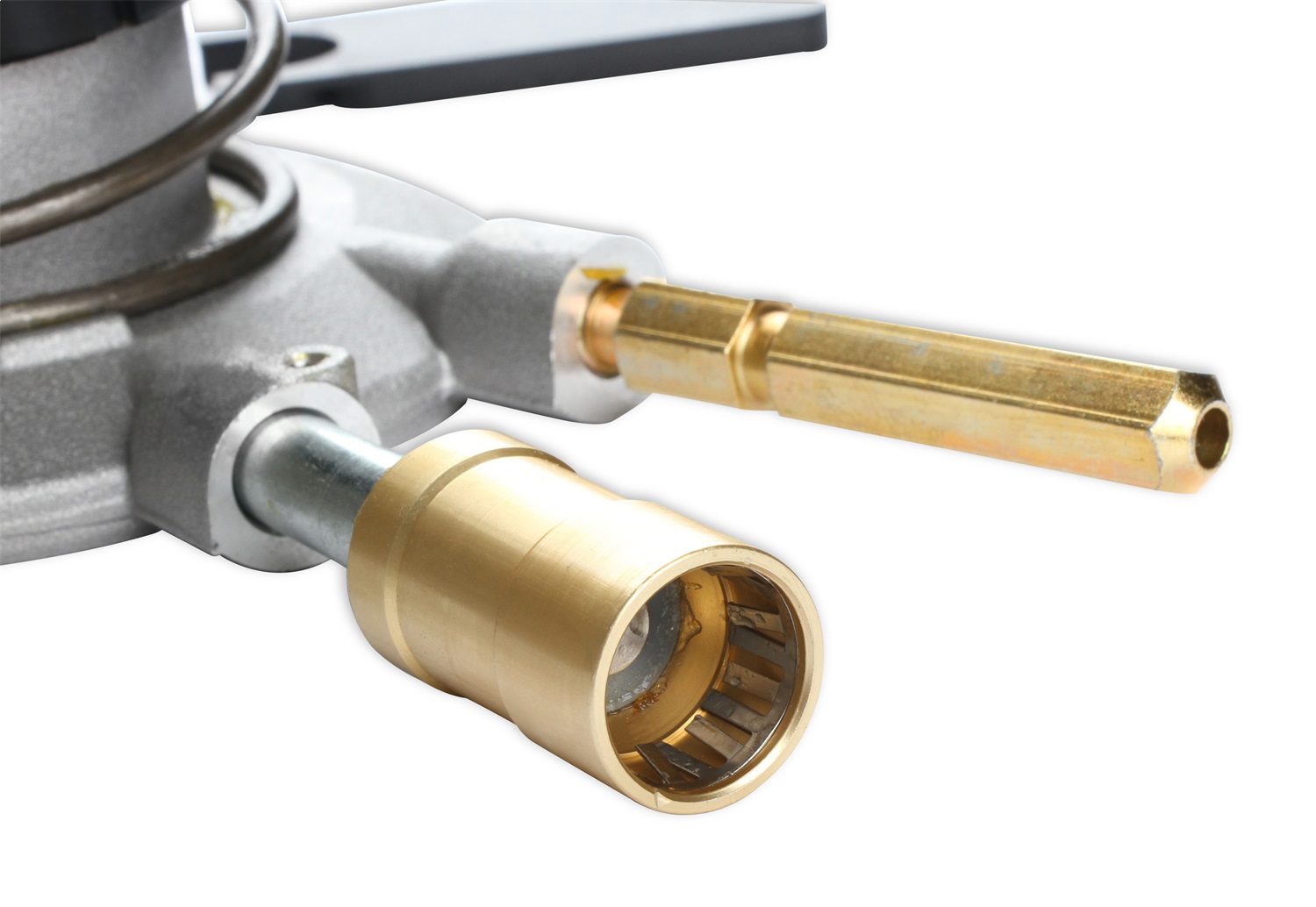

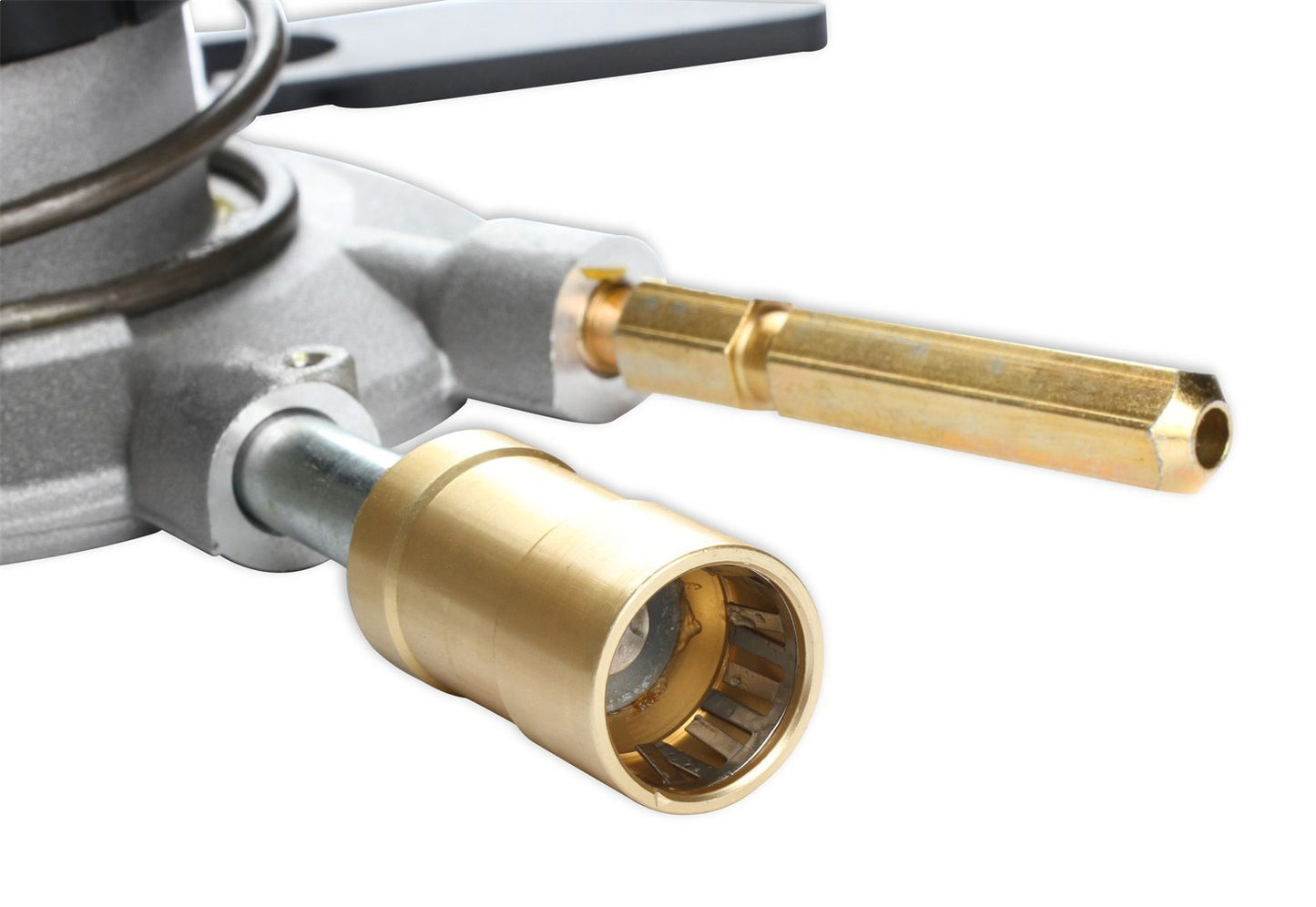

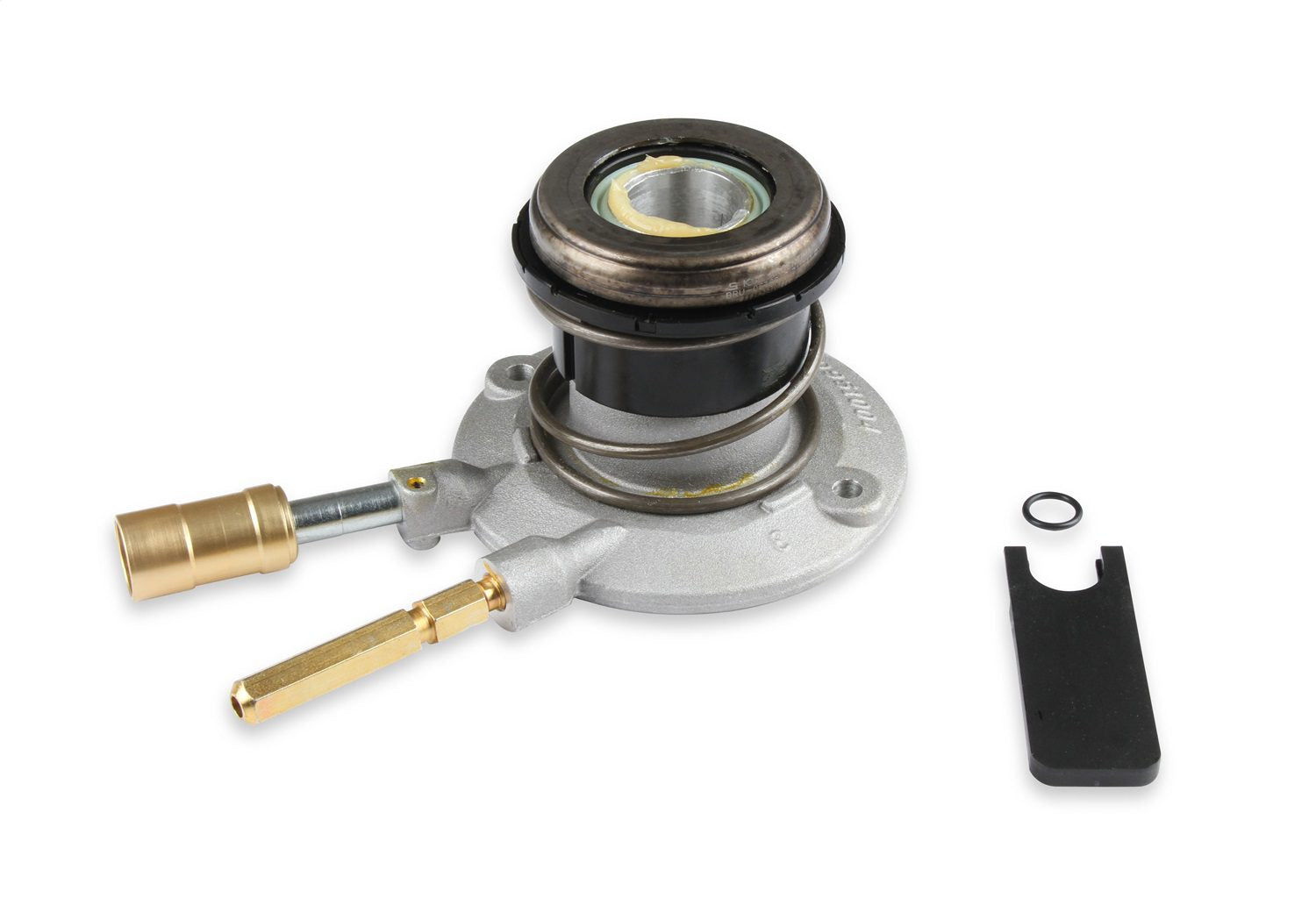

RELEASE BEARING: Hydraulic
Release Bearing Included: Yes
Sub Category: Transmission Components
Transmission: T56 Magnum GM
Transmission: T56 GM
Warning: California Proposition 65
