Holley - 319-504

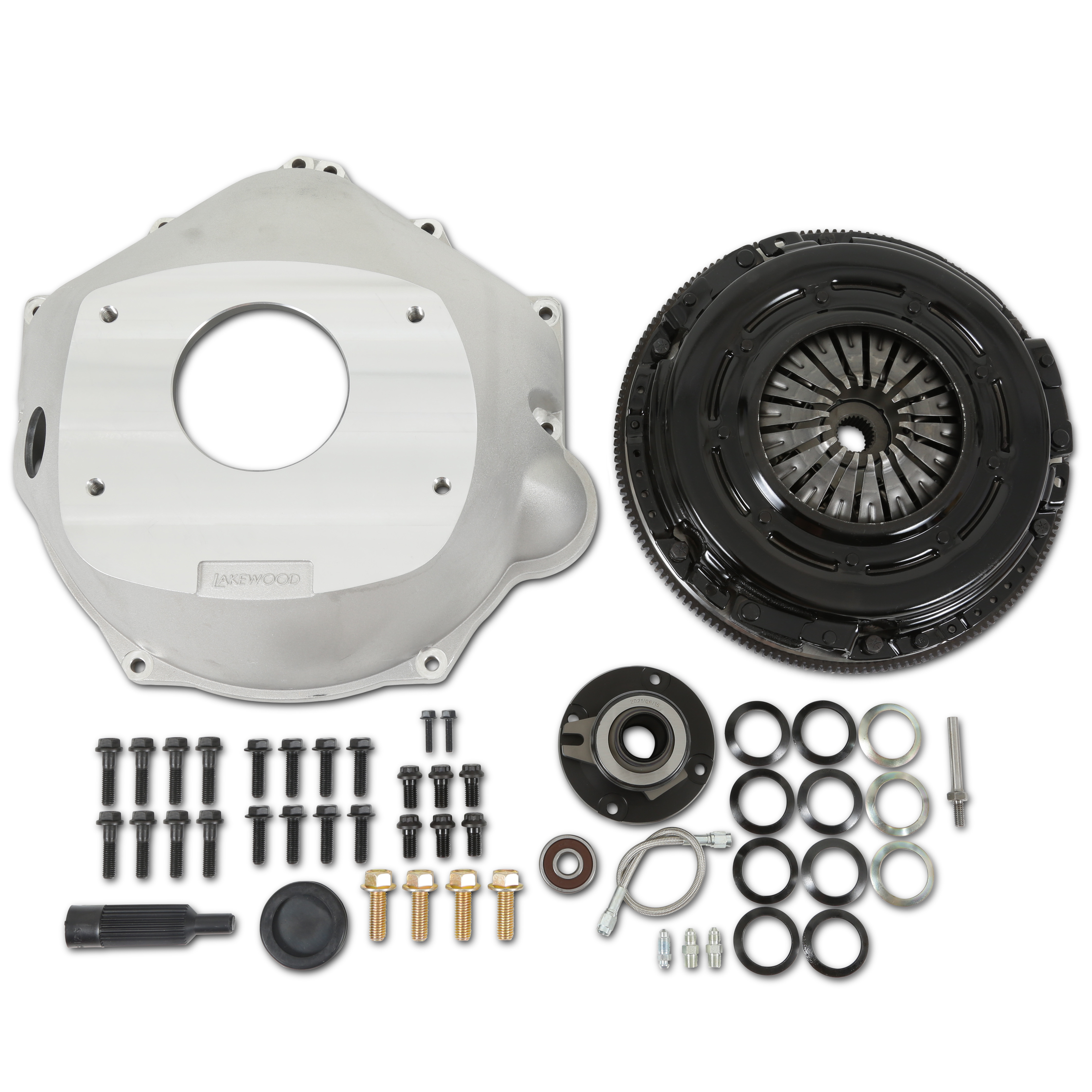

Holley Complete Transmission Installation Kit - 6-Bolt LS Engine to TKX / TKO
Everything you need to connect a 6-Bolt LS Engine to a Tremec TKX or TKO Transmission
The 319-505 is very similar to the 319-504 but is designed to be used with the 8-bolt flywheel LS and Gen V LT engines that come after 2009 (LSA, LT1, LT4, L83, and similar truck engines).
- Designed for Gen III/Gen IV Small Block Chevrolet Engines with 6-bolt crank/flywheel using a TKX or TKO transmission

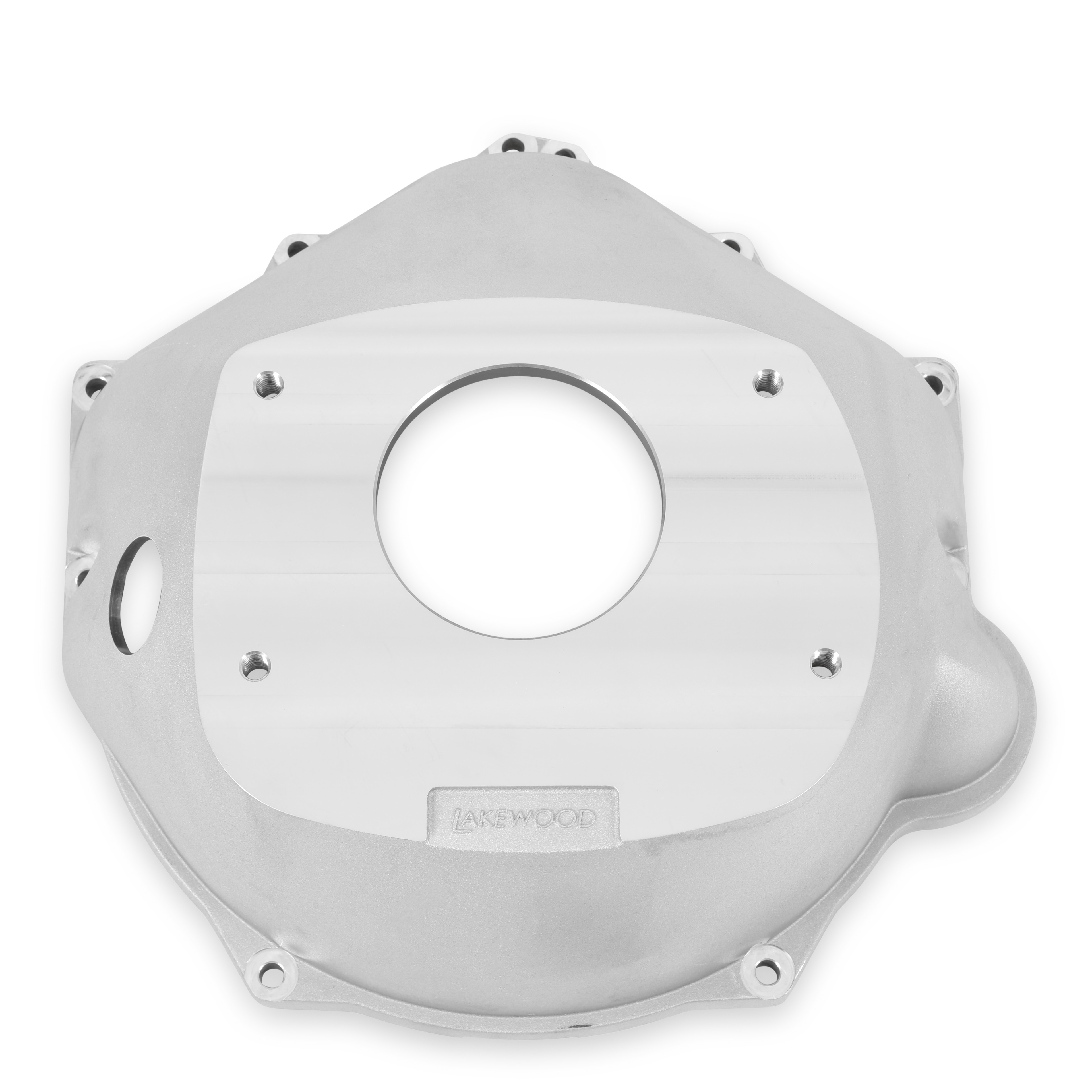

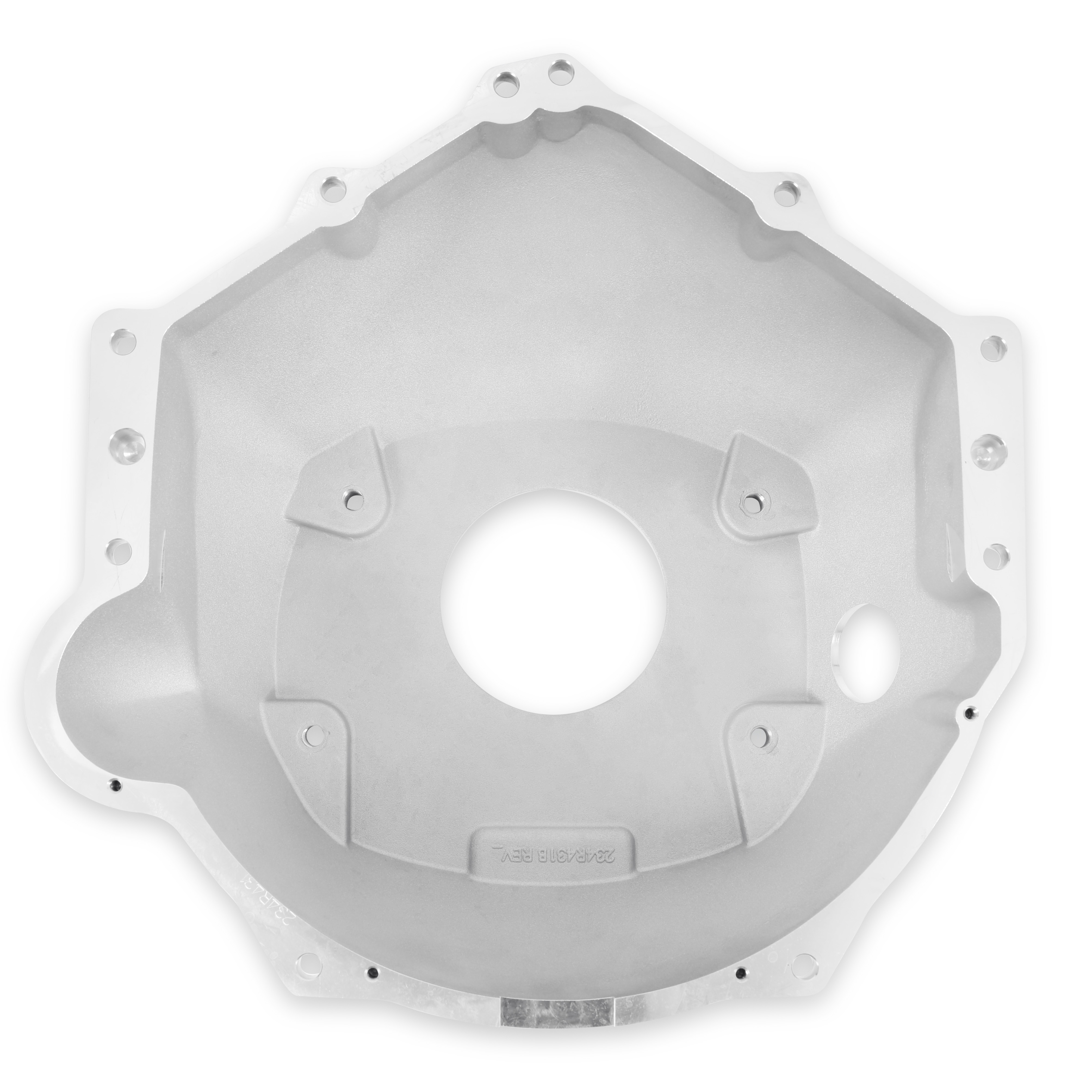

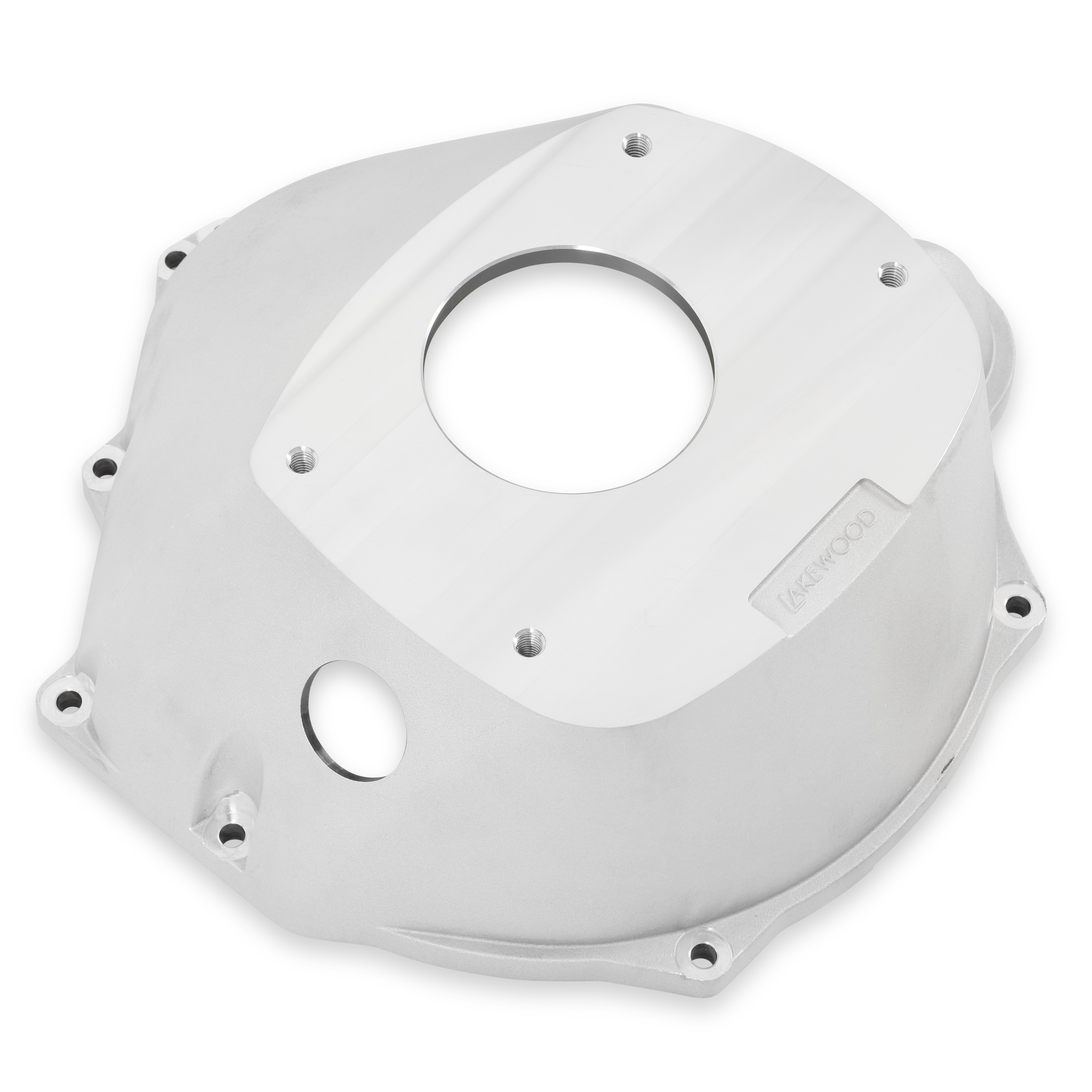

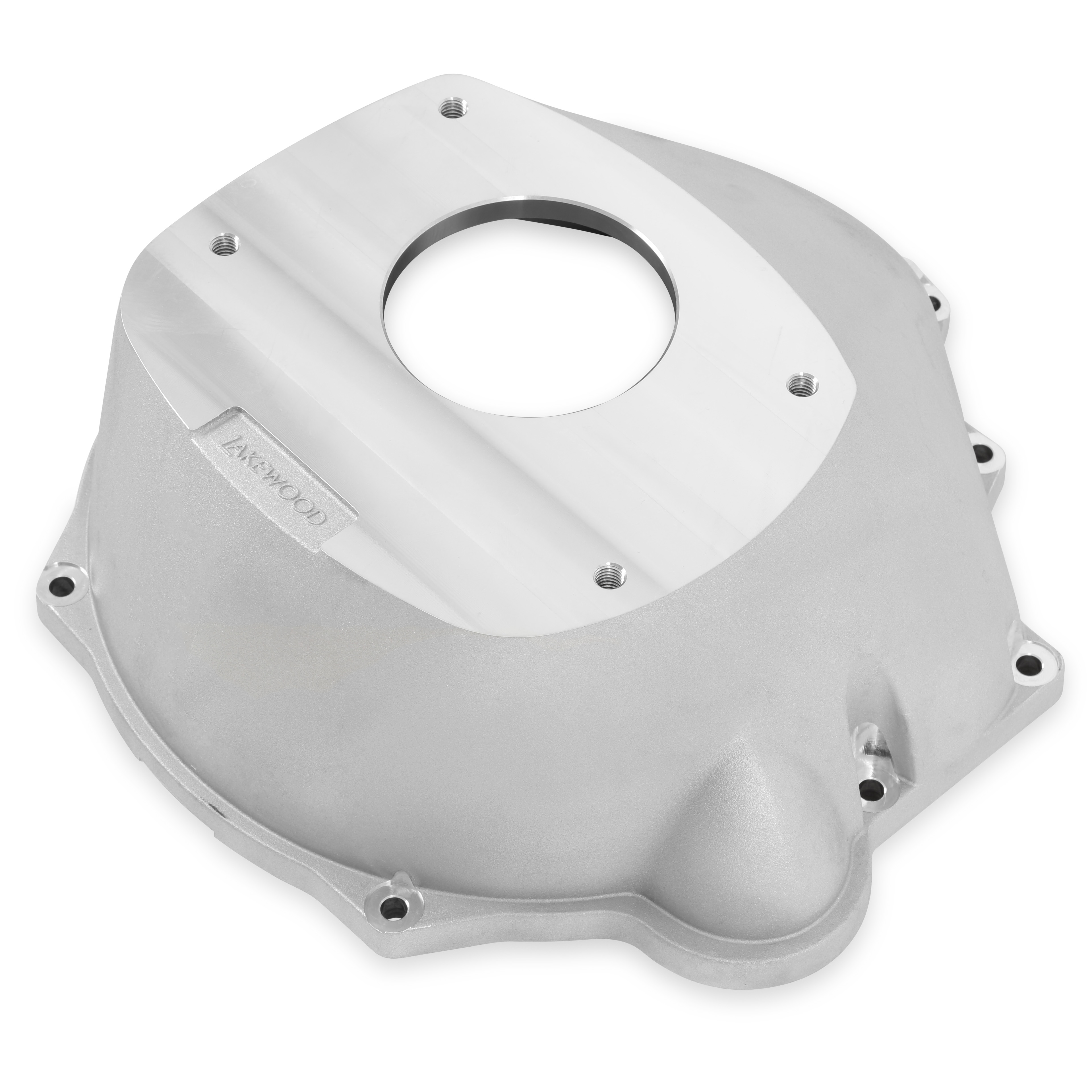

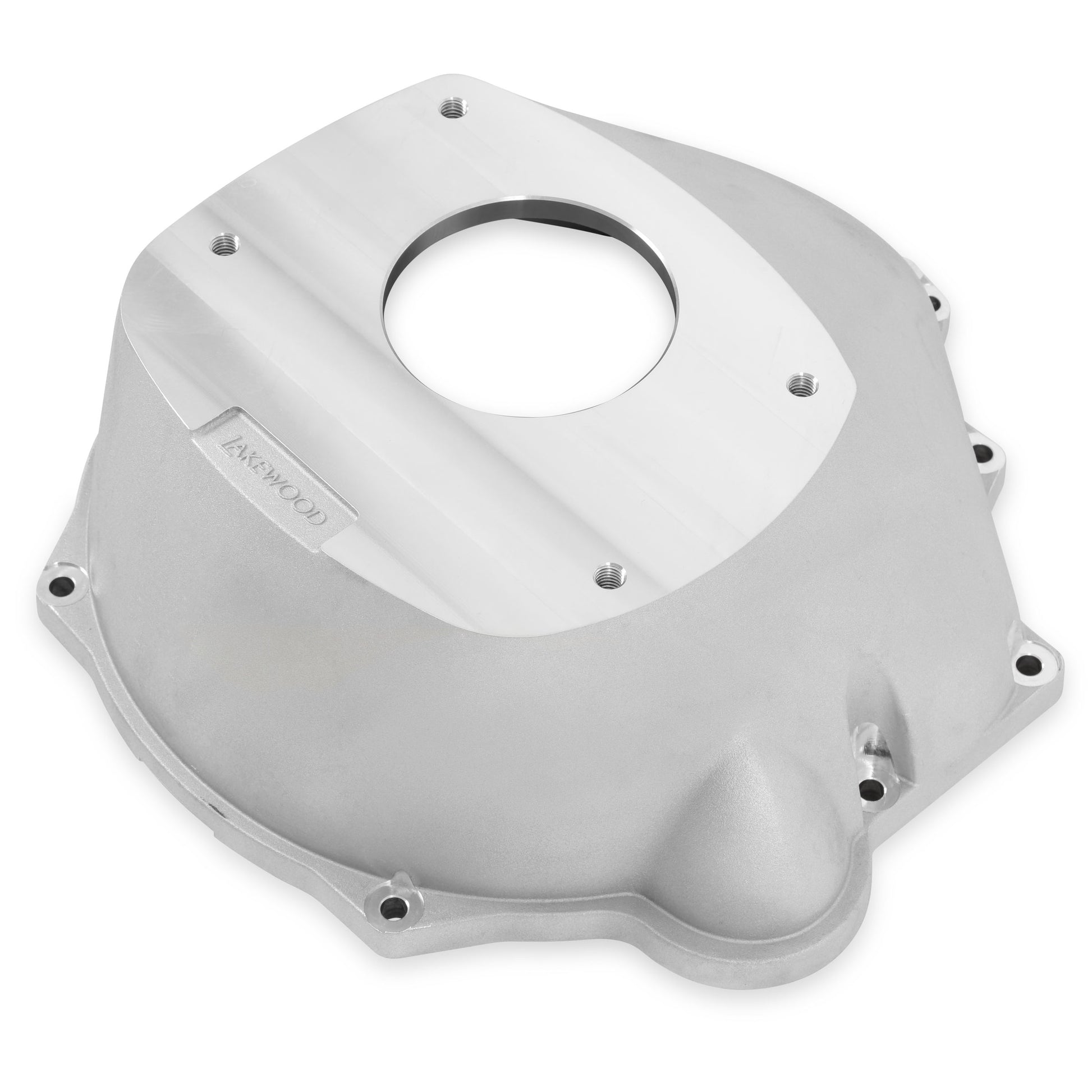

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

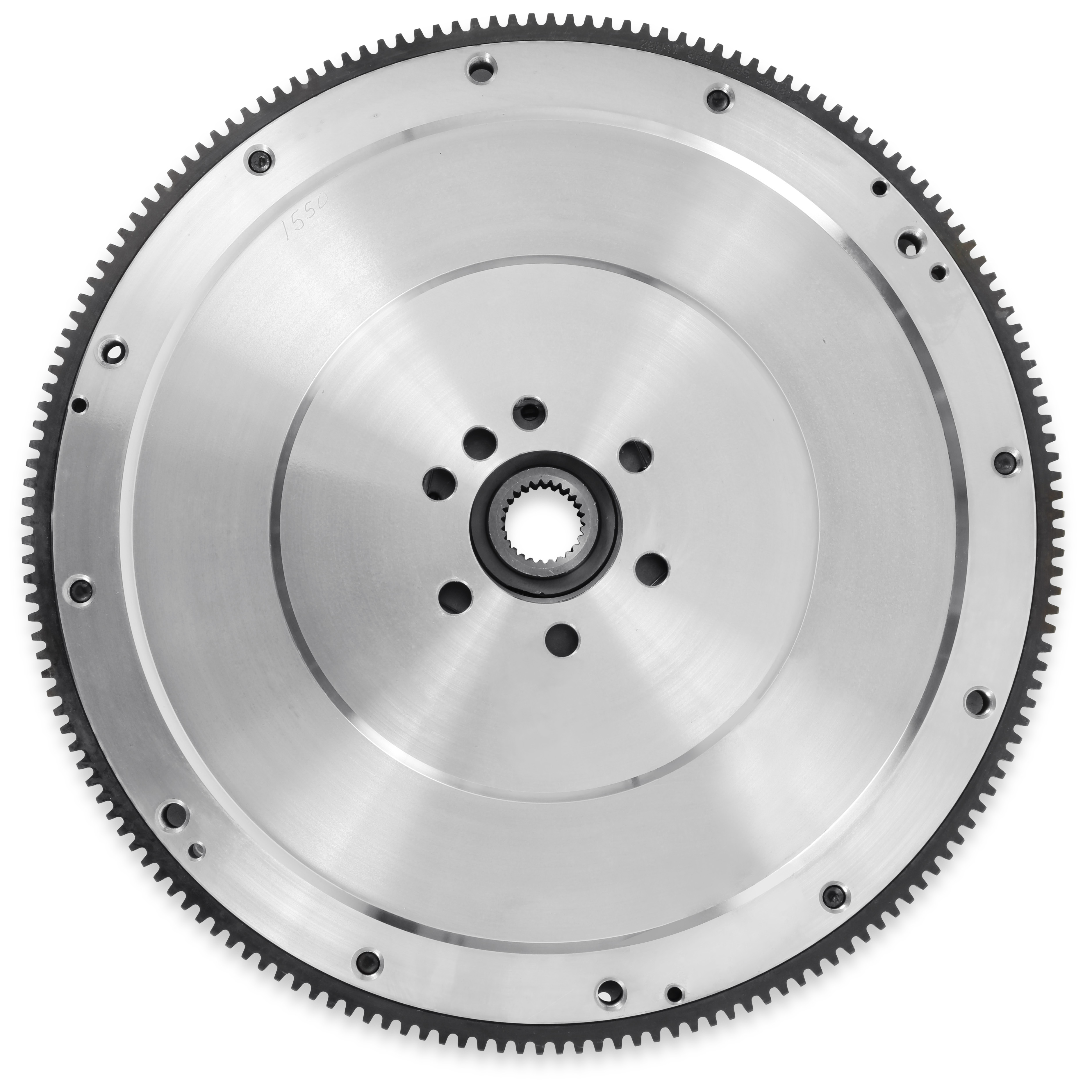

- Billet steel flywheel for light weight (28 pounds) and additional strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear

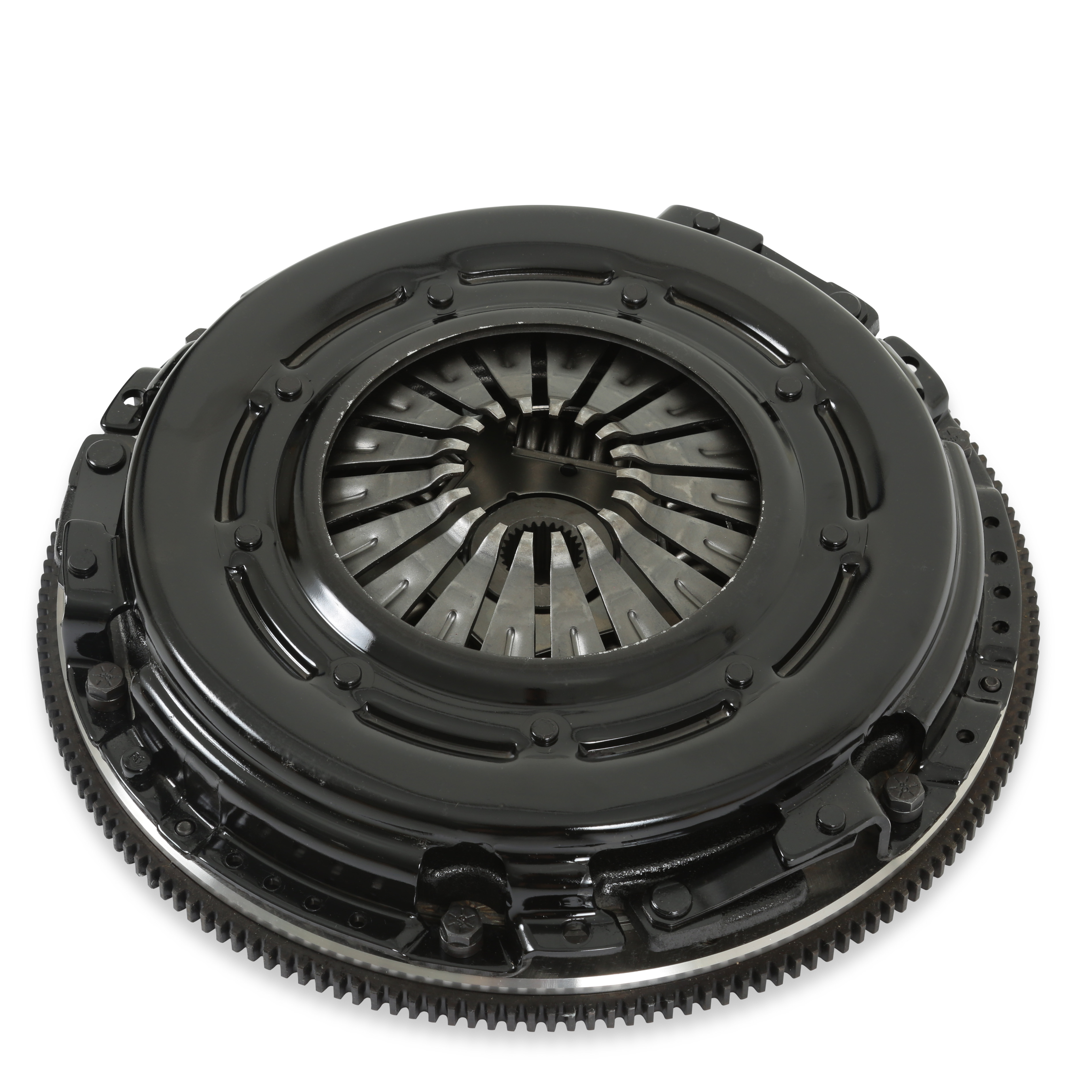

- 26-spline, 12-inch organic sprung clutch offers superior clamping force and smooth engagement for engines up to 550 Naturally Aspirated Horsepower (500 w/ Power Adder)

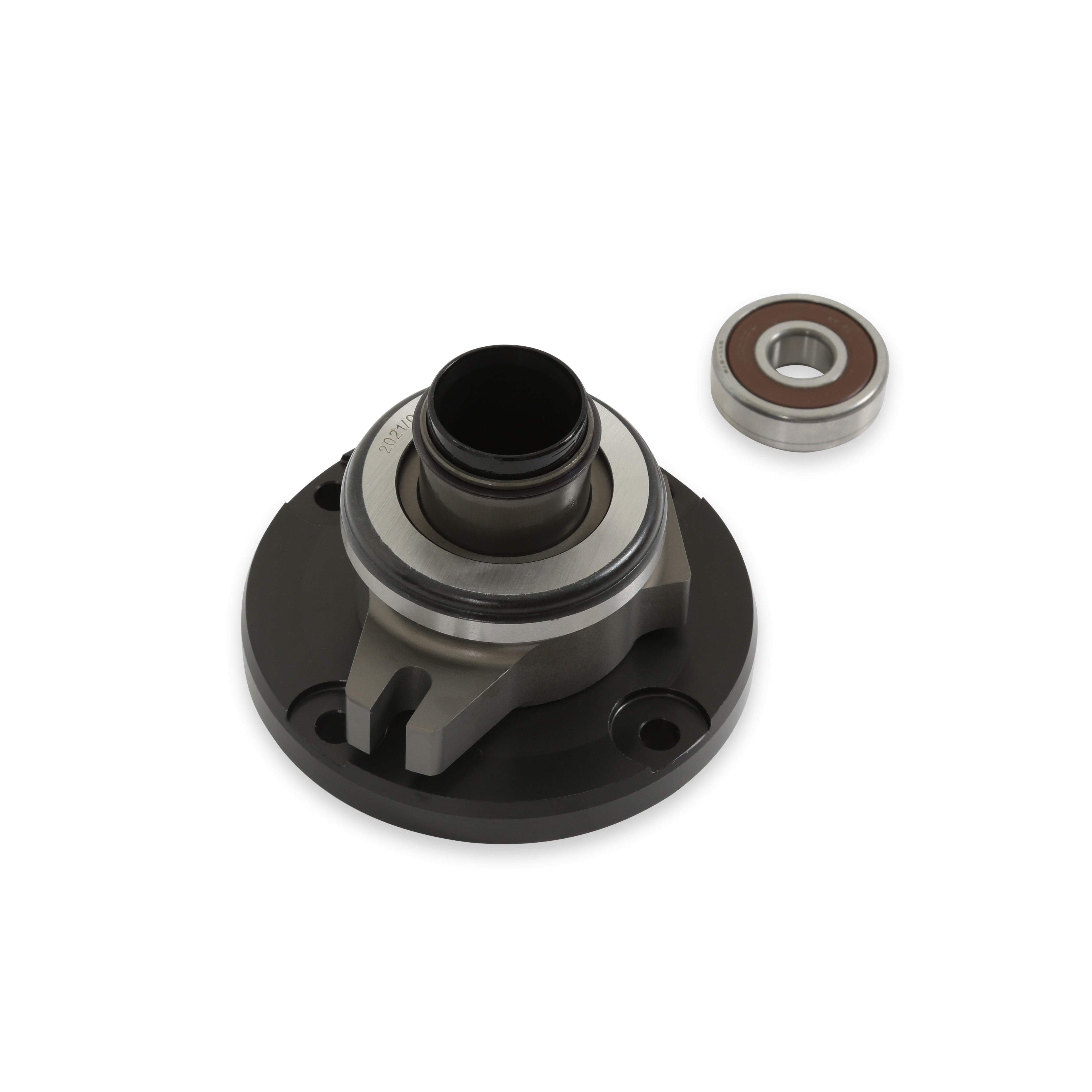

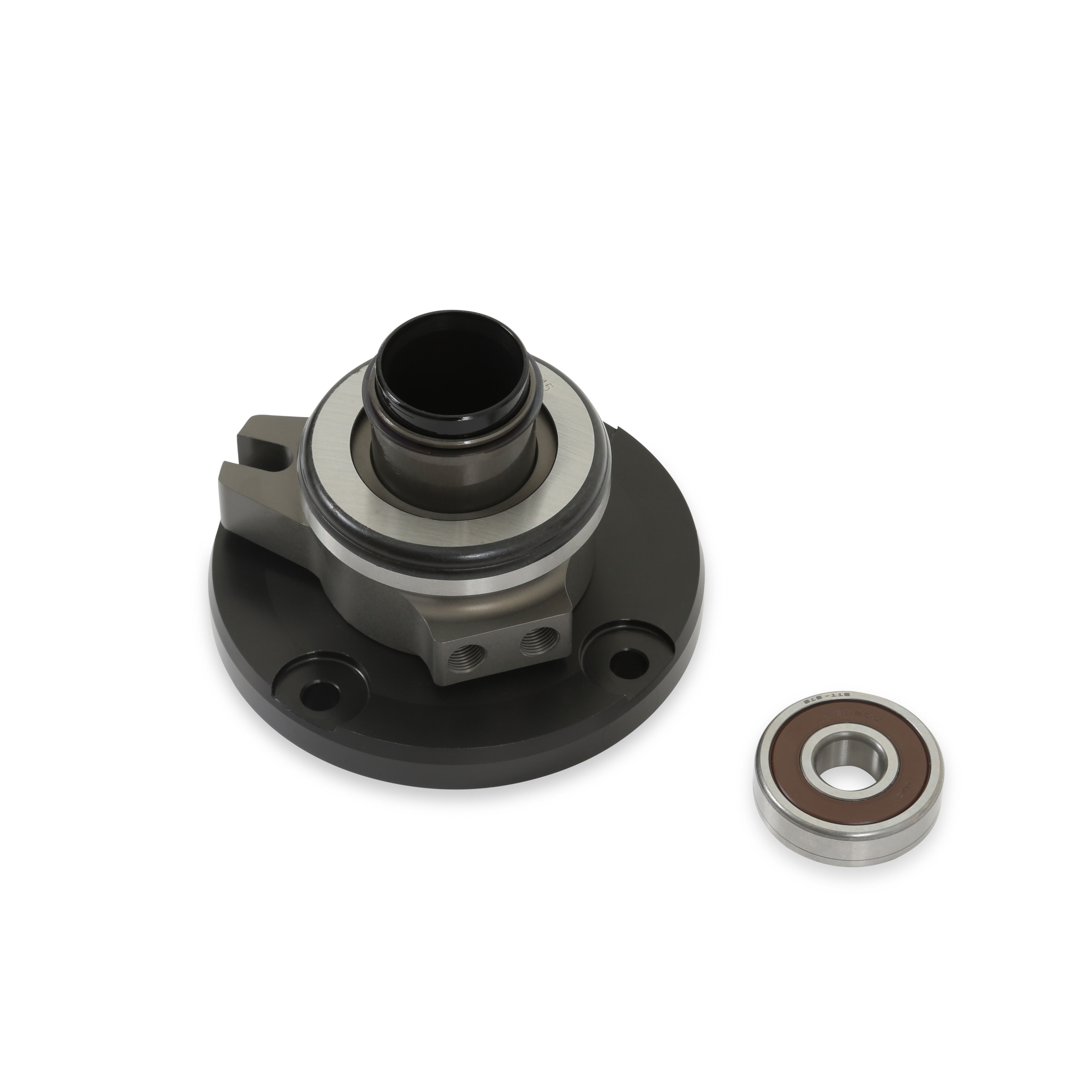

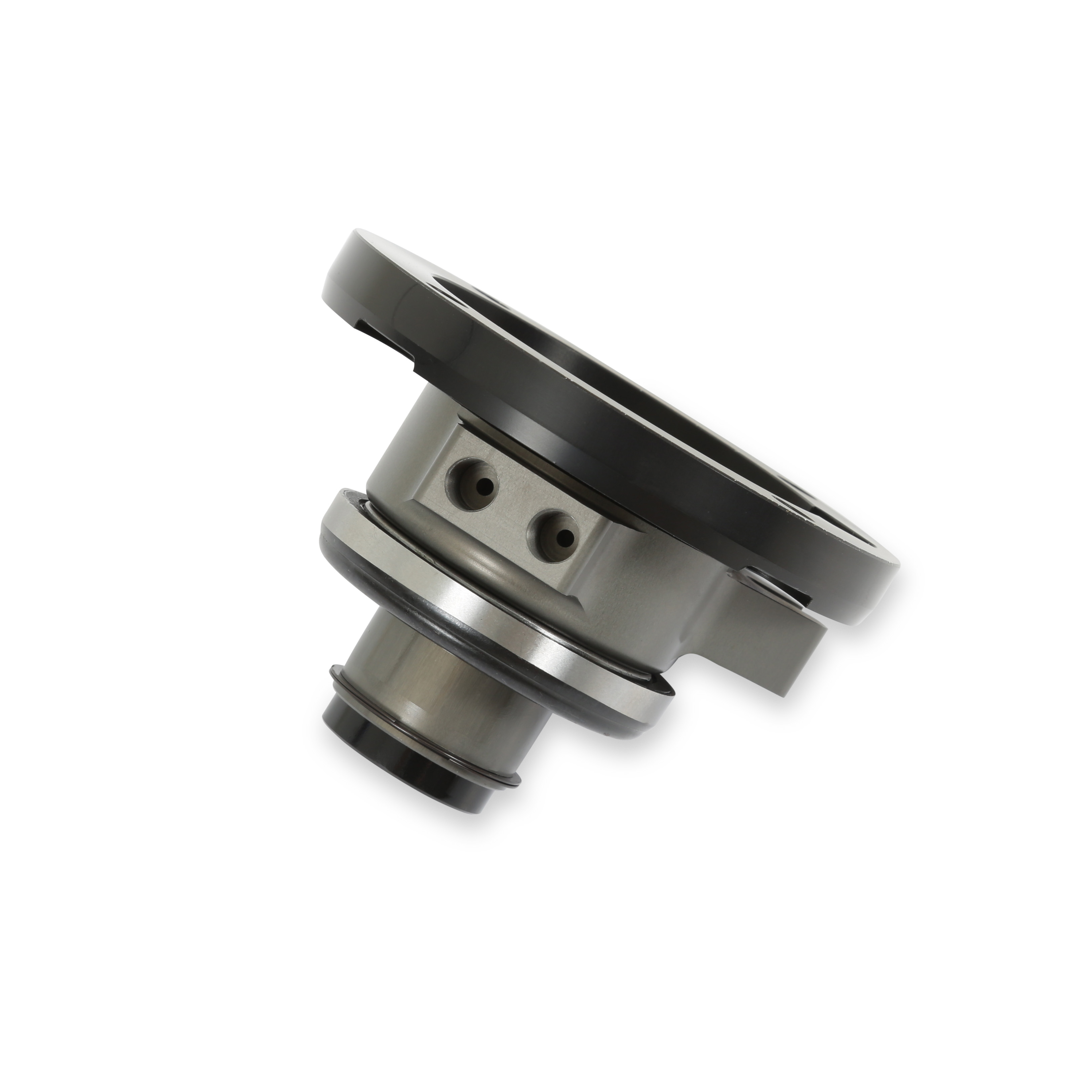

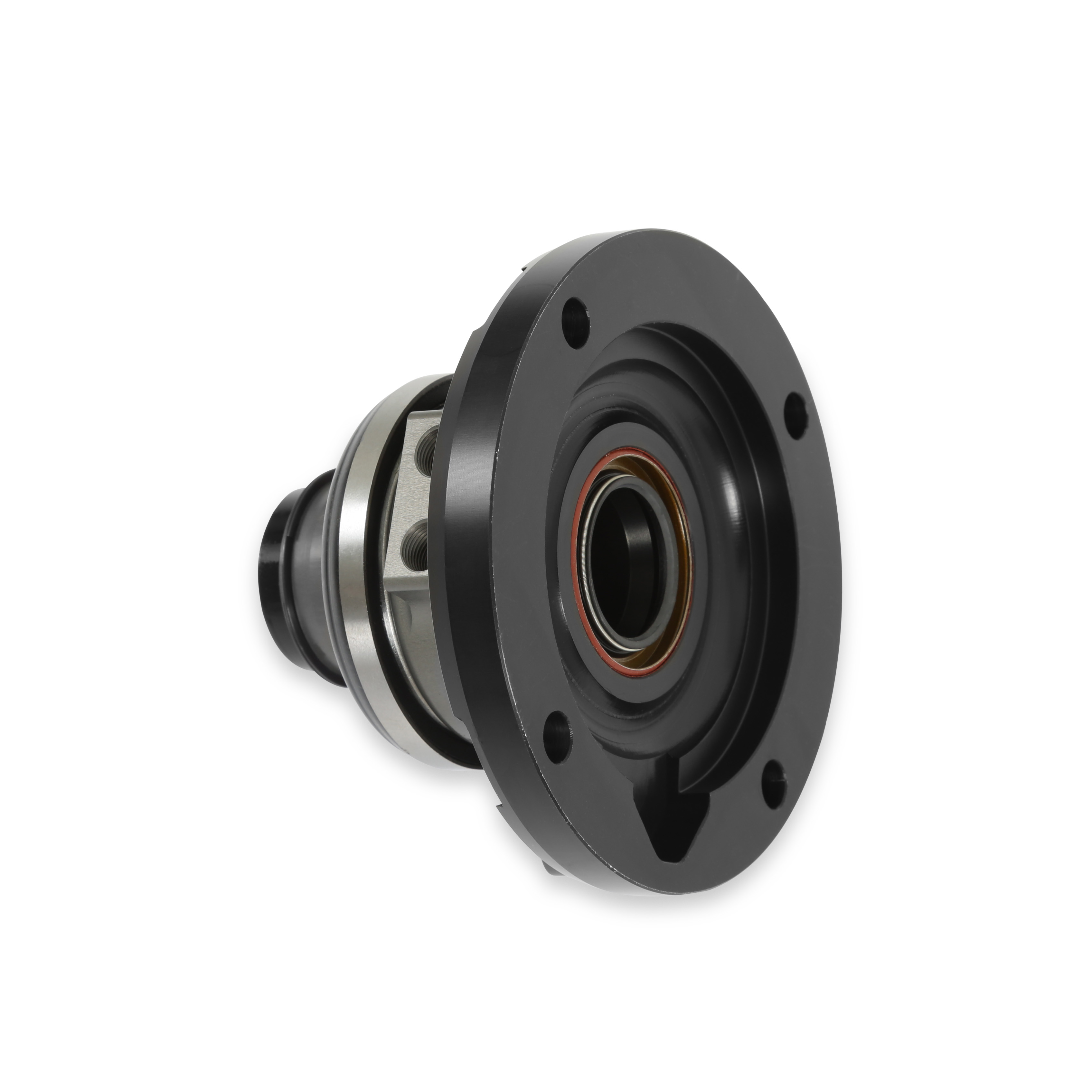

- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Bellhousing Material: Aluminum
Brand: Holley
Category: Transmission
Crankshaft Bolt Hole Count: 6
Disc Diameter: 12
Disc Material: Organic
Disc Style: Spring Hub
Emission Code: 5
Engine: GM Gen III/IV (LS)
Engine Make: GM
Flywheel Material: Billet Steel
Grade Type: Performance
Hardware: Steel
Input Shaft Diameter: 1-1/8 in.
Input Spline: 26
part type: Transmission Installation Kit
PILOT BEARING: Roller
Pressure Plate Style: Diaphragm
Product Type: Installation Kit
RELEASE BEARING: Hydraulic
Sub Category: Manual Transmission Components
Transmission: TKX GM
Transmission: TKO GM
