Holley - 302-33
Oil Pan Baffle Kit - LS Swap - Trap Doors - Aluminum - Natural - GM LS-Series - Kit
Fits Holley LS Swap Oil Pan 302-4 and 302-4BK - Hinged Door Off-Road Baffle Kit

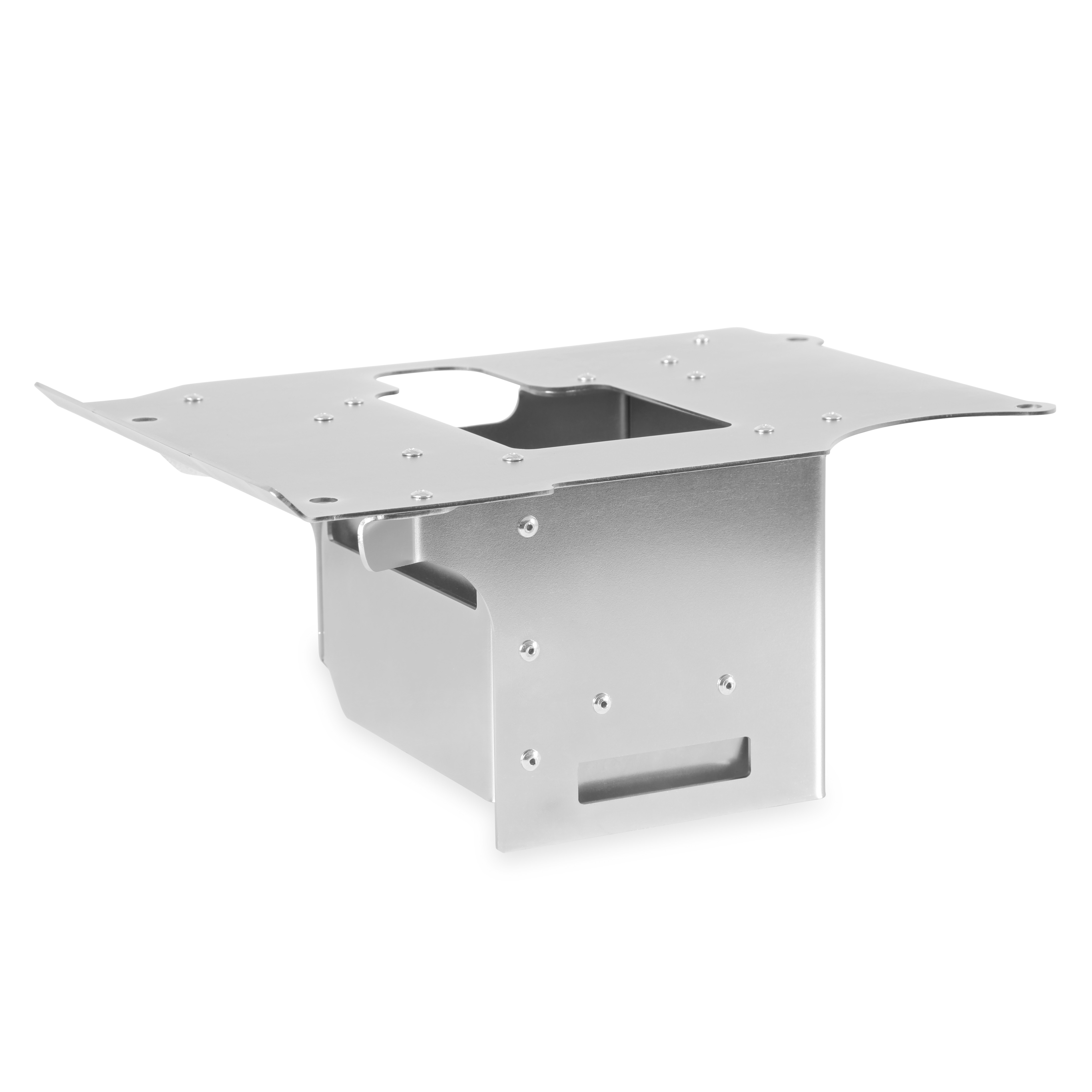

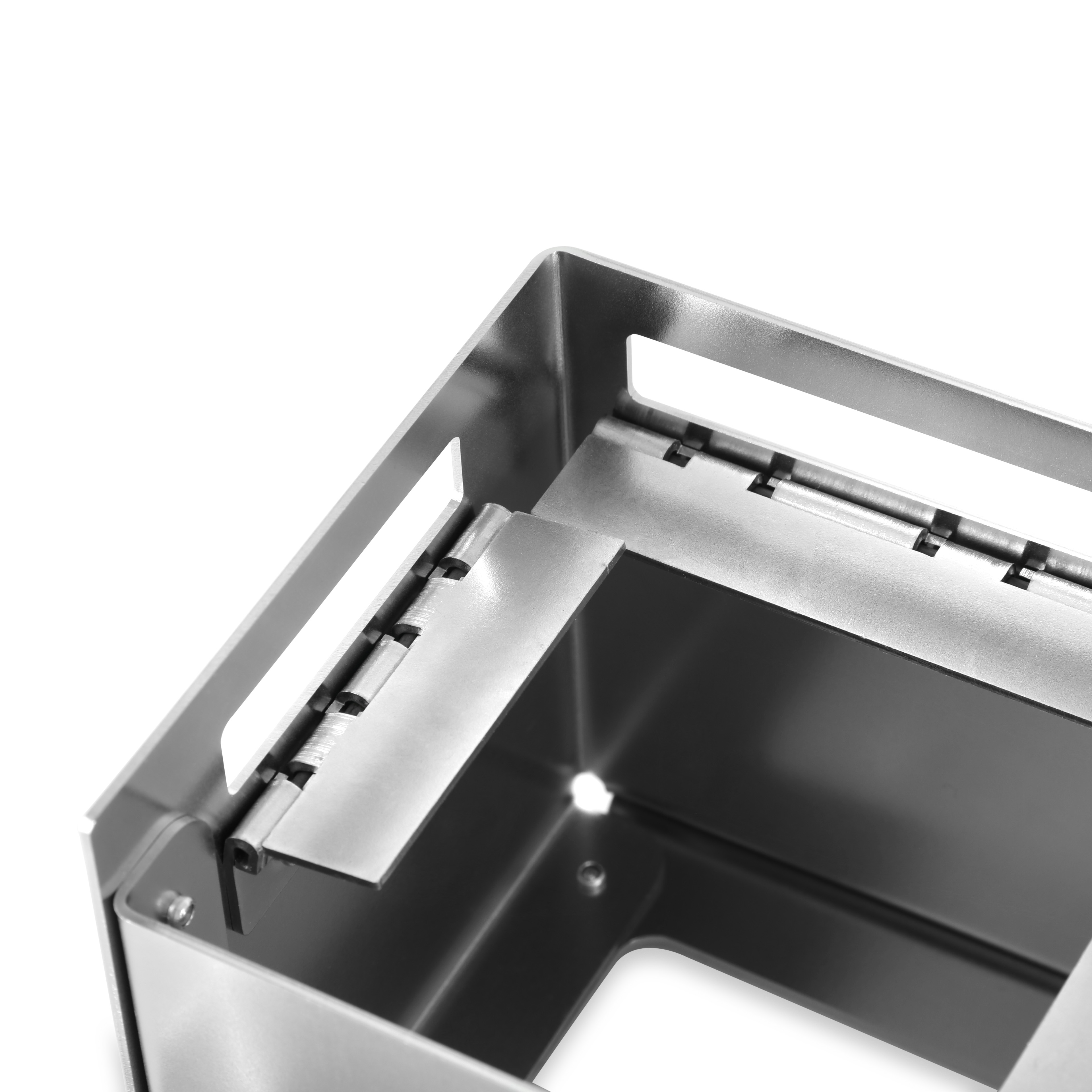

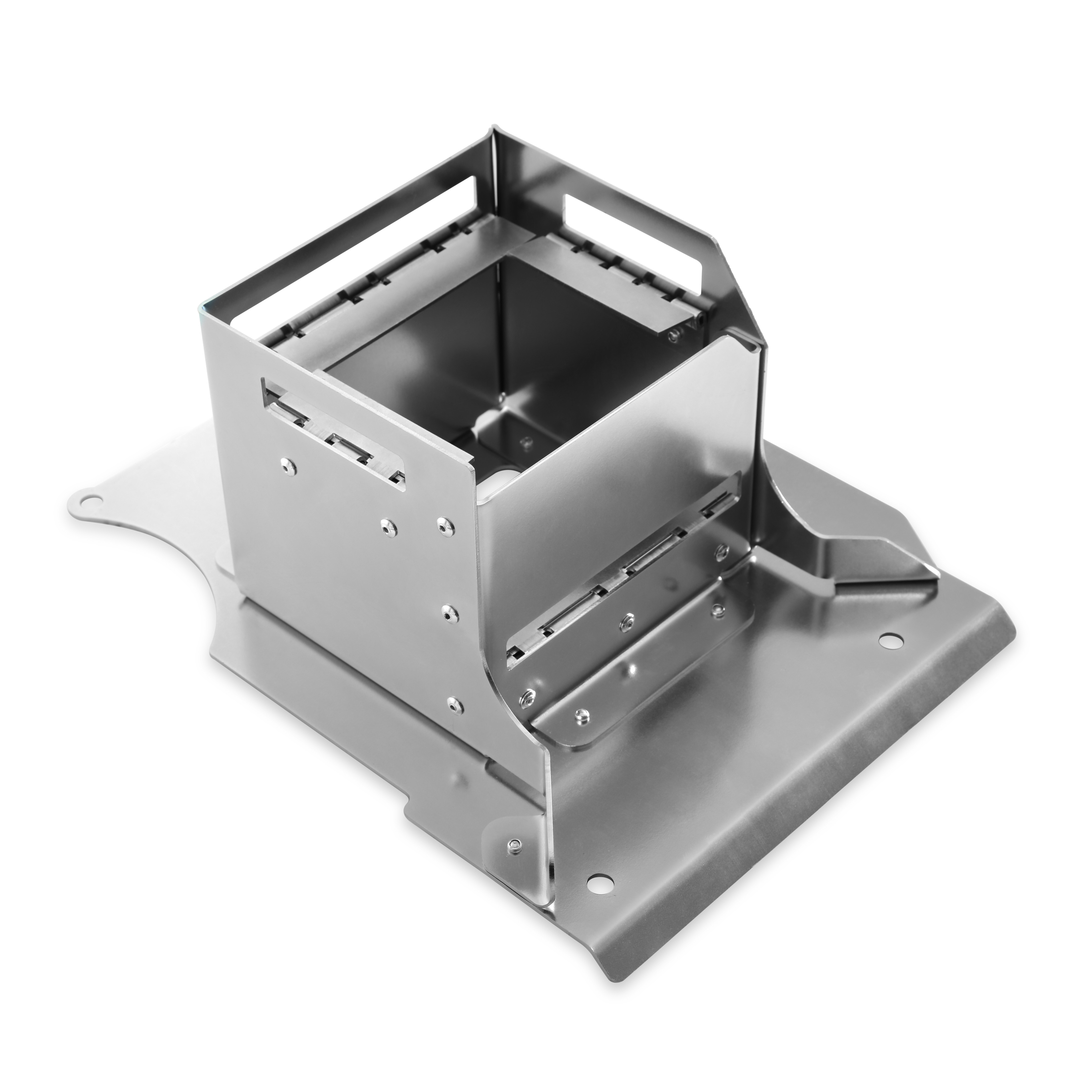

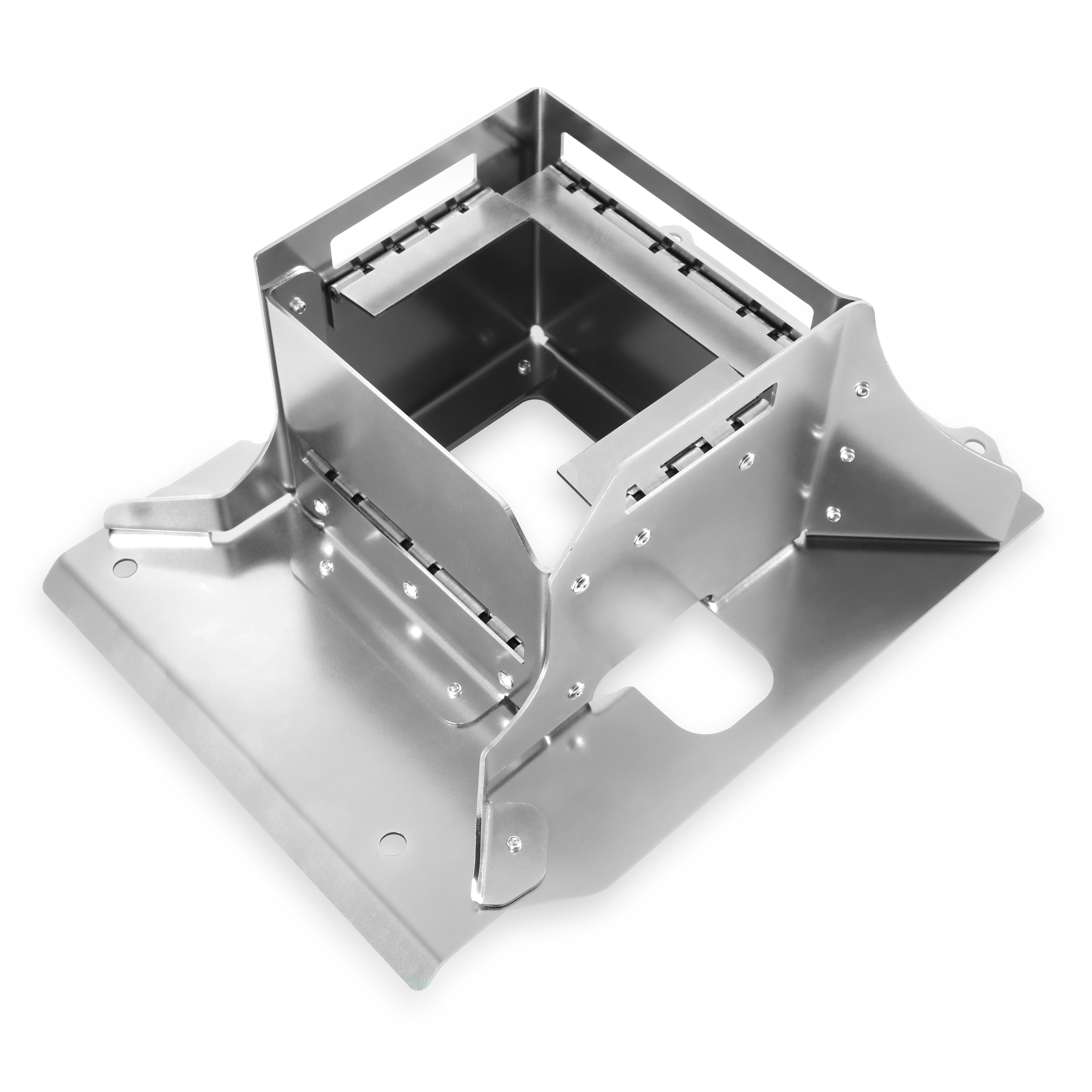

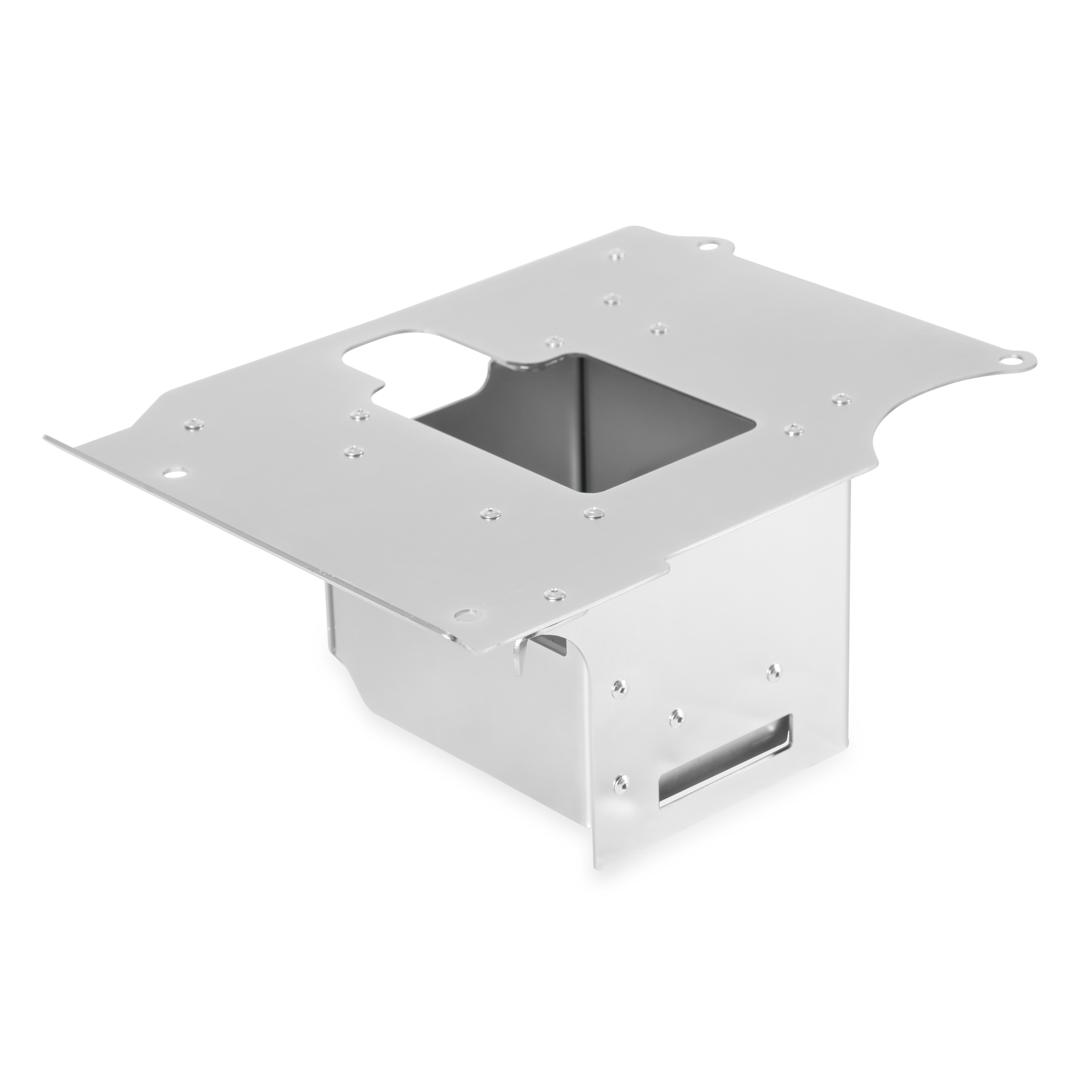

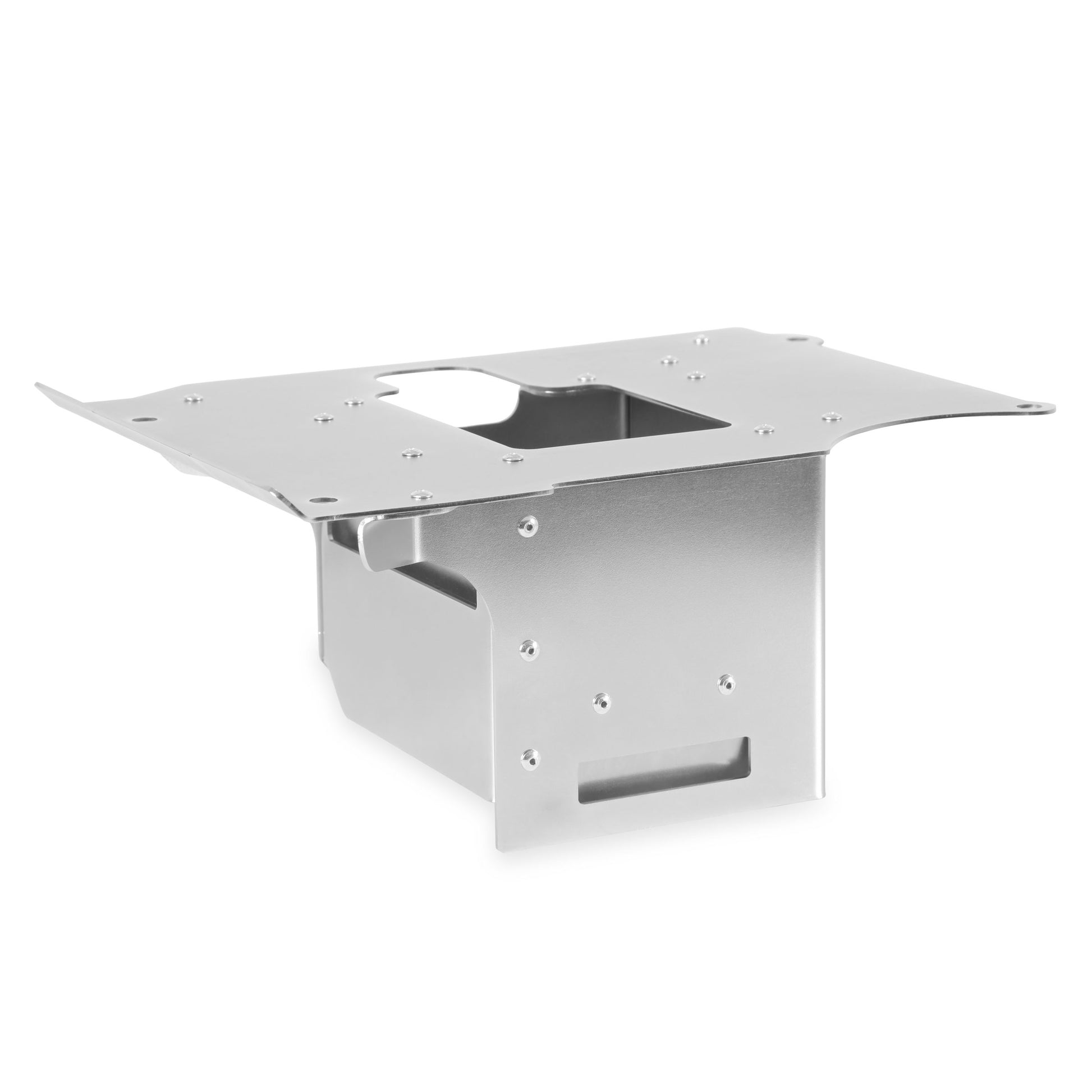

The baffle is fabricated from sheet aluminum joined by TIG welded joints. Directionally positioned one-way trap doors allow oil flow towards the oil pump pick-up but not away. This baffle is designed to be used in the Holley P/N 302-4 and 302-4BK LS Swap oil pan with the standard pickup, and is a drop-in replacement for the standard tray baffle.
- Direct bolt-in to 302-4 and 302-4BK Holley LS Swap Off-Road Oil Pan
- Aluminum sheet TIG welded construction
- Vertical baffles with one-way trap doors surrounding the oil pump pick-up
- Great for street, race, and off-road applications
Application: GM LS Engines
Brand: Holley
Category: Engine
Crank Scraper Included: No
Emission Code: 5
Engine: GM Gen III/IV (LS)
Gasket Or Seal Included: No
Grade Type: Performance
Material: Aluminium
part type: Engine Oil Pan Baffle
Pickup Included: No
Product Type: Oil Pan Accessories
Sub Category: Cylinder Block Components
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Windage Tray Included: No
