Holley 300-940BK - Single Plane Intake - GM Gen V LT - Black
Holley 300-940BK - Single Plane Intake - GM Gen V LT - Black
SKU: HOL-300-940BK
Regular price
$399.99 USD
Regular price
$476.95 USD
Sale price
$399.99 USD
Shipping calculated at checkout.
27 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Holley 300-940BK - Single Plane Intake - GM Gen V LT - Black

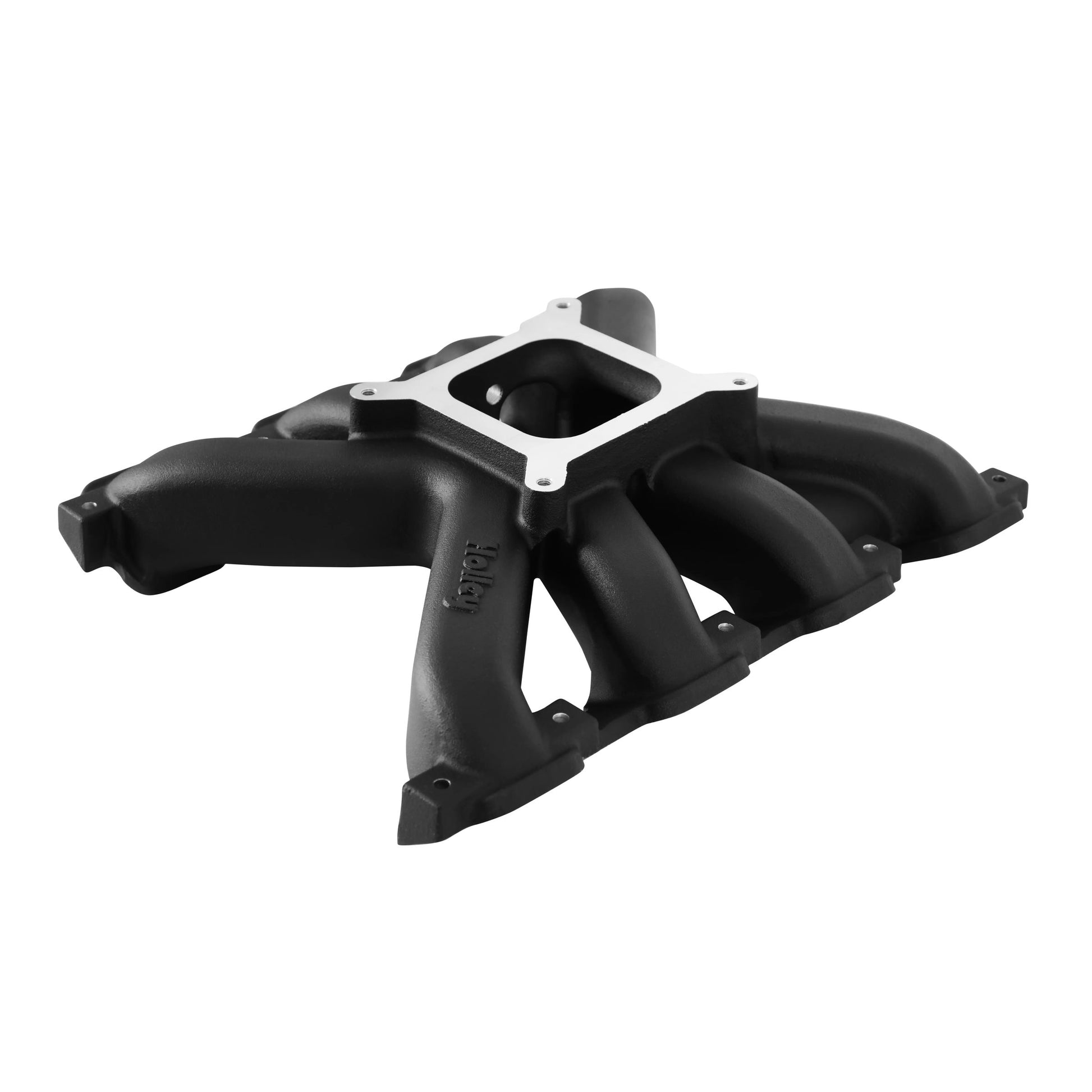

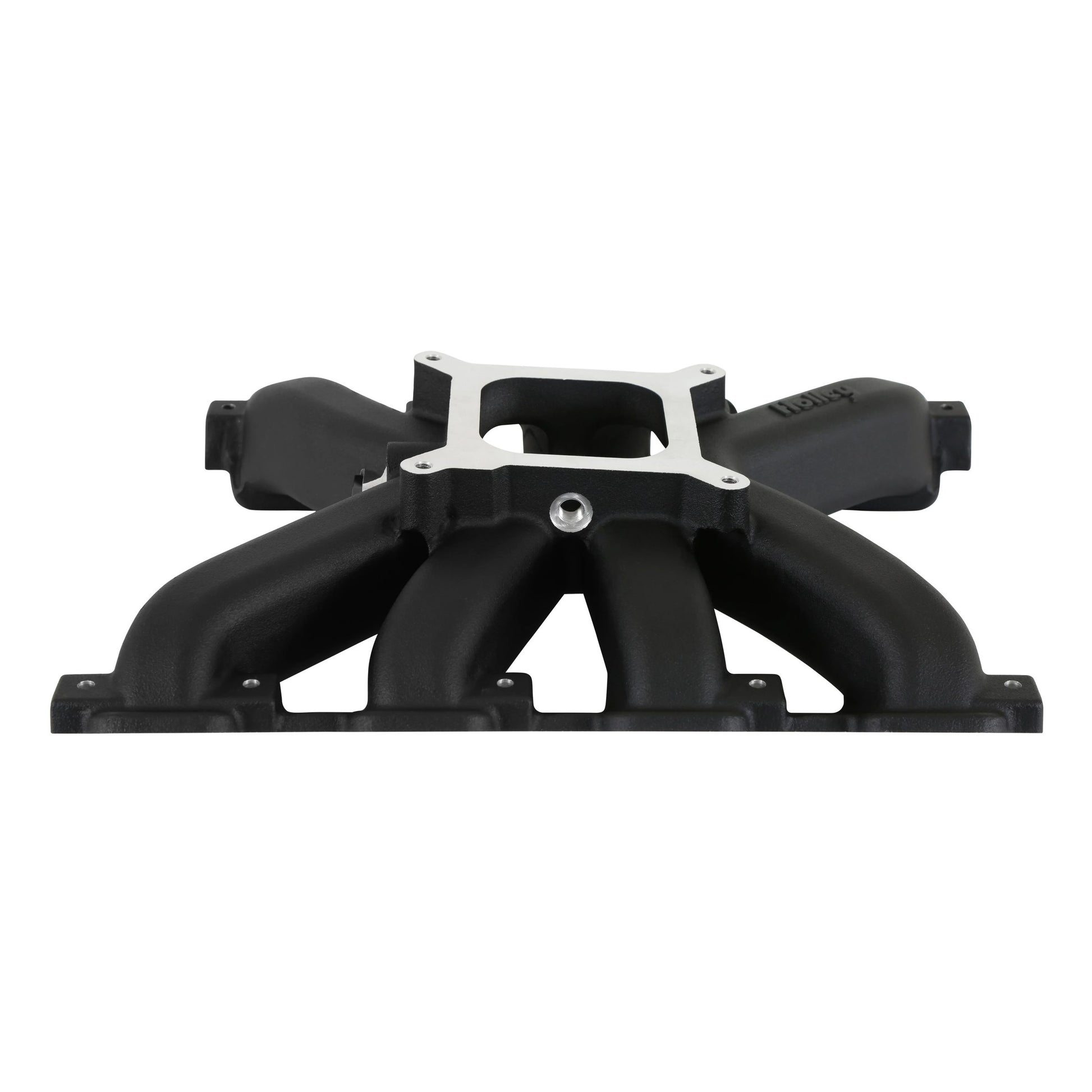

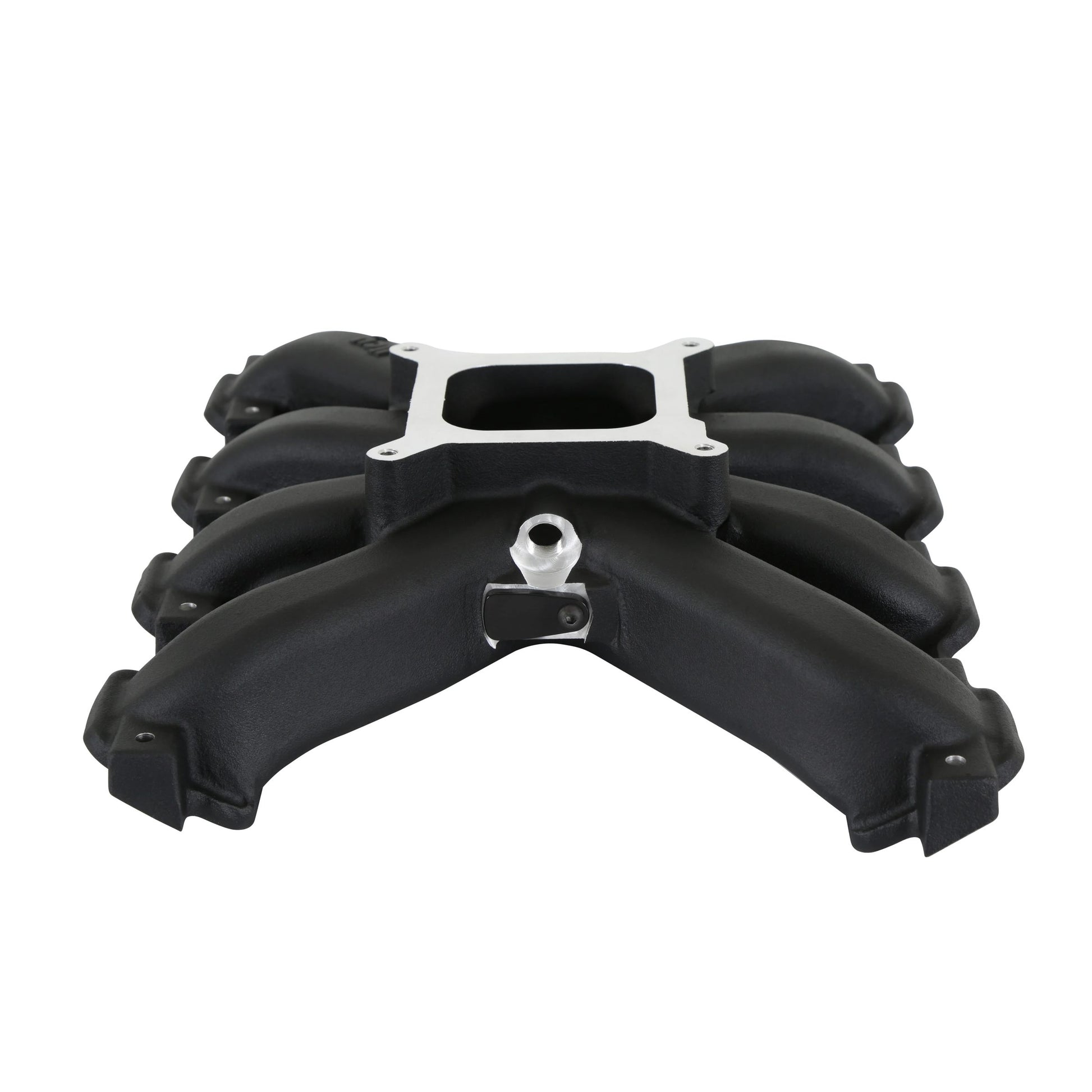

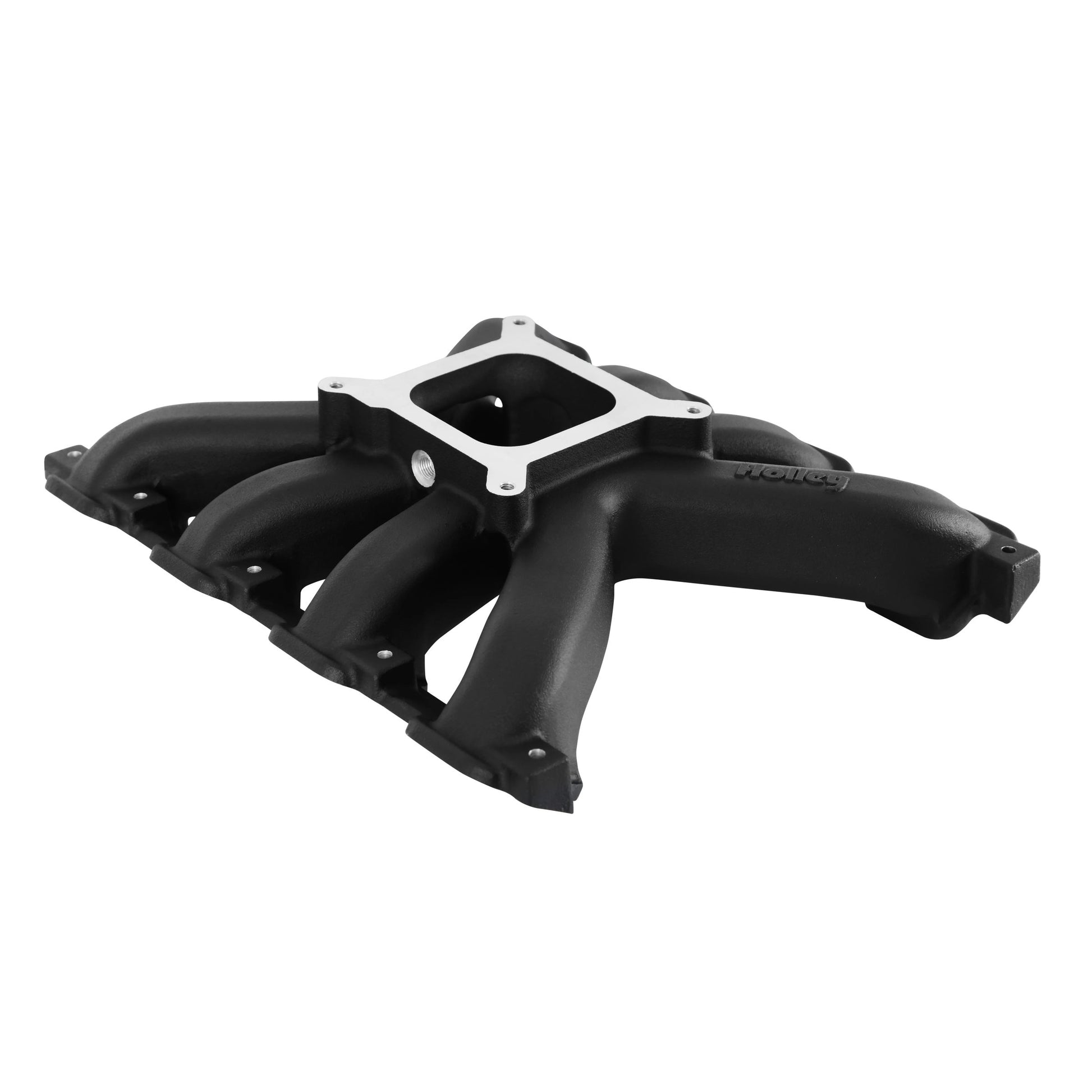

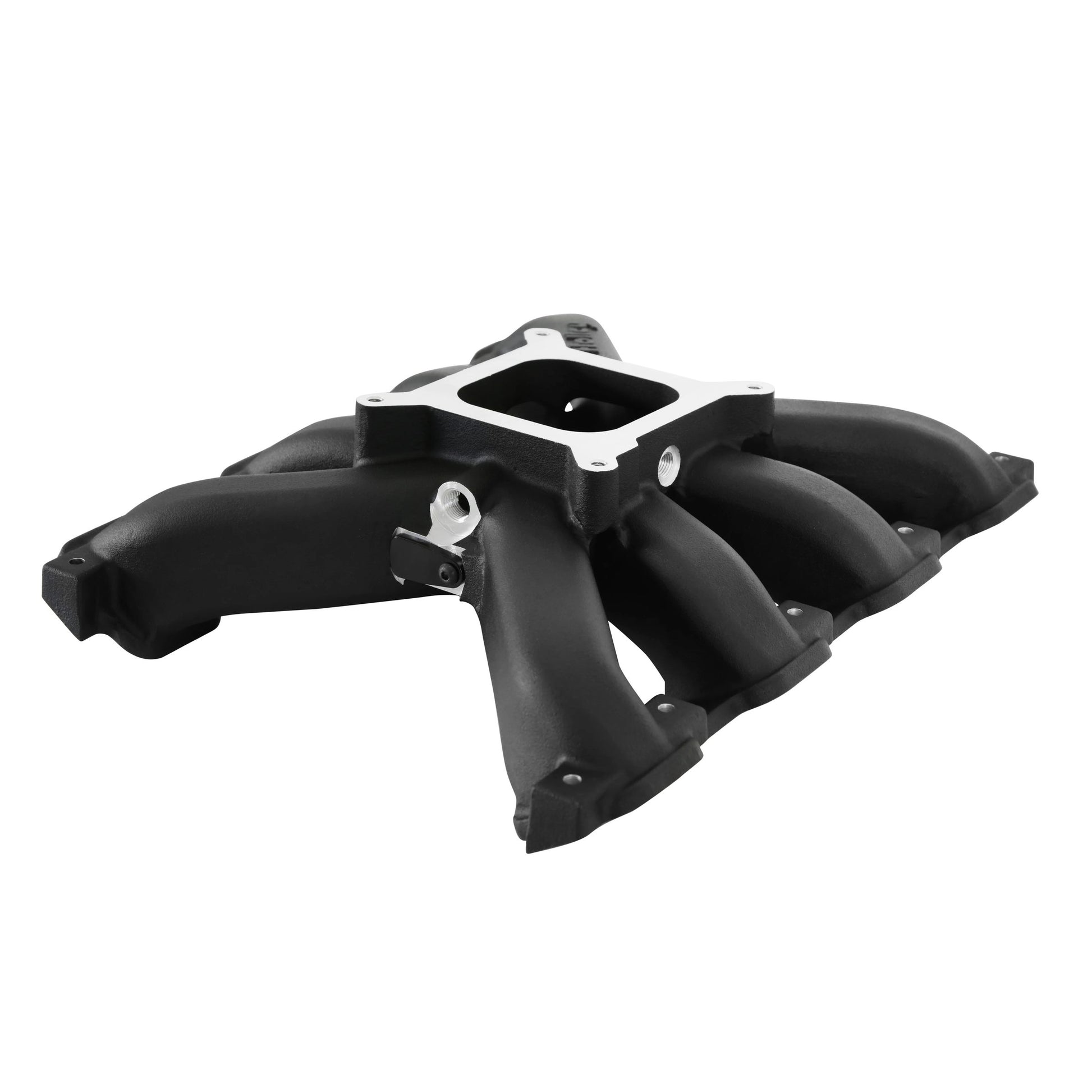

Holley Single Plane Intake - GM Gen V LT - Black
Fits most GM Gen V LT Engines with OE-type LT Cylinder Heads
Holley's new single-plane Gen V LT intake manifold was designed with an optimized runner layout and constant cross-sectional area, resulting in a broad torque curve with the best vehicle performance from 2500-7000 RPM.
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Weight - 11.5 lbs.
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Port size - 2.33" height x 1.27" wide

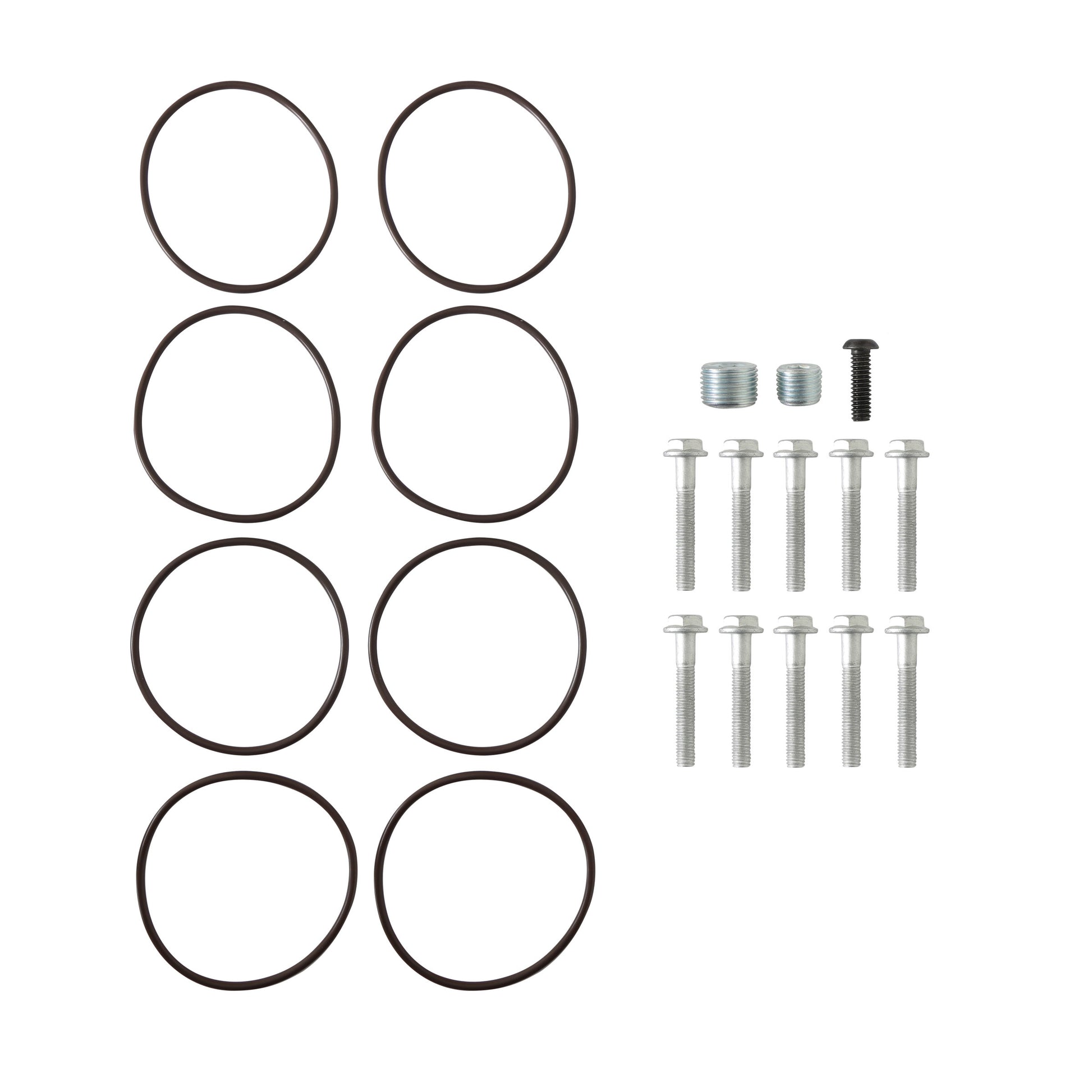

- Includes FKM o-ring intake to cylinder head gaskets
- 4150 Square bore flange
- 2500-7000 RPM power band
- Provides classic engine bay look of carb style intake
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
Basic Operating RPM Range: 2500-7000
Brand: Holley
Carburetor Flange: Square/4150
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Air and Fuel Delivery
CNC Ported: No
Color: Black
Construction: Cast
Cylinder Head Port Shape: Rectangle
Deck Height: 9.24
EGR Port: No
Emission Code: 3
Engine: GM Gen V LT1
Flange Style: 4150
Front Maximum Height: 5.417
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Fuel System Type: EFI
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Single Plane
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Black
Product Type: Intake Manifold
Rear Maximum Height: 5.417
Recommended Use: Forced Induction
Removable Runners: No
Removable Top/Lid: No
Single Or Dual Plane Type: Single Plane
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Vacuum Ports: Yes
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
