Holley 300-940 - Single Plane Intake - GM Gen V LT

Holley 300-940 - Single Plane Intake - GM Gen V LT

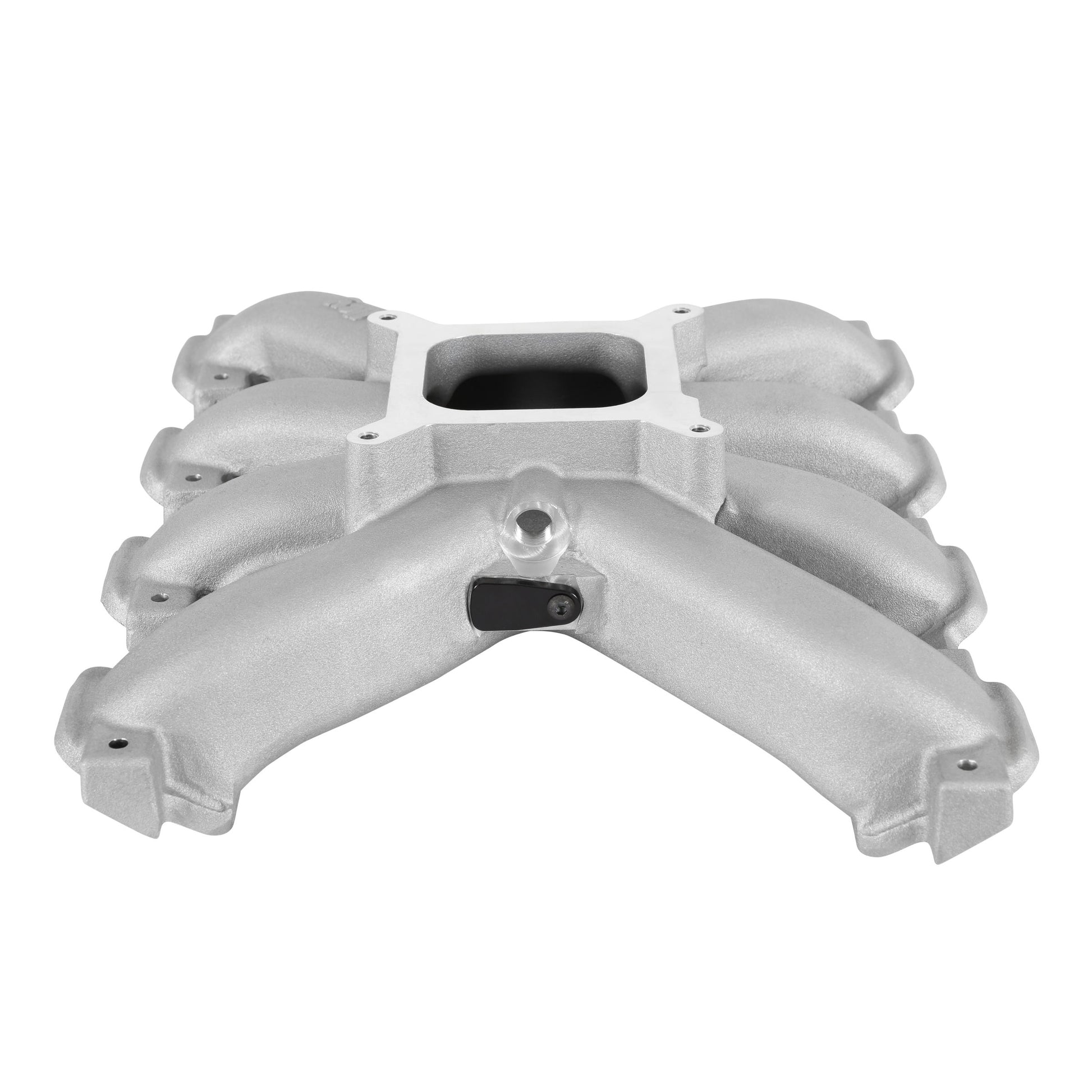

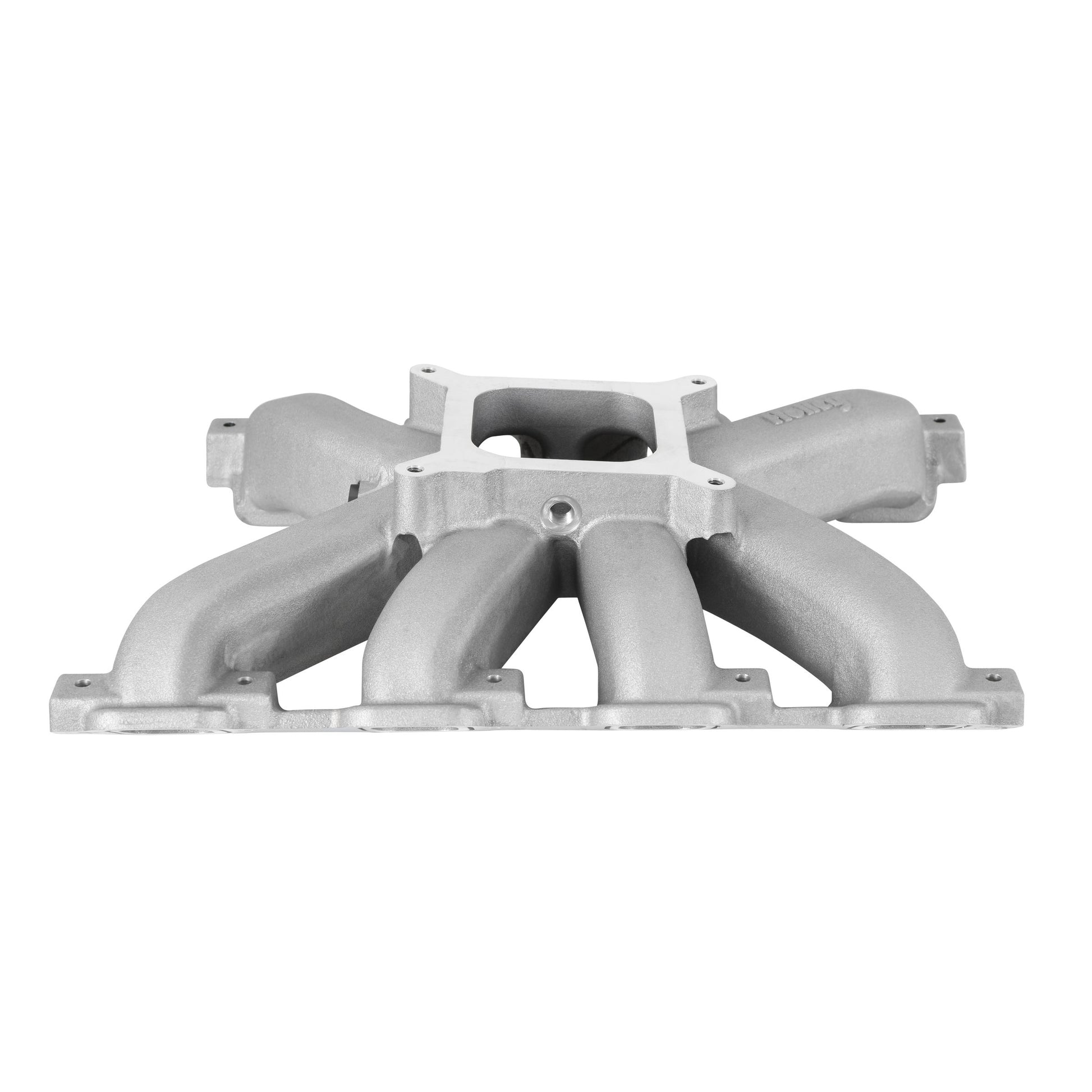

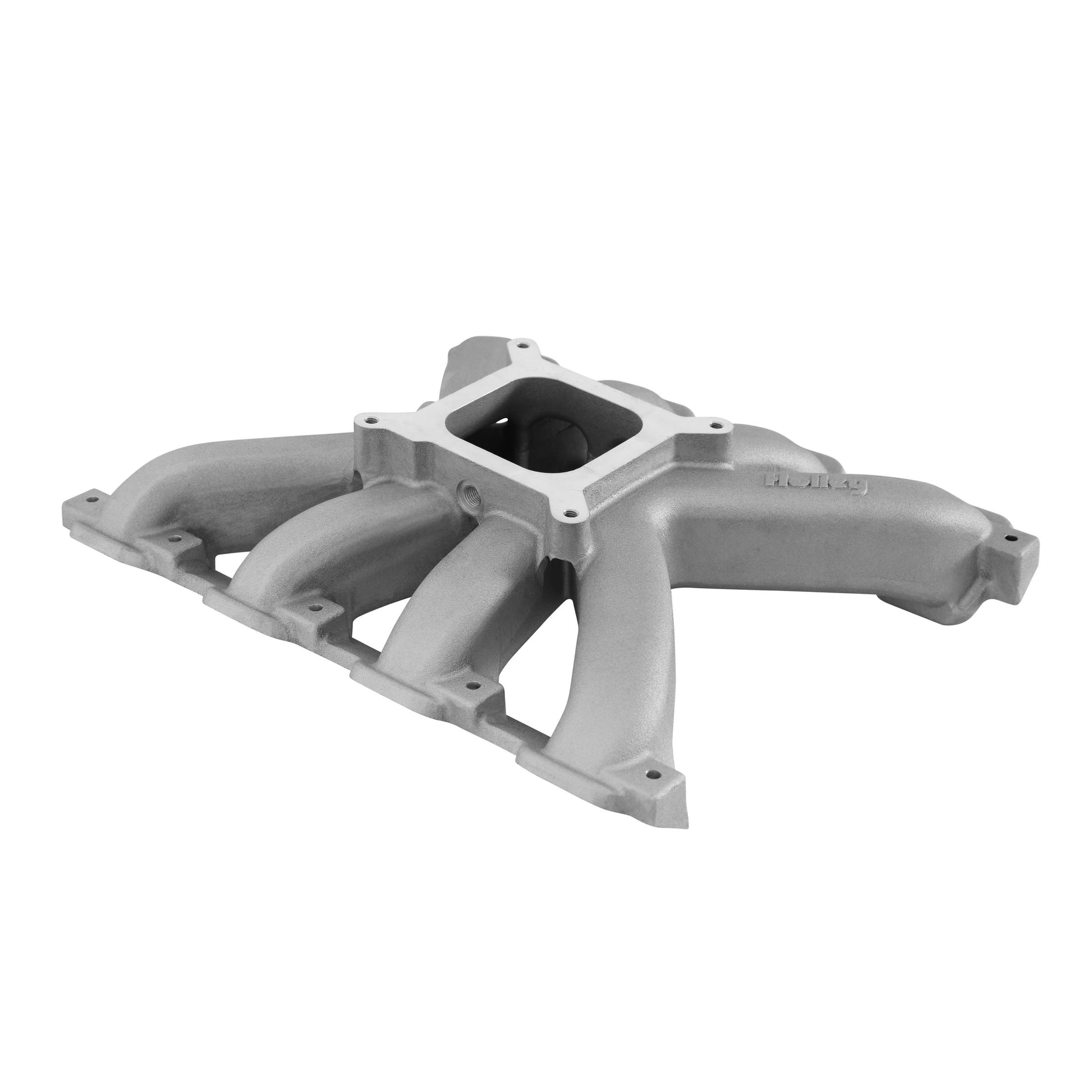

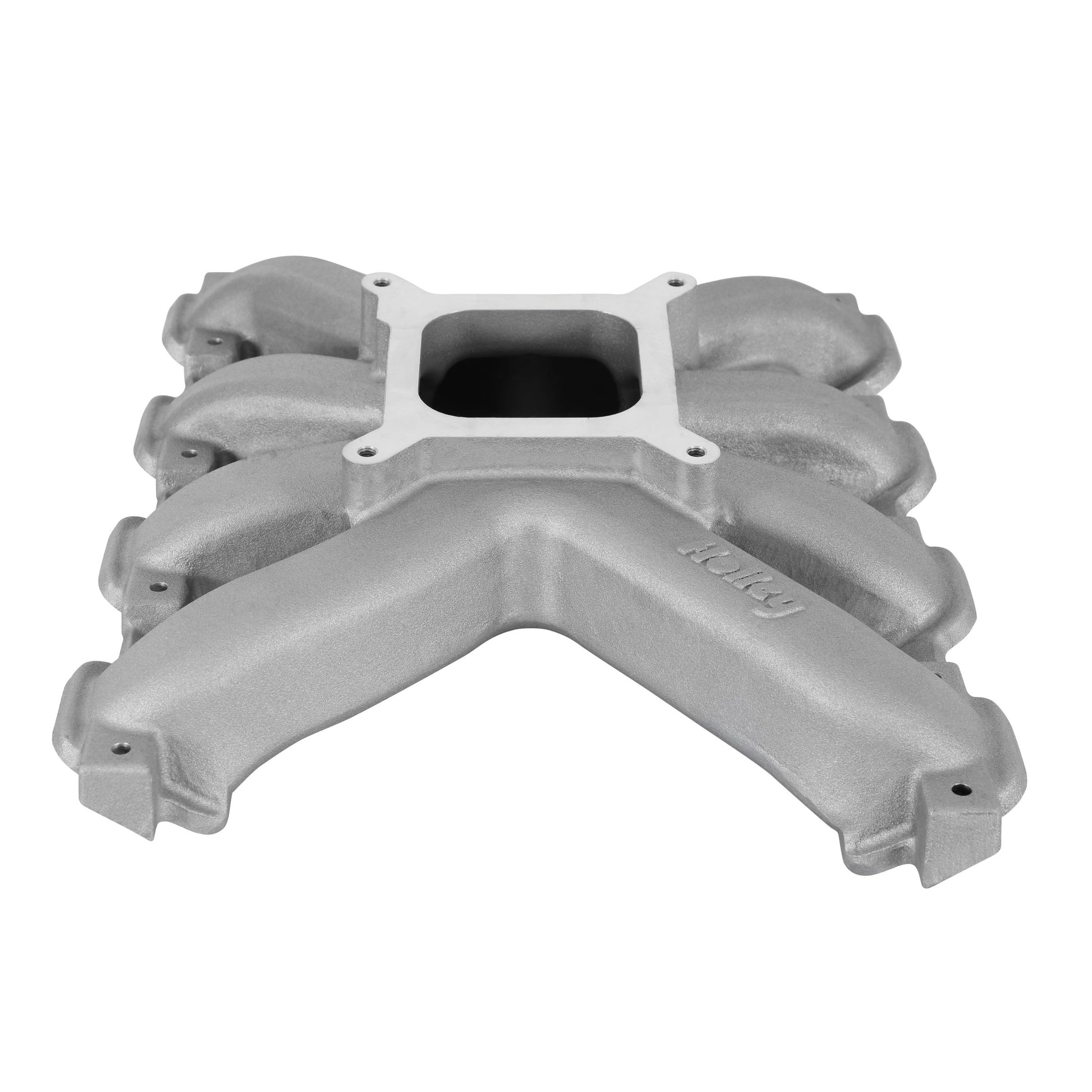

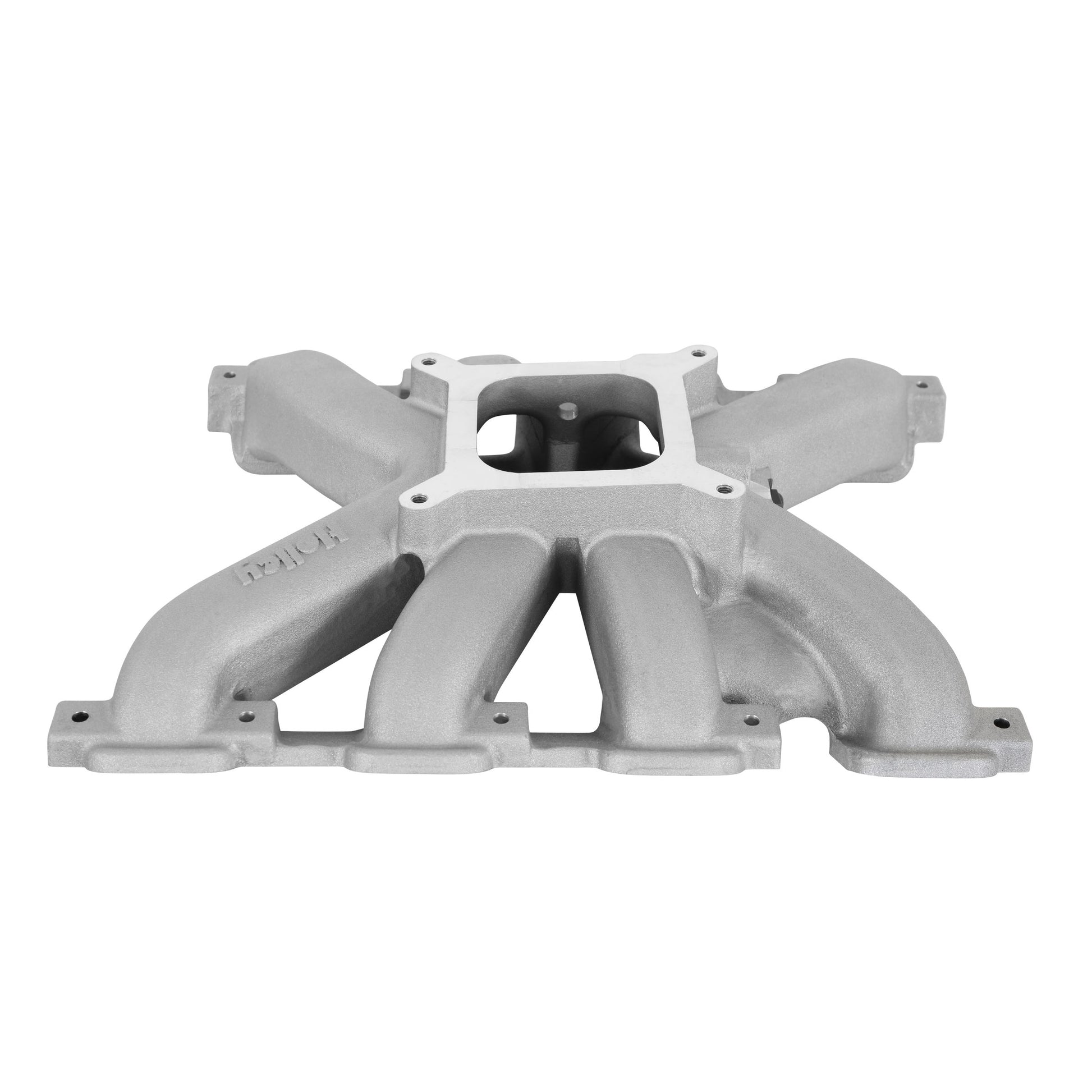

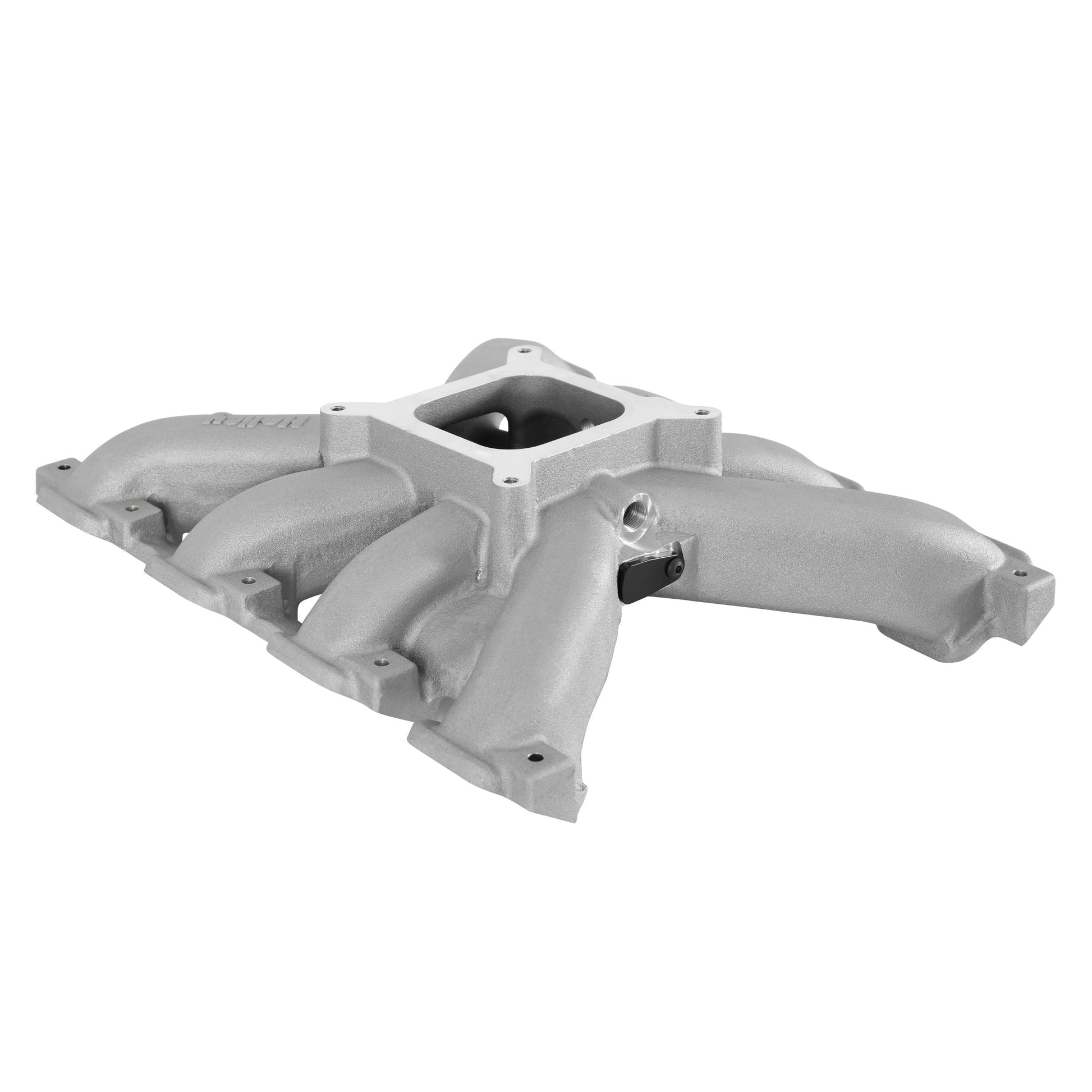

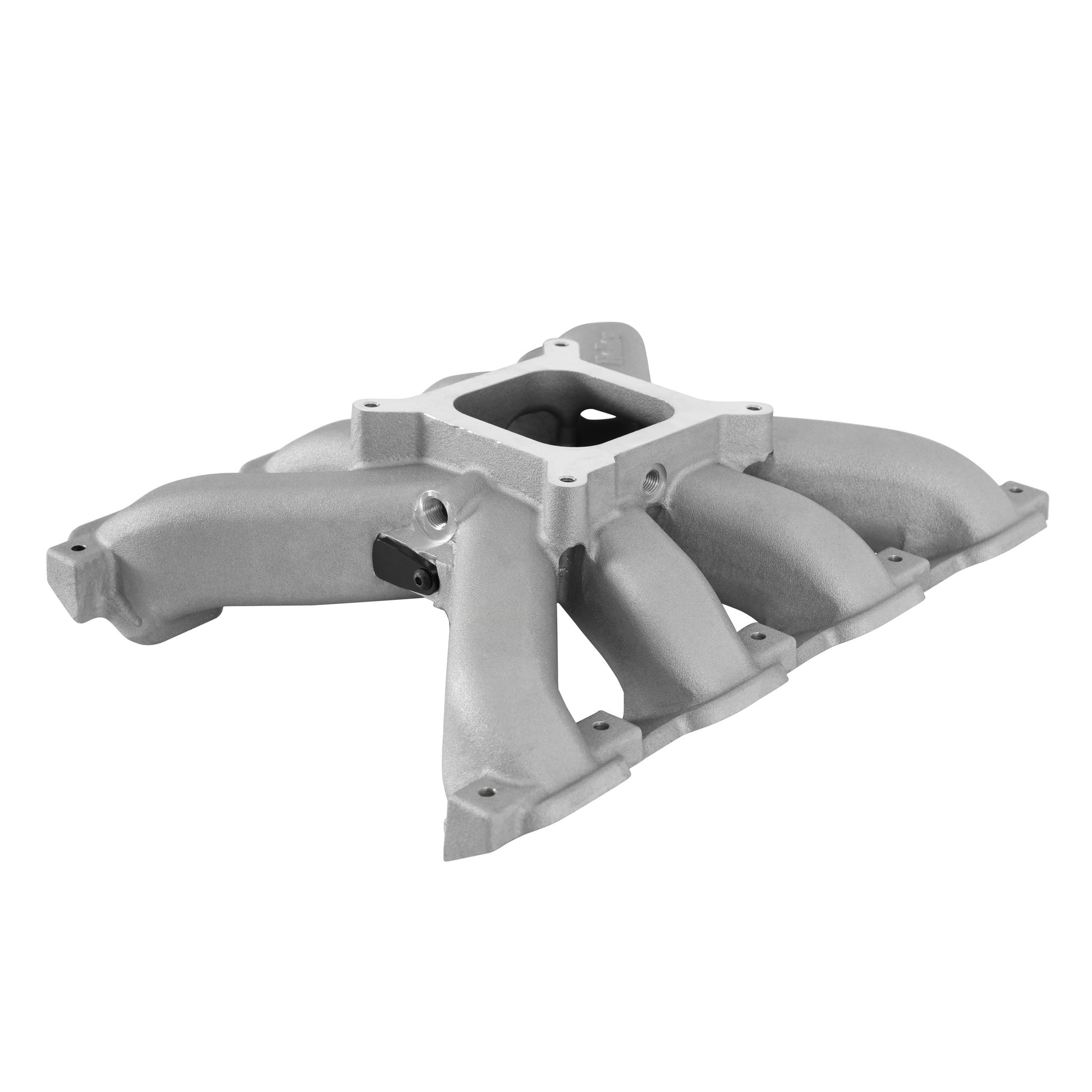

Intake Manifold - Square Bore - Single Plane - Rectangle Port - Aluminum - Natural - GM GenV LT-Series - Each

Fits most GM Gen V LT Engines with OE-type LT Cylinder Heads

This single-plane design provides the lowest throttle body flange height possible while providing maximum performance all the way to 7000 rpm. The cast aluminum construction makes this manifold a great choice for centrifugal blowers, turbochargers, or NOS applications. These intake manifolds are sold for pre-emissions control applications only and will not accept stock components and hardware.

• Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality

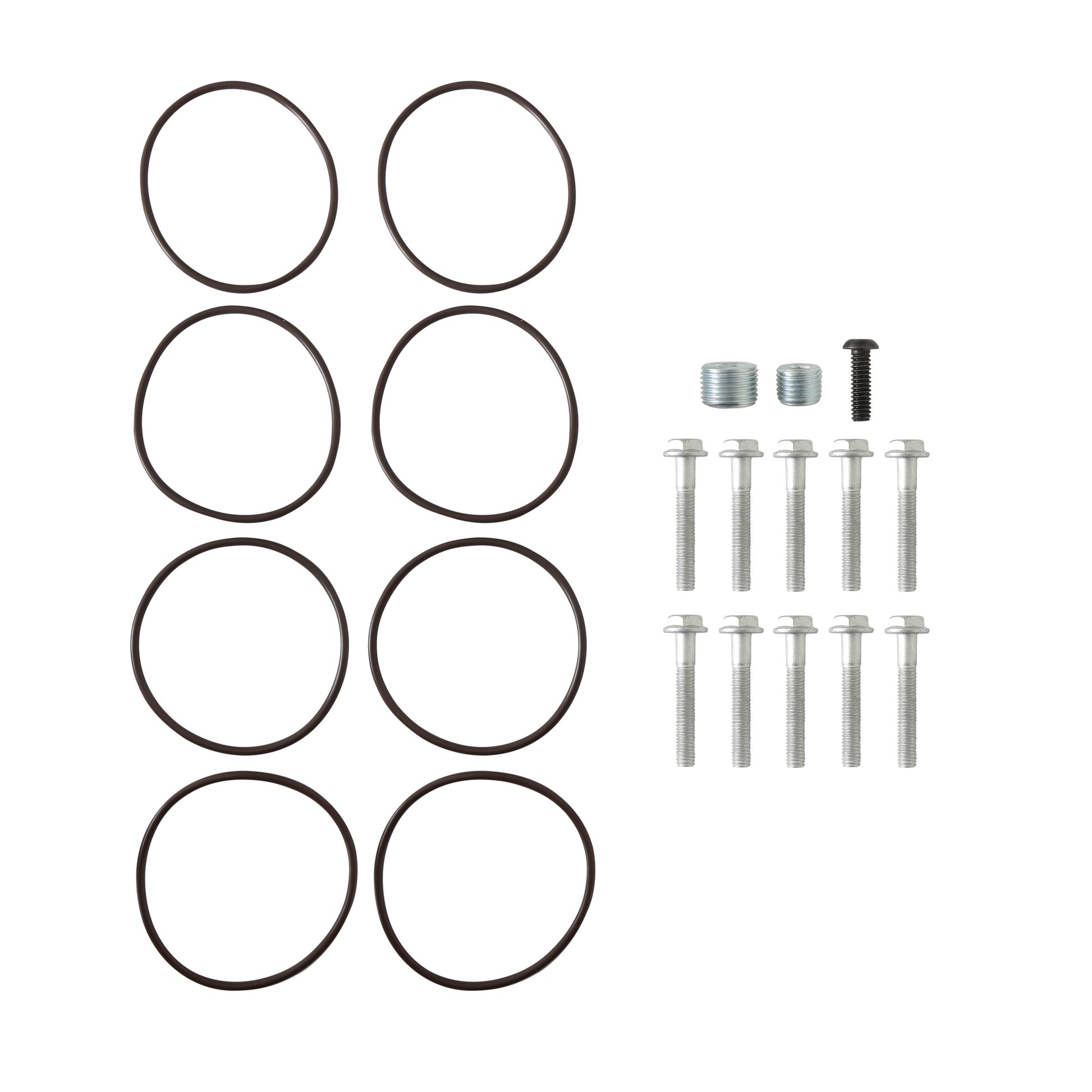

• Includes FKM o-ring intake to cylinder head gaskets
• 2500-7000 RPM power band
• 4150 / 4160 Square bore flange
• Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
• Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
• Provides classic engine bay look of carb style intake
• Minimum carb flange height - fit in vehicles with minimum hood modifications
• Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange

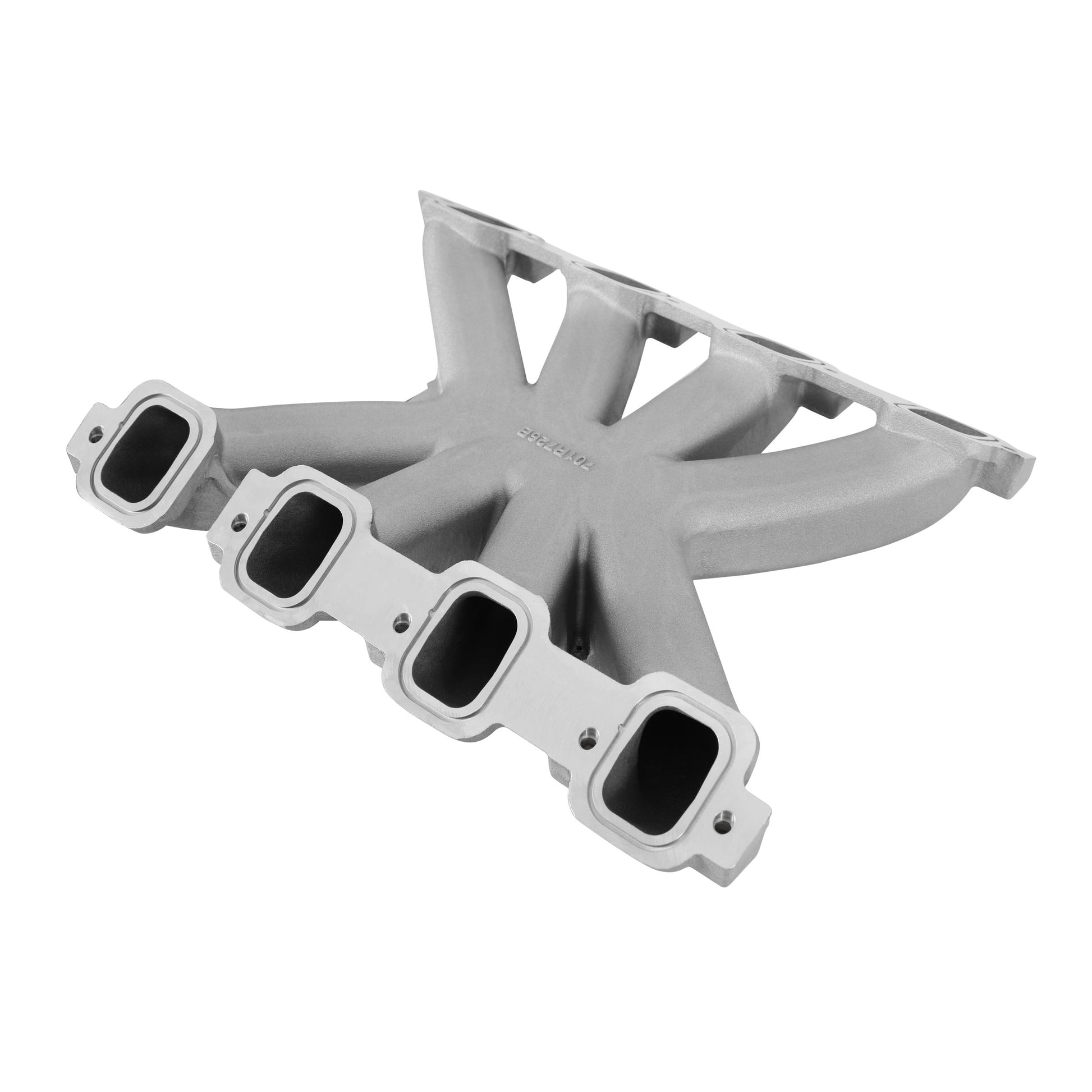

• Port size - 2.33" height x 1.27" wide
• Weight - 11.5 lbs.
