Holley - 300-930BK

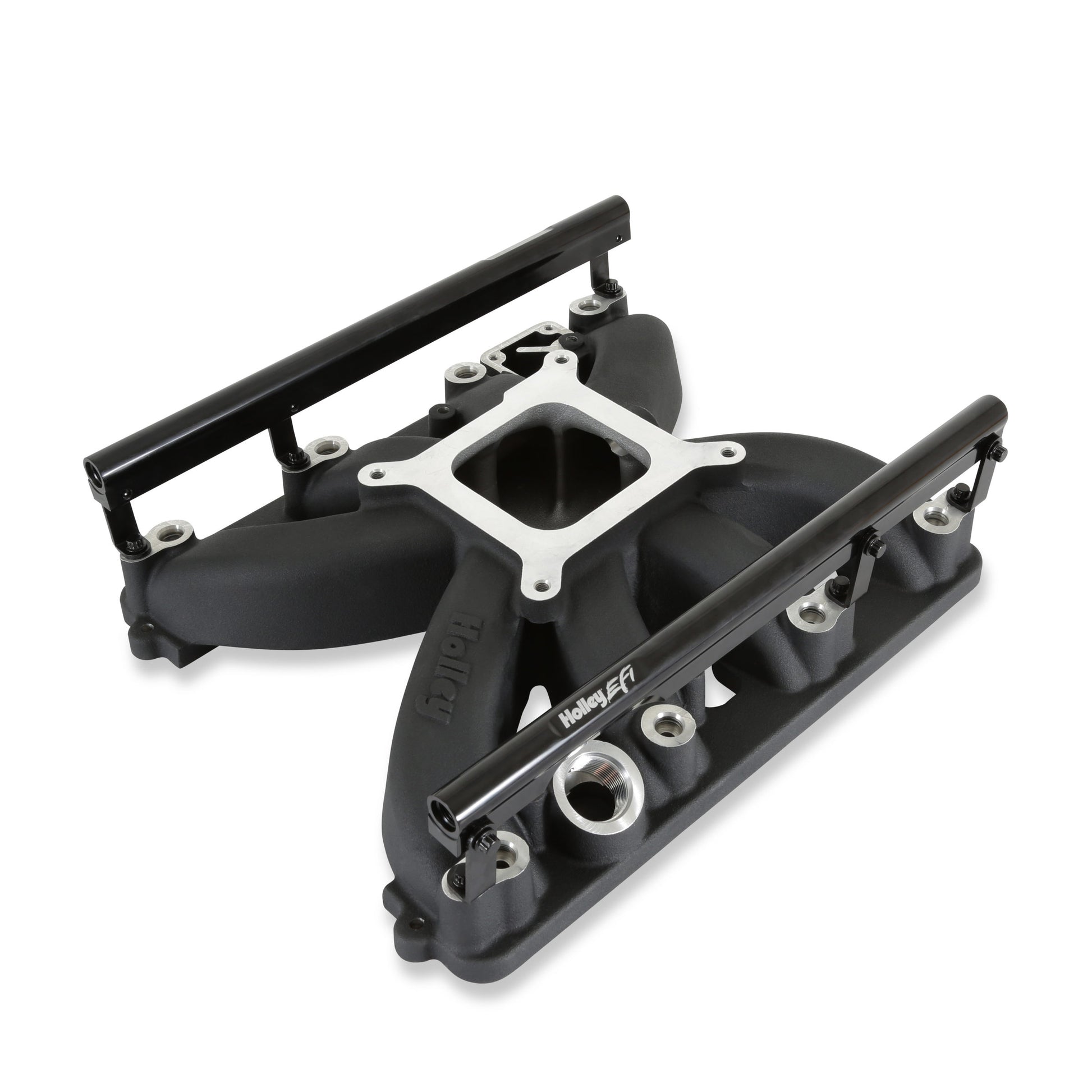

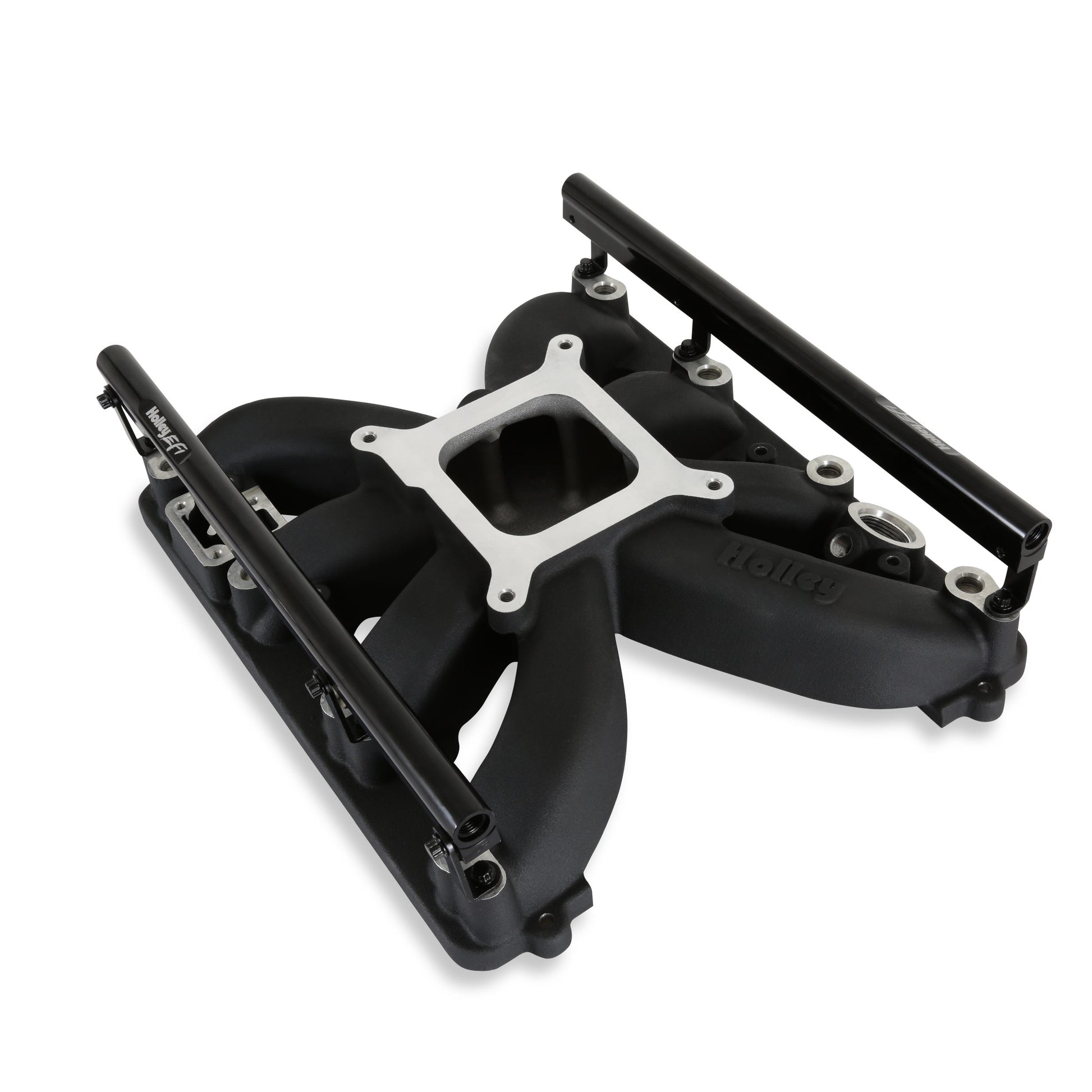

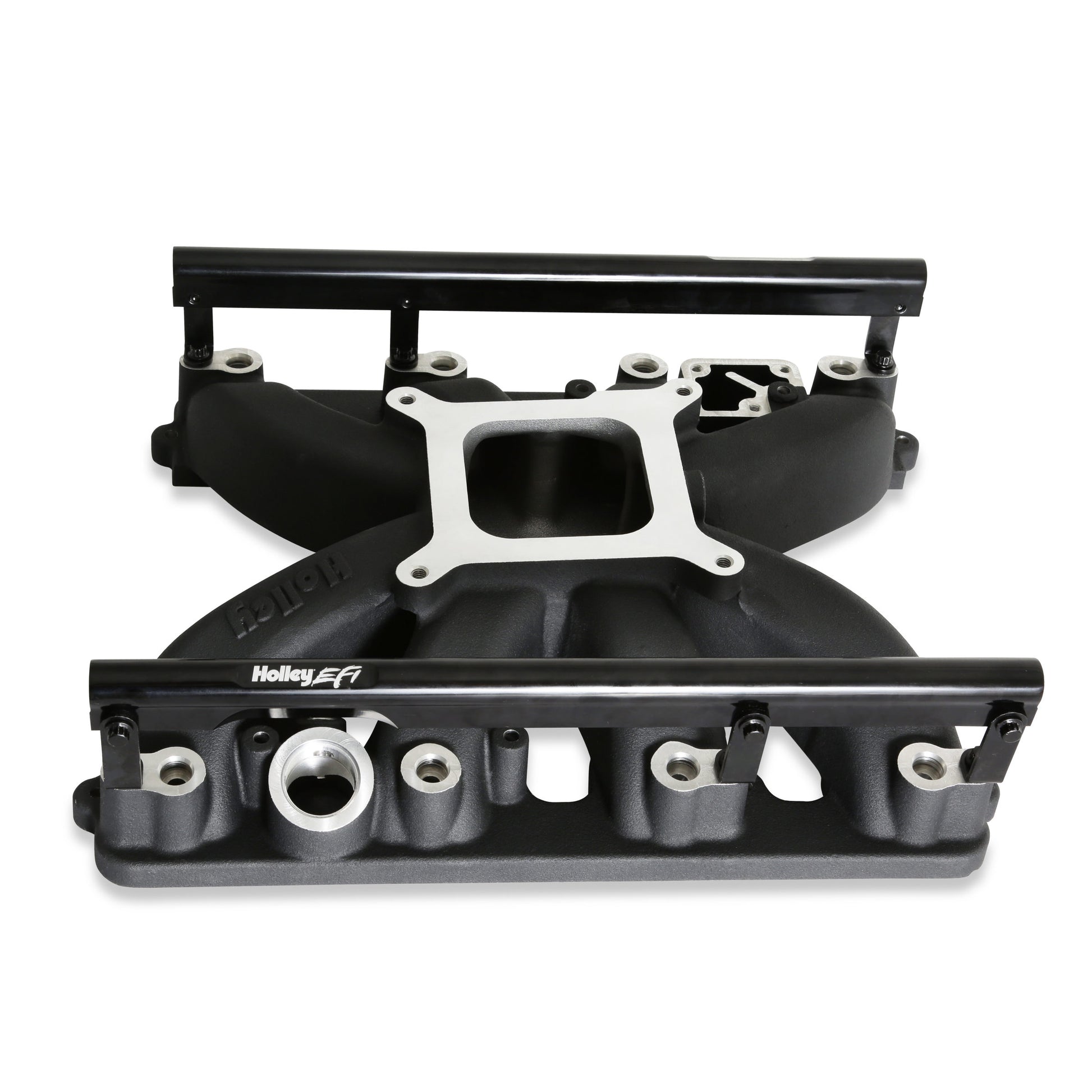

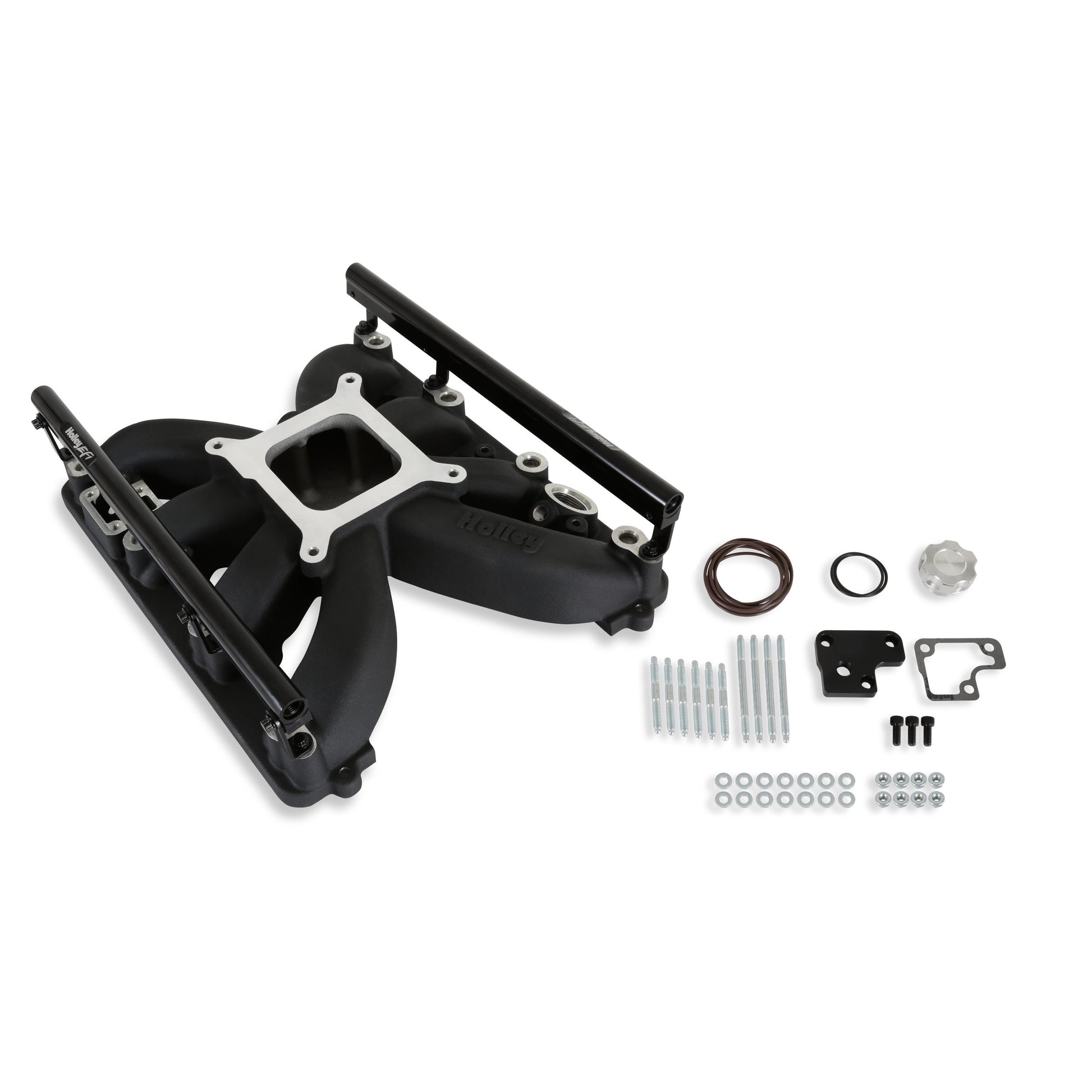

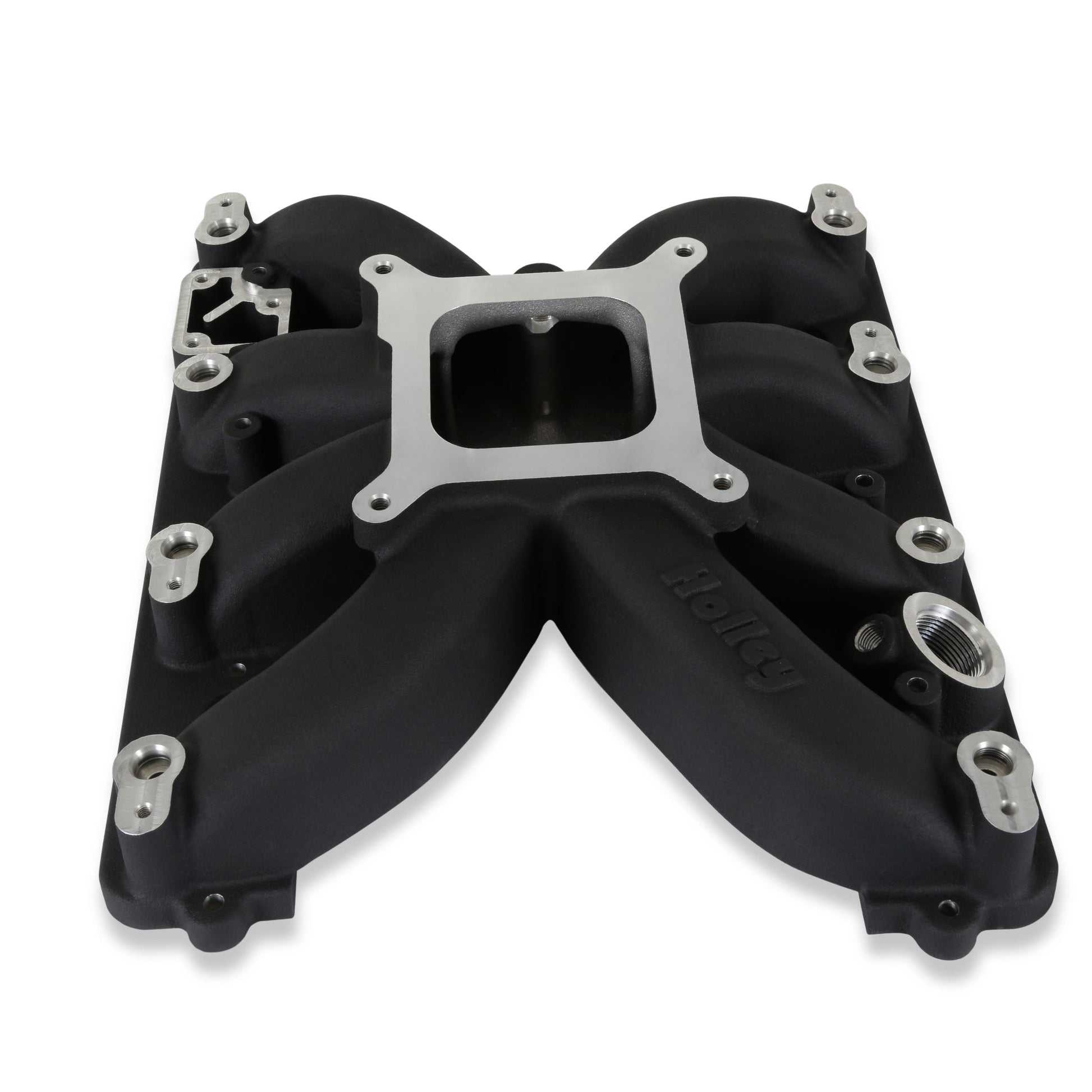

Intake Manifold - Square Bore - Single Plane - Fuel Rails Included - Aluminum - Black Powder Coat - Mopar Gen III Hemi - Kit
fits 2009-2023 5.7-liter, 2005-2010 6.1-liter and 2011-2023 6.4-liter Chrysler Gen III Hemi engines.
300-931 and 300-931BK have a 4150 flange to accept square bore carburetors or a Sniper EFI. They are machined from castings without the bosses for fuel injectors for a cleaner look.
- Minimum carb flange height for maximum clearance to hood
- 4150 type throttle/carb flange
- Cast aluminum construction. Great for turbocharger, centrifugal blower or NOS power adders

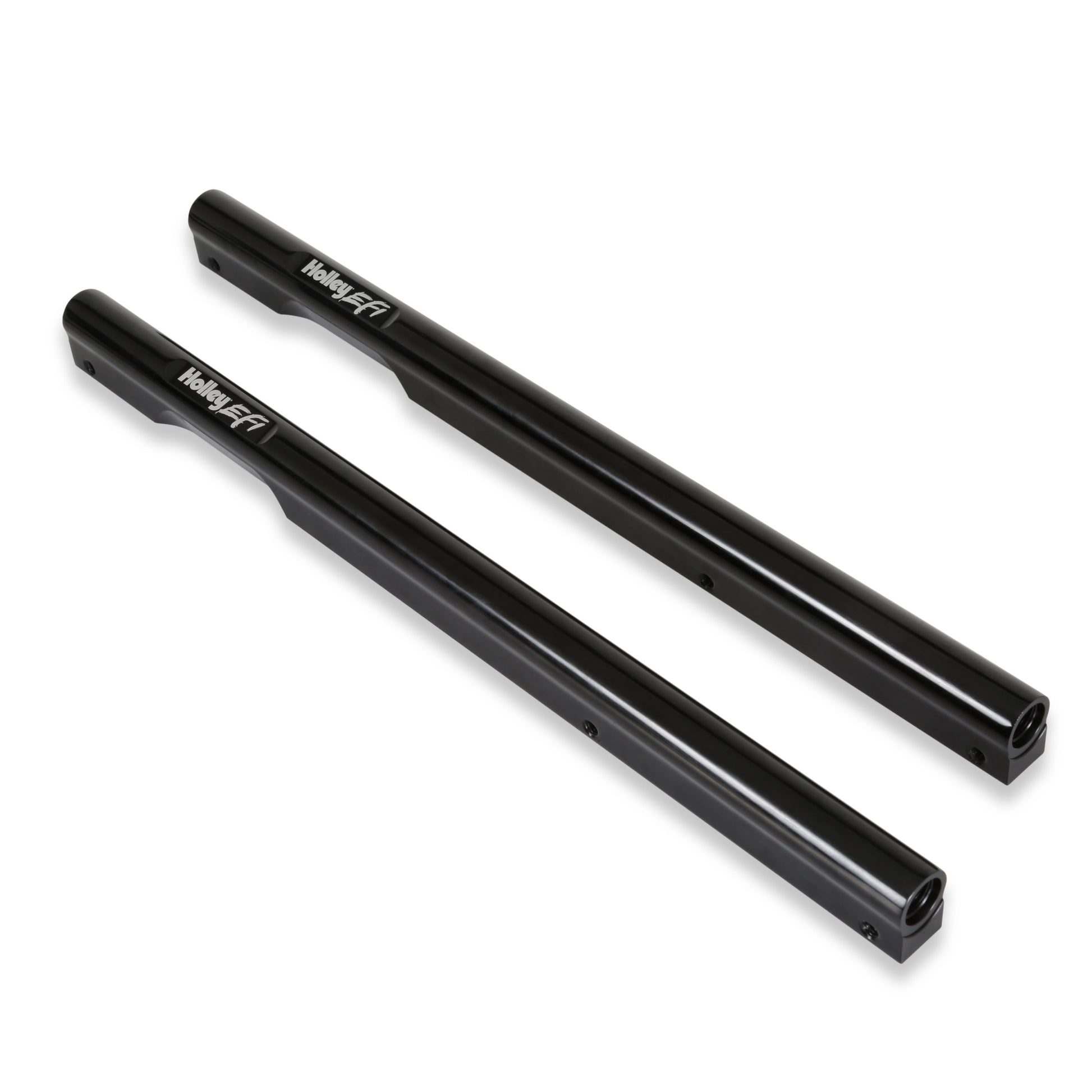

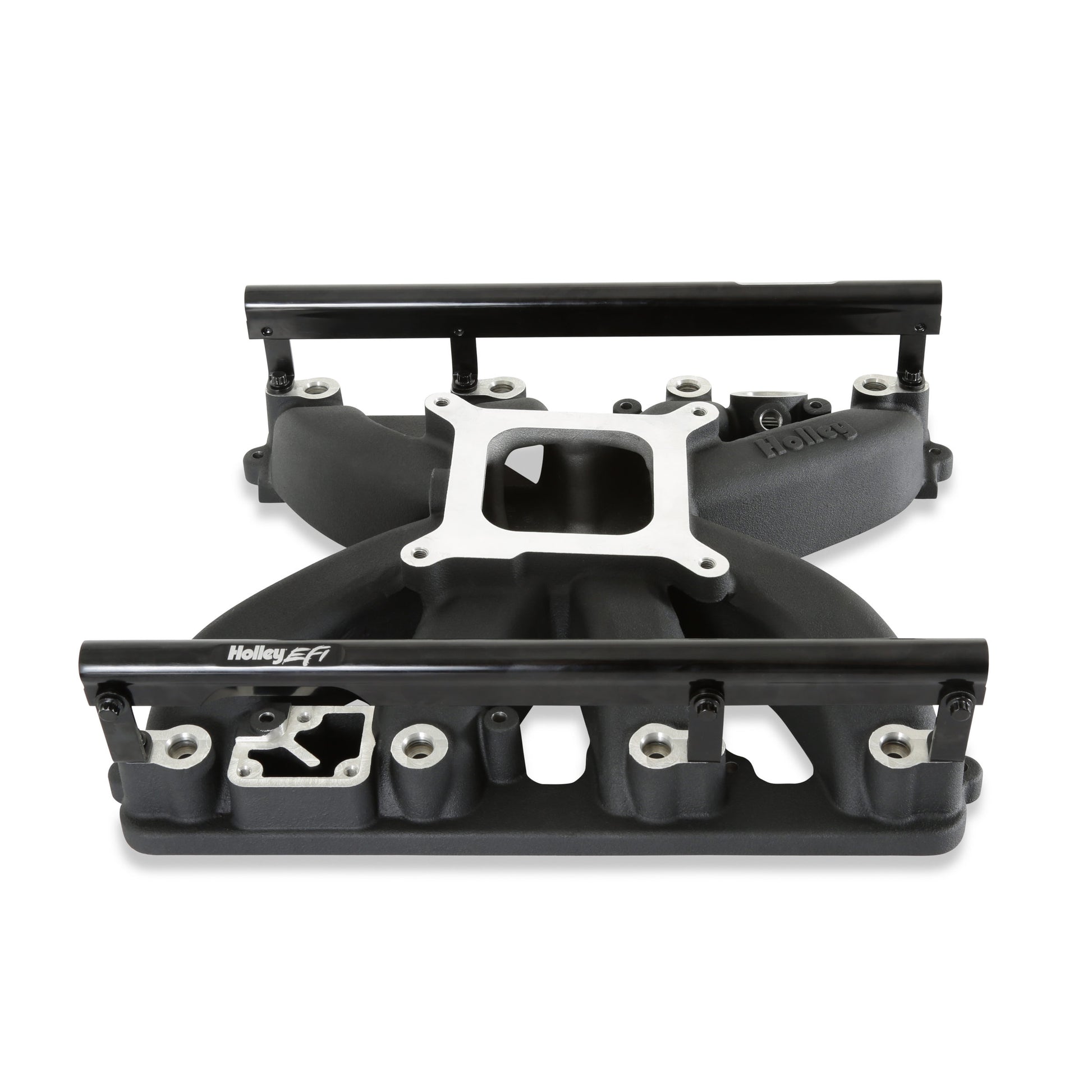

- Billet fuel rails included with 300-930, 300-930BK
- Unique casting for 300-931, 300-931BK without injector bungs for clean appearance
- Height to throttle valve flange in front is 3.31-inch, rear is 4.25-inch

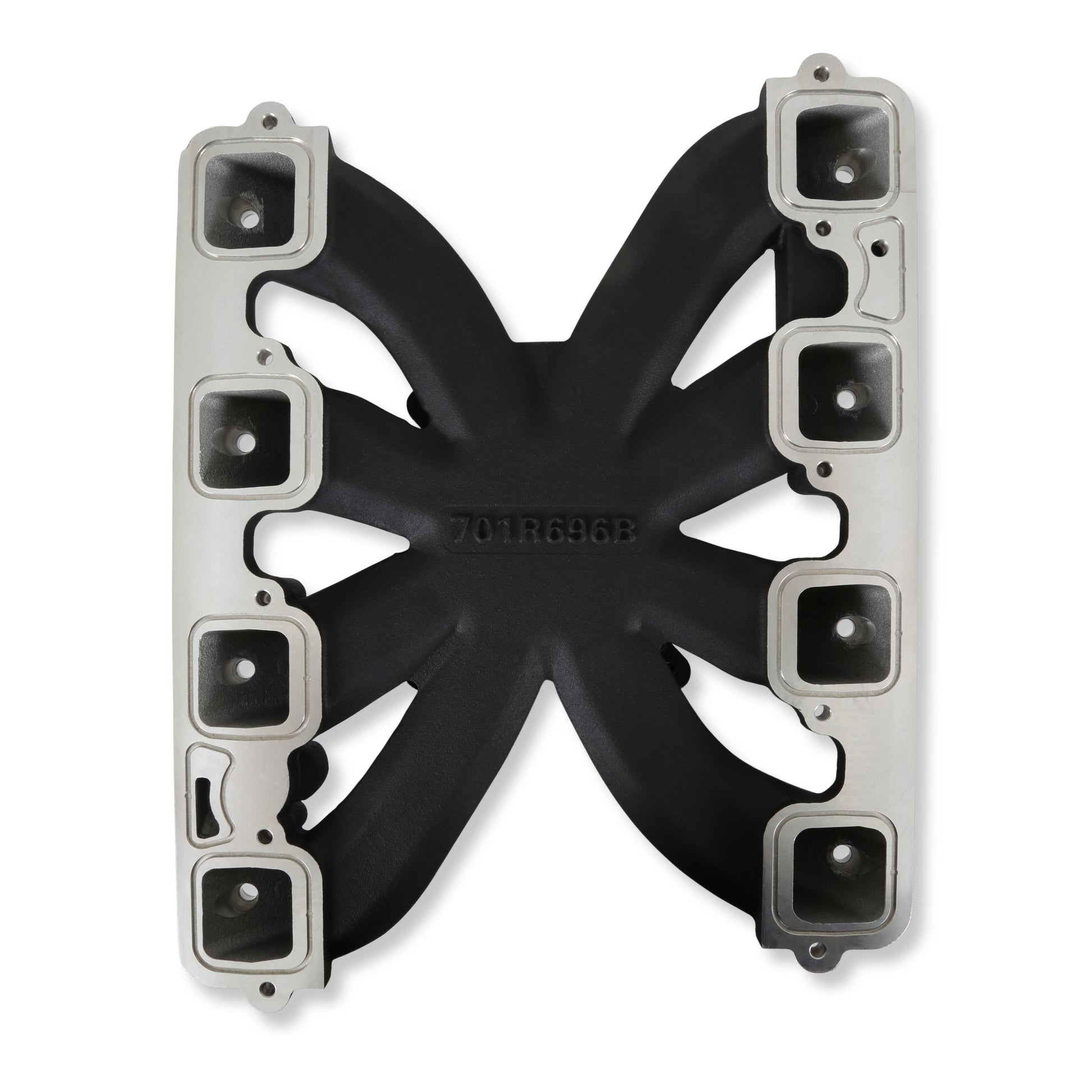

- Port size: 1.72-inches tall, 1.75-inches wide

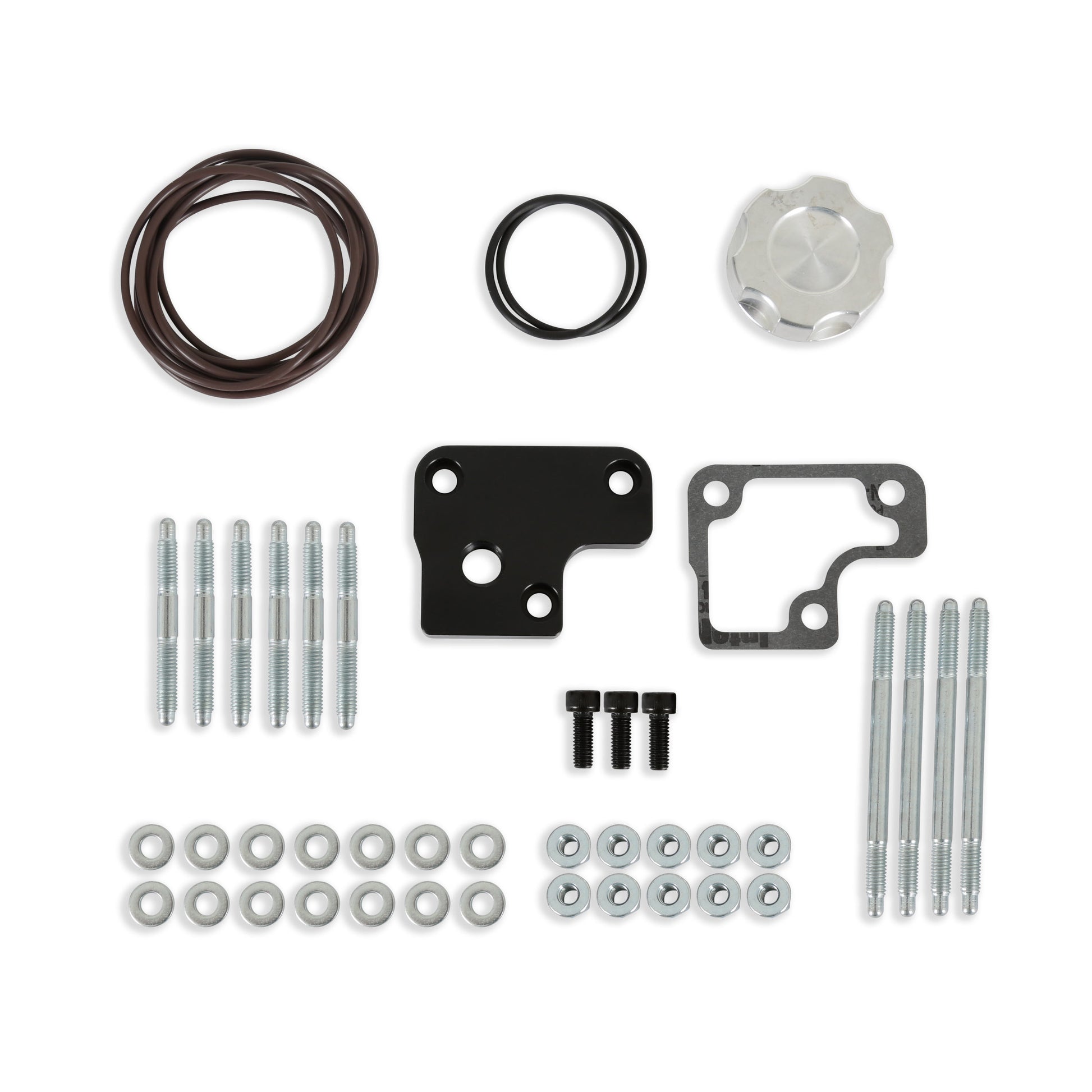

- Billet aluminum oil fill cap included
- Designed for use with either Bosch EV1 or Gen III Hemi OEM fuel injectors
- O-ring seals around ports
Basic Operating RPM Range: 2500-7500
Brand: Holley
Carburetor Studs Included: No
Category: Engine
Construction: Cast
EGR Port: No
Emission Code: 3
Engine: GEN 3 HEMI
Finish: Black
Fuel Injectors Included: No
Fuel Rail(s) Included: Yes
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Black
Product Type: Intake Manifold
Removable Runners: No
RPM Power Band: 2500-7500
Single Or Dual Plane Type: Single Plane
Sub Category: Cylinder Block Components
Throttle Body Included: No
Warning: California Proposition 65
