Holley - 300-295
Single Plane 4500 Carbureted Split-Design Race Intake Manifold - GM LS1/LS2/LS6
Race Intake Manifold; Carbureted; Fits W/GM LS1/LS2/LS6 Engines; 4500 Dominator Flange; 7.320 in. Front H.; Split Single Plane; Satin Finish; Silver; w/Fuel Rails;
The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.

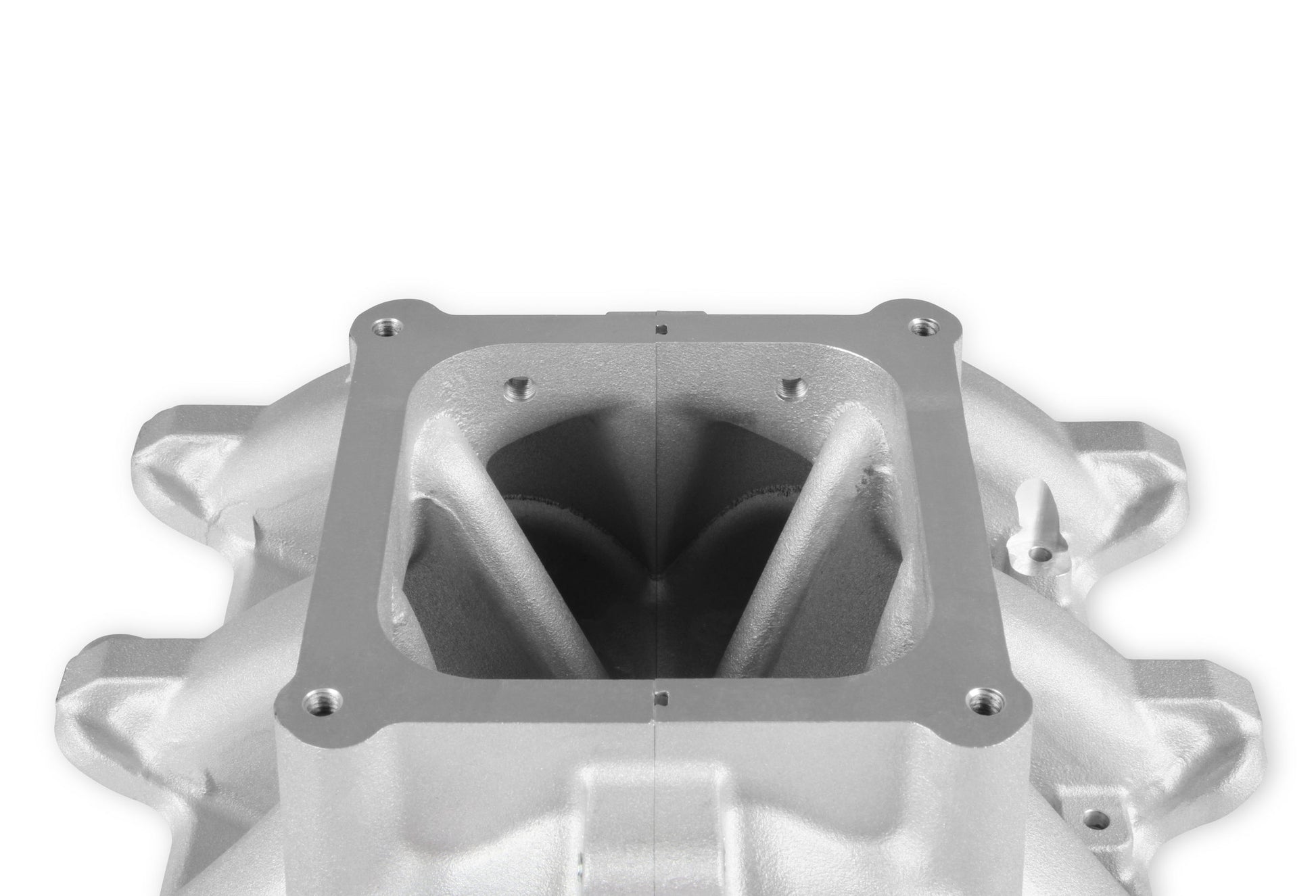

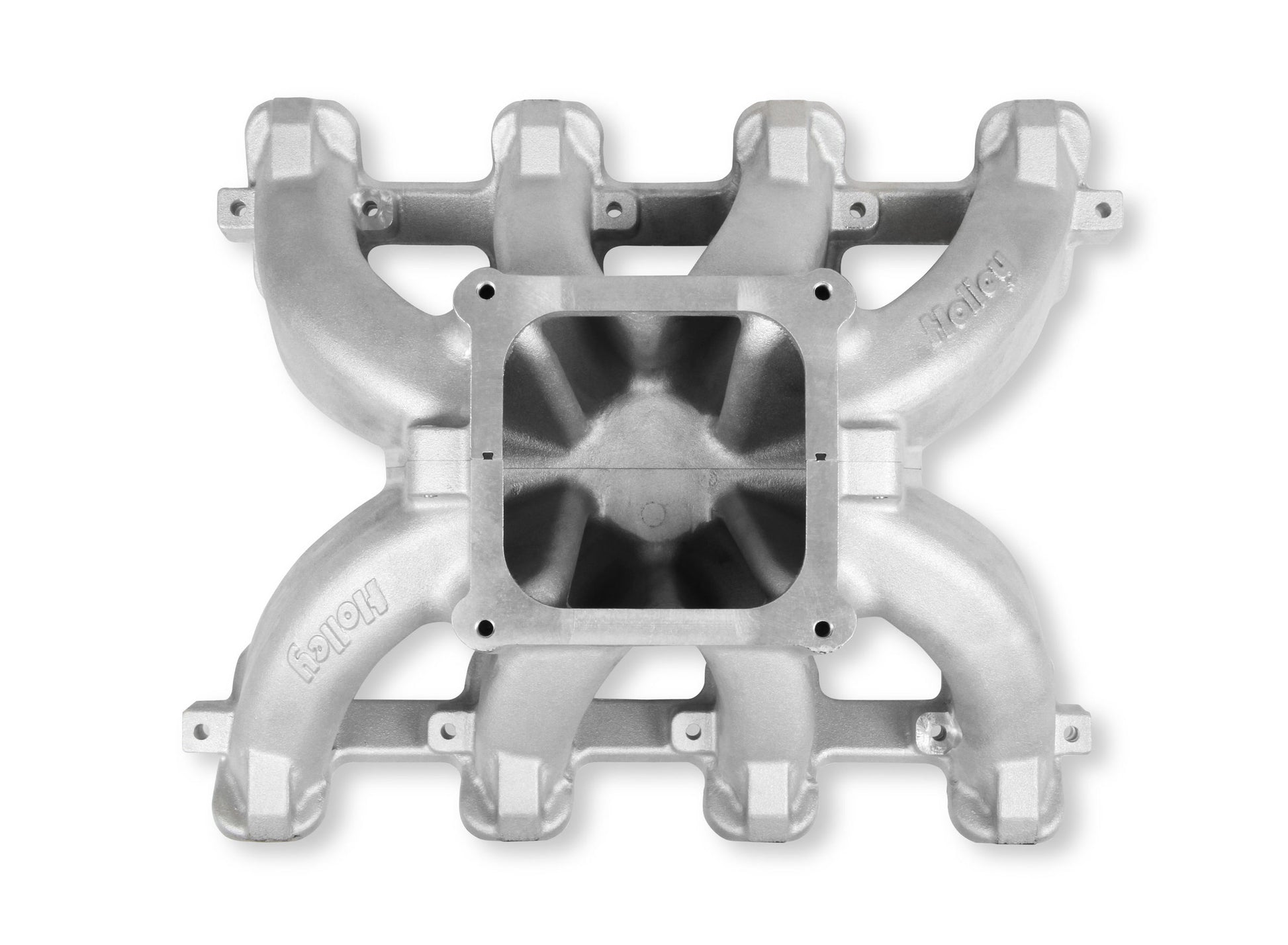

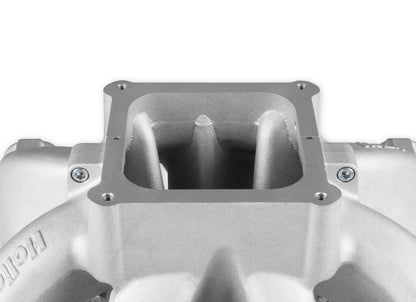

- Maximum performance 4500 Dominator flange race design with hood clearance consideration
- Lighter than other split race intakes

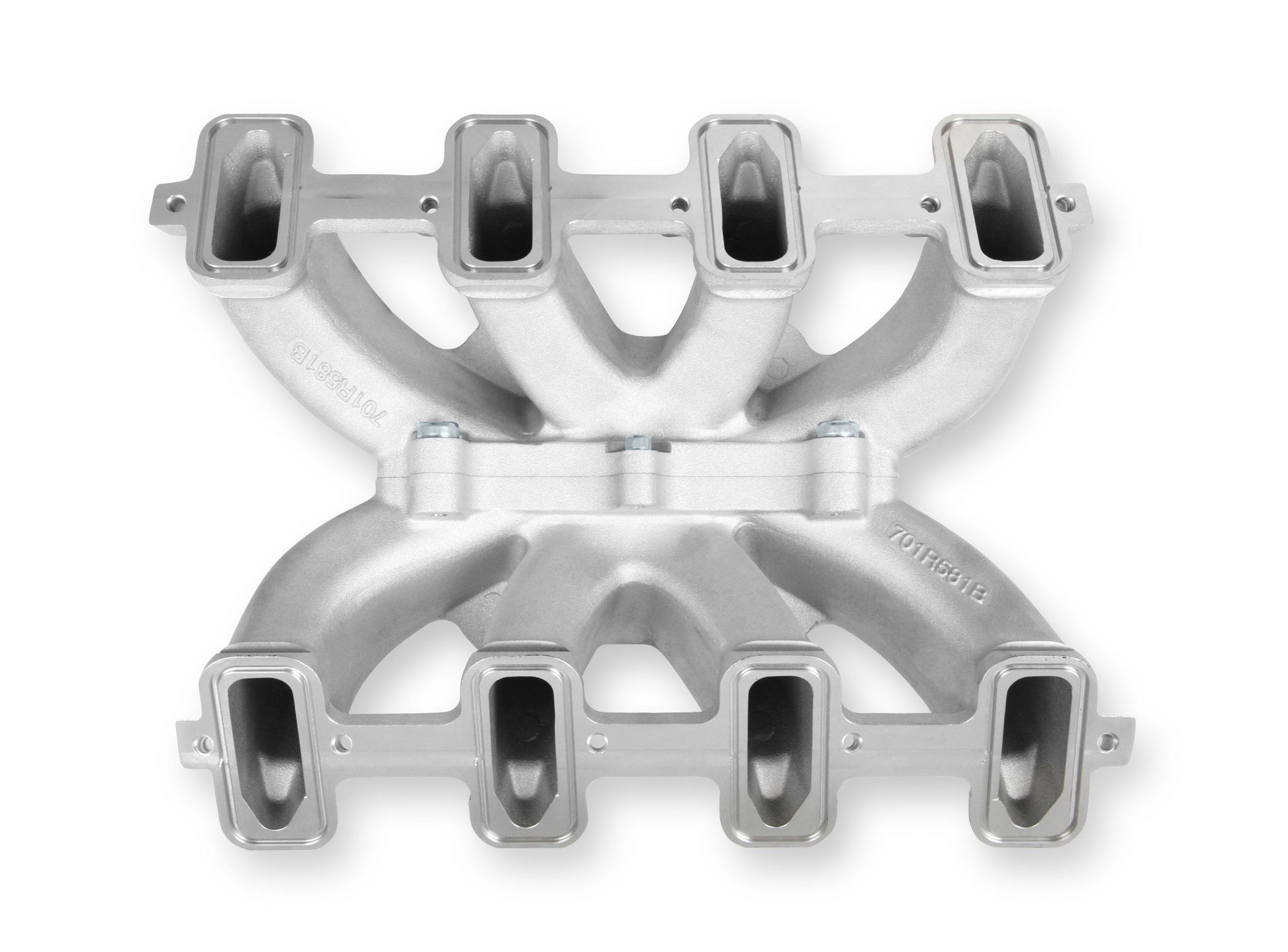

- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes
- Captured O-ring seals at head ports and plenum split
- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
- Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
