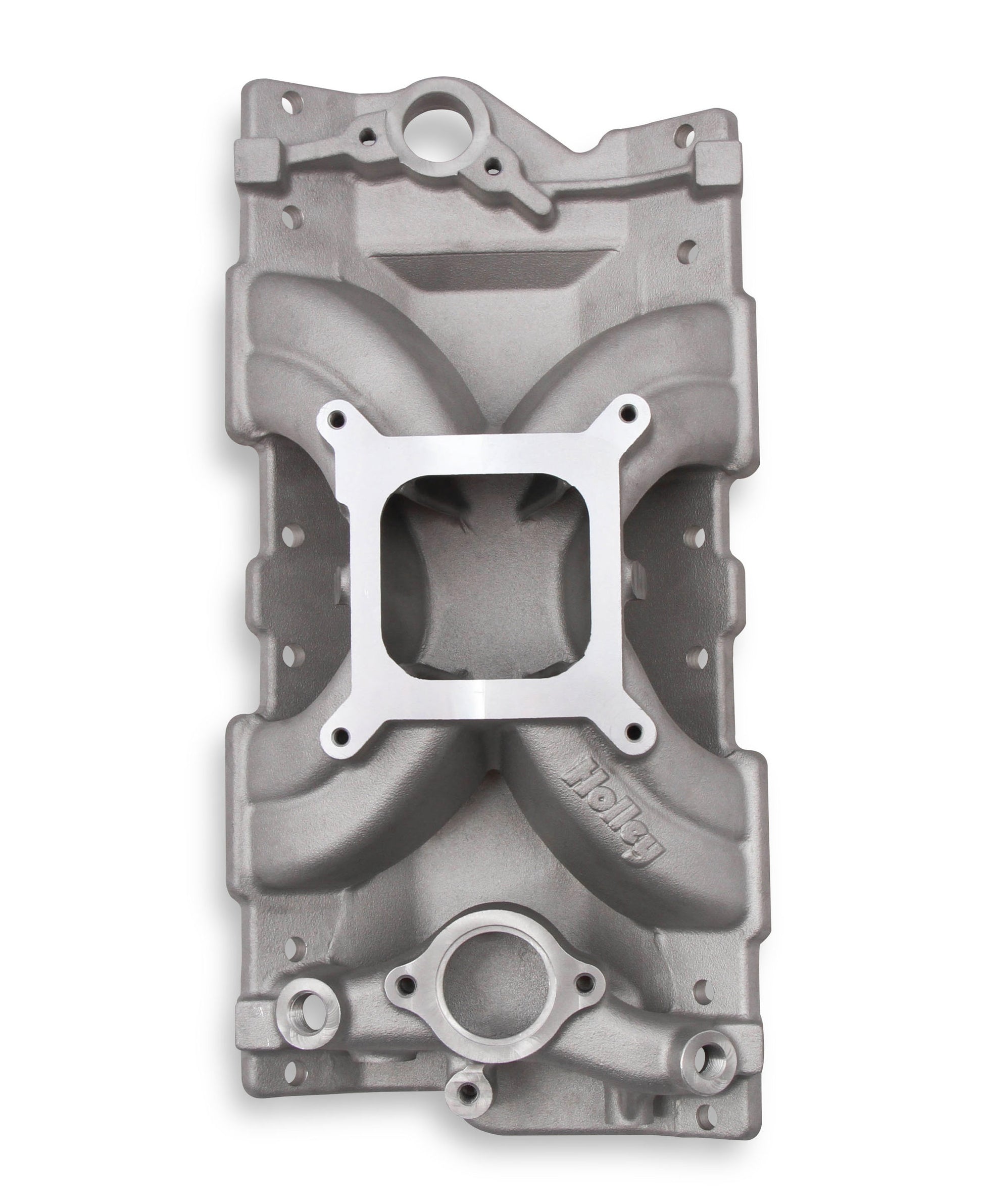

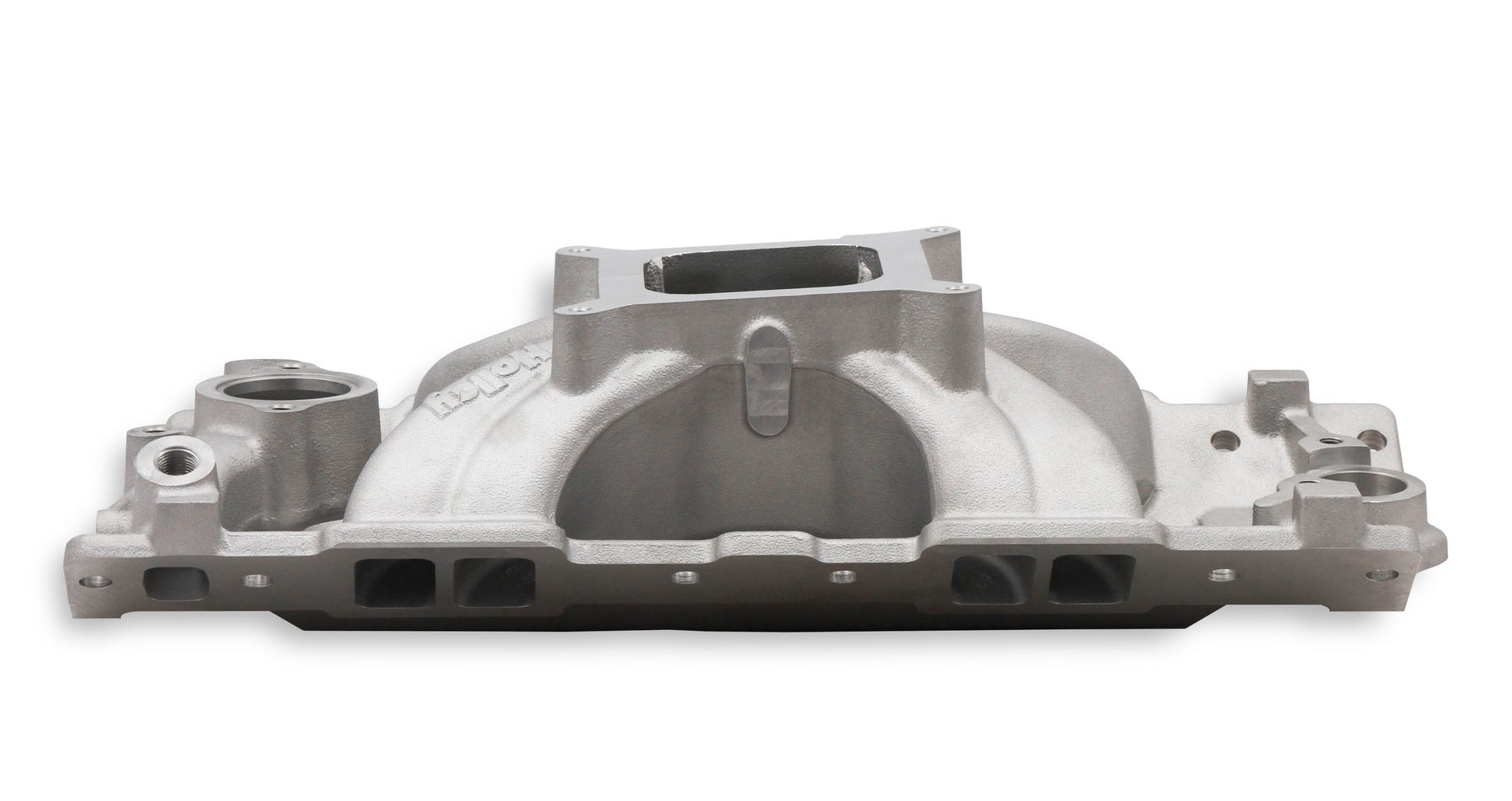

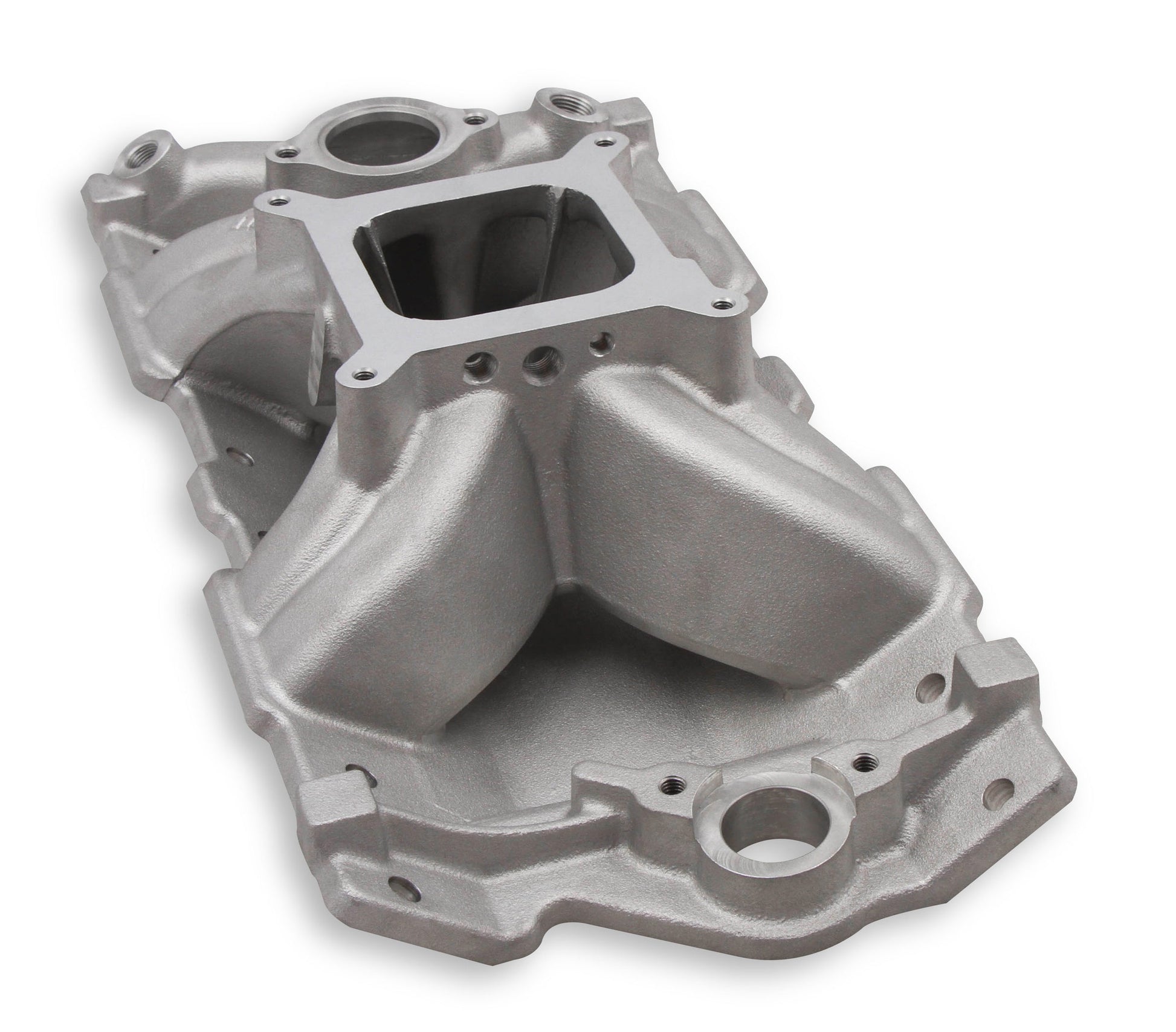

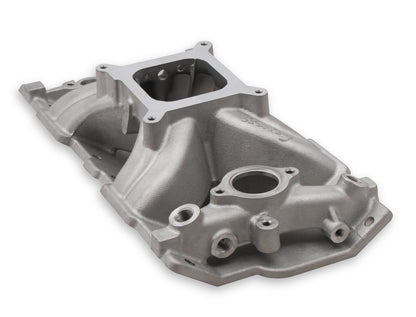

Holley 300-261 - Single Plane Intake Manifold Kit

Holley 300-261 - Single Plane Intake Manifold Kit

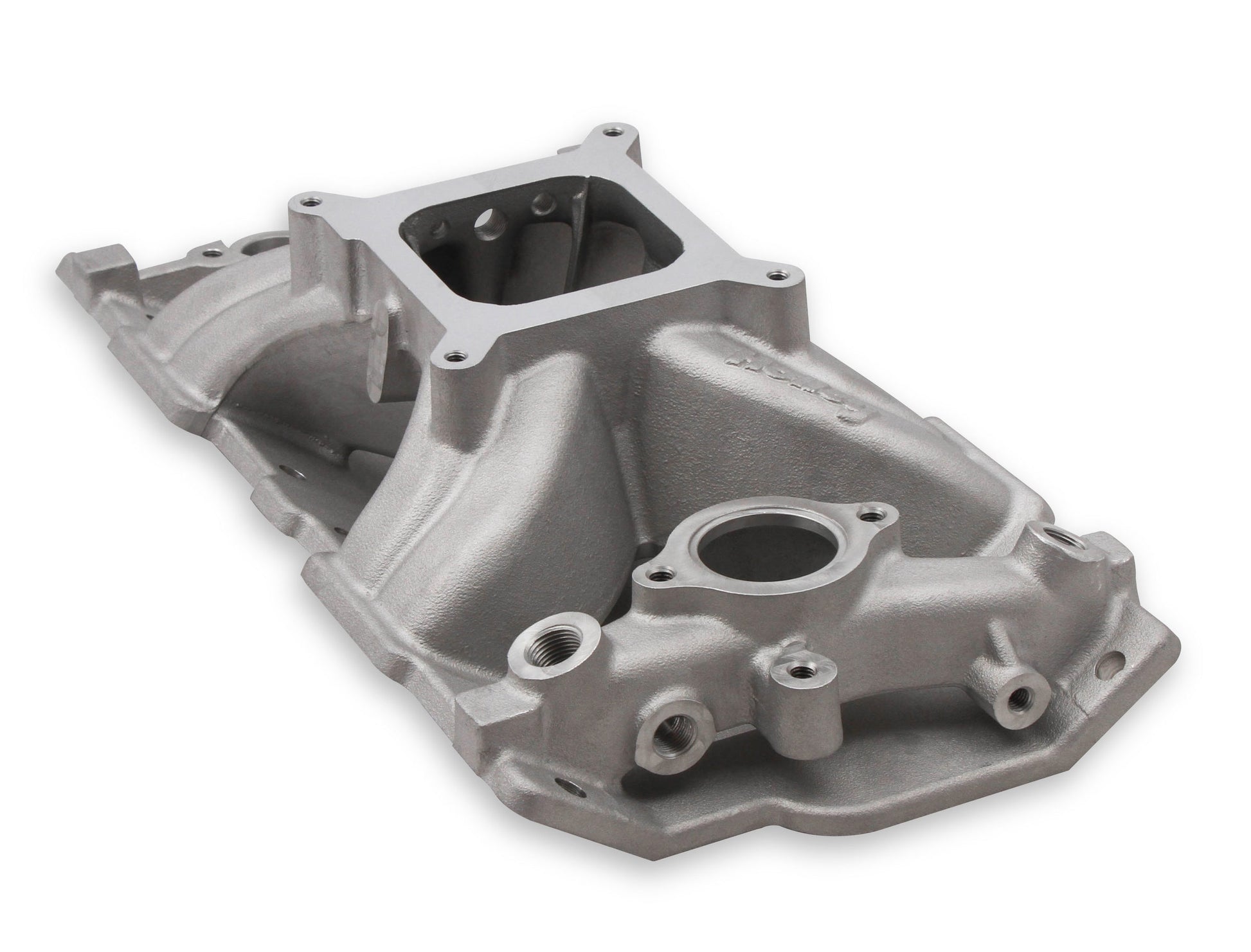

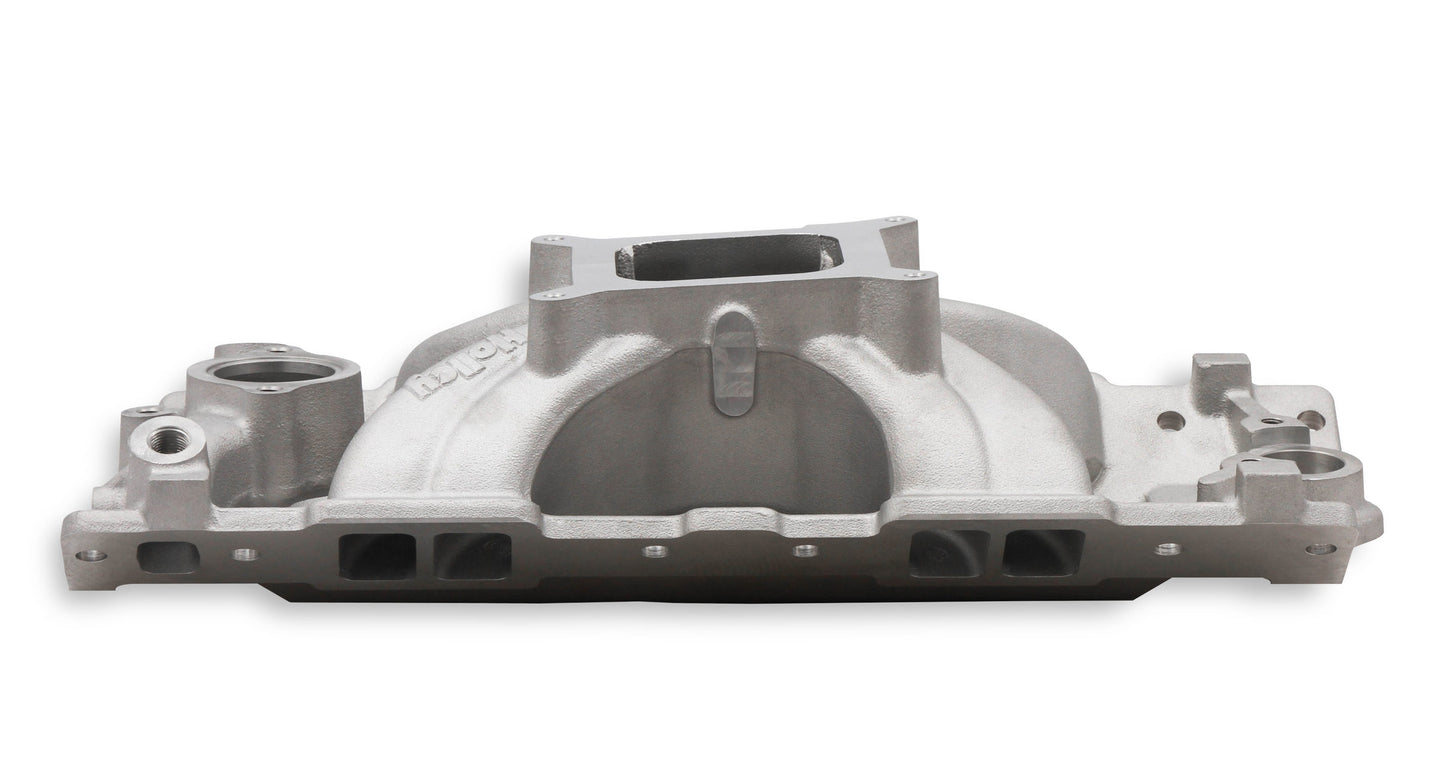

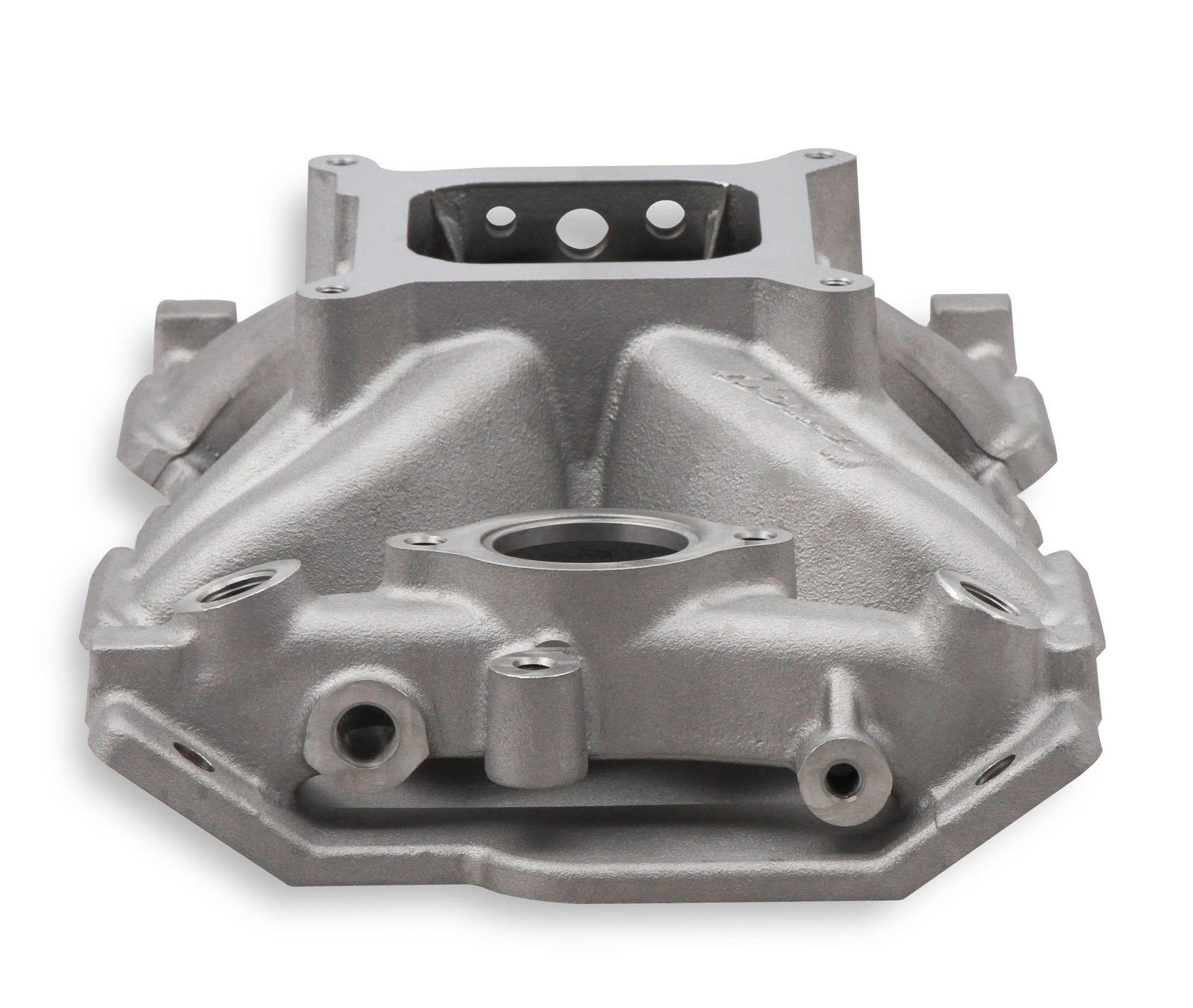

Intake Manifold - Single-Plane - Square Bore - Single Plane - Aluminum - Natural - Small Block Chevy - Kit

Single Plane Intake Manifold Kit; Upper; Square Bore Carb Mounting Flange; 2500-7500 RPM; Front 4.18 in./Rear 5.28 in. Height; 1.92 in. H/1.20 in. Wi Port Size;

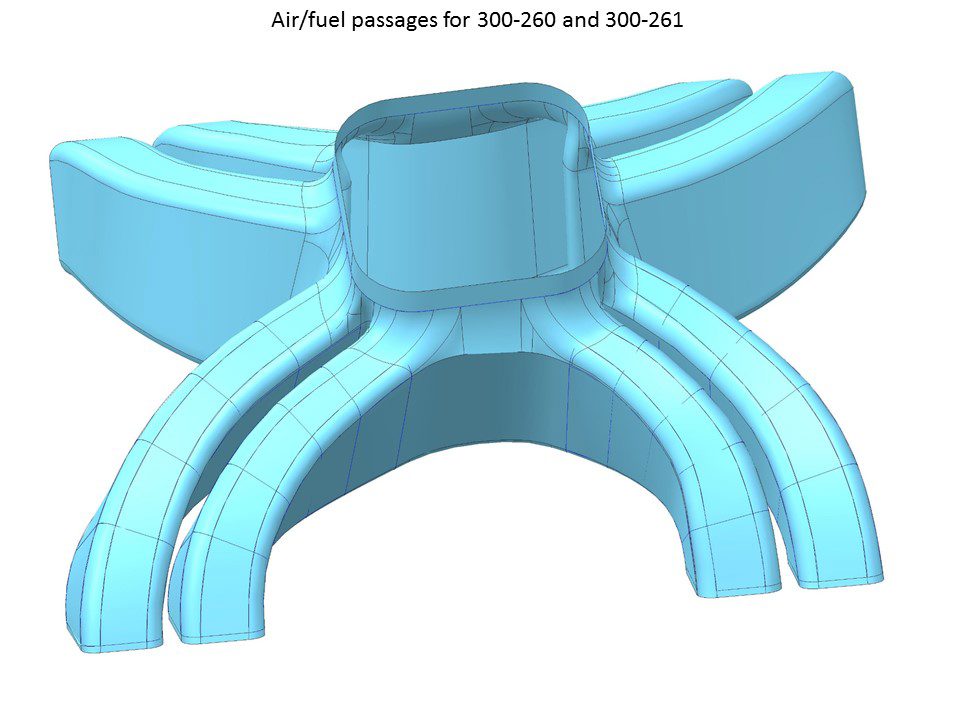

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features; like an updated plenum divider area, a 1 in. shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance. The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and SBC engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-EGR applications). Also, these manifolds will work with any SBC engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

• Power band: 2500-7500 RPM
• Square Bore Carburetor Mounting Flange
• Isolated Water cross-over

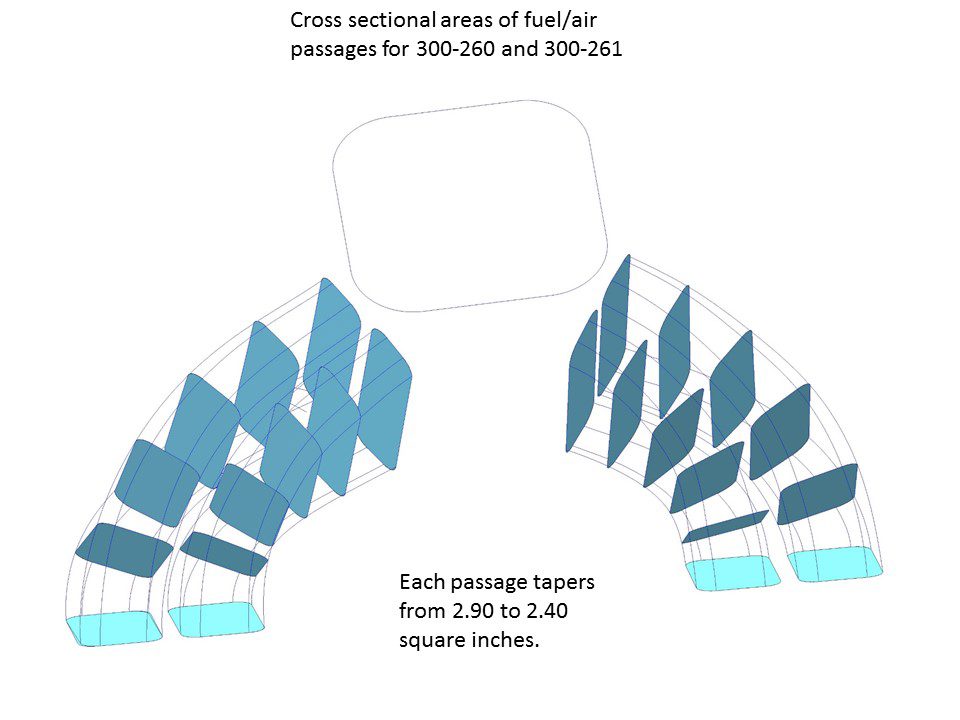

• Port Size: 1.92” height 1.20" width

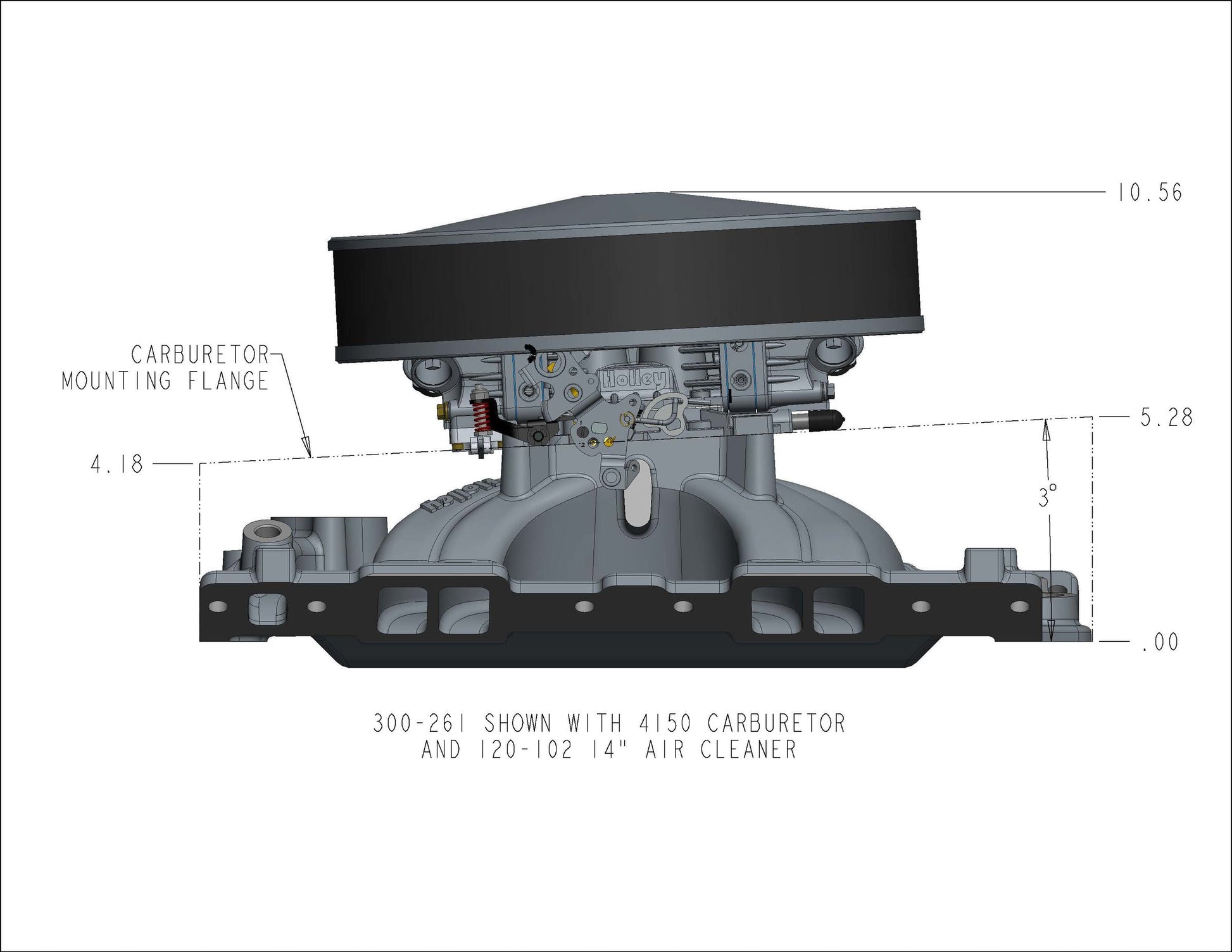

• Height: Front 4.18", Rear 5.28"

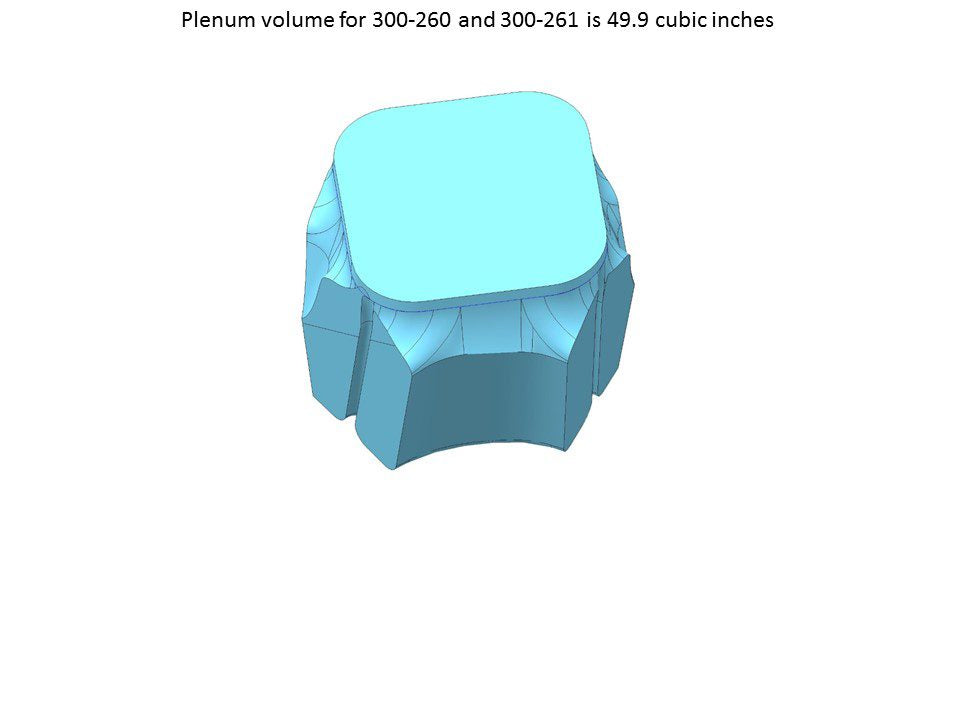

• Single Plane with Isolated Plenum
