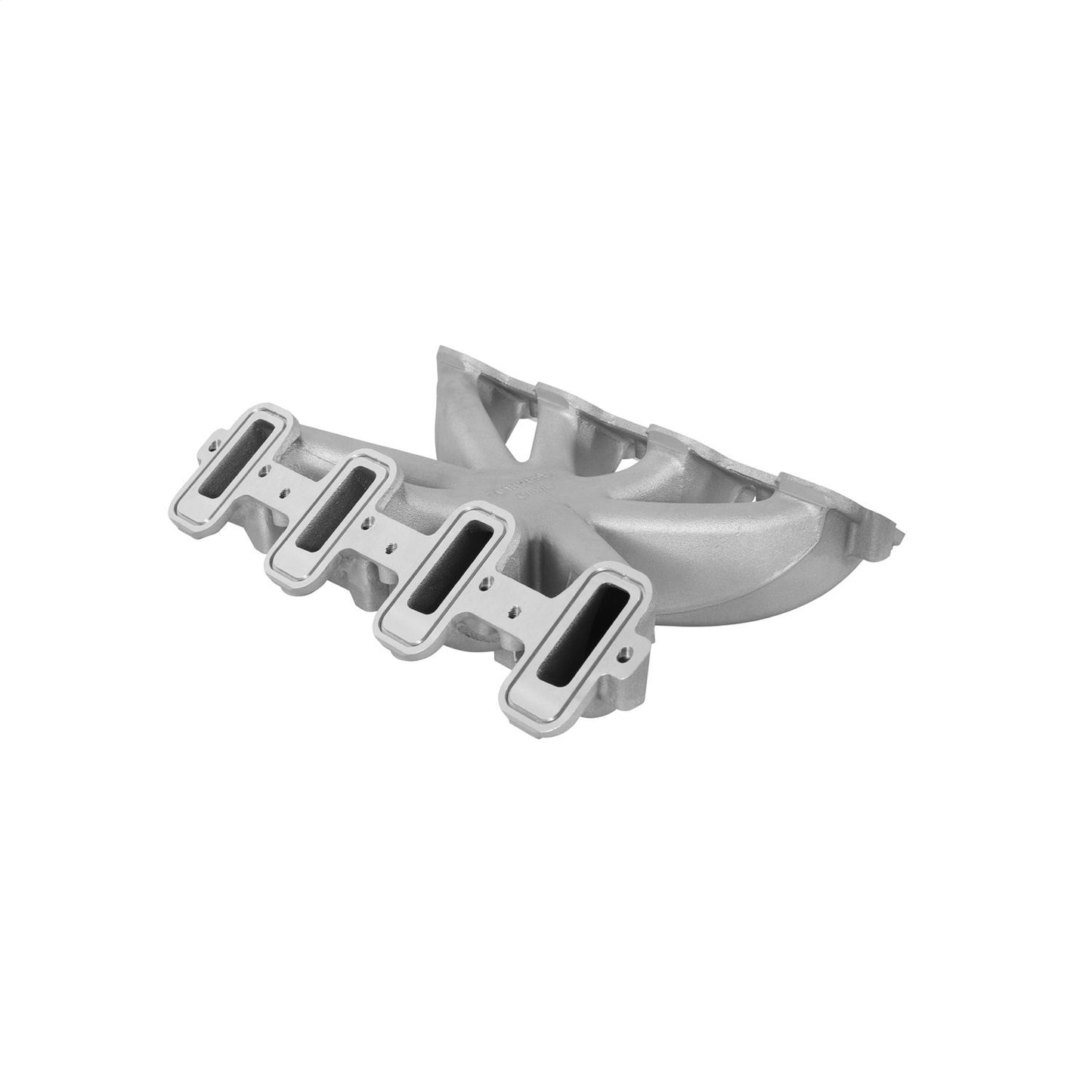

  • Product Image 6
  • Product Image 7
  • Product Image 8
1 8

Holley 300-132 - LS Single Plane Mid-Rise Intake

Holley 300-132 - LS Single Plane Mid-Rise Intake

Holley | 300-132
SKU: HOL-300-132
$437.99 USD
$506.95 USD $437.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Holley 300-132 - LS Single Plane Mid-Rise Intake

Intake Manifold - LS Mid-Rise Carb - Square Bore - Single Plane - Cathedral Port - Aluminum - Natural - LS1 / LS2 / LS6 - GM LS-Series - Each

LS Single Plane Mid-Rise Intake; Upper; Carbureted; Single Plane; w/Cathedral Port Cylinder Heads; Front/Rear Height 4.95 in.; RPM Power Band 2500-7000; Satin Finish;

Carbureted single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads

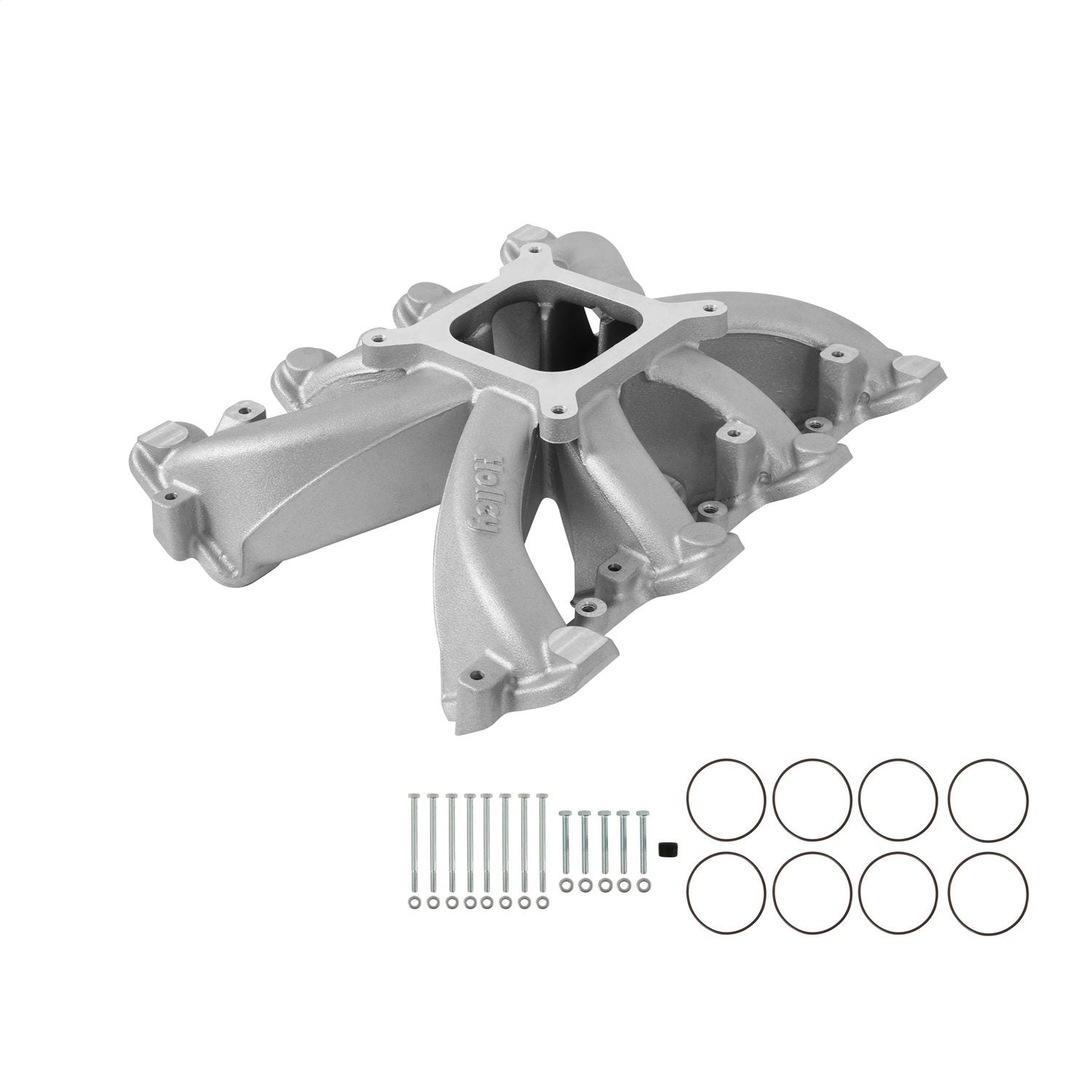

  • Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers

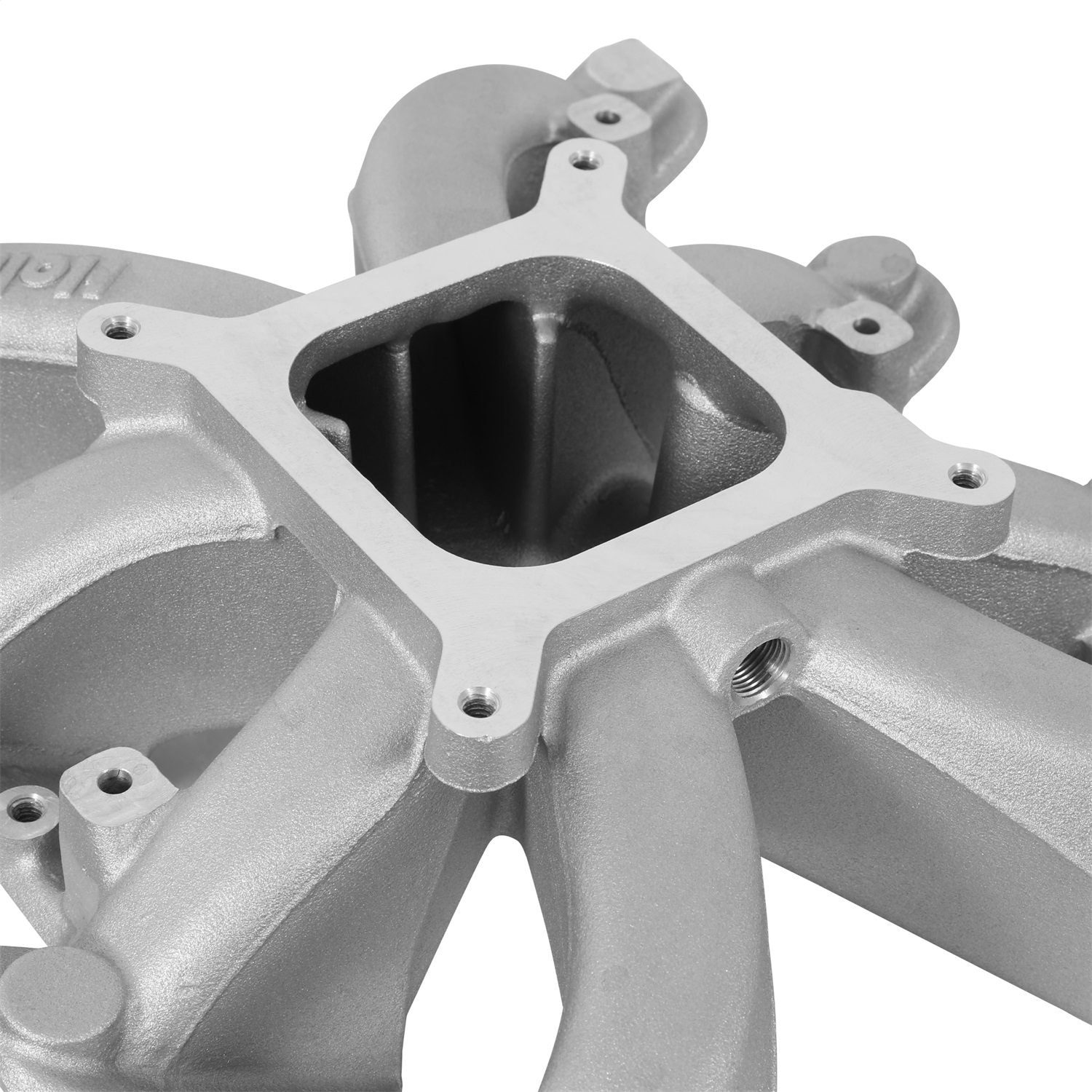

  • 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
  • Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
  • Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality

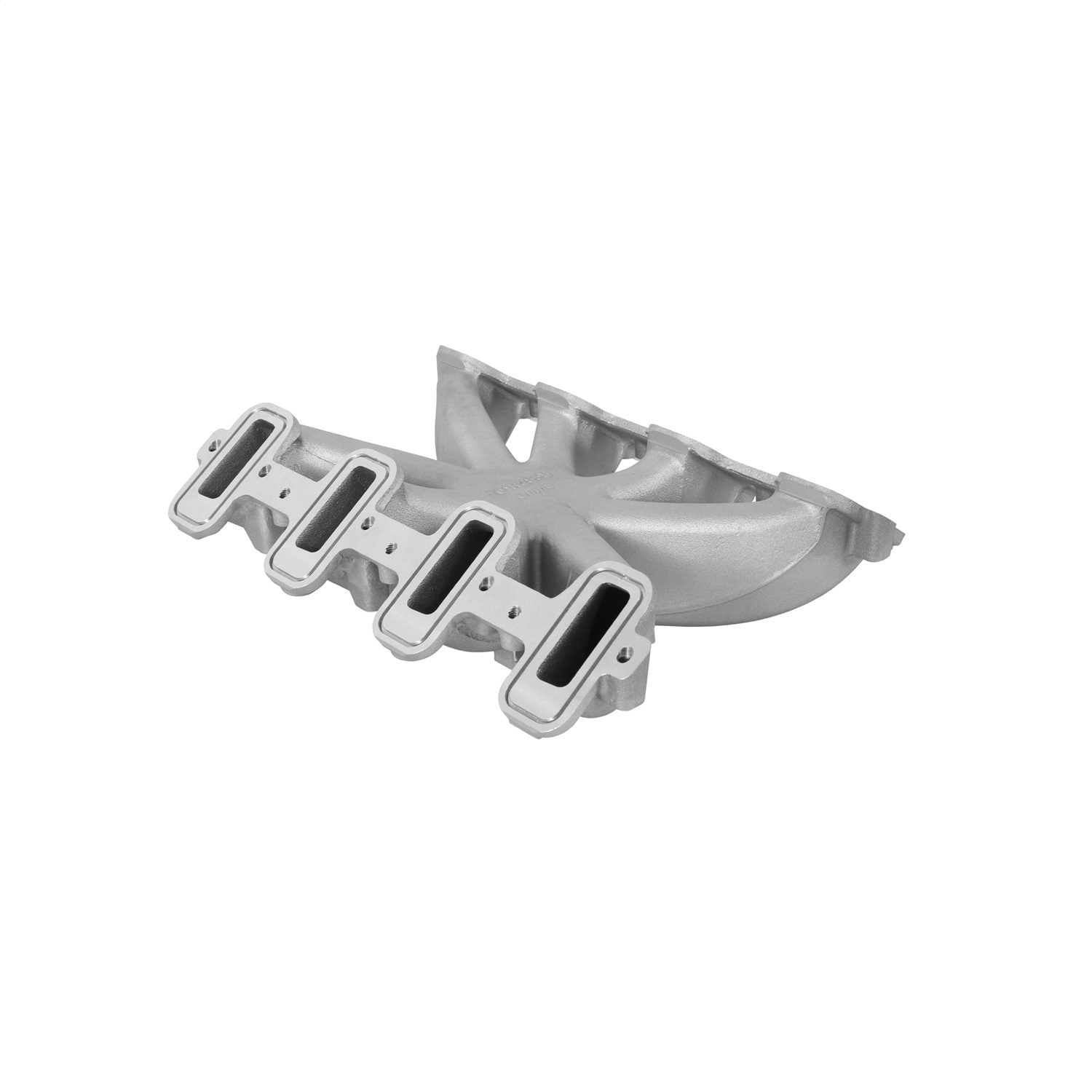

  • Port size - 2.659" height x .918" wide
  • Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

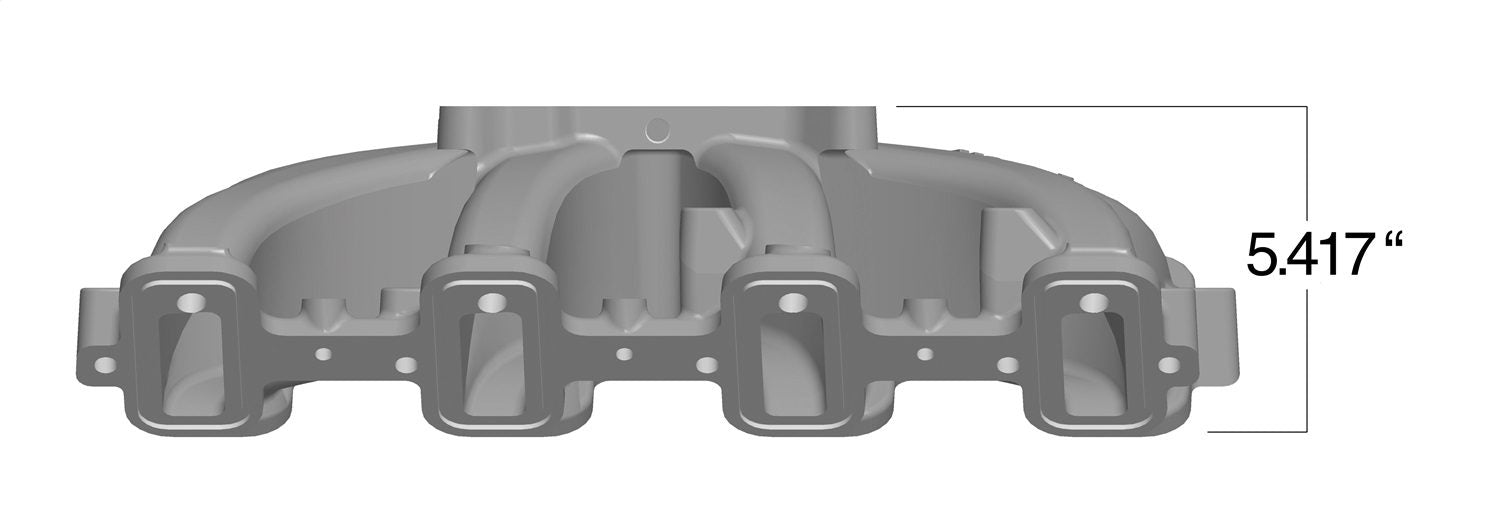

  • Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
  • Weight - 11.5 lbs.
  • Minimum carb flange height - fits in vehicles with minimum hood modifications
  • 2500-7000 RPM power band
Barrels: 4
Basic Operating RPM Range: 2500-7000
Brand: Holley
Carburetor Flange: Square/4150
Carburetor Quantity: 1
Carburetor Studs Included: No
Category: Engine
CNC Ported: No
Color: Natural
Construction: Cast
Cylinder Head Port Shape: Cathedral
Deck Height: 9.24
EGR Port: No
Emission Code: 3
Engine: GM LS1/LS2/LS6
Flange Style: 4150 Square Bore
Front Maximum Height: 4.95
Fuel Injectors Included: No
Fuel Rail(s) Included: No
Fuel System Type: Carb
Gasket Or Seal Included: No
Grade Type: Performance
Intake Port Gasket(s) Included: No
Manifold Type: Single Plane
Material: Aluminum
Nitrous Bung(s) Included: No
part type: Engine Intake Manifold
Plenum Finish: Natural
Product Type: Intake Manifold
Rear Maximum Height: 4.95
Removable Runners: No
Removable Top/Lid: No
Single Or Dual Plane Type: Single Plane
Sub Category: Cylinder Block Components
Throttle Body Bore Diameter: 3.6
Throttle Body Gasket Included: No
Throttle Body Included: No
Vacuum Ports: Yes
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
