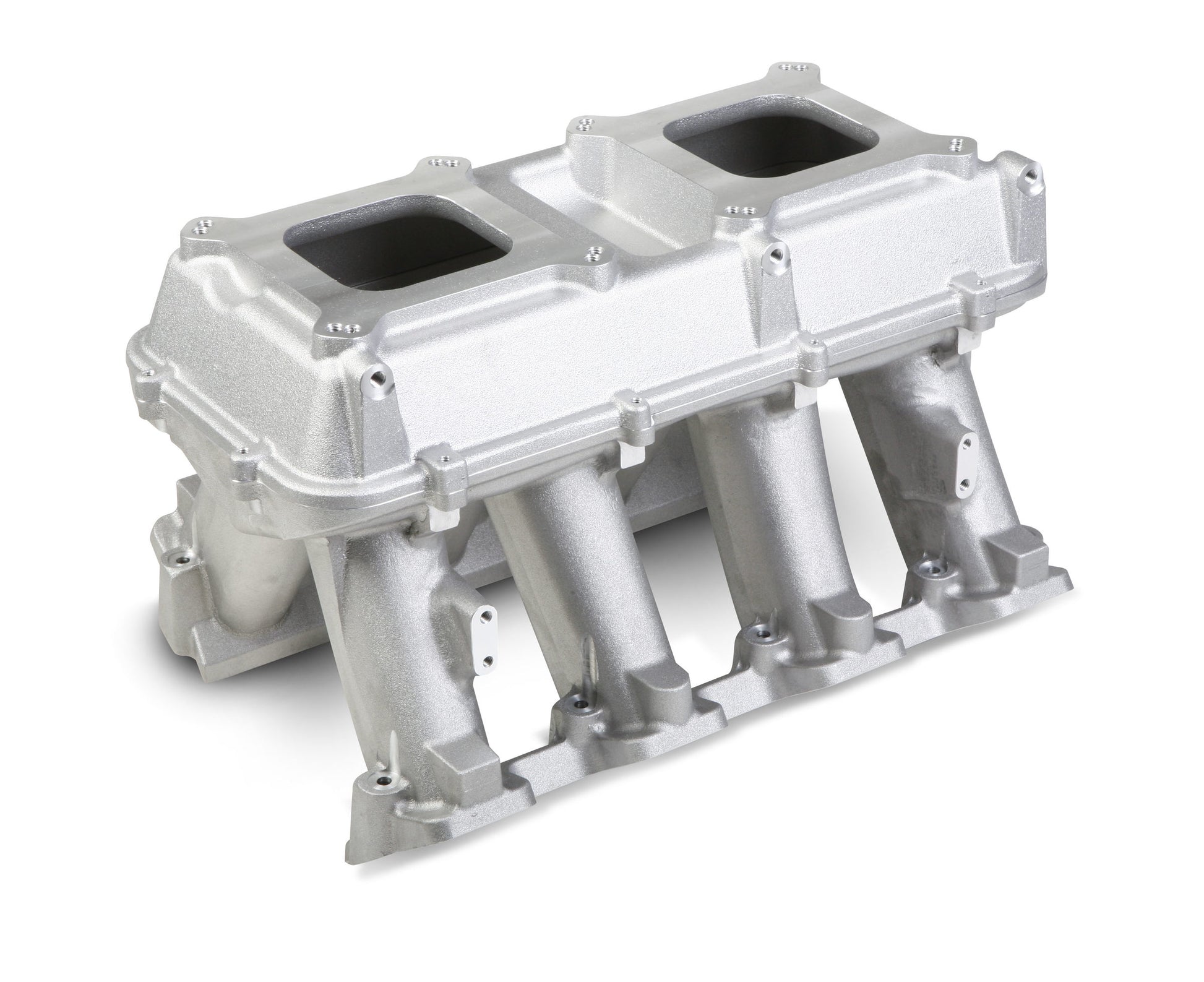

Holley 300-113 - Hi-Ram Intake Manifold

Holley 300-113 - Hi-Ram Intake Manifold

Holley Hi-Ram Intake - GM LS3/L92

Hi-Ram Intake Manifold; Upper; Carbureted; 2 x 4150™ [Sideways And Inline Mounting]; Front/Rear Height 11.08 in.; RPM Power Band 7000-8000; Satin Finish;

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations Cast aluminum construction. Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

• Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

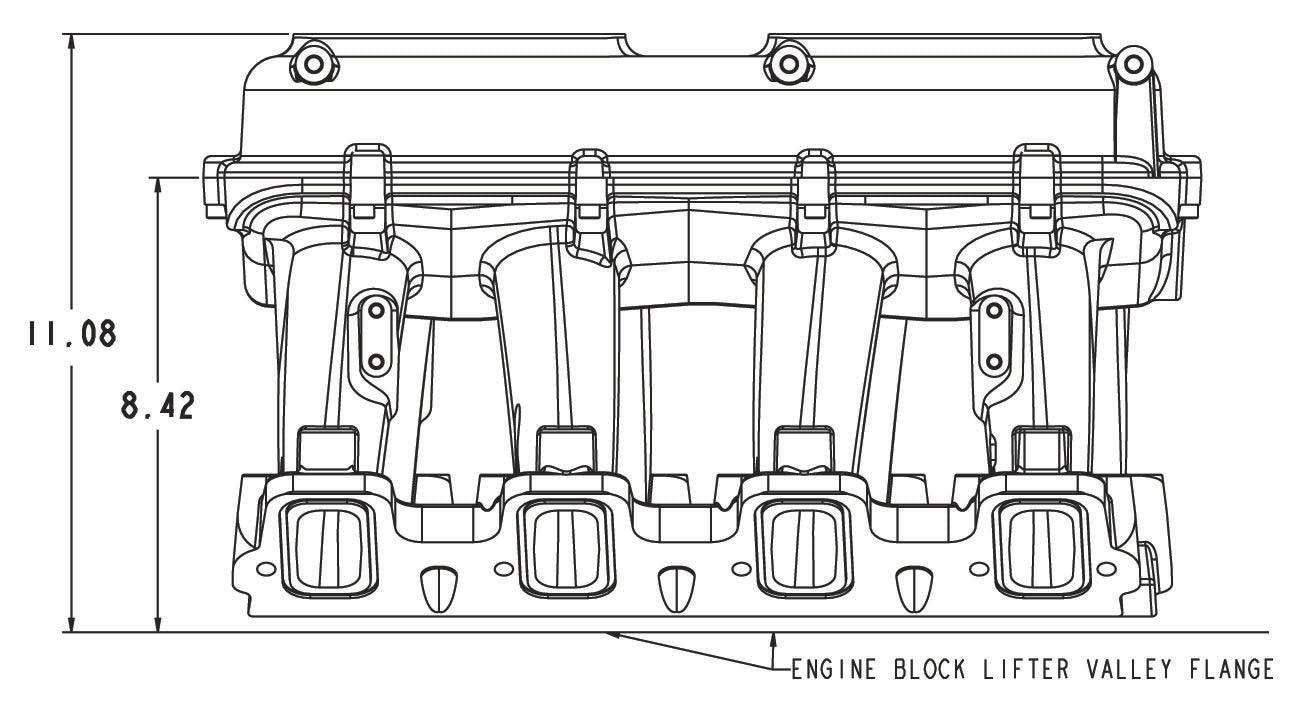

• Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
• Port Size – 2.49” Height x 1.21” Wide
• Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block.
• Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
