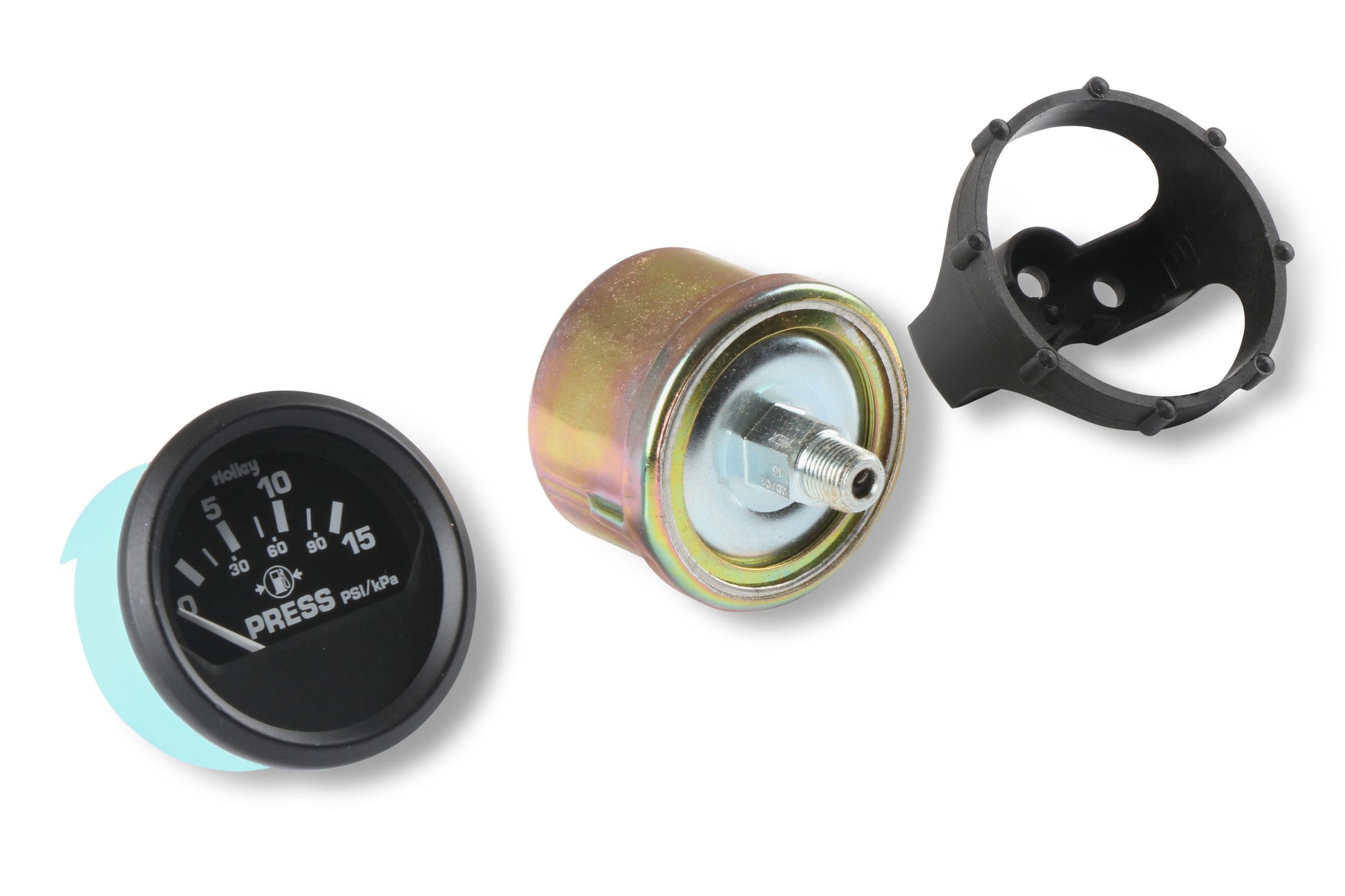

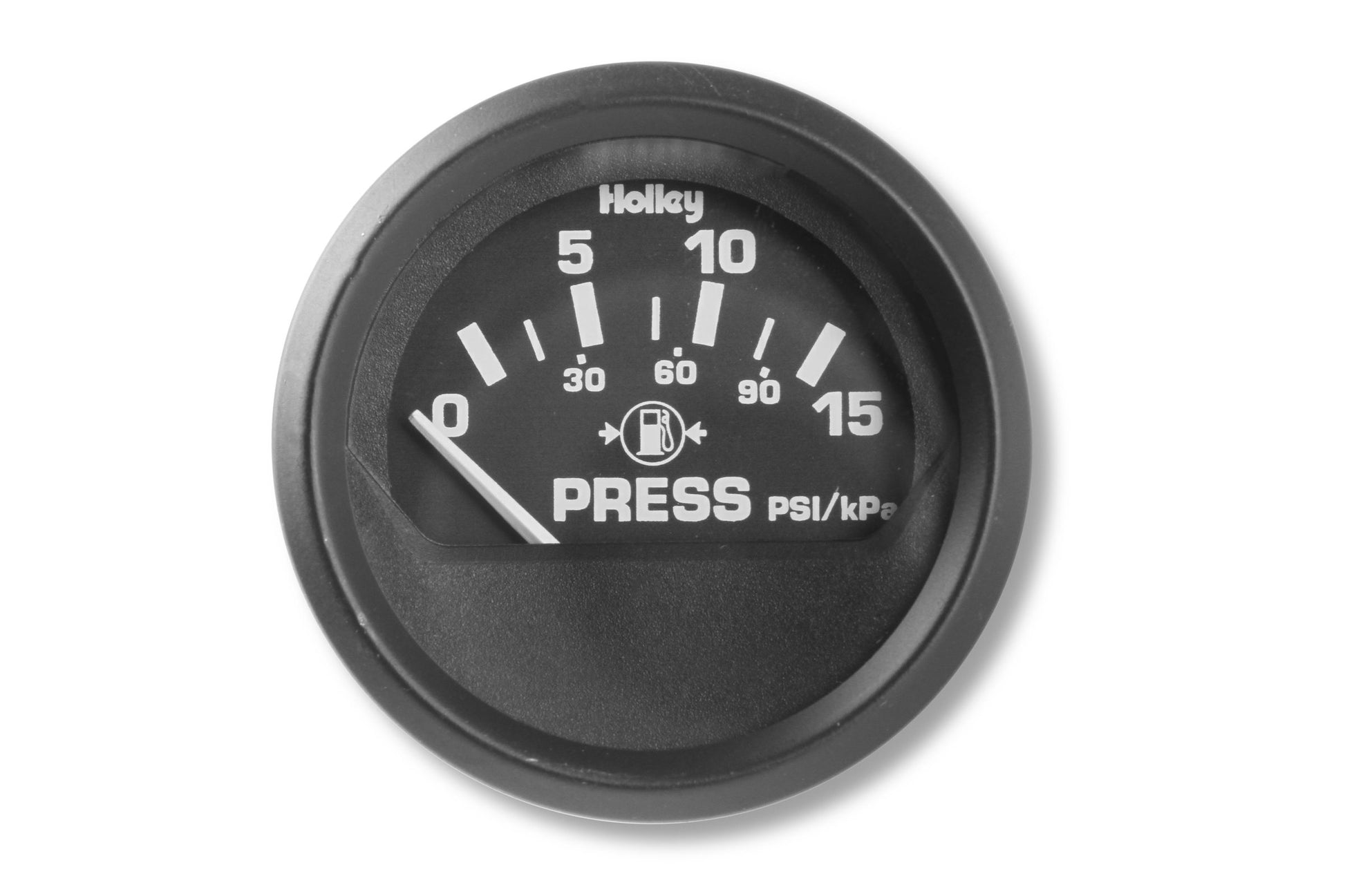

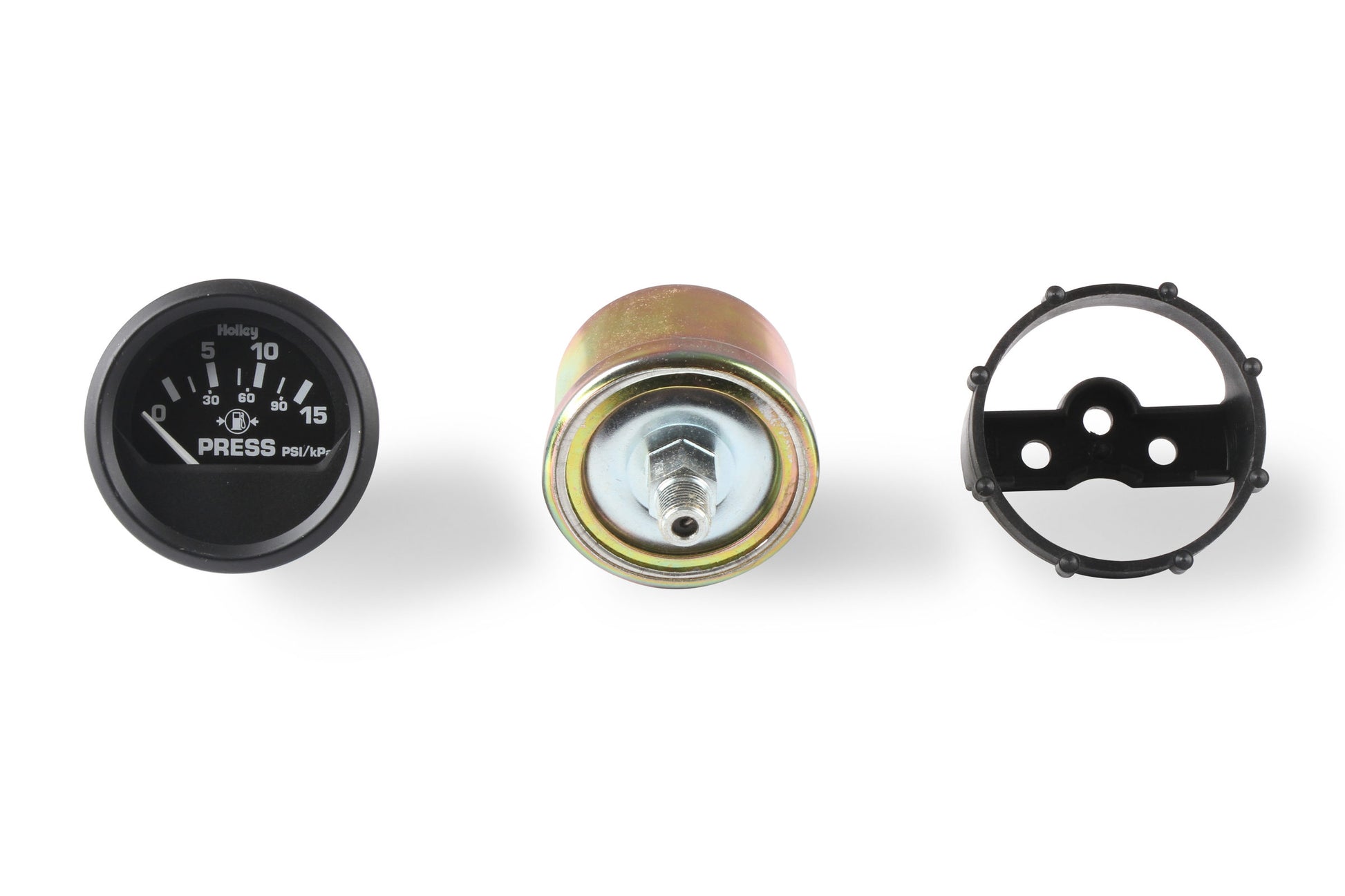

Holley - 26-503
Fuel Pressure Gauge - 0-15 psi - Electric - Analog - Short Sweep - 2-1/16 in Diameter - Black Face - Each
Electric Fuel Pressure Gauge; 0-15 psi; 1.5 in. Dia.;
Electric Fuel Pressure Gauge
- Monitor Fuel Pressure While Driving
- Dash Mounting

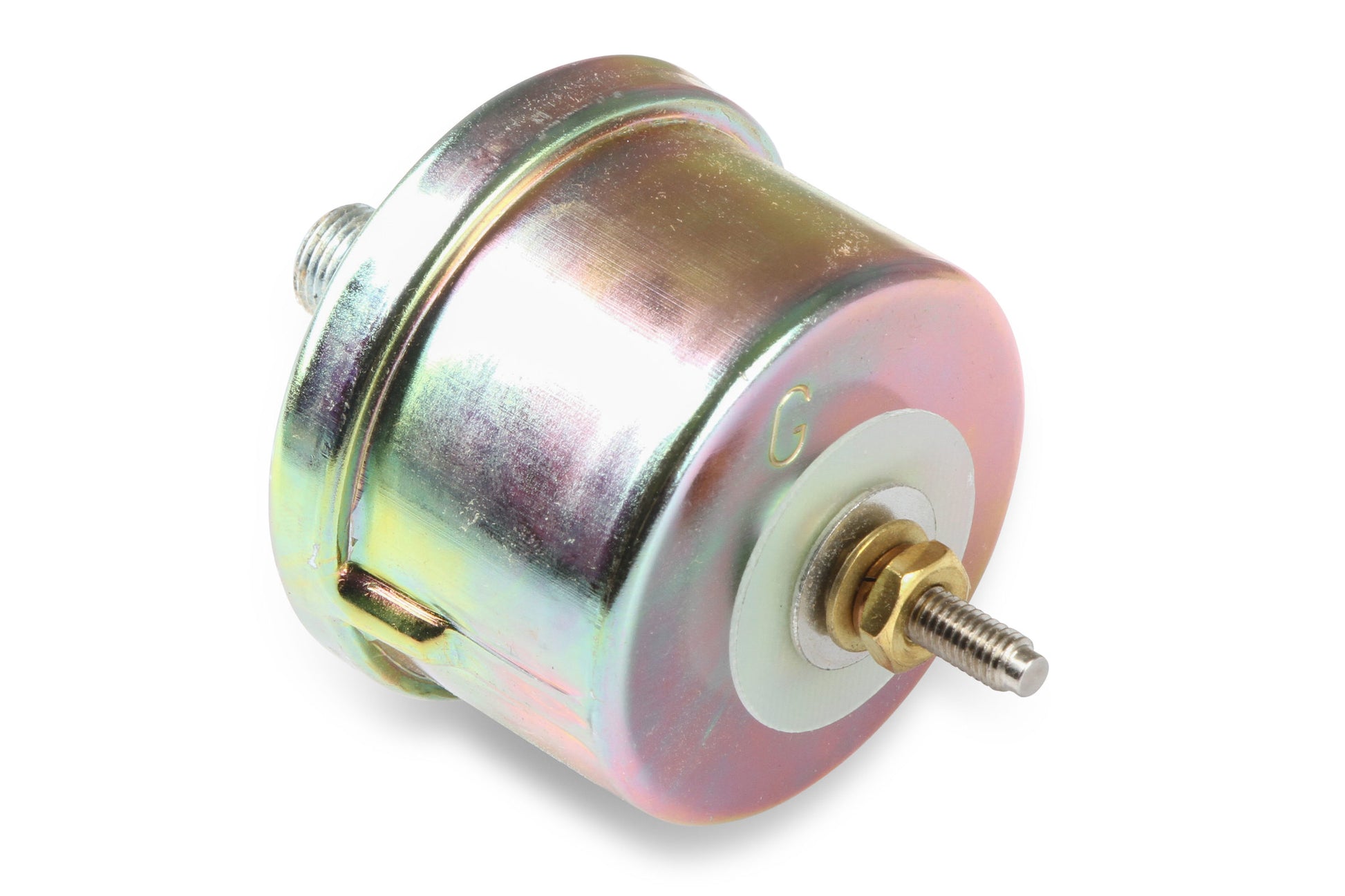

- Includes Sending Unit
- Eliminates Guesswork
- Plumbs Near Carb. Fuel Inlet
- 0-15 PSI
Adapter NPT Size ( A ): 1/8 NPT MALE
Bezel Color: Black
Bezel Material: Steel
Bezel Outside Diameter: 2-1/16
Body Color: Black
Brand: Holley
Category: Body
Color Change Button: No
Diameter: 2-1/16"
Dimmable: No
Display Format: Analog
Emission Code: 5
Face Color: Black
Face Shape: Round
Function: Analog
Gauge Background Color: Black
Gauge Bezel Color: Black
Gauge Range: Up to 15 PSI
Gauge Type: Fuel Pressure
Gauge Writing Color: White
Glycerin Filled: No
Grade Type: Performance
Indicator Markings Color: White
Inlet: 1/8NPT
Lens Color: Clear
Liquid Filled: No
Male Thread: 1/8" NPT
Max Pressure: 15psi
Maximum Pressure Reading: 15
Minimum Pressure Reading: 0

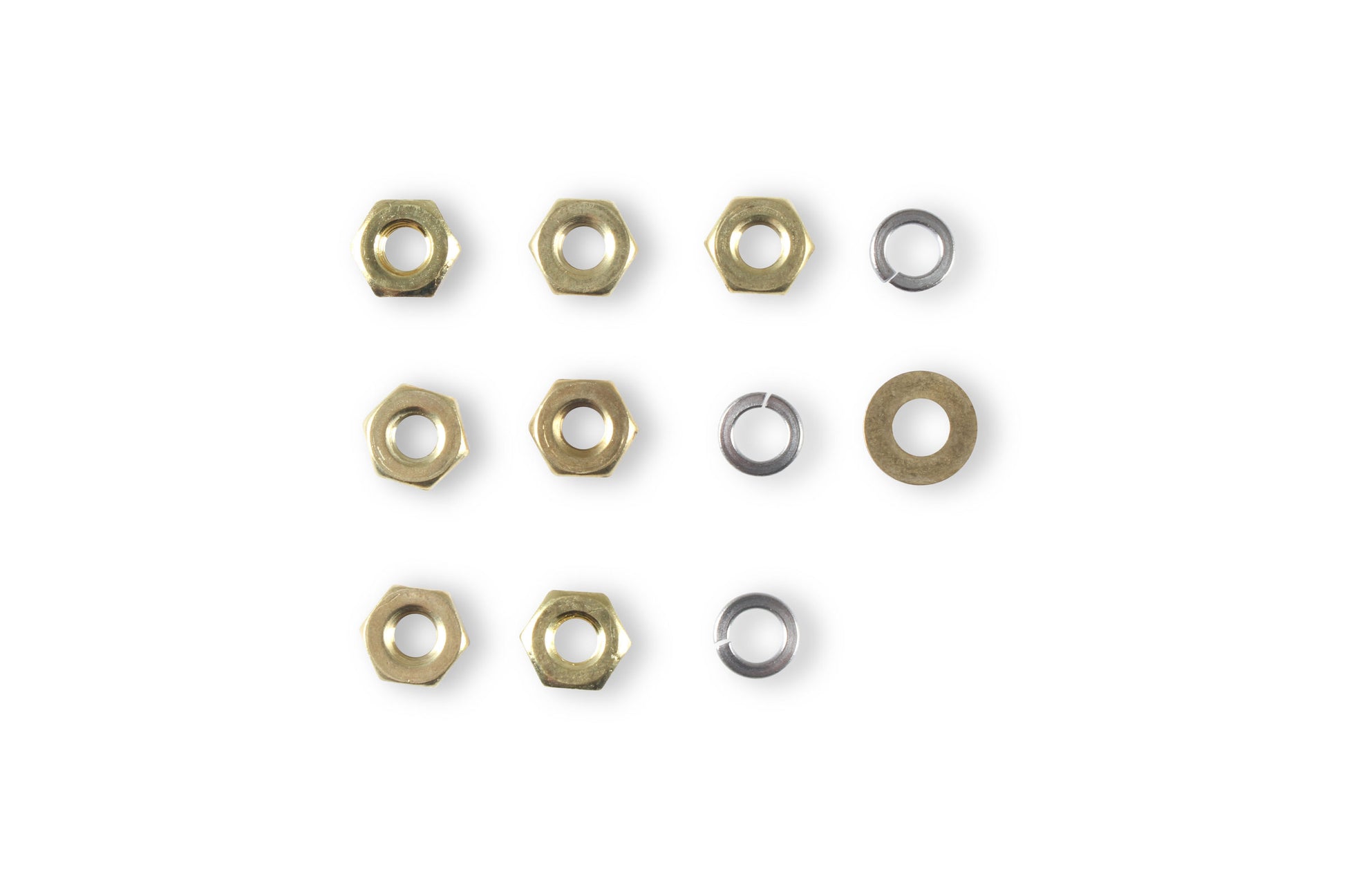

Mounting Hardware Included: Yes
part type: Fuel Pressure Gauge
Pointer Color: White
Pressure Range: 0-15 PSI
Product Type: Fuel Pressure Gauge
Sensor Type: Electrical
Size: 2-1/16"
Style: Analog
Sub Category: Instrument Panel
Universal Or Specific Fit: Universal
Warning: California Proposition 65
Warning Light: No
Warranty: Manufacturer's Limited 90 Day Warranty
