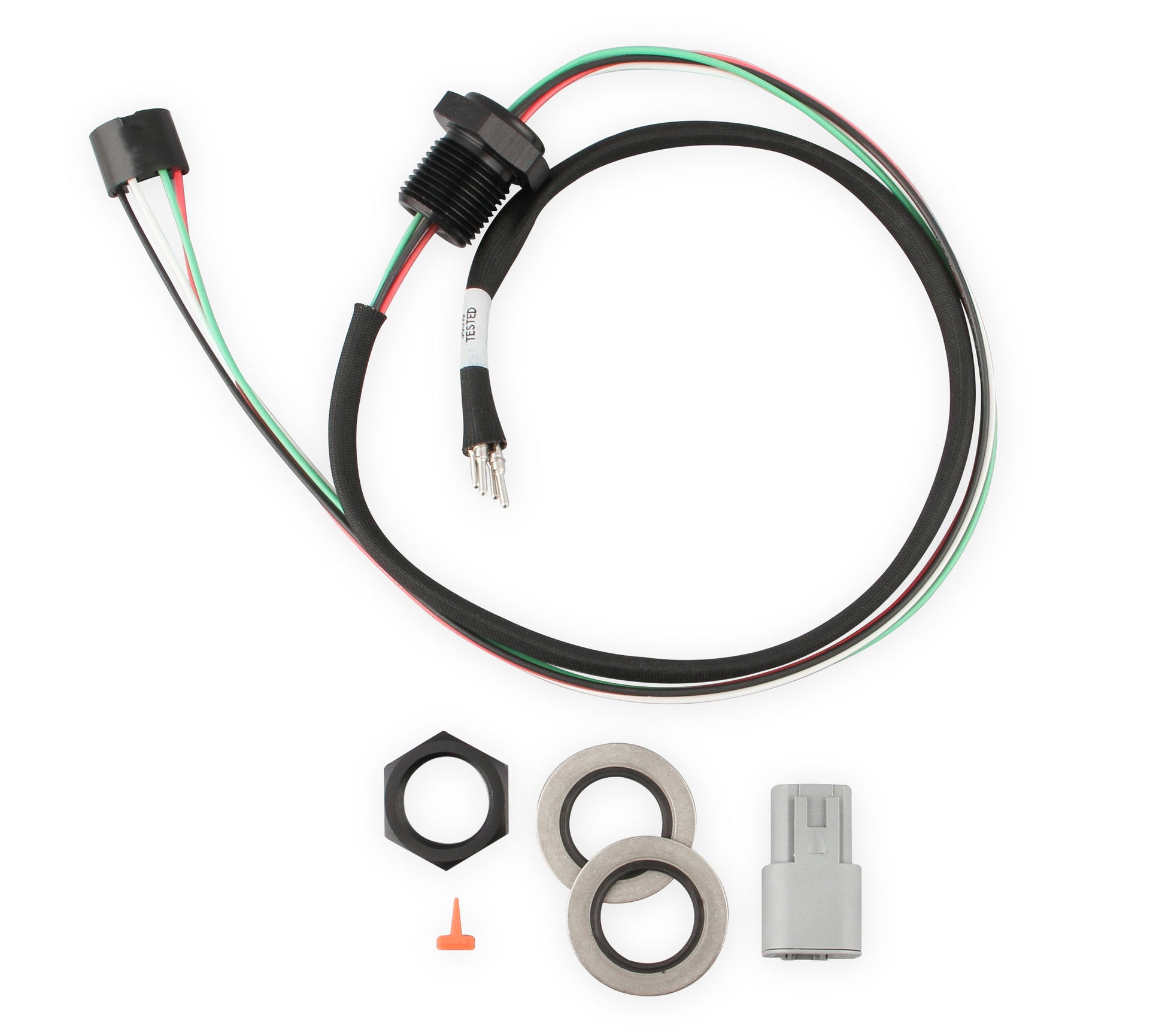

Holley 26-163 - Fuel Bulkhead Fitting Kit

Holley 26-163 - Fuel Bulkhead Fitting Kit

Fuel Bulkhead Fitting Kit; 4 Wire Horse Shoe; For Brushless Pump Used in Racing Fuel Cells/Tanks;

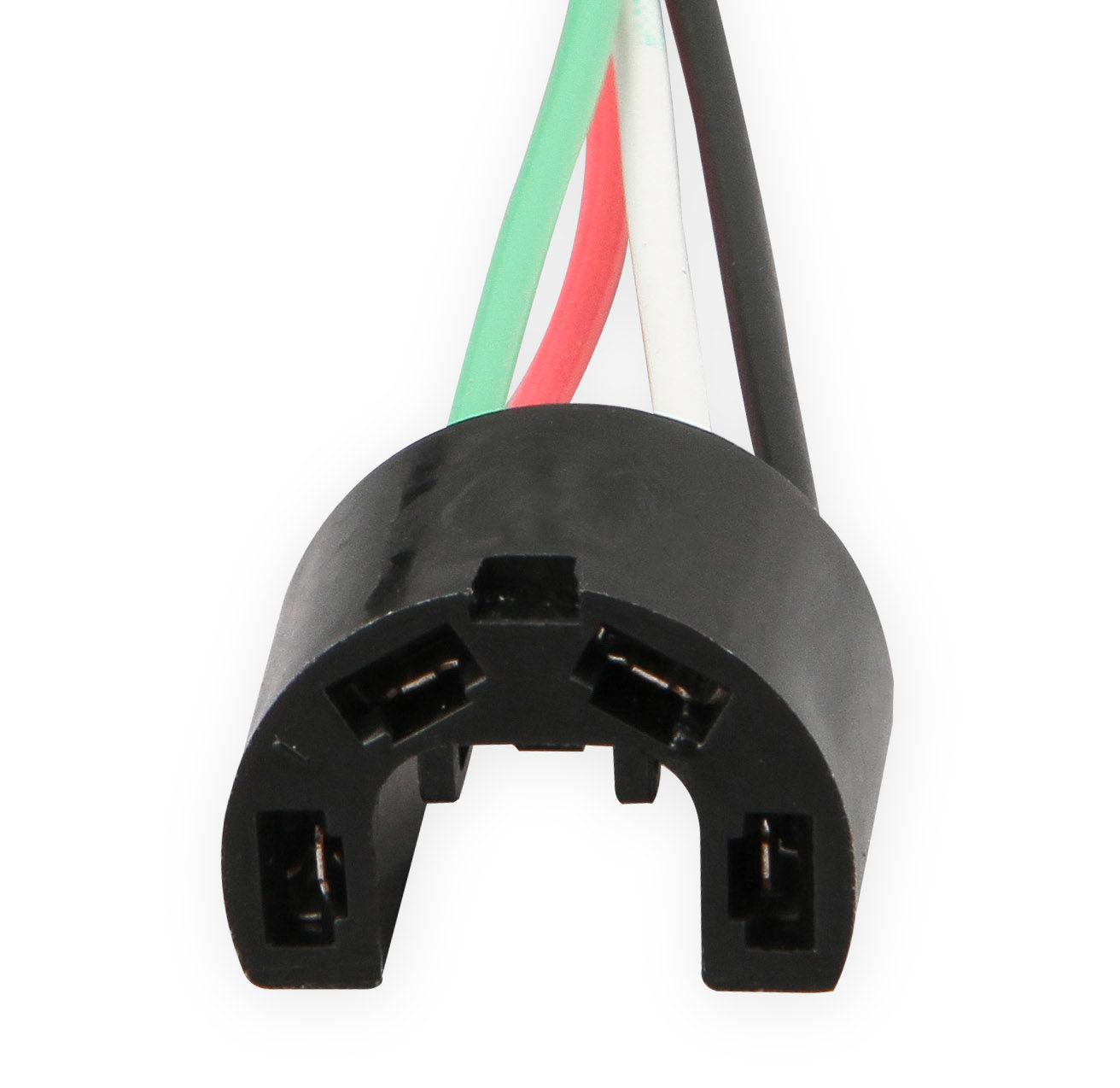

Holleys new horse shoe fuel bulkhead kits provide an easy, high quality solution to get wiring or fuel from an in-tank fuel pump through a fuel cell or fuel tank. Our bulkhead kits are available for 4-wire fuel pumps, as well as fuel bulkhead that allows for easy in-tank fuel pump installation. Horse shoe design connects to Holleys VR Series pumps when mounting inside the fuel tank or cell.

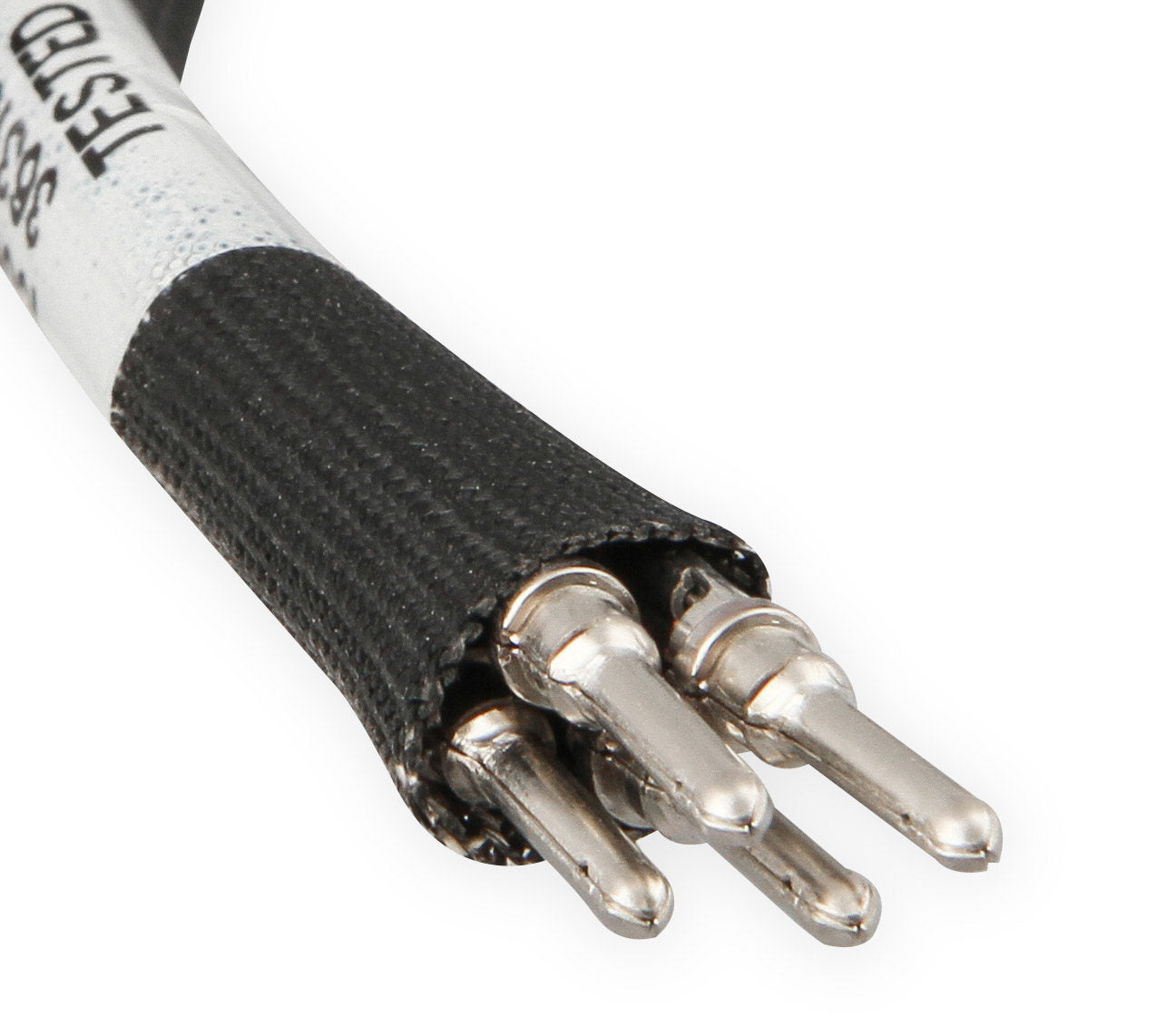

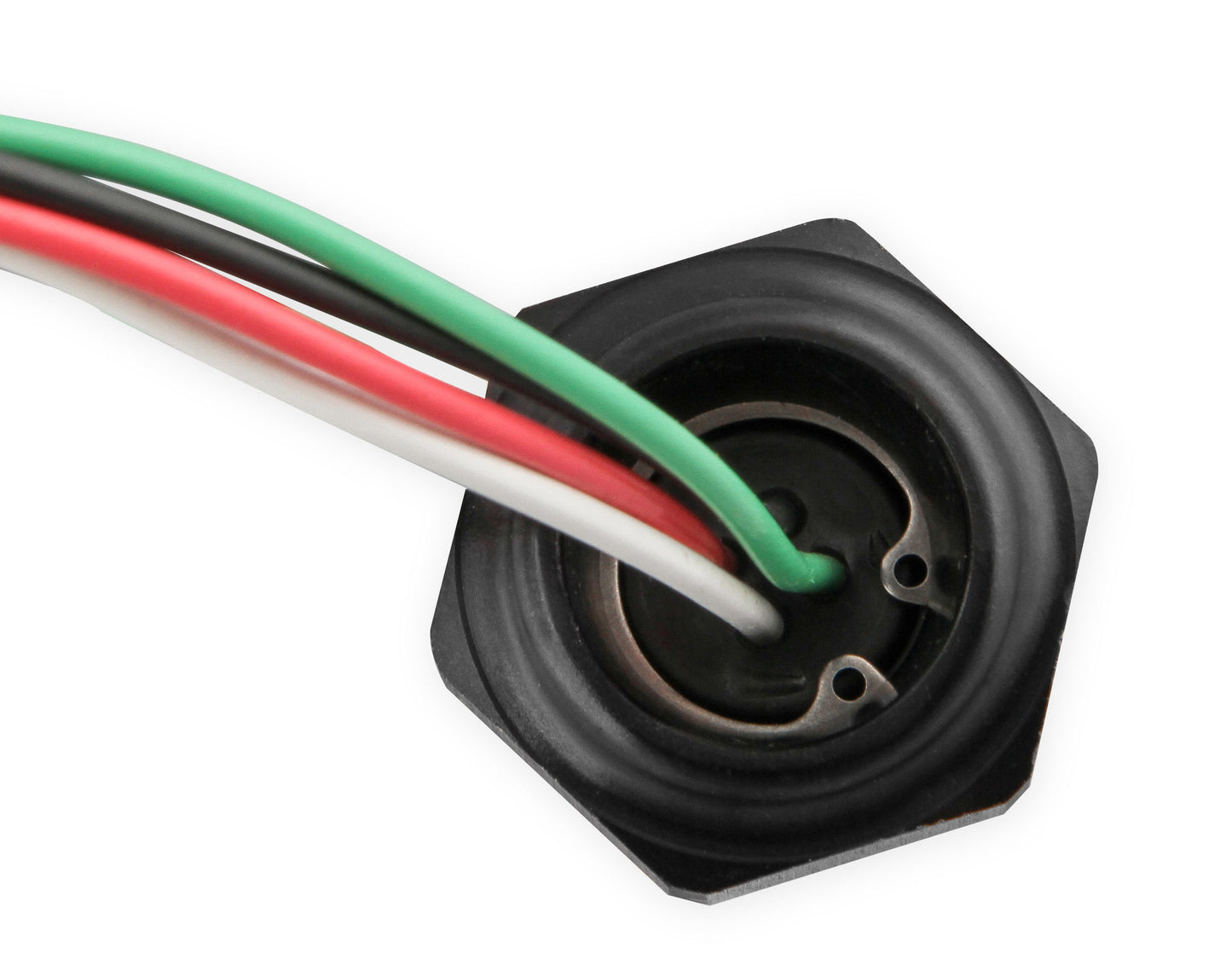

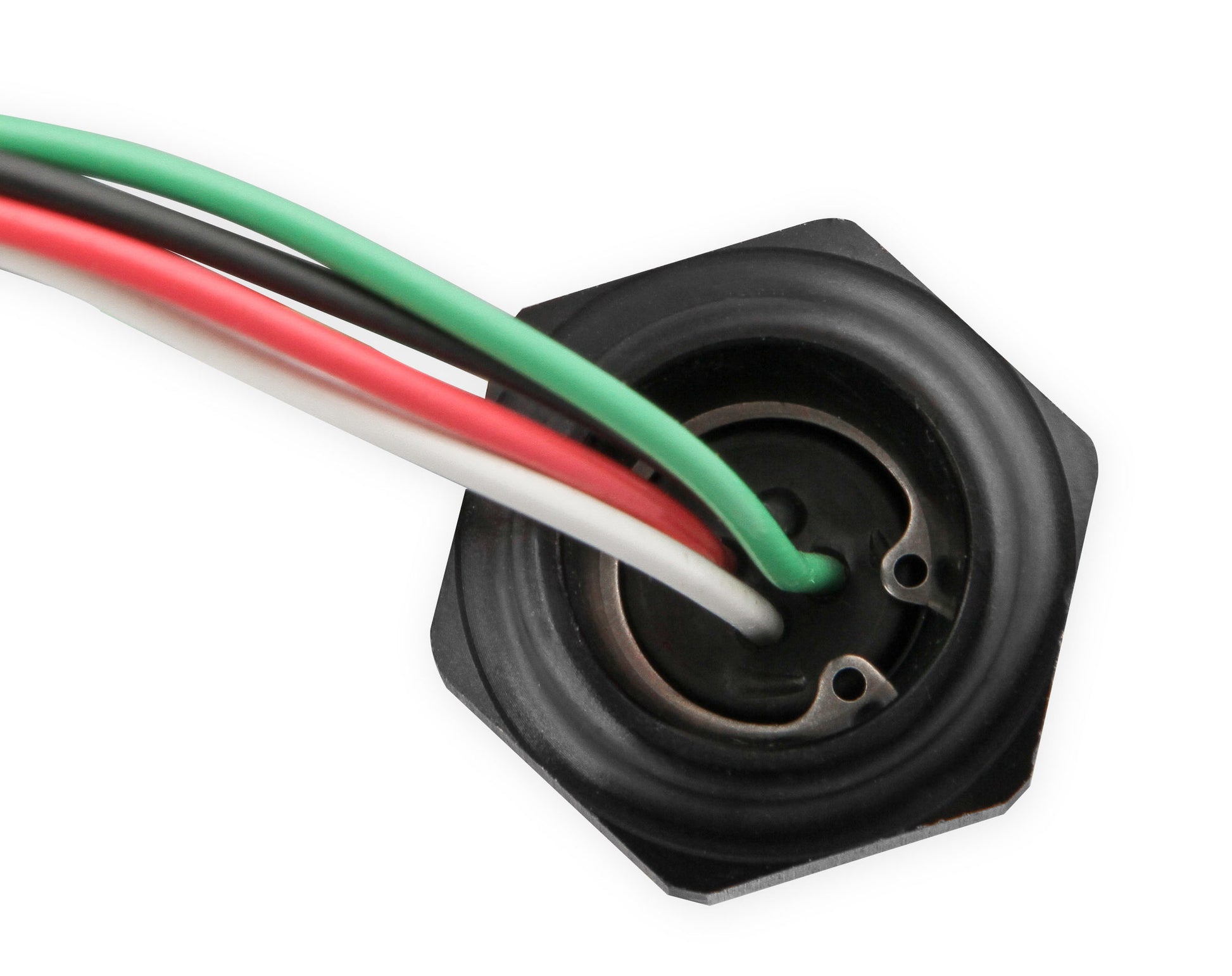

• 4-wire over-mold is hermetically sealed on the wires and flourocarbon O-rings seal the over-mold to the fitting for a leak free seal
• Over-mold is leak tested at 80 PSI with 0.1 SCCM allowable leakage
• 14 gauge wires handle a wide variety of demanding fuel pumps
• Fluorocarbon Stat-O-Seals seal fitting to fuel tank for a worry free seal
• Hard coat anodized for good looks and corrosion protection
• 24" of wire length on each side of fitting to fit a variety of fuel tanks or fuel cells
