Holley - 12-982
255 LPH Drop-In Fuel Module Assembly
255 LPH Drop-In Fuel Module assembly for 09-14 F-150, 3.7/4.6/5.0/5.4 Flex Fuel 145”, 157” & 163” wheelbase, Excludes extended range tanks
Holley now offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 600+ horsepower.

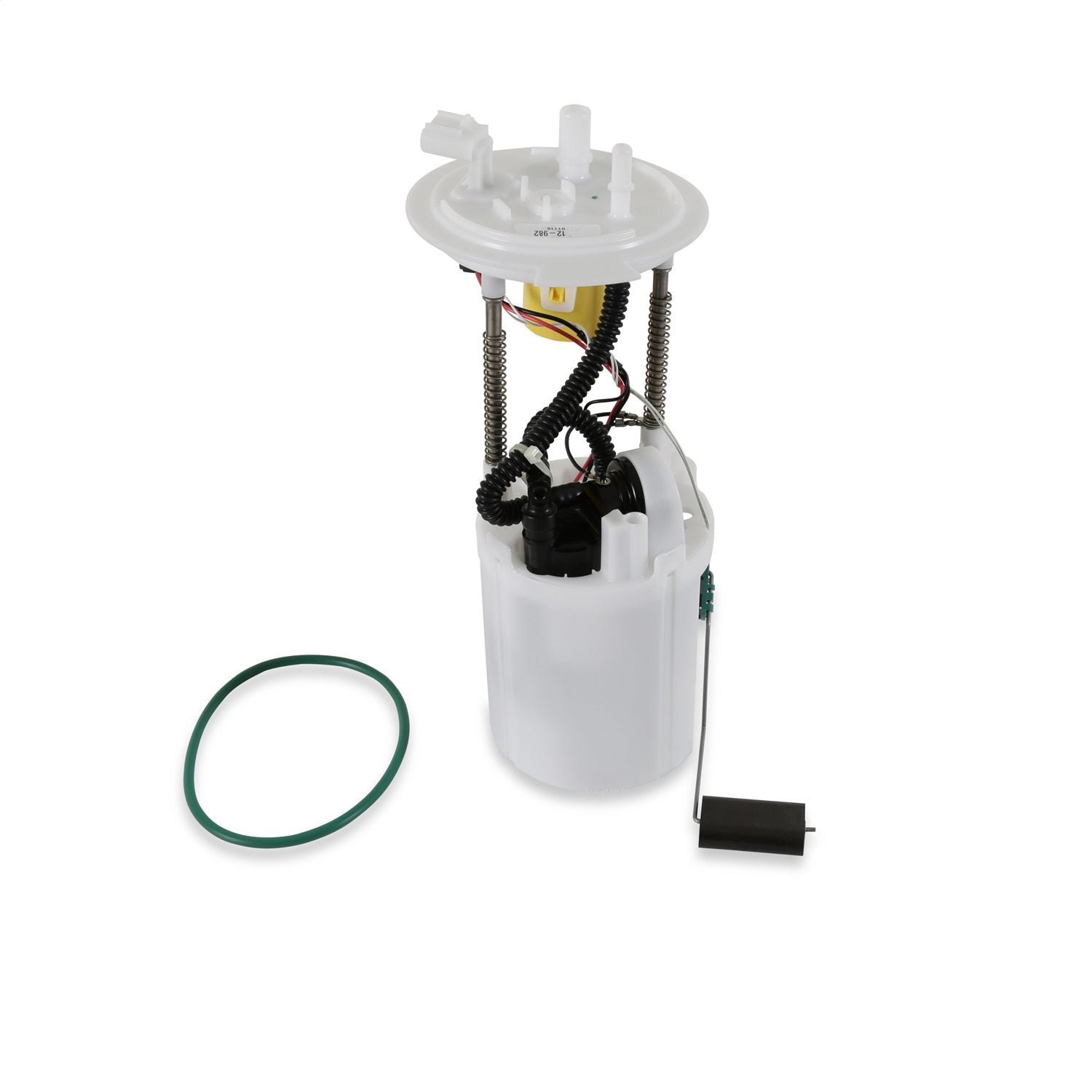

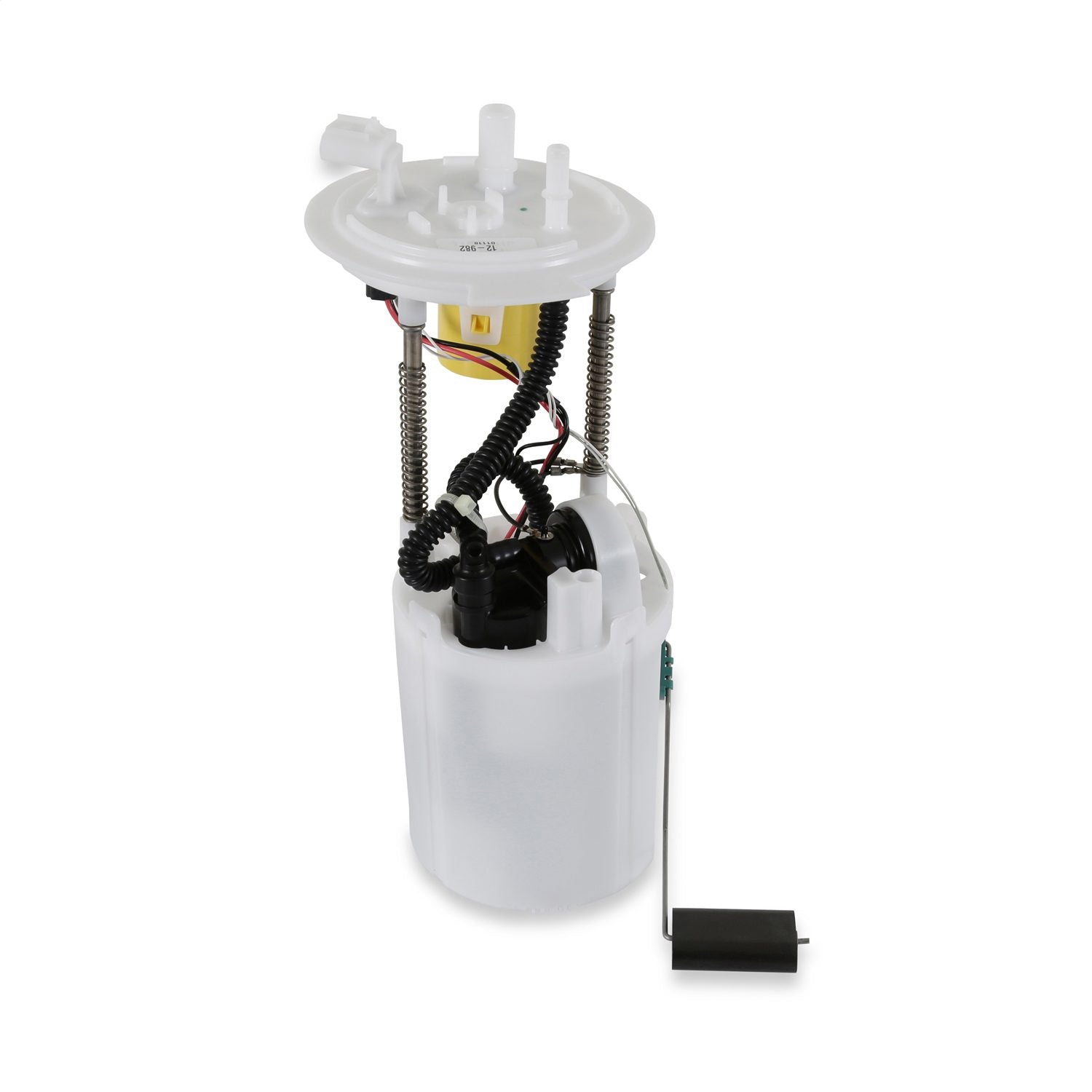

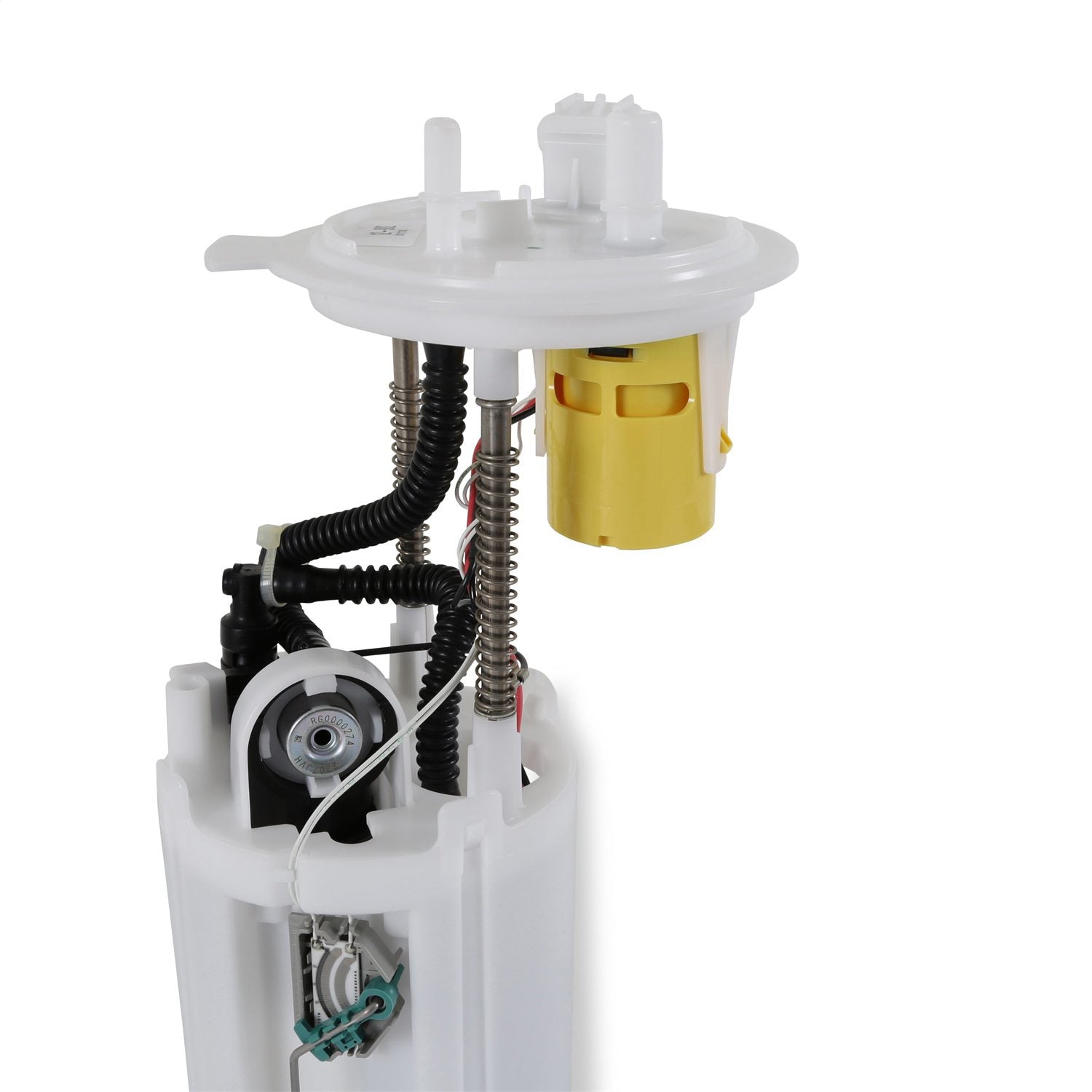

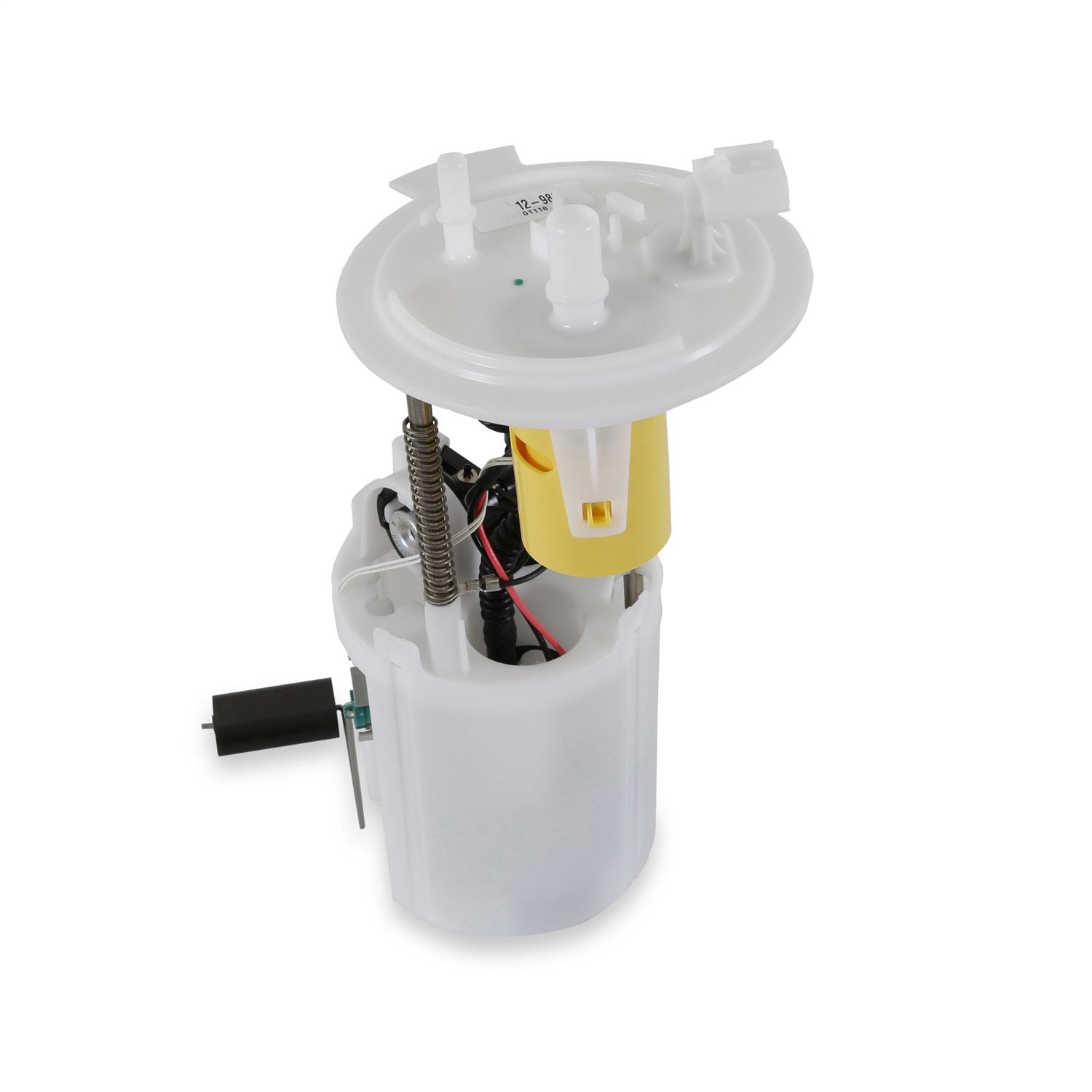

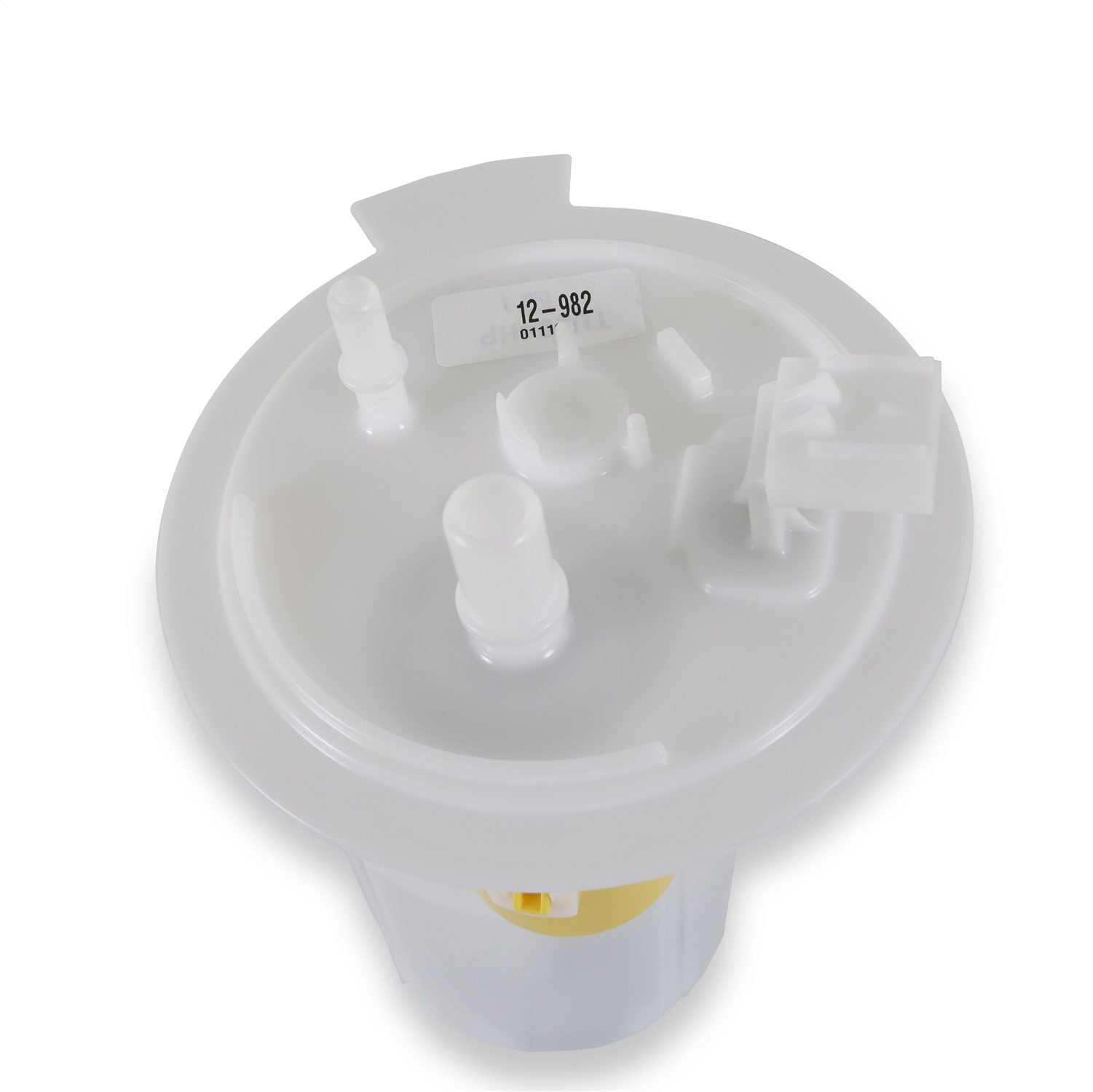

- Complete Drop-In Fuel Module Assembly
- Integrated Fuel Storage and Filtration Technology

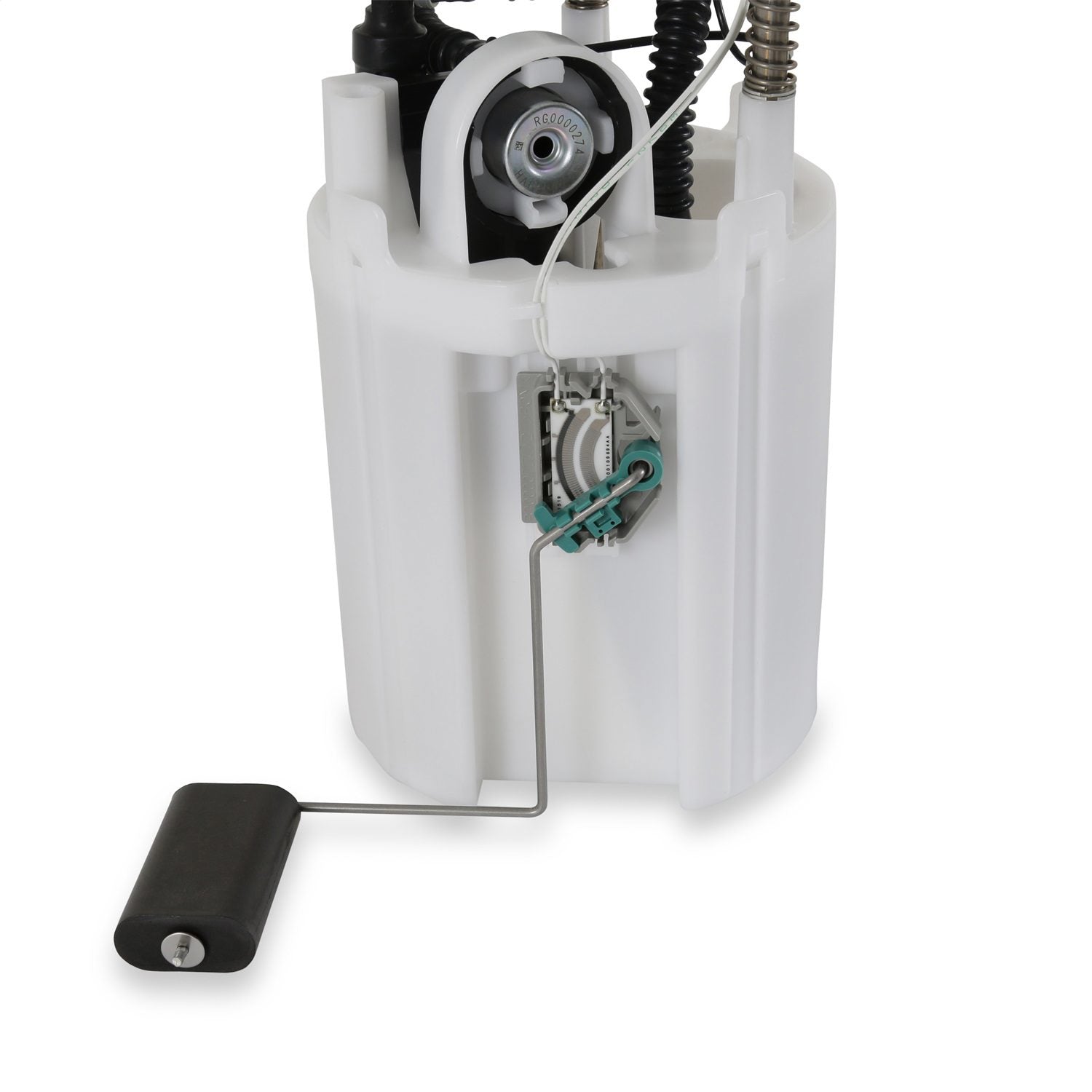

- Built In Pre-Calibrated Fuel Level Sensors
- Plug and Play Wiring Harnesses
- Capable Of Supporting 550+ Hp Right Out Of The Box
- Designed For Return Line and Pulse Width Modulation
Application: 09-14 F-150
Application: 3.7/4.6/5.0/5.4 Flex Fuel
Average Flow Rating: 255
Brand: Holley
Category: Air and Fuel Delivery
Emission Code: 5
Free Flow GPH: 50
Free Flow LPH: 255
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel System: EFI
Fuel Tank Pressure Sensor Included: No
Fuel Type: Gasoline / Ethanol / Methanol / E85

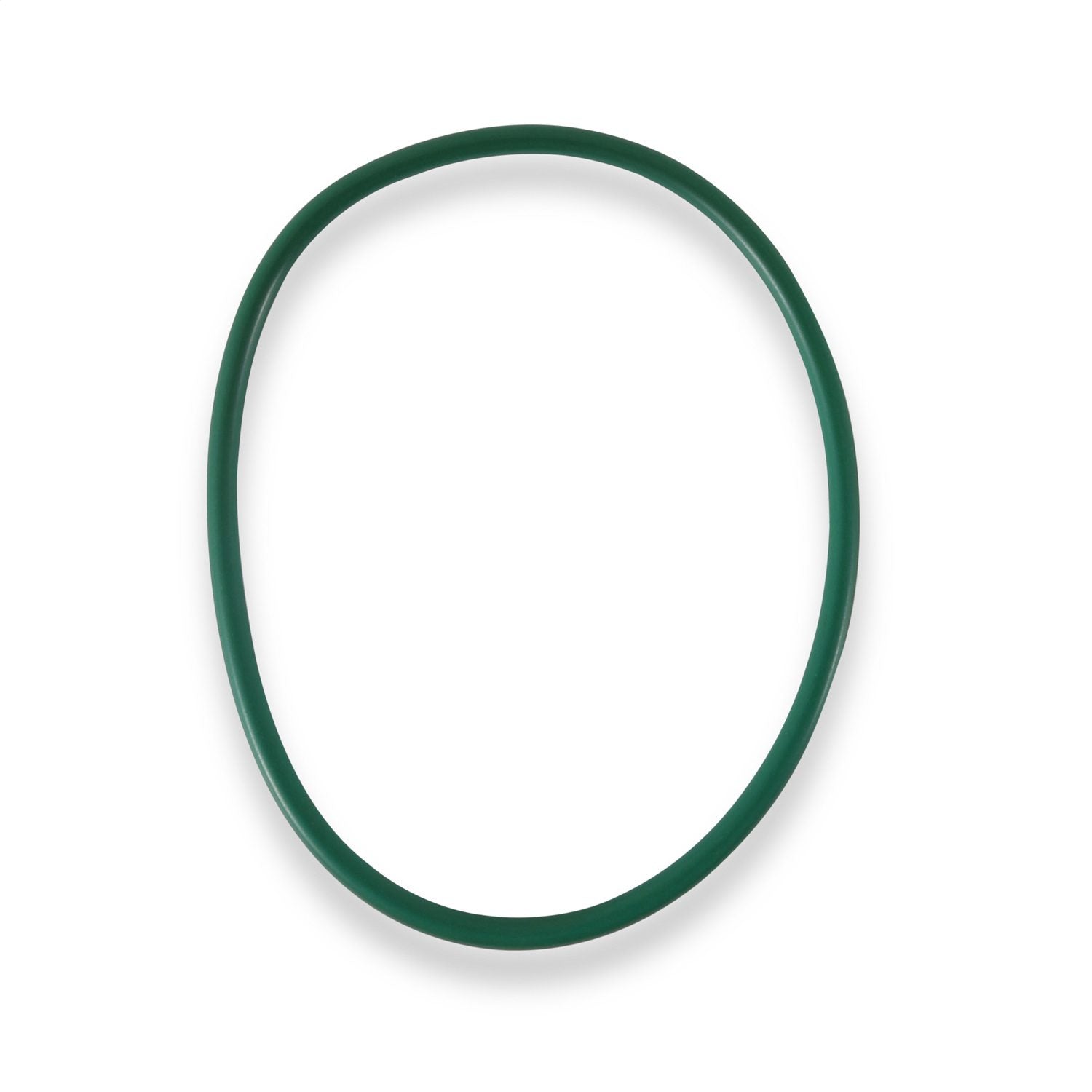

Gasket Or Seal Included: Yes
Gasket Or Seal Material: Rubber
Grade Type: Performance
Height: Standard
Housing Material: Plastic
In Tank or External: In Tank
Inlet Type: Barb
Internal Or External Strainer: External
Lock Ring Included: No
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Type: Barb
part type: Fuel Pump Module Assembly
Product Type: Fuel Pump Module
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 16
Resistance Ohms Full: 158
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Specific
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
