Holley - 12-946
255 LPH Drop-In Fuel Module Assembly
Drop In Fuel Pump Module Assembly; Free Flow GPH 67; Free Flow LPH 255;
Holley now offers a line of high performance Drop-in fuel modules to cover a wide ranges of vehicles from sports cars to pickup trucks. These Drop-in modules have been designed to the highest quality standards to provide increased performance and fuel efficiency for most stock, turbo, and supercharged applications capable of supporting 600+ horsepower.

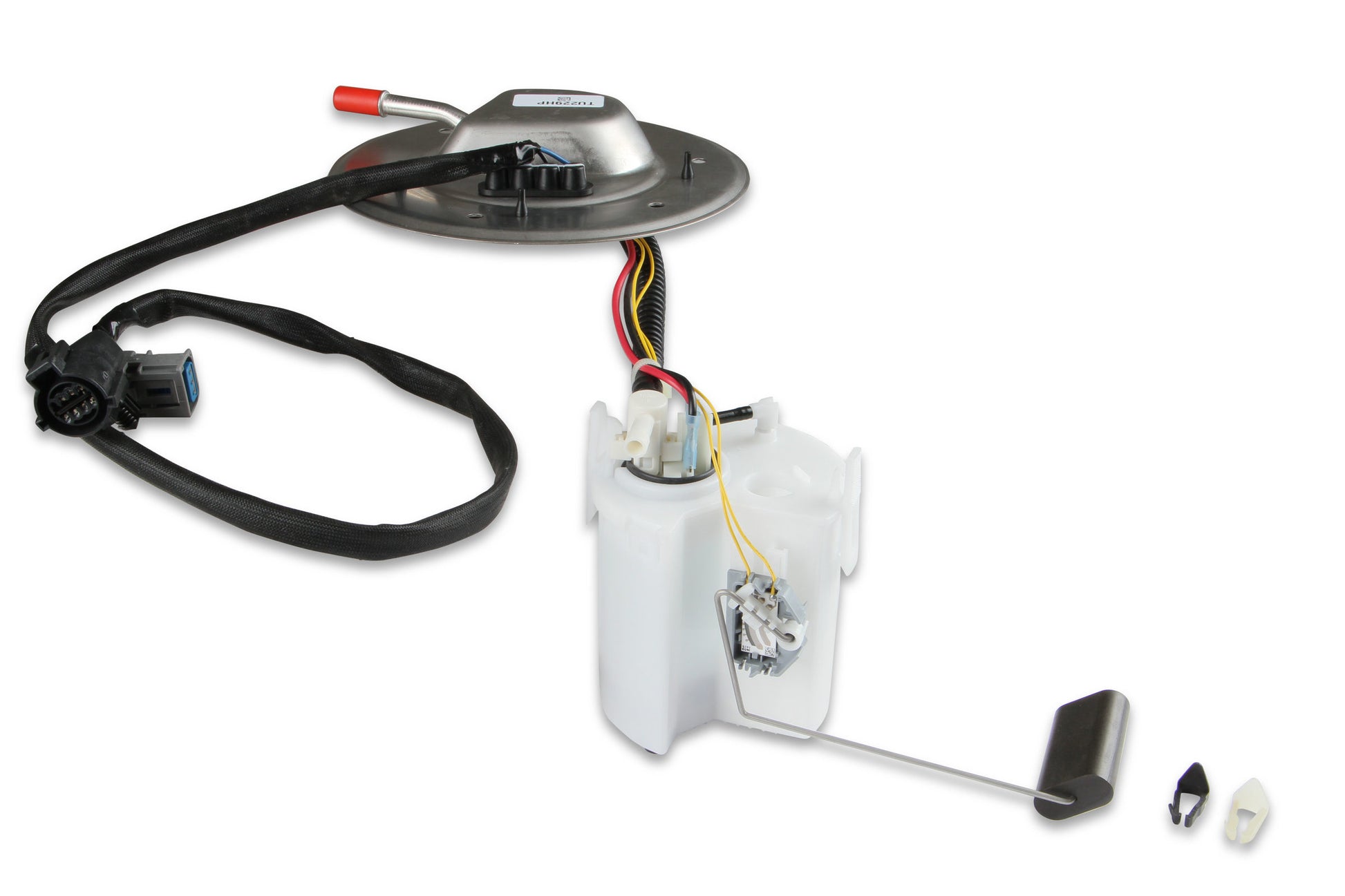

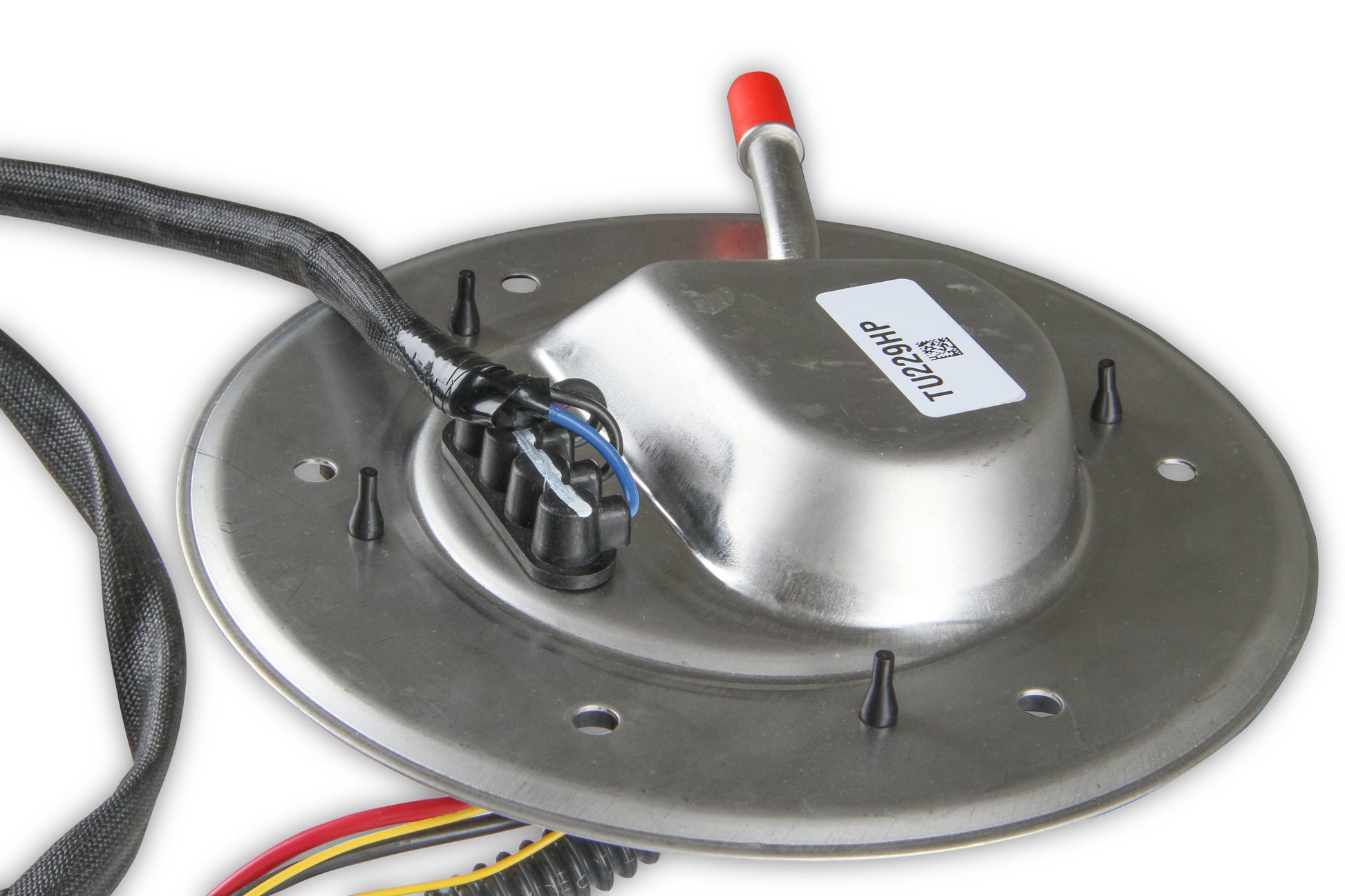

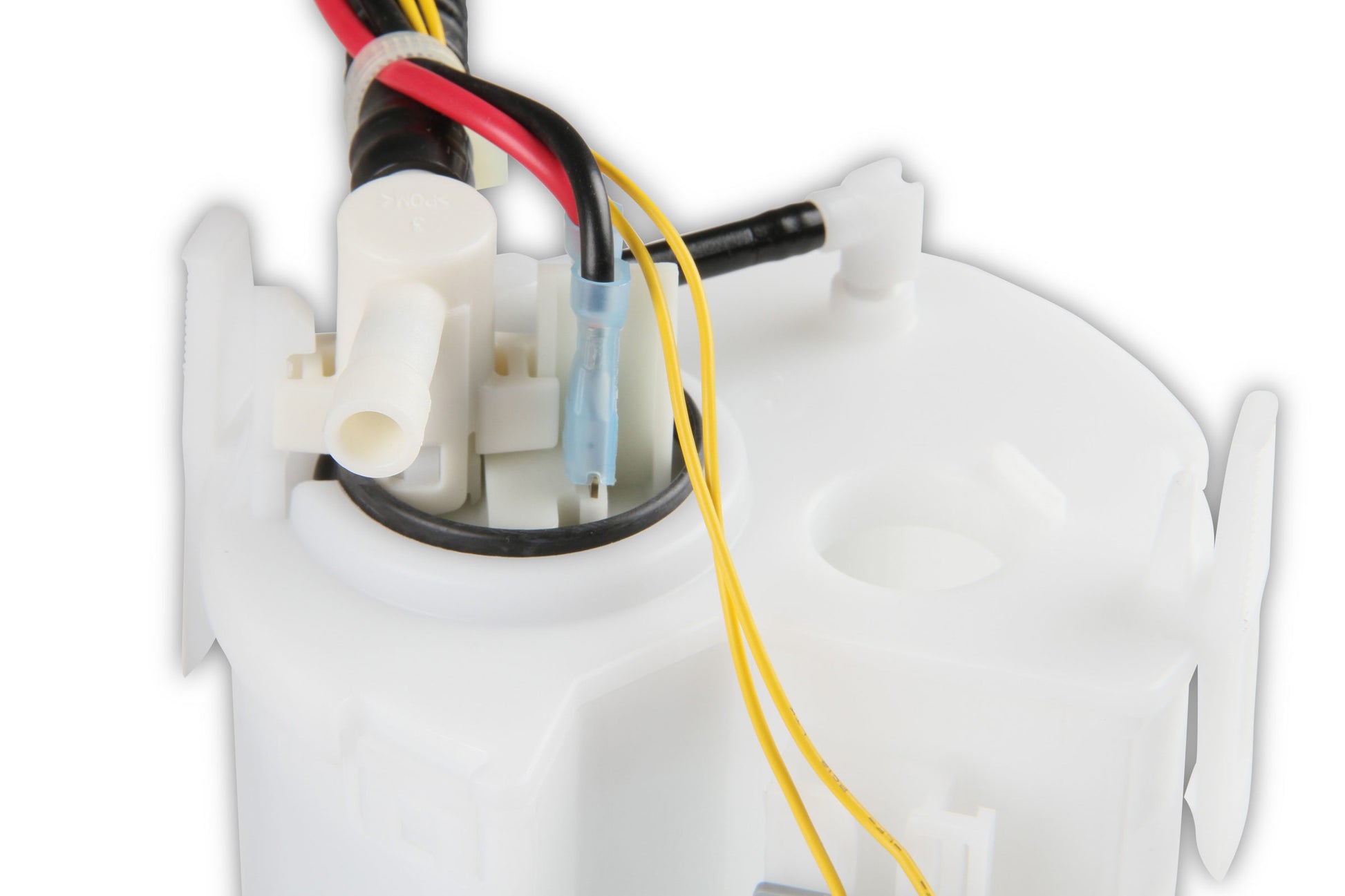

- Complete Drop-In Fuel Module Assembly
- Integrated Fuel Storage and Filtration Technology

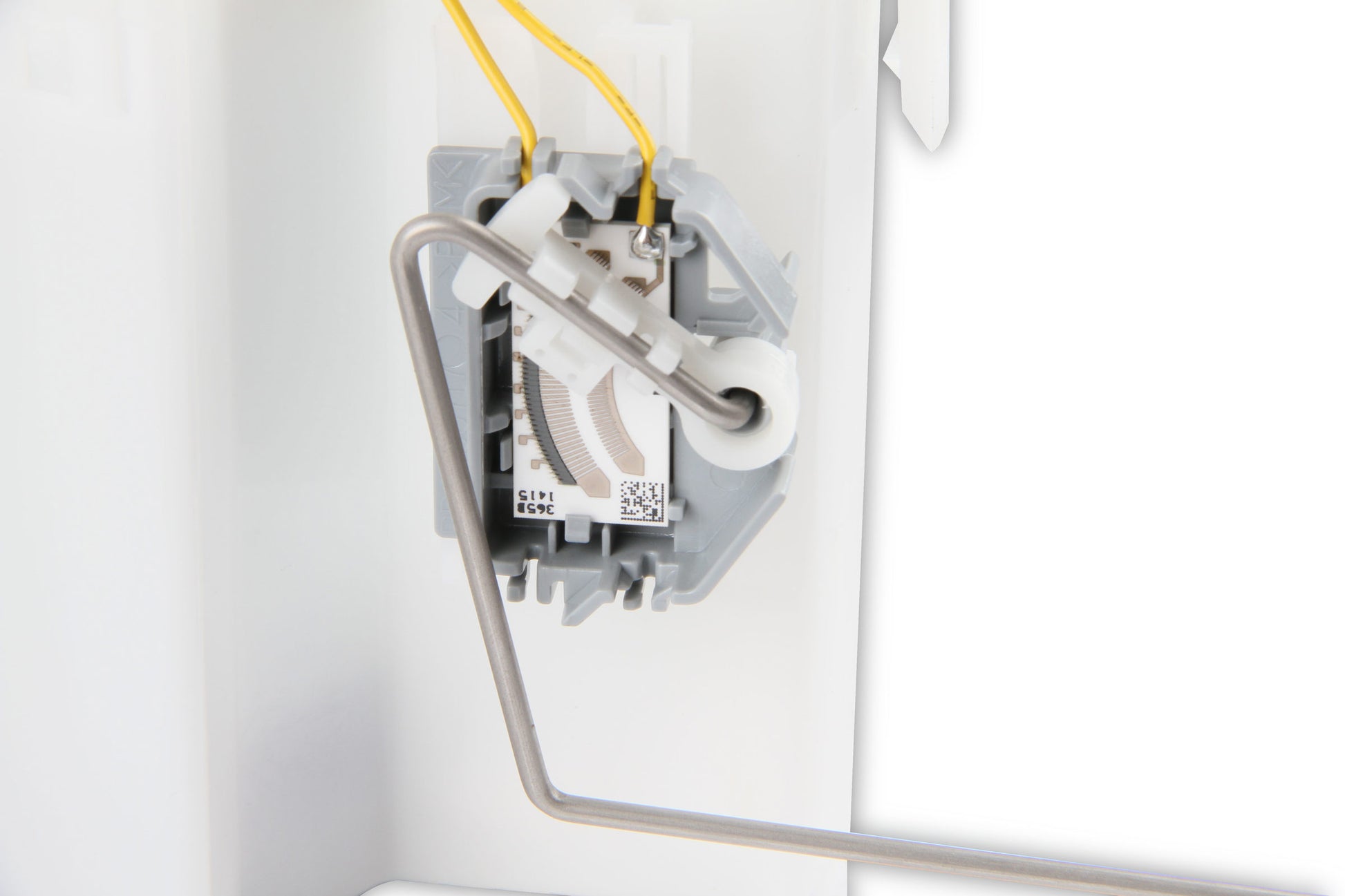

- Built In Pre-Calibrated Fuel Level Sensors

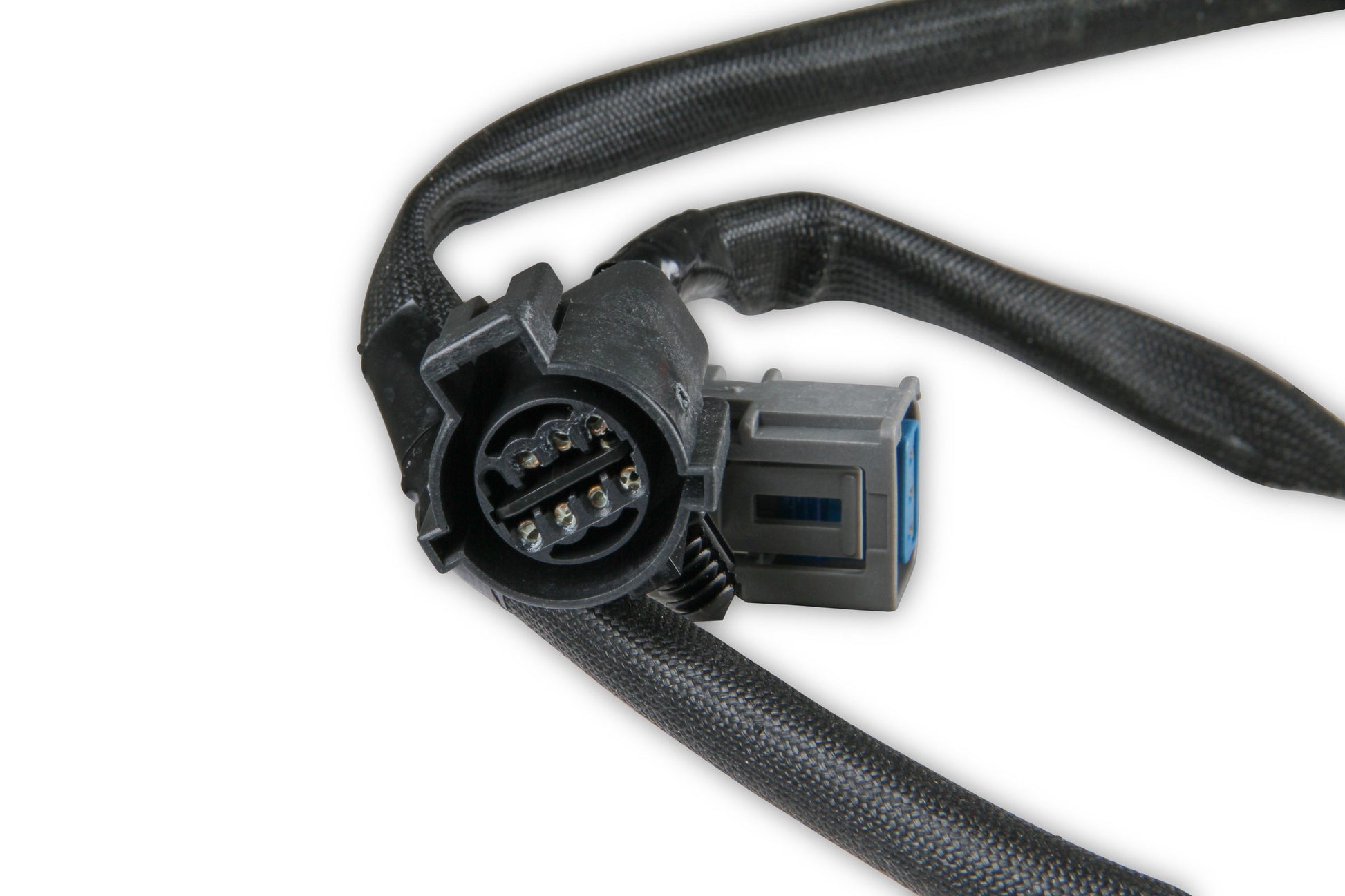

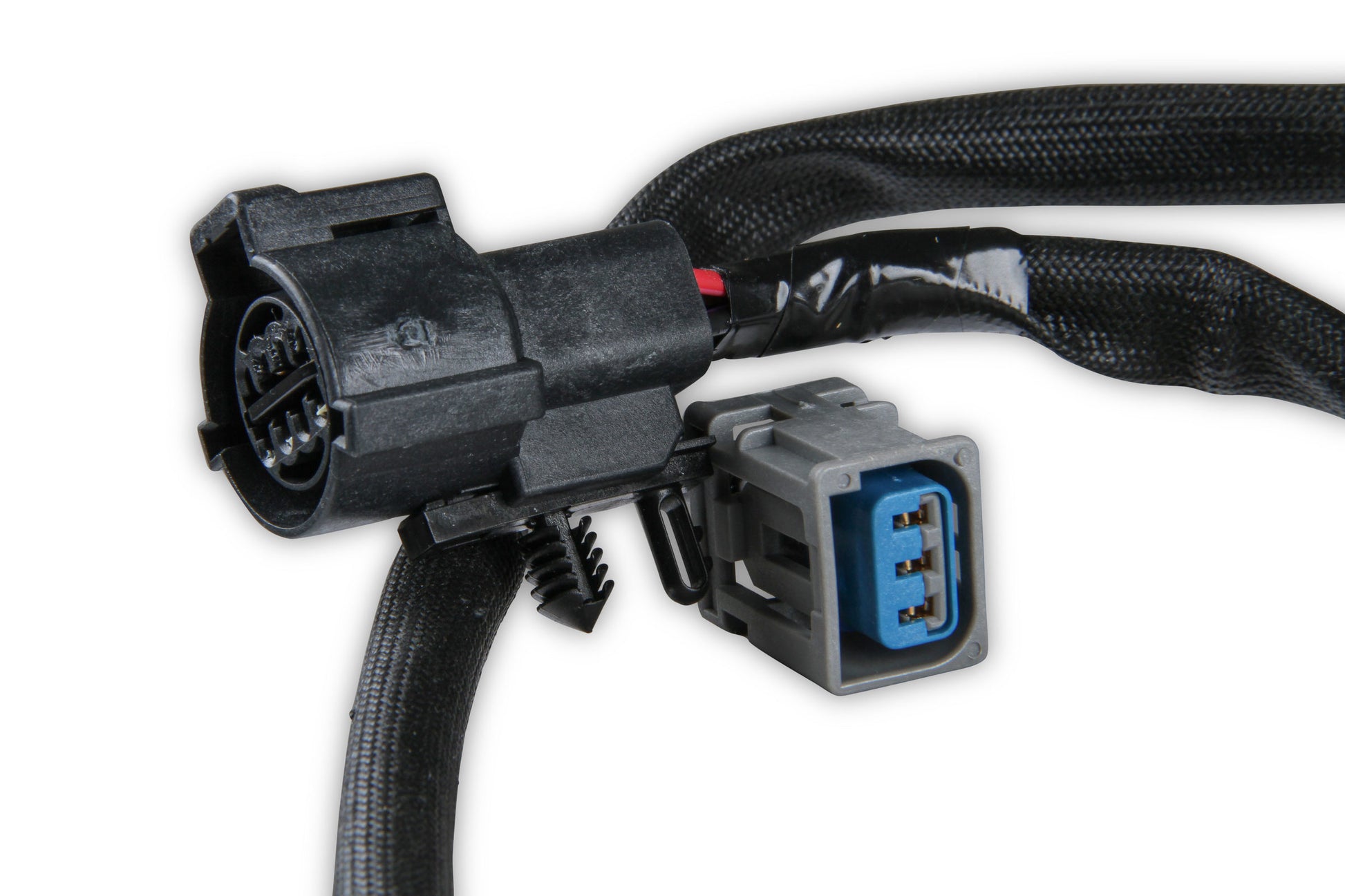

- Plug and Play Wiring Harnesses
- Capable Of Supporting 600+ Hp Right Out Of The Box
- Designed For Return Line and Pulse Width Modulation
Application: 2001-2004 Ford Mustang
Average Current Draw: 10.4
Average Flow Rating: 255
Brand: Holley
Category: Air and Fuel Delivery
Connector Color: Black
Connector Gender: Female
Connector Quantity: 1
Emission Code: 5
Free Flow GPH: 67
Free Flow LPH: 255
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Fuel System: EFI
Fuel Tank Pressure Sensor Included: No
Fuel Type: Gasoline
Gasket Or Seal Included: No
Grade Type: Performance
Height: Standard
Housing Material: Plastic
In Tank or External: In Tank
Inlet Quantity: None
Internal Or External Strainer: External
Lock Ring Included: No
Maximum Pressure: 60
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Quantity: One
Outlet Size: 5/16 Barb
Outlet Type: Barb
part type: Fuel Pump Module Assembly
Product Type: Fuel Pump Module
Pump Type: Electric
Regulator Included: No
Resistance Ohms Empty: 15
Resistance Ohms Full: 160
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Specific
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Harness Included: Yes
Wire Quantity: 4
