Holley - 12-920
Fuel Pump - Electric - In-Line - 80 gph at 15 psi - 3/8 in Hose Barb Inlet / Outlet - Silver - Gas - Each
In-Line Universal Electric Fuel Pump; Free Flow GPH 80; Free Flow LPH 303; Gasoline; 3/8 in. Barb Inlet/Outlet Size; EFI; Silver Steel Body/Black Bracket;

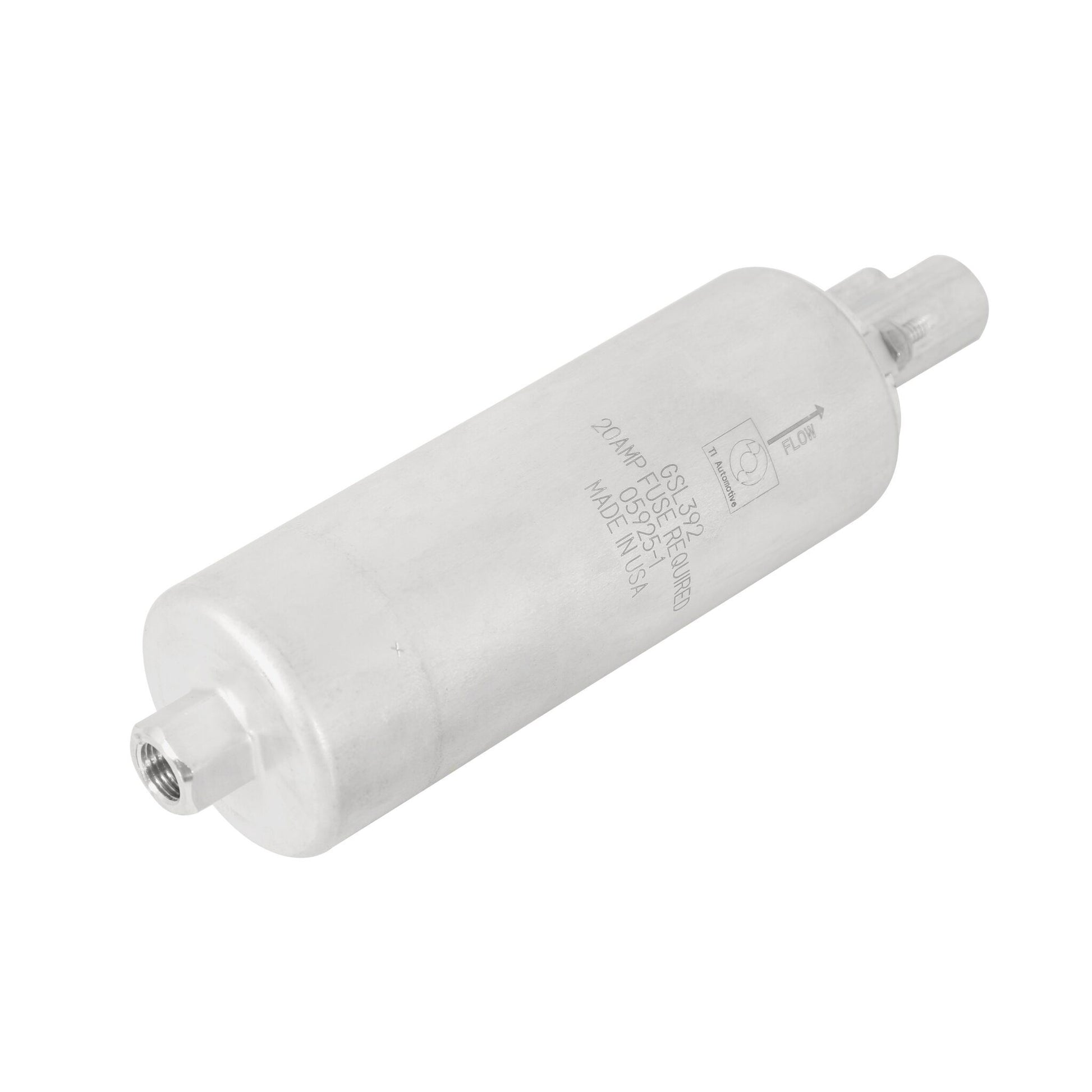

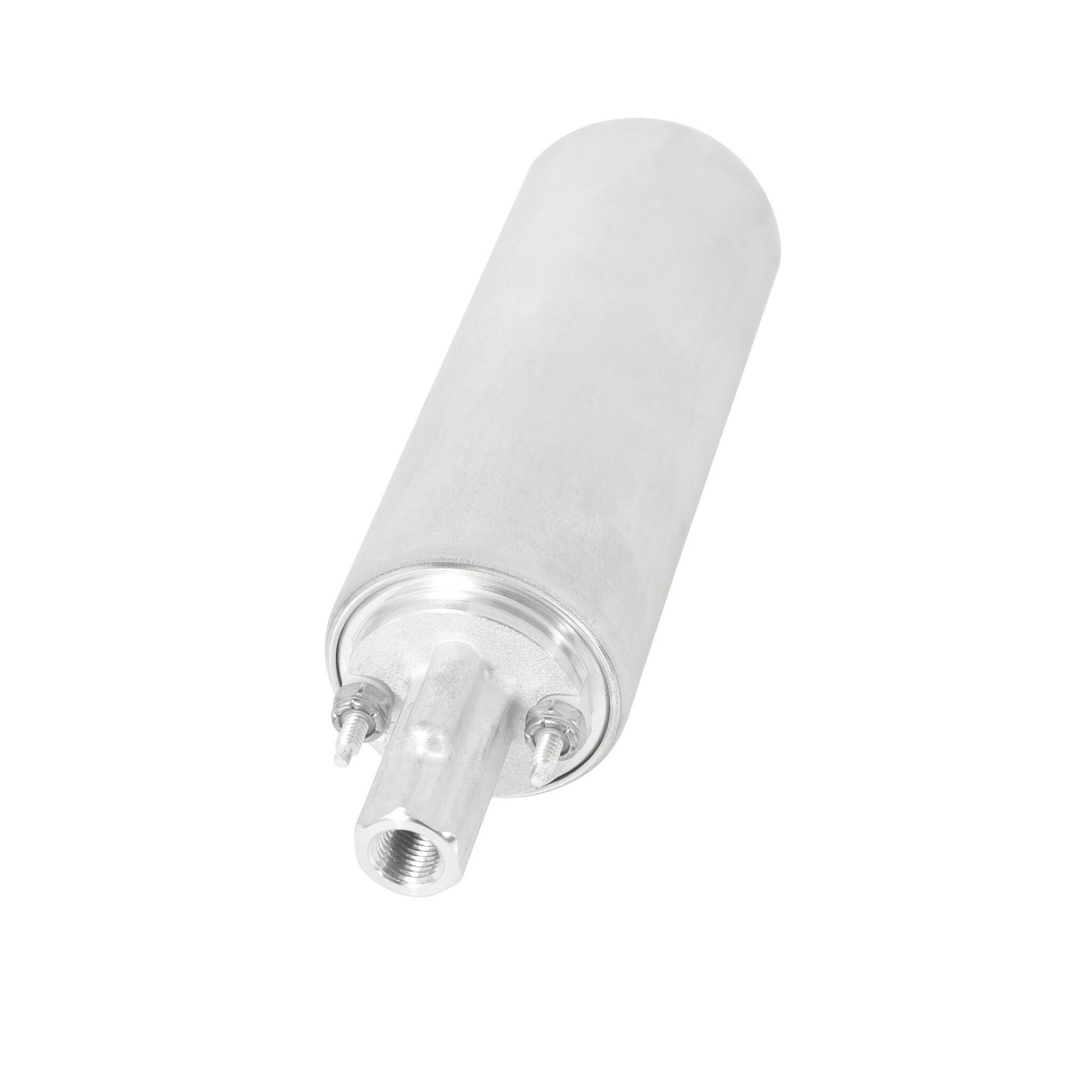

The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
- Draws 5 amps at 15 psi
- Will feed up to 800 horsepower throttle body EFI units
- Will feed up to 700 horsepower multipoint units
- Will feed up to 600 horsepower forced induction multipoint units
- OE proven design
- Lightweight and compact

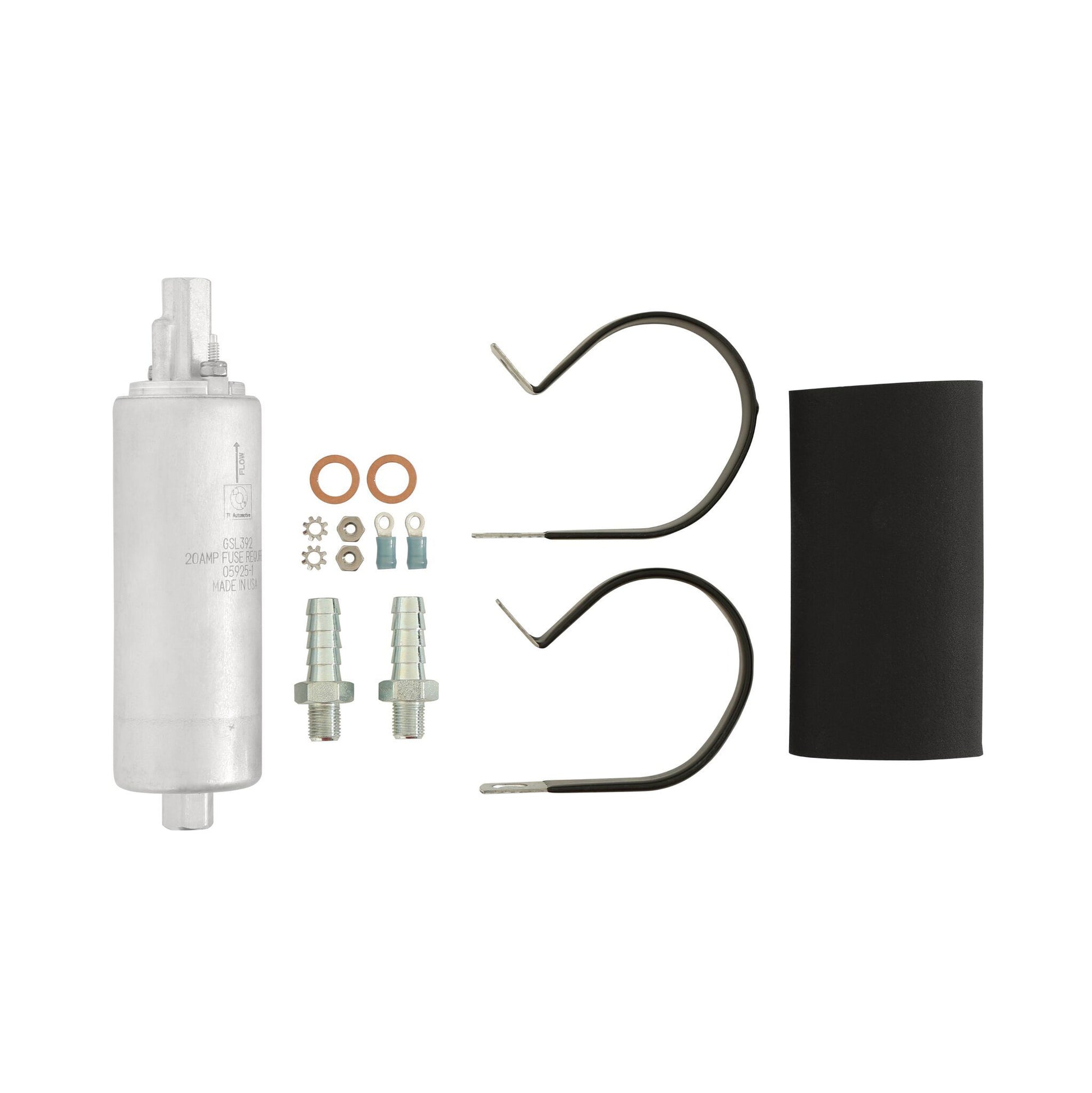

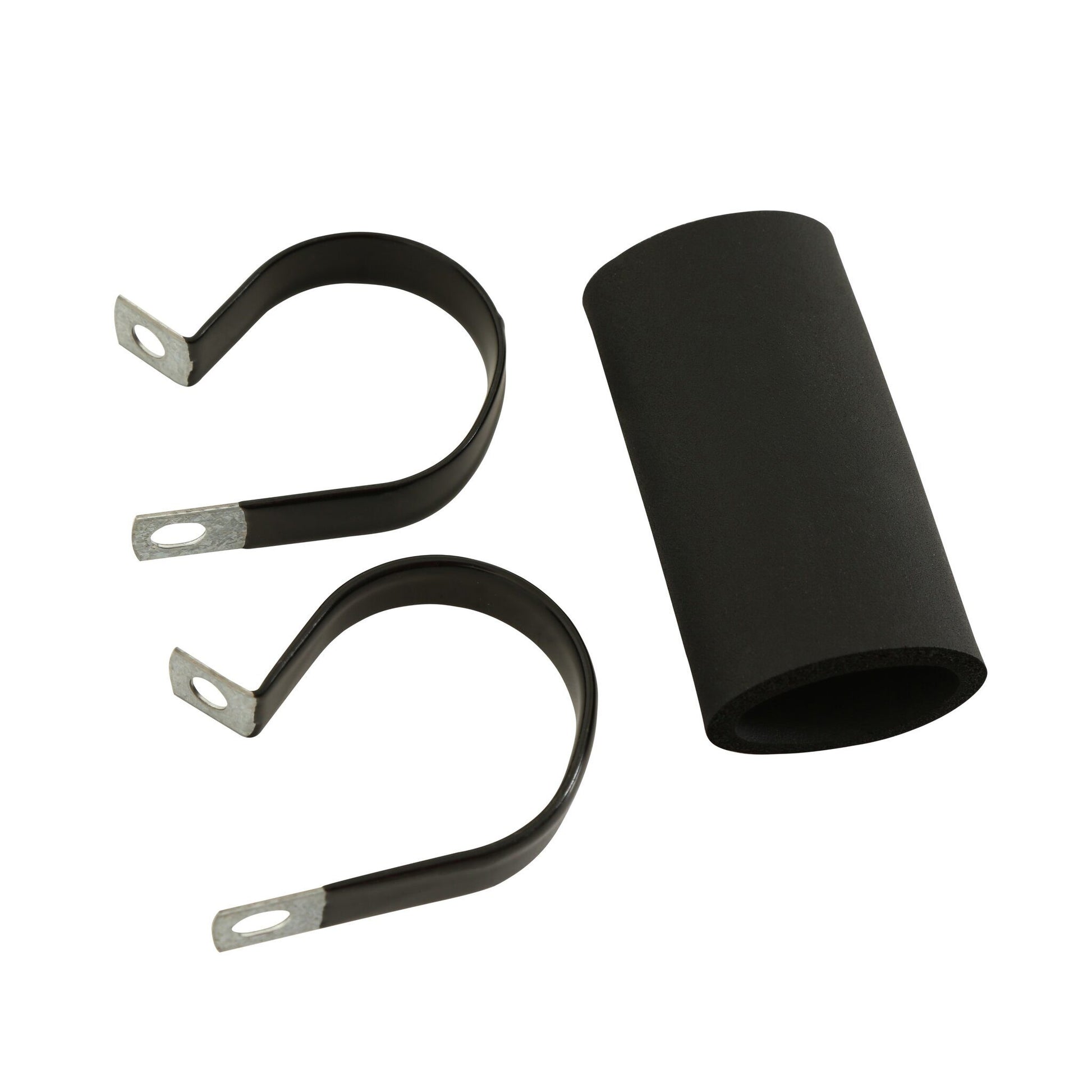

- Rubber isolator, mounting clamps and electrical hardware included

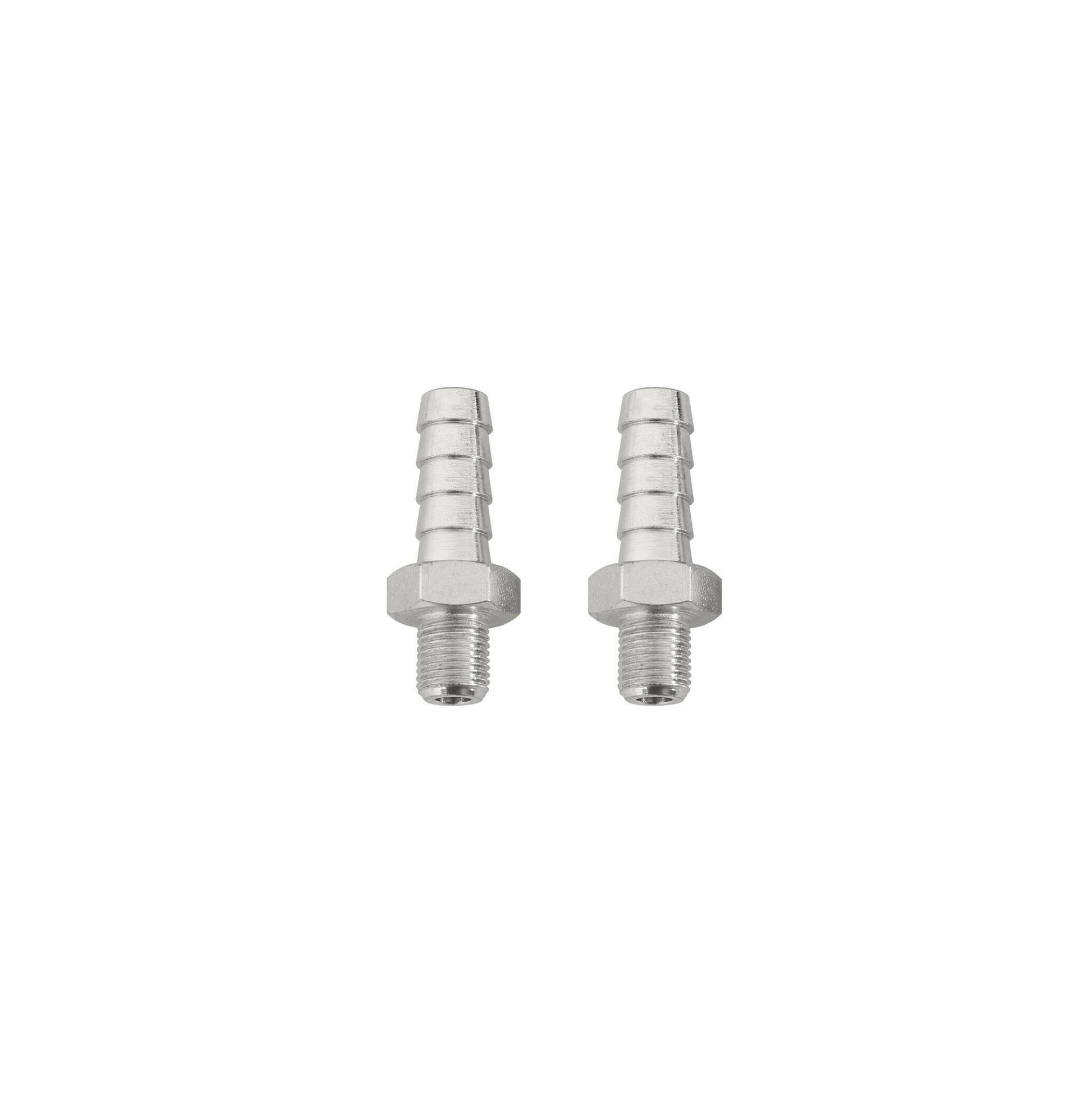

- 3/8" barbed fittings included
- Not designed for use on aircraft of any type.
Application: Universal
Bracket Color: Black
Brand: Holley
Category: Air and Fuel Delivery
Coast Guard Approved: Yes
Emission Code: 3
Forced Induction HP@43PSI: 600
Fuel Delivery Type: Fuel Injection
Fuel Delivery Type: Carburetor
Fuel Sending Unit Included: No
Fuel System: Carbureted
Fuel System: EFI
Fuel Type: Gasoline
Gasket Or Seal Included: No

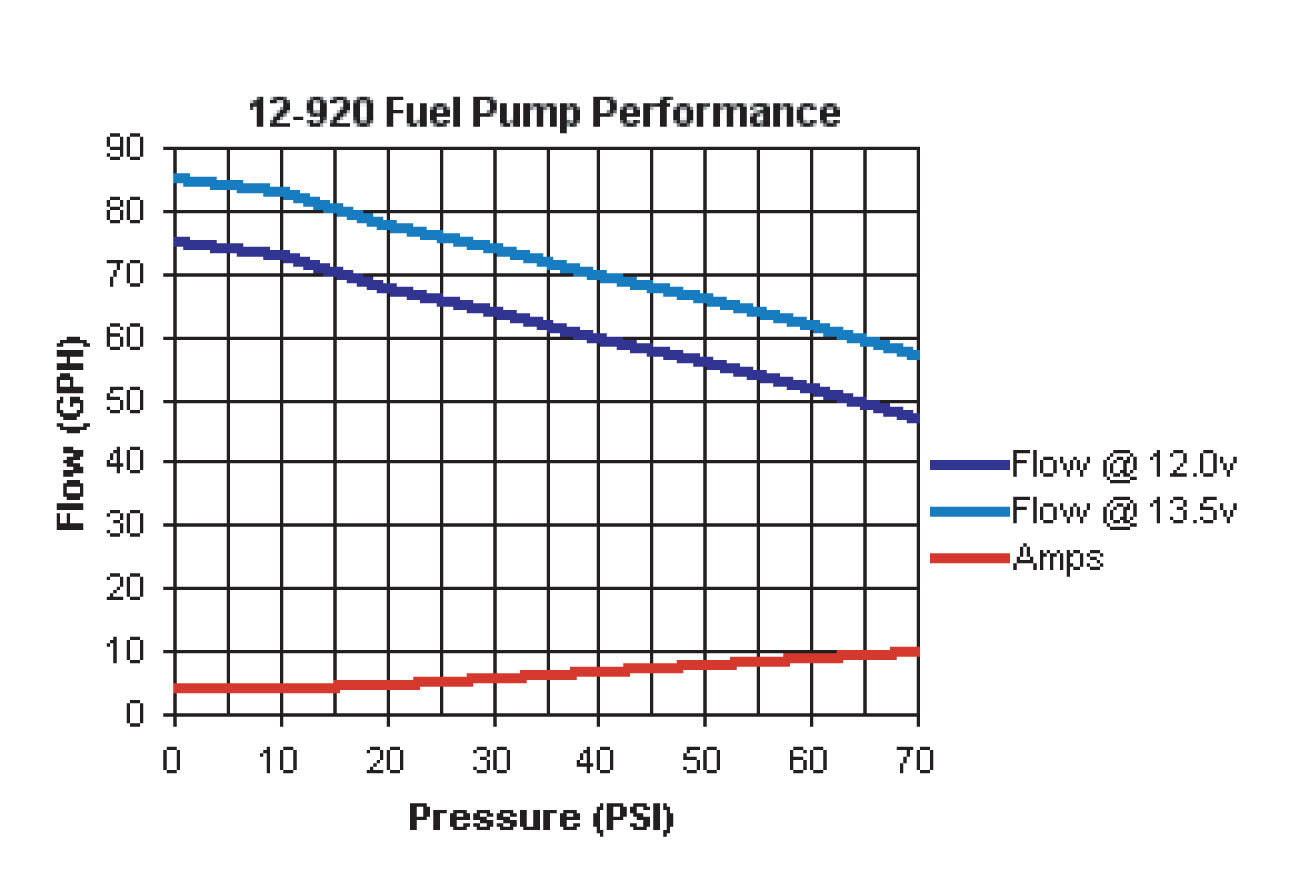

GPH@15PSI: 80
GPH@43PSI: 67
GPH@60PSI: 62
GPH@8PSI: 85
Grade Type: Performance
Inlet Fitting Thread Size: 10x1.0
Inlet Size: 10mm x 1.0
Internal Or External: External
LPH@15PSI: 302
LPH@43PSI: 254
LPH@60PSI: 235
LPH@8PSI: 322
Material: Steel
Maximum Flow Rating: 85
Maximum Pressure: 60
Naturally Aspirated HP@15PSI: 800
Naturally Aspirated HP@43PSI: 700
Naturally Aspirated HP@8PSI: 850
Negative Ground: Yes
Outlet Fitting Thread Size: 10x1.0
Outlet Quantity: 1
Outlet Size: 10mm x 1.0
part type: Electric Fuel Pump
Product Type: Fuel Pump
Pump Body Color: Silver
Regulator Included: No
Sub Category: Fuel Pumps and Related Components
Universal Or Specific Fit: Universal
Voltage: 12
Warning: California Proposition 65
Warranty: Manufacturer's Limited 90 Day Warranty
Wire Quantity: 2
